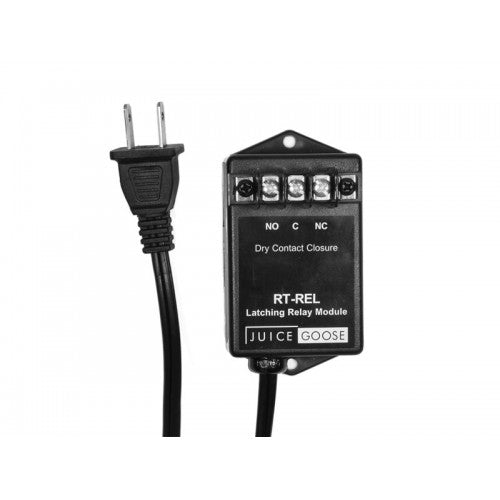

RT-REL AC current dry contact relay trigger

The RT-REL is used to extend the use of a switched electrical outlet on a rack
mounted power strip, sequencer or other devices. It can be used with any product that requires contact closure activation.

From the Manufacturer:

Plug the power cord of the RT-REL into a switched AC outlet.

In its unpowered state, there is an internal contact between the C (common) and NC (normally closed) terminals on the unit. When 120VAC power is applied to the power cord, connection is opened between C and NC and closed between C and NO (normally open).

A common application for the RT-REL is to extend the use of a switched electrical outlet on a rack mounted power strip or sequencer or on some other device such as an audio receiver or amplifier. When plugged into the switched outlet the RT-REL can close and open a dry contact on the three position terminal strip.

Specifications:

• CHASSIS

• Durable Plastic (Black)

• DIMENSIONS (Inches)

• .3 x 2 x 1

• WEIGHT (Ounces)

• 4.8

• POWER CABLE

• .3 Feet, 18/2 AWG with NEMA 5-15P

• RELAY CONTACT RATING (Amps)

• 10
