RTA-M

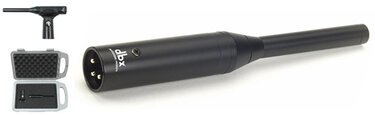

The RTA-M is an omni-directional measurement microphone designed for use with dbx DriveRack processors for real-time audio analysis and system tuning. It features a flat frequency response from 20 Hz to 20 kHz, runs on phantom power, and includes a clip and carrying case.

From The Manufacturer:

The optional RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA series (PA, PX, PA+, PA2) and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments.

The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz , ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case.

Features:

• Polar Pattern :

• omni-directional

• Element :

• back electret-Condenser

• Frequency Response :

• 20 Hz - 20 kHz

• Impedance :

• 250 30% (at 1,000Hz)

• Sensitivity :

• -63 dB +-3 dB ( 0 dB=1V/ microbar 1,000 Hz indicated by open circuit )

• Operating Voltage :

• phantom power 9V-52VDC

Specification:

• Element

• Back Electret Condenser

• Polar Pattern

• Omnidirectional

• Frequency Range

• 20 Hz ~ 20,000Hz

• Impedance

• 250 Ω ± 30% (@ 1KHz)

• Operating Voltage

• 9~52V DC Phantom Power

• Sensitivity

• -63 dB ± 3 dB (0 dB=1V/microbar 1,000 Hz indicated by open circuit)

• Dimensions

• Ø10(mic head) x 145(L) mm

Included:

• DriveRack RTA Mic

• Mic Clip
