Sku: RX50

RX50 Surge protection in a slim line chassis

$440.00
$440.00
Sold out
Shipping calculated at checkout.
Vendor: Juice Goose

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The RX50 improves the performance of electronic components and protects against power surges. It will protect your gear and improve performance.

From the Manufacturer:

The RX 50 features the non sacrificial Juice Goose Hybrid Filter Technology to improve performance of electronic components and protect against dangerous power line surges on the hot, neutral and ground power leads.

Juice Goose RX Series technology reduces ground line (common mode) surges to a maximum of 0.50 (one half) volt. While ground line surges and disturbances don't typically cause catastrophic damage, they can result in operating failures and improper performance of digital processing equipment.

The non sacrificial Hybrid Filter Technology also protects against more dramatic events. Connected equipment is safe from surges up to 6,000 volts at 3,000 amps on between hot and neutral. The RX Series circuitry allows a maximum 10.0 volt normal mode surge.

The RX Series will not contaminate the ground. Instead, it cleans it up.

RX 50 FEATURES

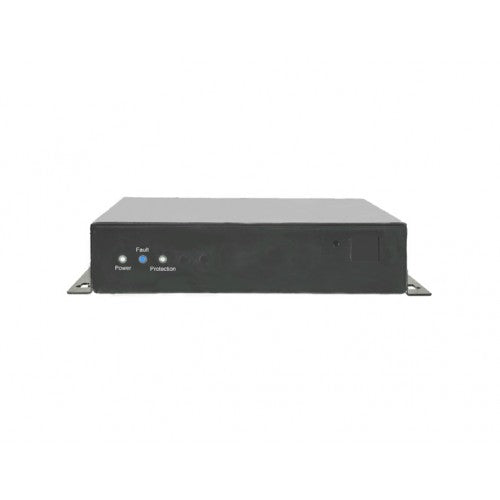

Slim line RX 50 measures only 1.75”H x 9”W x 9.5”D. It has three NEMA 5-15R receptacles to connect and protect multiple components in a small space.  LEDs on the front indicate power connection, external wiring faults and protection OK status.

Features

  •    15 Amp Capacity

  •     Maximum 10 Voltage Surge Between Line and Neutral

  •     Maximum 0.50 Voltage Surge on Ground

  •     High Frequency Normal and Common Mode Noise Filtration

  •     Over Voltage Shutdown

  •     Protection Against External Wiring Faults

  •     Three power receptacles

Specifications:

  • Chassis

    • 16 gauge steel

  •  Dimensions (including mounting flange)

    • 1.75”H x 9”W x 9.5”D

  • Weight

    • 6 lbs

  •  Circuit Breaker (thermal)

    • 15A

  •  Technical Current Rating

    • 12A

  •  Power Output

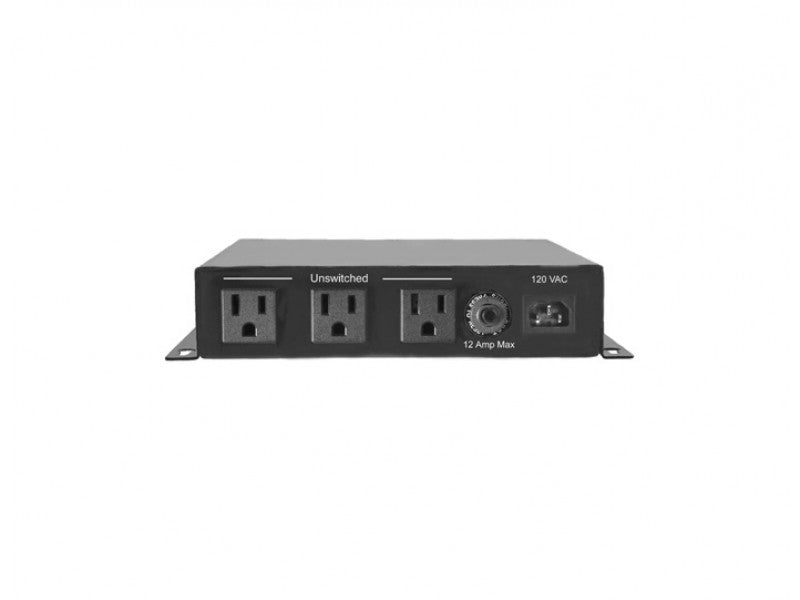

    • Three unswitched NEMA 5/15R

  •  Power Input

    • Detachable NEMA 18 AWG power cord with right angle plug

  •  Input Voltage

    • 120 VAC @ 60Hz

  •  LED Indicators

    • power, external fault (RX model only), protection status
