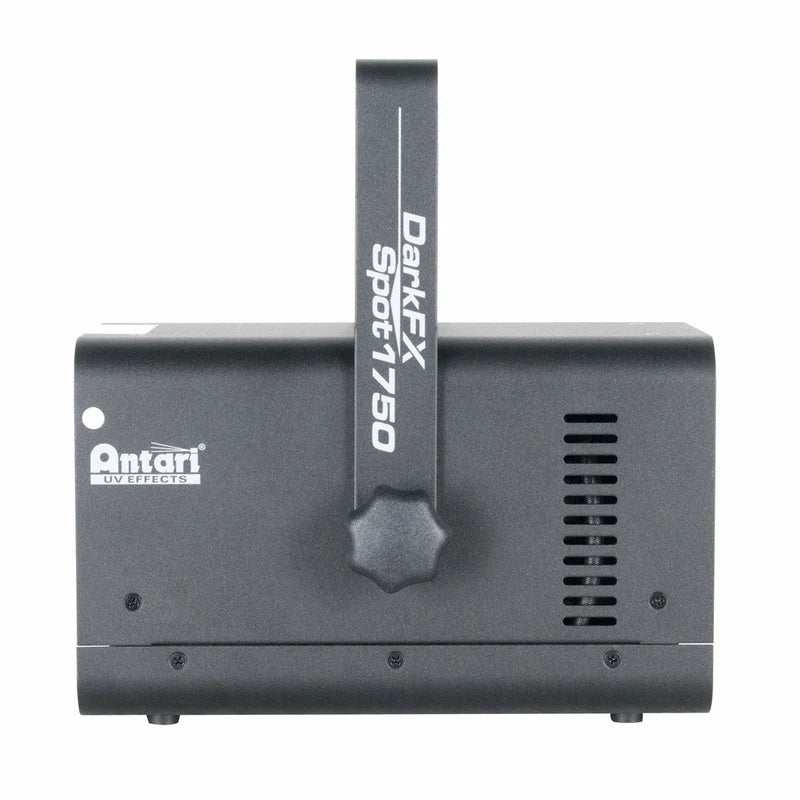

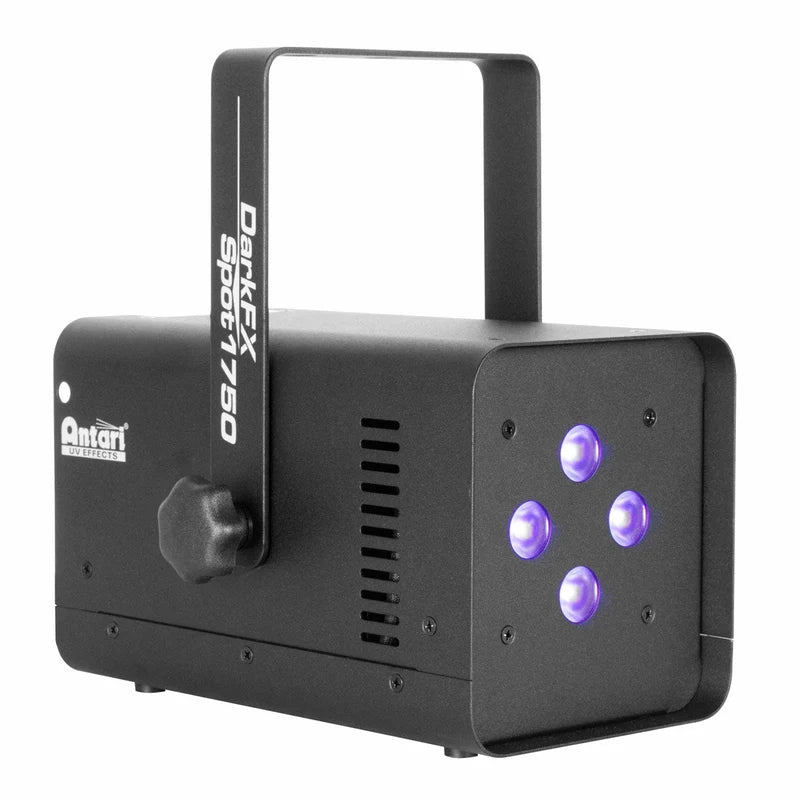

DarkFX SPOT 1750

The Antari DarkFX SPOT 1750 is a high-powered, long-throw UV LED fixture designed for professional stage, entertainment, attraction, and installation applications. Using four powerful 16 W UV LEDs with a 365 nm peak wavelength, it produces intense ultraviolet output with minimal visible light. DMX512 and RDM support provide convenient integration into professional lighting systems.

From The Manufacturer:

DarkFX Spot 1750 is a professional-grade lighting solution. The Antari DarkFX Spot 1750 is a high output low power consumption UV LED spot delivering a UV wavelength of 365nm and radiant flux output of 19,080mW at full intensity with minimum visible light.

Key Features:

• High-powered, long-throw UV spot fixture

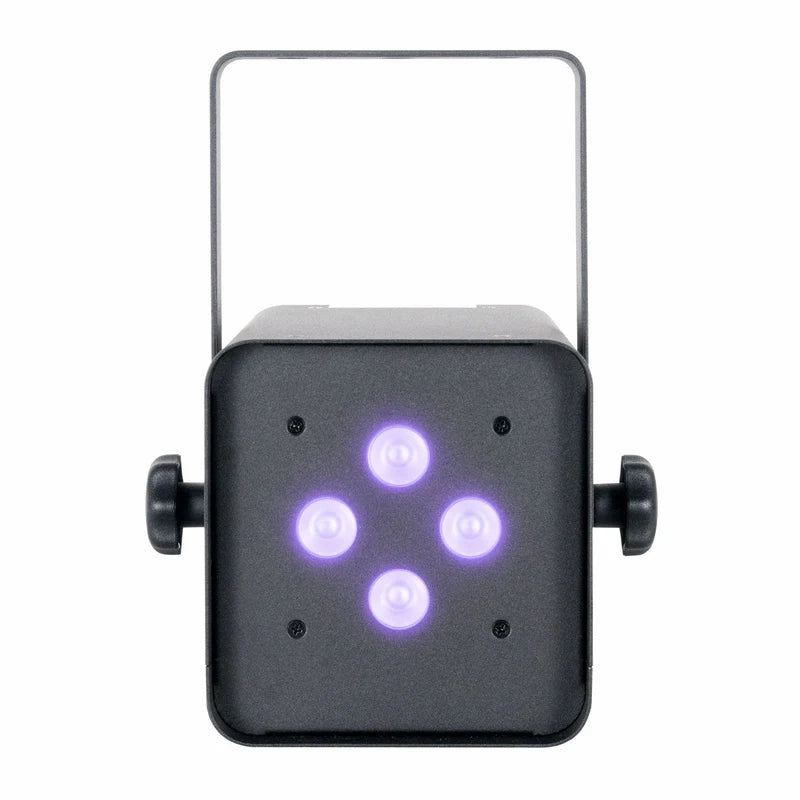

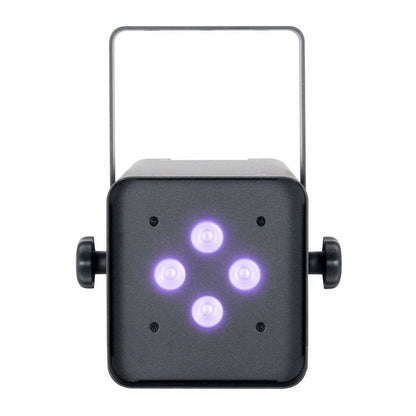

• 4 × 16 W high-power UV LEDs

• 365 nm peak wavelength

• 19,080 mW radiant flux at full intensity

• Minimal visible light emission

• Special optics designed to withstand high UV exposure

• Flicker-free operation

• 600 Hz refresh rate

• RDM support

• DMX512 control

• Manual control

• 2 DMX channels

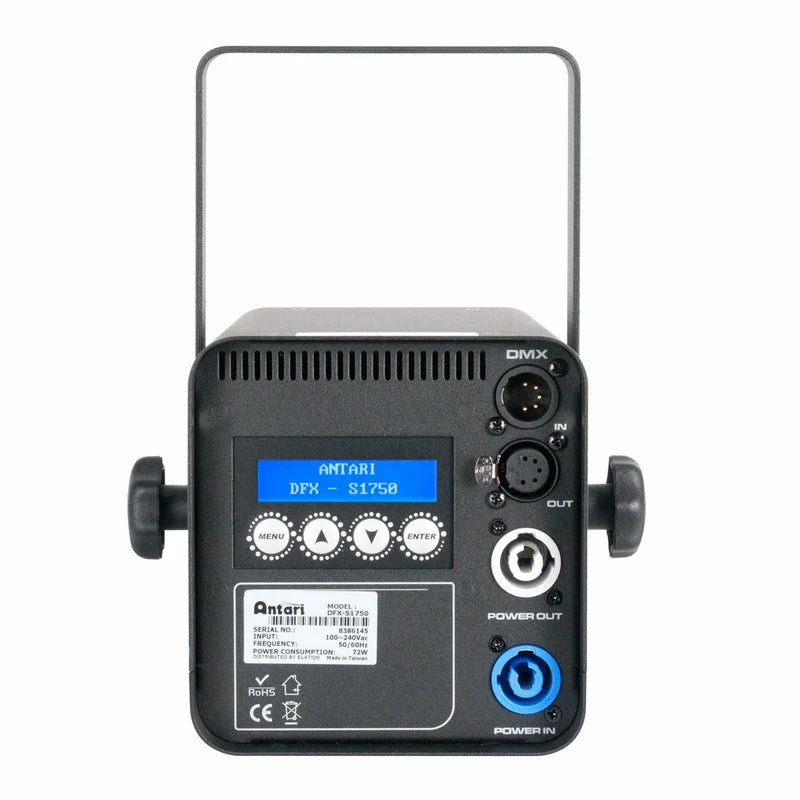

• Neutrik powerCON power connection

• 5-pin XLR DMX connections

• Rugged metal housing

• IP20 rated for indoor use

Specifications:

• Product Type: High-Powered UV LED Spot Fixture

• Manufacturer: Antari

• Series: DarkFX

• Model: SPOT 1750 / S-1750

• Elation SKU: AUV175

• Light Source: 4 × 16 W High-Power UV LEDs

• Peak Wavelength: 365 nm

• Radiant Flux: 19,080 mW at Full Intensity

• Optics: 20°

• Refresh Rate: 600 Hz

• LED Life: 20,000 Hours L70 @ 25°C

• Control Protocols: DMX512 / RDM / Manual

• DMX Channels: 2

• DMX Connection: 5-Pin XLR

• Power Connection: Neutrik powerCON

• Housing: Metal

• Protection Rating: IP20

• Installation Environment: Indoor

Applications:

• Concerts and touring

• Stage productions

• Theatre

• Theme parks

• Haunted attractions

• UV-reactive environments

• Art installations

• Clubs and entertainment venues

• Film and television

• Professional event production

Included Accessories:

• Manufacturer package contents may vary by region

Accessories (Not Included):

• DMX cable

• Lighting clamp

• Safety cable

• Additional powerCON cables

Size:

• 235 × 197 × 248 mm

• 9.26 × 7.76 × 9.77 in

Weight:

• 3.2 kg

• 7.06 lb

Electrical/Thermal:

• Input Voltage: AC 100–240 V, 50/60 Hz

• Rated Power Consumption: 72 W

• Ambient Operating Temperature: 0°C to 40°C

• LED Life: 20,000 Hours L70 @ 25°C

• Protection Rating: IP20

• Indoor Use Only

Tags:

1. Antari

2. DarkFX

3. SPOT 1750

4. UV Fixture

5. Blacklight

6. Long Throw UV

7. Stage Lighting

Information Notes:

• Antari is the manufacturer; Elation also distributes/lists the fixture as the Antari DarkFX Spot 1750, SKU AUV175.

• Antari's published material lists RDM, DMX512 and Manual control.

• There is a discrepancy in Antari's documentation regarding beam angle: marketing material describes a 15° narrow beam, while the technical specification lists 20° optics. The technical specification value of 20° is used above.
