306PMKII

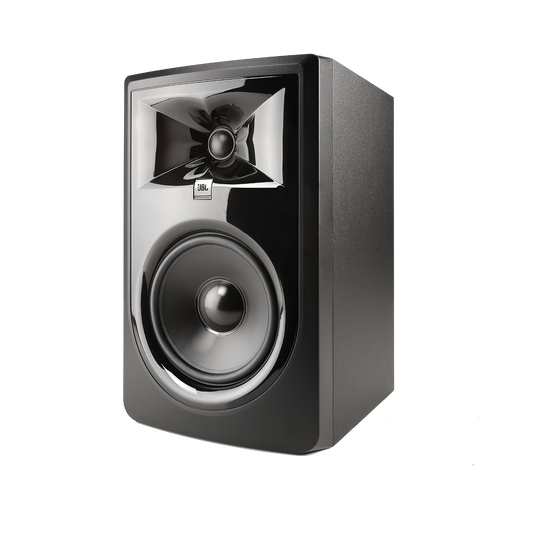

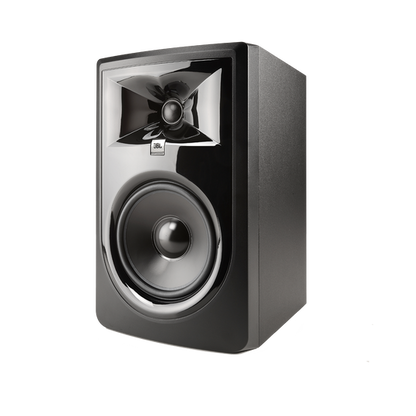

The JBL 306P MkII is a powered 6" two-way studio monitor with impressive sound in a sleek, modern design.

From the Manufacturer

The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio.

With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace.

 Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

Features

• Patented Image Control Waveguide: For detailed imaging and a broad, room-friendly sweet spot
• Next-generation JBL transducers: For optimized transient response and improved linearity
• New Boundary EQ settings: Compensate for low frequency variants introduced by the environment
• 3-Position HF Trim Switch: Adjusts high-frequency output to room acoustics or personal preferences
• Patented Slip Stream low-frequency port: For superior bass performances at all playback levels
• Dual integrated, custom Class-D amplifiers: Provide 112 watts of power for high output and dynamic range
• Flexible connectivity: With balanced XLR and ¼” TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
• Engineered to JBL Linear Spatial Reference design criteria: For outstanding accuracy in any working space
• Strenuous JBL 100-hour full-power test: Ensures years of reliability
• Sleek, modern design: Provides a visual upgrade to any studio

 Specifications

• LF Driver Size: 165 mm (6.5")
• HF Driver Size: 25 mm (1")
• HF Driver Type: Soft dome
• Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
• Power Configuration: Bi-amplified
• HF Driver Power Amp: 56 W Class D
• LF Driver Power Amp: 56 W Class D
• Frequency Response: 47Hz – 20kHz (±3dB)
• Frequency Range: 39Hz – 20kHz (-10dB)
• Low Frequency Extension: 39Hz (-10dB)
• Maximum Continuous SPL: 92dB
• Maximum Peak SPL: 110dB
• Maximum Peak Input Level: +6dBV / +20.3dBu (-10dBV / +4dBu)
• System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Pattern: 120° x 90° (horizontal x vertical)
• HF Trim Control: -2dB, 0dB, +2dB
• Boundary EQ: LF Shelf @ 50Hz
• AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz
• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-molded structural ABS

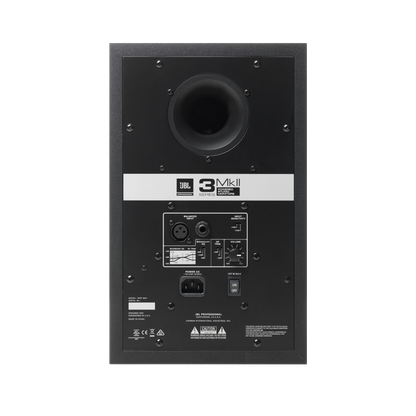

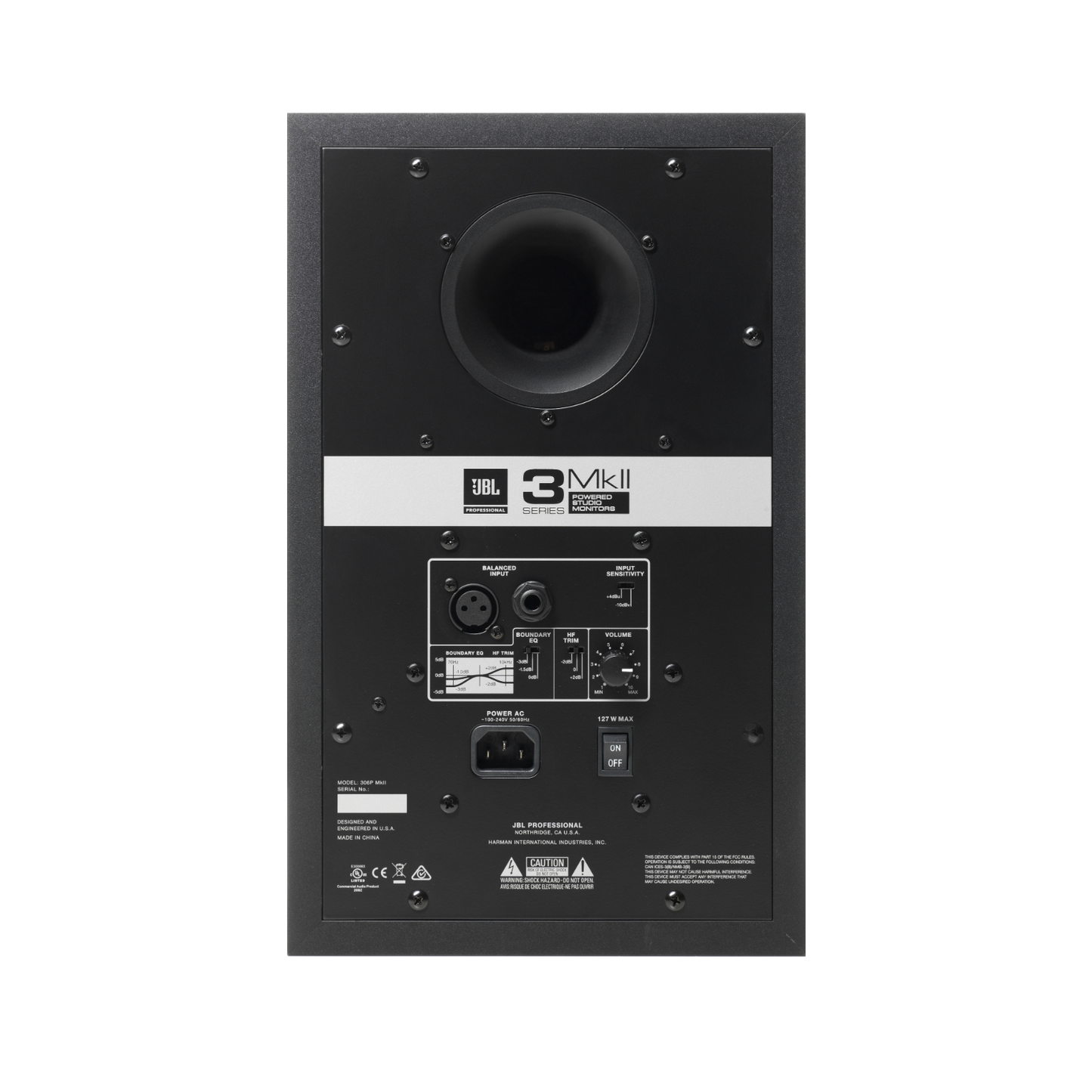

• Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
• Input Sensitivity: 92dB / 1m (-10dBV Input)

Dimensions

• Height: 361 mm (14.2")
• Width: 224 mm (8.8")
• Depth: 282 mm (11.1")
• Net Weight: 6.1 kg (13.42 lbs)
