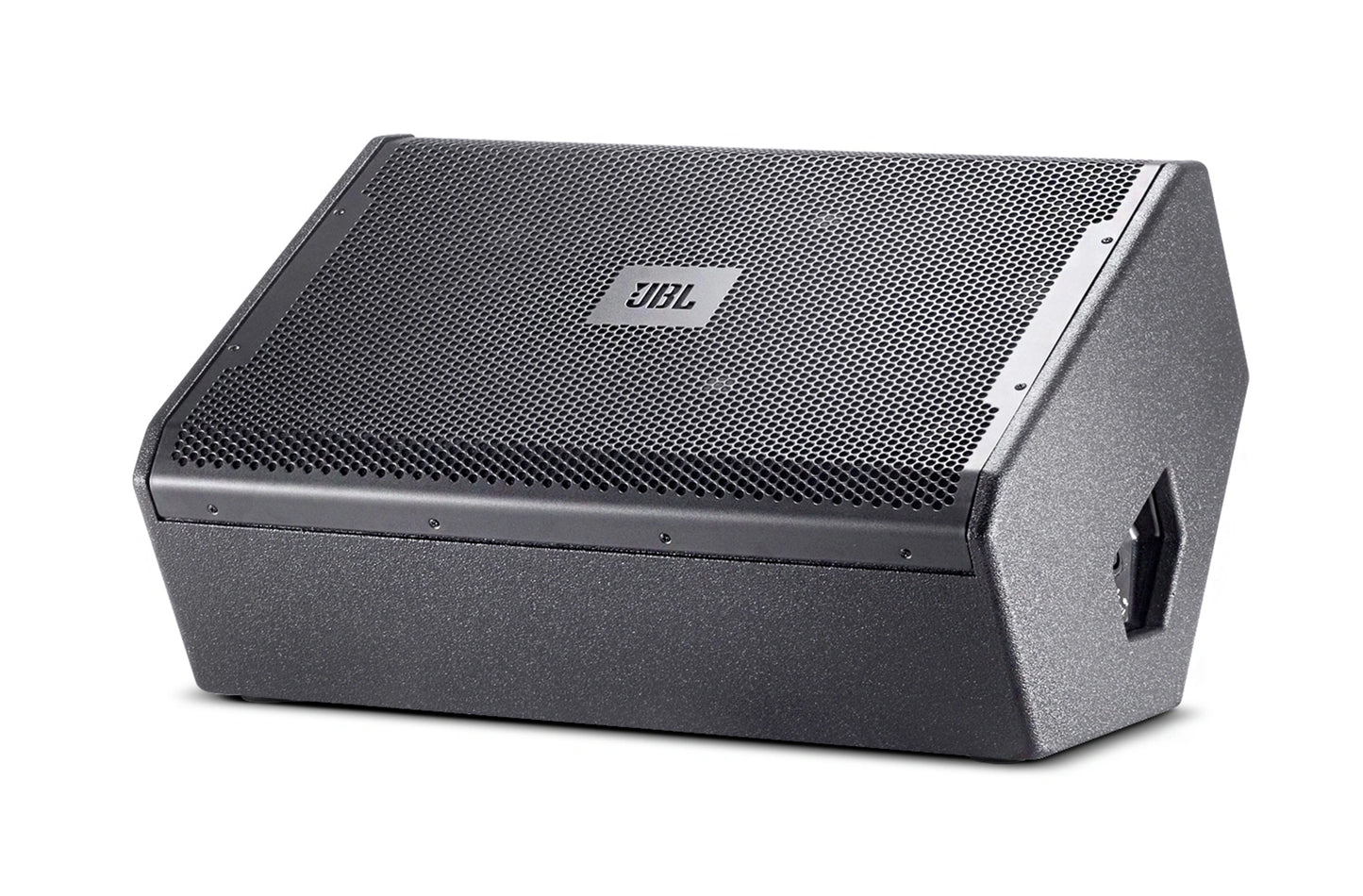

VRX915M

The VRX915M is a professional 15 inch 2 way stage monitor.

Features:

• Compact and low-profile for minimal obstruction of audience sightlines

• 50° x 90° nominal coverage

• Bi-amplified or full-range passive operation

• Differential Drive® woofer with neodymium magnet for high power capacity and very light weight

• 4" (voice coil) diameter compression driver with neodymium magnet

Specifications:

• Power Rating

• 800 W

• Frequency Range (-10dB)

• 60 Hz - 20 kHz

• Dimensions (H x W x D)

• 629 mm x 432 mm x 324 mm (375 mm stage height)

• 24.75 in x 17 in x 12.75 in (14.75" stage height)

• Coverage Pattern (-6 dB)

• 50° x 90° nominal

• Crossover Modes

• Passive / Bi-amp

• Crossover Frequency

• 1.1 kHz

• Maximum SPL (1m)

• 127 dB SPL continuous (133 dB SPL peak)

• Sensitivity

• 98 dB SPL

• LF Driver

•  x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms

• HF Driver

• 1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and neodymium magnet

• Nominal Impedance

• 8 ohms

• Enclosure

• Symmetrical stage monitor, 15/18 mm, plywood

• Finish

• Black DuraFlex™ finish

• Grille

• Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing

• Inputs

• Neutrik® Speakon® NL-4 (x2), one on each end

• Net Weight (each)

• 21 kg (46.0 lb)

• Outputs

• 1 x XLR
