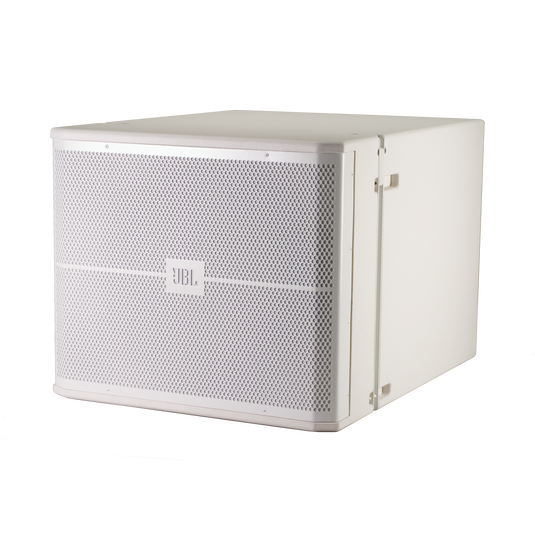

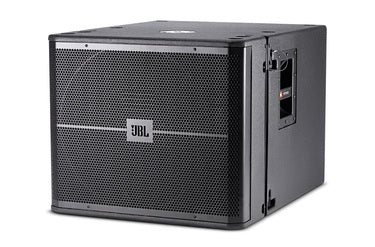

VRX918S

The VRX918S is a compact active flying subwoofer for installation o portable applications. It can be a helpful addition to your sound system where floor space is limited.

From the Manufacturer:

The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure.

Features:

• Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.

• 18 inch, 2268H Differential Drive® woofer for extended low-frequency output

• Large port area for reduced distortion

• 20 mm threaded pole socket for solid, secure satellite speaker mounting

Specifications:

• Power Rating

• 800 W / 1600 W / 3200 W

• Frequency Range

• 31 Hz – 220 Hz

• Dimensions (H x W x D)

• 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)

• Frequency Range (-10dB)

• 31 Hz – 220 Hz

• Recommended Crossover Frequencies

• 80 Hz, 24 dB / octave HPF80 Hz, 24 dB / octave LPF

• System Maximum SPL

• 130 dB SPL peak

• System Sensitivity (1w @ 1m)

• 95 dB SPL

• LF Driver

• 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer

• Nominal Impedance

• 8 ohms

• Active Tunings

• Tunings available at www.jblpro.com

• Enclosure

• Rectangular, 18 mm, 13-ply birch plywood

• Suspension / Mounting

• Optional VRX932LA-AF line array frame kit or 10mm eyebolt

• Finish

• Black DuraFlex™ finish

• Grille

• Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.

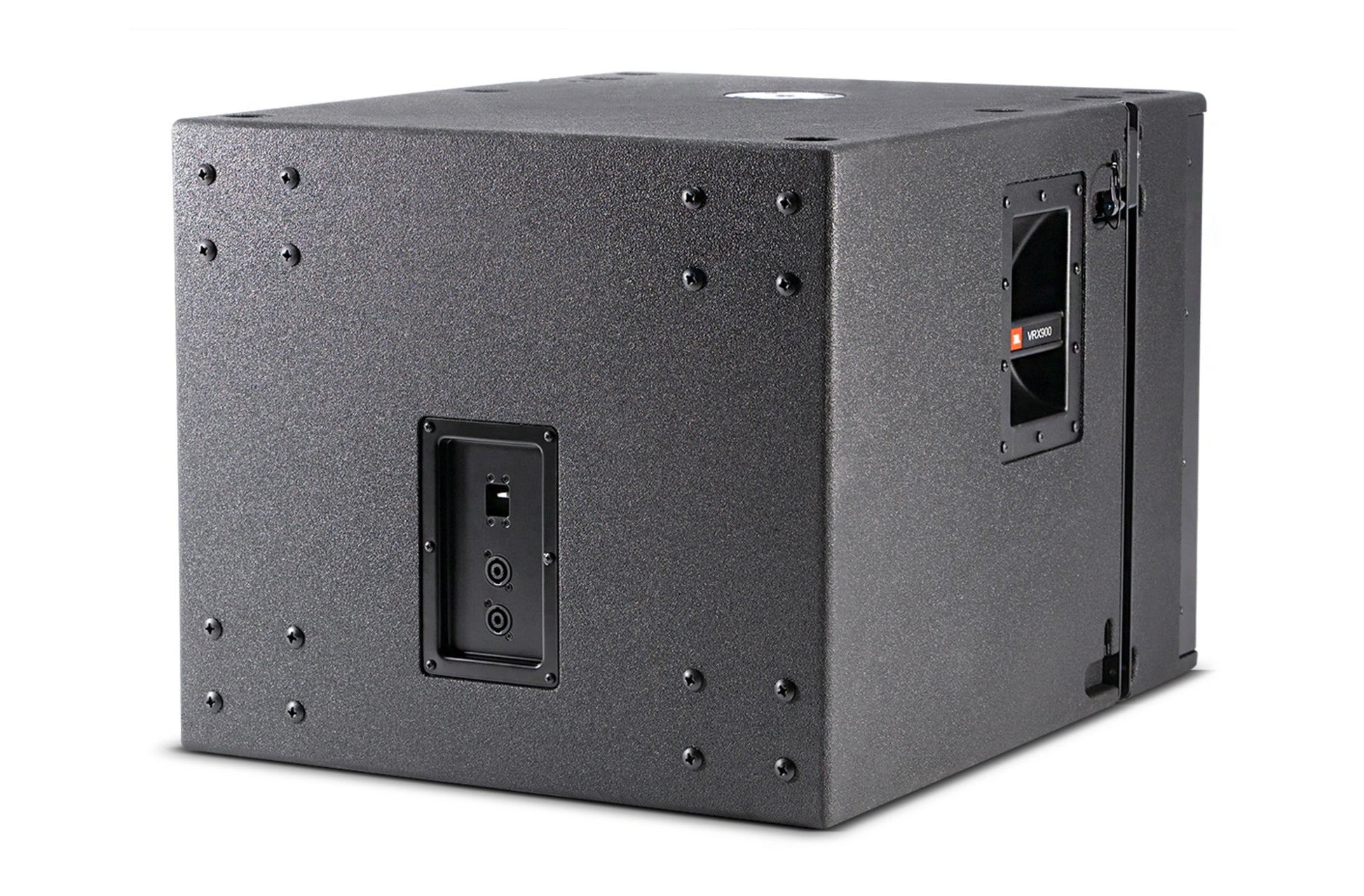

• Inputs

• Neutrik® Speakon® NL-4 (x2)

• Net Weight (each)

• 37 kg (81 lb)

• Optional Accessories

• SRX718S-CVR: Pull-over padded coverSS4-BK: Adjustable, heavy-duty pole, M20 thread to 35 mmWK-4: Caster kitVRX-AF: Array Frame KitM-10 eyebolt kit

• Outputs

• 1 x XLR
