VRX918SP

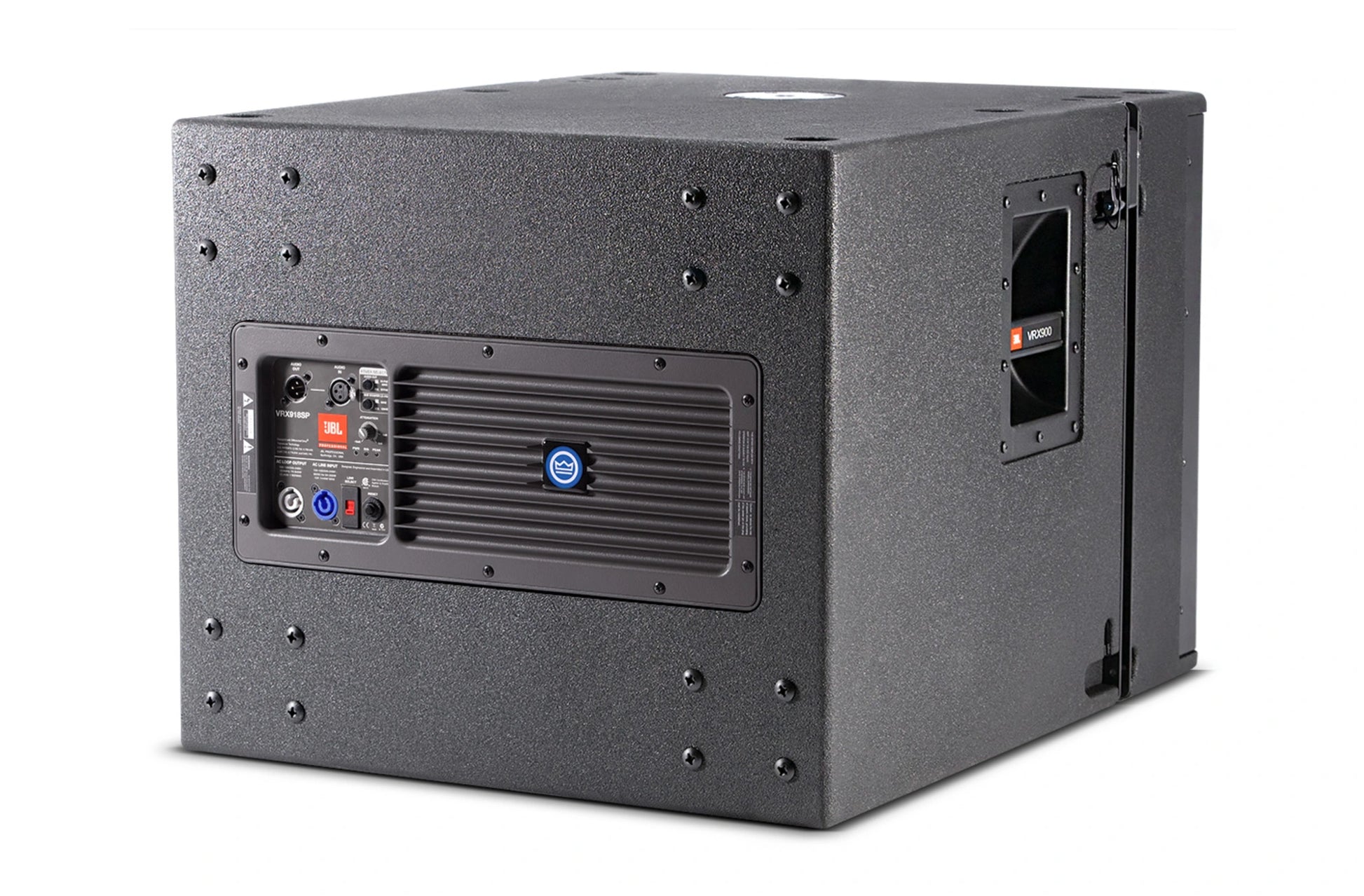

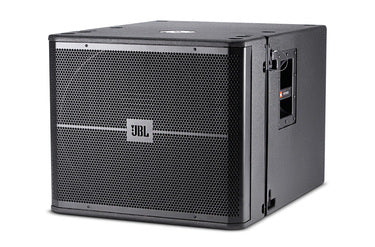

The VRX918SP is a single 18 flying subwoofer.  It is compact and portable and a great option for those situations where floor space is limited.

From the Manufacturer:

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Features:

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.

• 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and

• light weight.

• Integral rigging hardware for simple connection of enclosures and optional array frame.

• 20 mm threaded pole socket for solid, secure satellite speaker mounting.

• Large port area for reduced distortion.

Specifications:

• Power Rating

• 1500 Watts PeakLF: Dual-Bridged Technology™, Class D

• Frequency Range

• 31 Hz – 220 Hz

• Dimensions (H x W x D)

• 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)

• Frequency Range (-10dB)

• 31 Hz – 220 Hz

• Maximum Peak Output

• 126 dB SPL at 1m

• Bandpass Nominal Impedance

• LF: 2 x 2 ohms

• LF Driver

• 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet

• Inputs

• XLR with loop through

• User Controls

• Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.

• System Processing

• DSP based, resident in Input Module

• System Management

• DSP based limiters for mechanical and thermal protection

• AC Power Operating Range

• 90-132 VAC or 216-264 VAC, 50/60Hz

• AC Line Voltage

• User selectable: 120V/240V (-15%, +10%)

• AC Input Connector

• Neutrik PowerCon (NAC 3MPA)

• AC Loop Through Connector

• Neutrik PowerCon (NAC 3MPB)

• AC Current Requirements

• 6A per system at 120V, 3A per system at 240V

• Enclosure

• 18 mm birch plywood.

• Suspension / Mounting

• Optional VRX-AF line-array frame kit or 10 mm forged eyebolts

• Finish

• Black DuraFlex™ finish

• Grille

• Powder coated, black, 16-gauge perforated steel with acoustically transparent foam

• Net Weight (each)

• 38.5 kg (85 lb)

• Optional Accessories

• VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit

• Outputs

• 1 x XLR

• Nominal Impedance

• LF: 2 x 2 ohms
