VRX928LA

The VRX928LA is a scalable line array speaker system of up to 6 units per Line Array. It can be a great scalable option for production companies that cater for a wide variety of events.

From the Manufacturer:

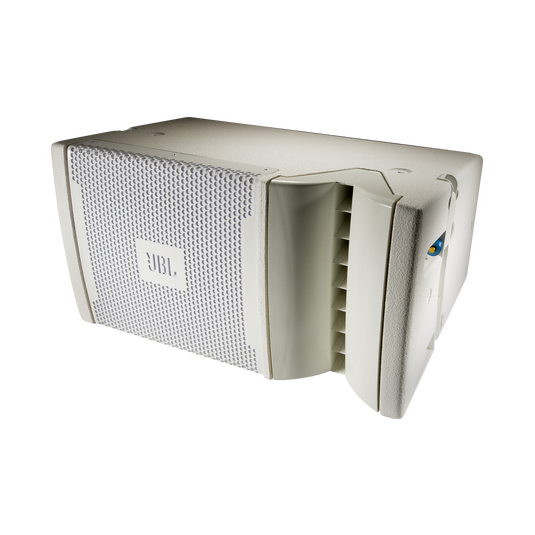

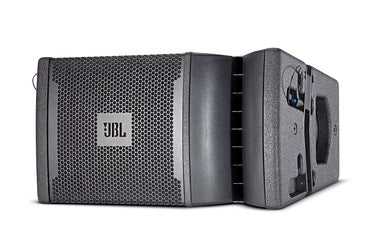

The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way linearray speaker system designed for use in arrays of up to six units.

Features:

• Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.

• Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.

• Suspension and Rigging.

• Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure

• (not on - WH version)

• Differential Drive® Woofer.

Specifications:

• Power Rating

• 400 W / 800 W / 1600W

• Frequency Range (-10dB)

• 70 Hz - 20 kHz

• Dimensions (H x W x D)

• 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)

• Coverage Pattern

• 100 x 15 nominal

• Frequency Response (±3 dB)

• 85 Hz - 19 Hz

• Crossover Modes

• Bi-amp / passive,

• Crossover Frequency

• 2.0 kHz

• Net Weight (each)

• 12.7 kg (28 lb)

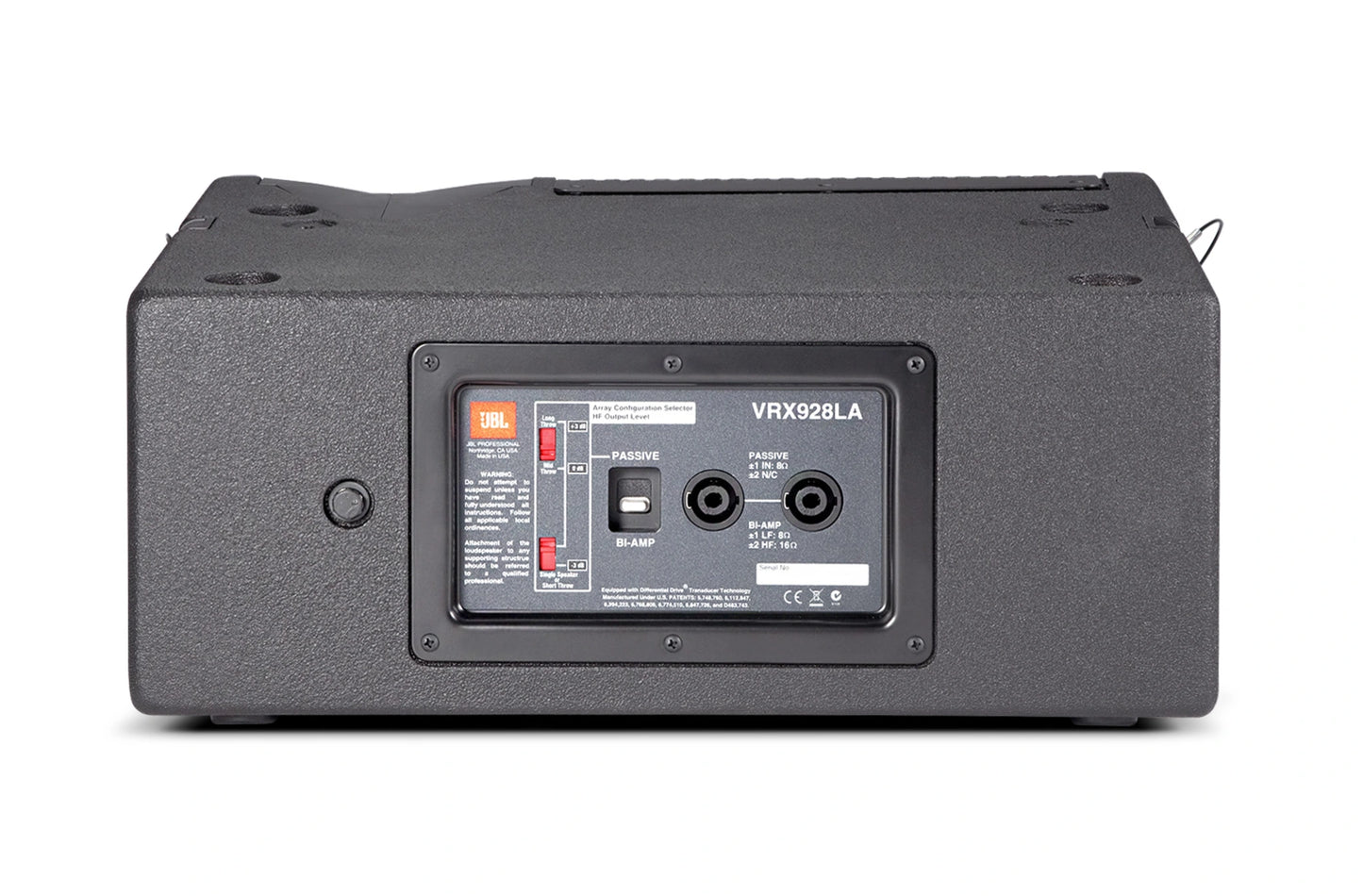

• Inputs

• Neutrik® Speakon NL-4 (x2)

• Outputs

• 1 x XLR

• Enclosure

• Duraflex coated plywood

• System Type

• Constant Curvature 8" Two-Way Line Array System

• Maximum SPL (1m)

• 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)

• Nominal Impedance

• Passive = 8 ohm

• Bi-amp LF = 8 ohm

• Bi-amp HF = 16 ohm

• LF Driver

• 1 x 200 mm (8 in) Differential Drive® woofer

• HF Drive

• 2 x 25 mm (1.0 in) neodymium compression driver

• Suspension / Mounting

• Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.
