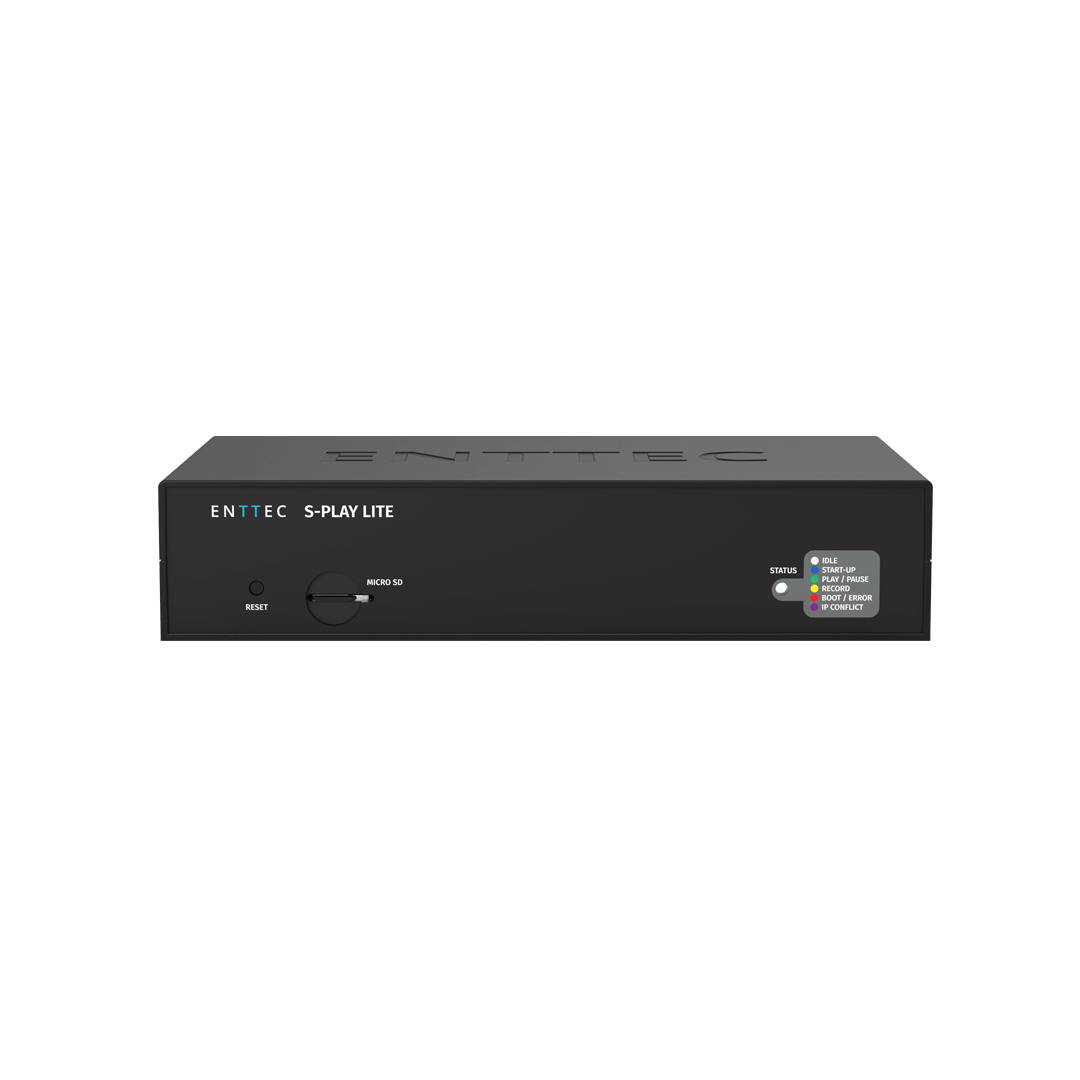

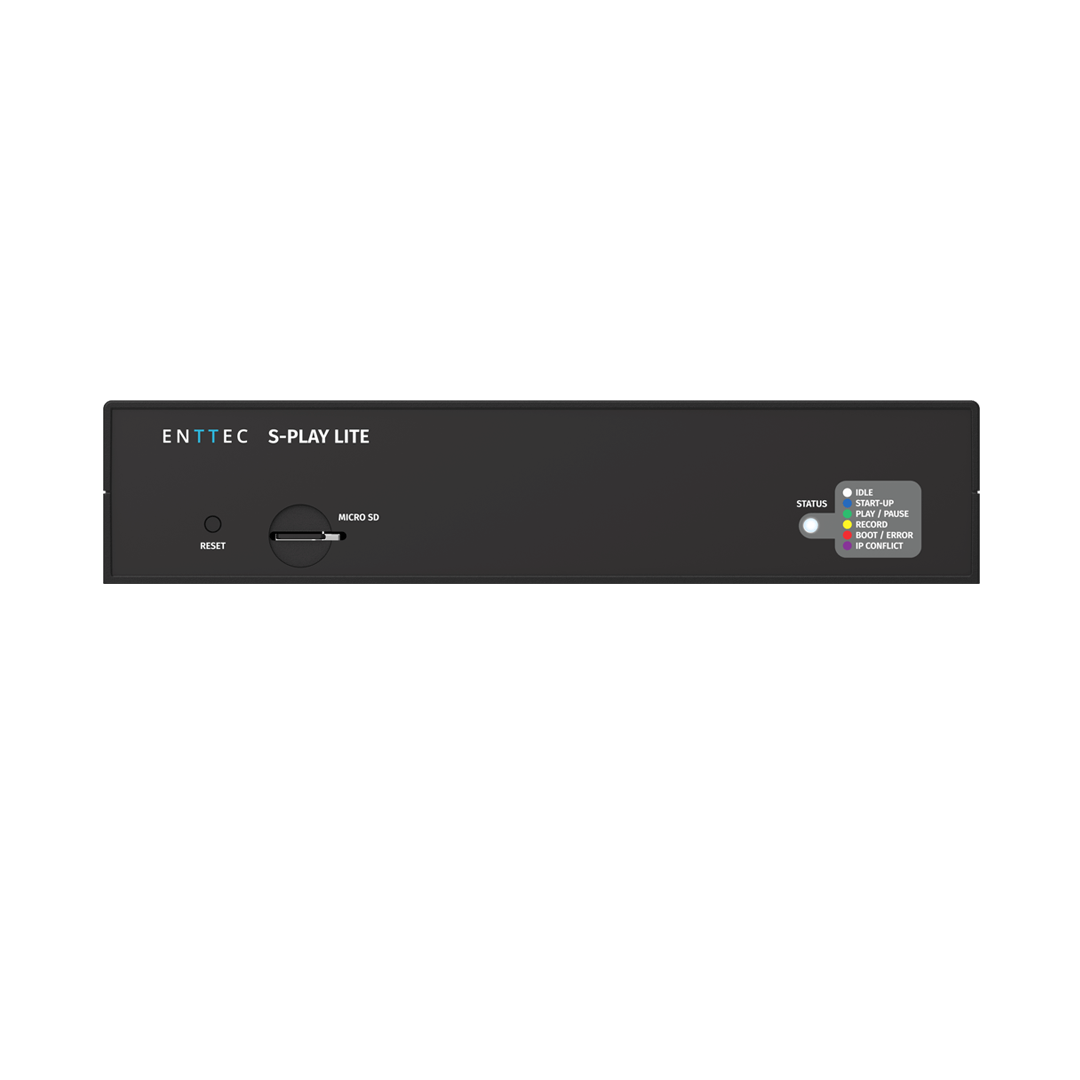

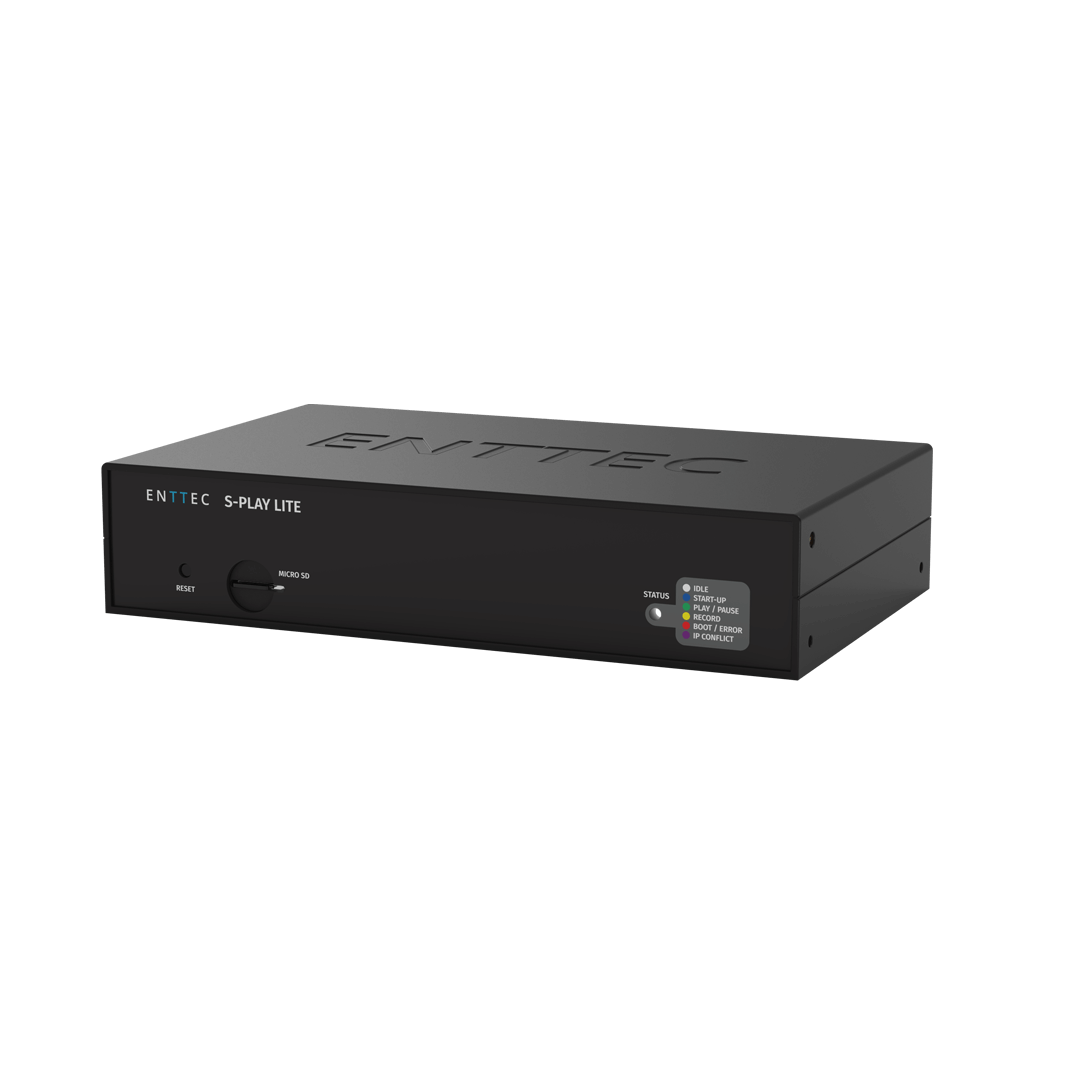

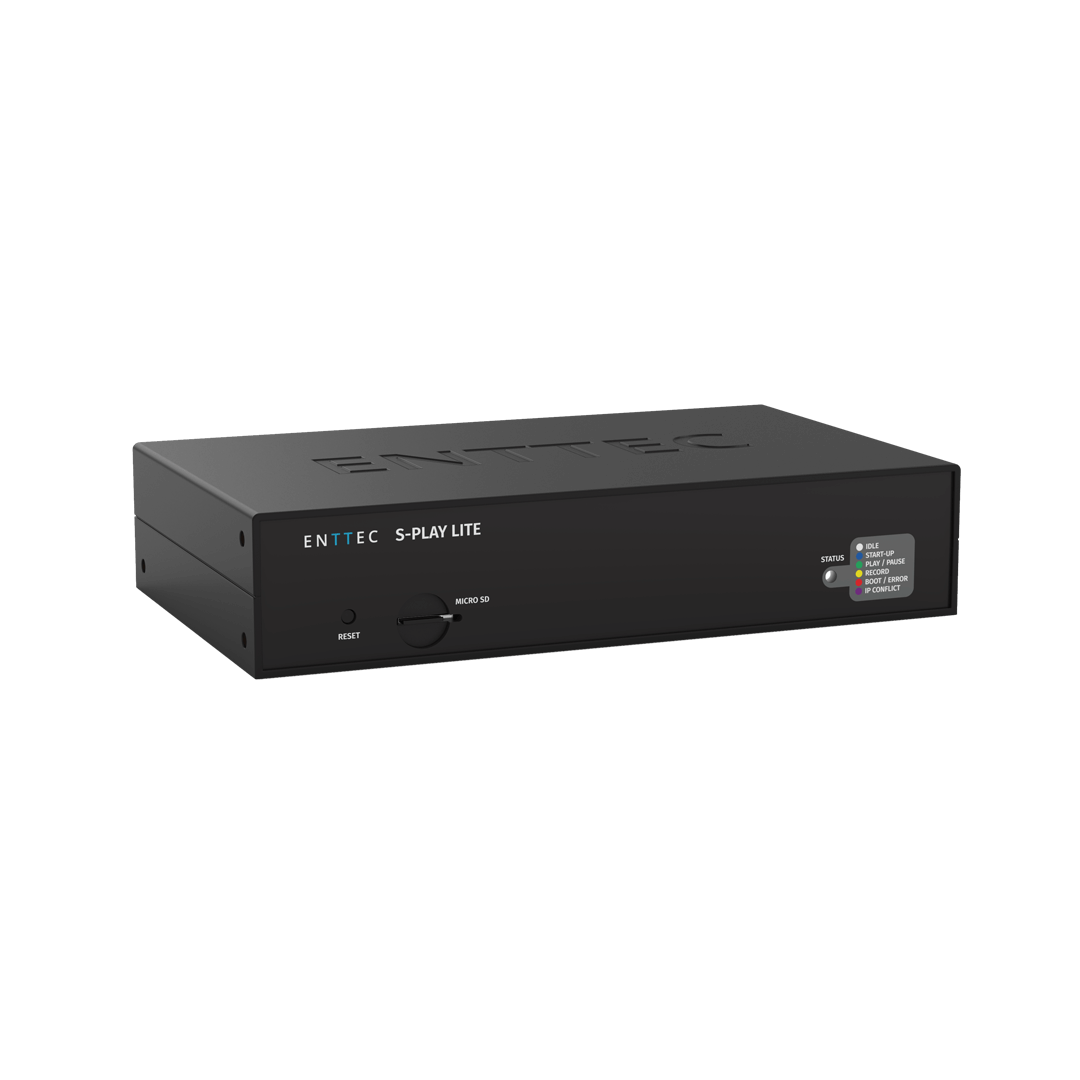

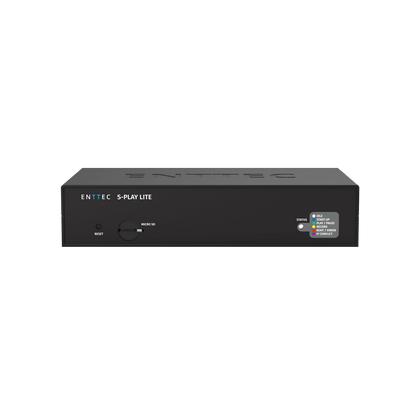

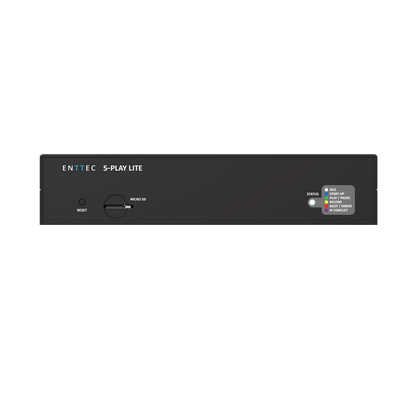

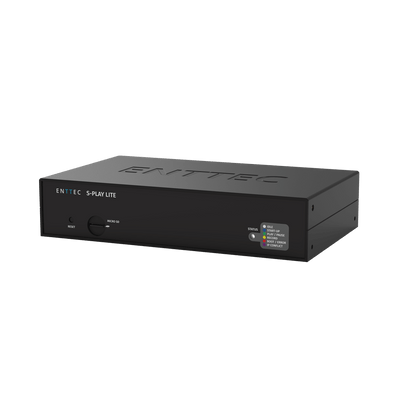

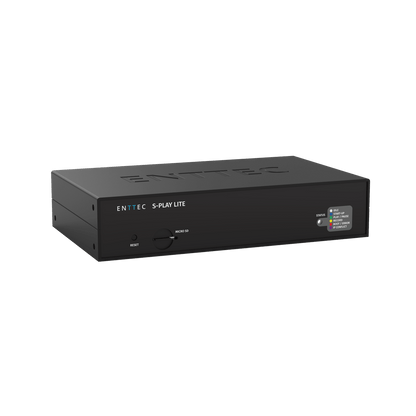

S-PLAY LITE

The ENTTEC S-PLAY Lite is a 16-universe smart light show recorder and playback controller with built-in scene creation, timeline editor, scheduling, and multi-protocol support for professional architectural and entertainment lighting automation.

From the Manufacturer

The S-PLAY Lite is an all-in-one show recorder and playback controller engineered for precise, hassle-free lighting automation in permanent installations. It combines a 16-universe DMX recorder, a web-based scene creation engine with a built-in effects generator, and a multi-protocol AV host capable of handling light shows, video triggers, and machinery control simultaneously. Record light scenes into static or dynamic cues from external sources via sACN or Art-Net, or from physical DMX universes using the onboard XLR ports. Build playlists using the intuitive timeline editor — drag and drop cues, adjust durations, set fade in/out, and loop or group playlists as needed. Trigger playback in real-time via contact closure, RS232, OSC, UDP, DMX, Art-Net, sACN, or from building automation systems, iPad apps, pressure pads, motion detectors, or push buttons.

The S-PLAY Lite's scheduler supports long-term automated playback with precise local time synchronization via NTP, and a customizable web-based user interface simplifies direct control for end users. An open HTTP and OSC API enables flexible integration with third-party control systems. Internal show storage is 8GB — approximately 20 hours of 16-universe content at 40fps — expandable via Micro SD card. The S-PLAY Lite mounts in a rack, surface, or TS35 DIN rail with included hardware, and is powered via 12–24V DC or IEEE 802.3af PoE. UL Listed and internationally certified.

Features

• 16-universe smart light show recorder and playback controller
• Records static and dynamic cues from sACN, Art-Net, or physical DMX input via 2 x 5-pin XLR ports
• Web-based scene creation engine with built-in effects generator for gradient and simple light scenes
• Intuitive timeline editor — drag and drop cues, events, and triggers; adjust duration; set fade in/out; loop, prioritize, and group playlists
• Up to 100 playlists, 4 cue tracks per playlist, 100 cues, 150 triggers, and 150 events
• Simultaneous multi-playlist playback
• Real-time triggering via contact closure (4 digital inputs), RS232, OSC, UDP, DMX, Art-Net, and sACN
• 2 x relay outputs (max 50V DC / 60W) for machinery and mechanical device control
• Scheduler with NTP time synchronization for automated long-term playback
• Up to 5 custom web interfaces for end-user direct control
• Open HTTP API and OSC API for third-party control system integration
• 8GB internal show storage (~20 hours of 16 universes at 40fps); expandable via Micro SD card
• Art-Net and sACN output at up to 60fps; DMX512-A output at up to 40fps
• PoE powered via IEEE 802.3af or 12–24V DC jack
• Rack, surface, and TS35 DIN-rail mountable — ears, clips, and screws included
• Web interface for configuration, firmware updates, backup, restore, and playlist management
• Fanless convection cooling
• UL Listed; RCM, CE/WEEE, UKCA, and FCC certified
• 3-year manufacturer warranty
• Recommended use: Architectural lighting automation, permanent installations, hospitality and hotel lighting, façade lighting, art installations, building and home automation integration

Specifications

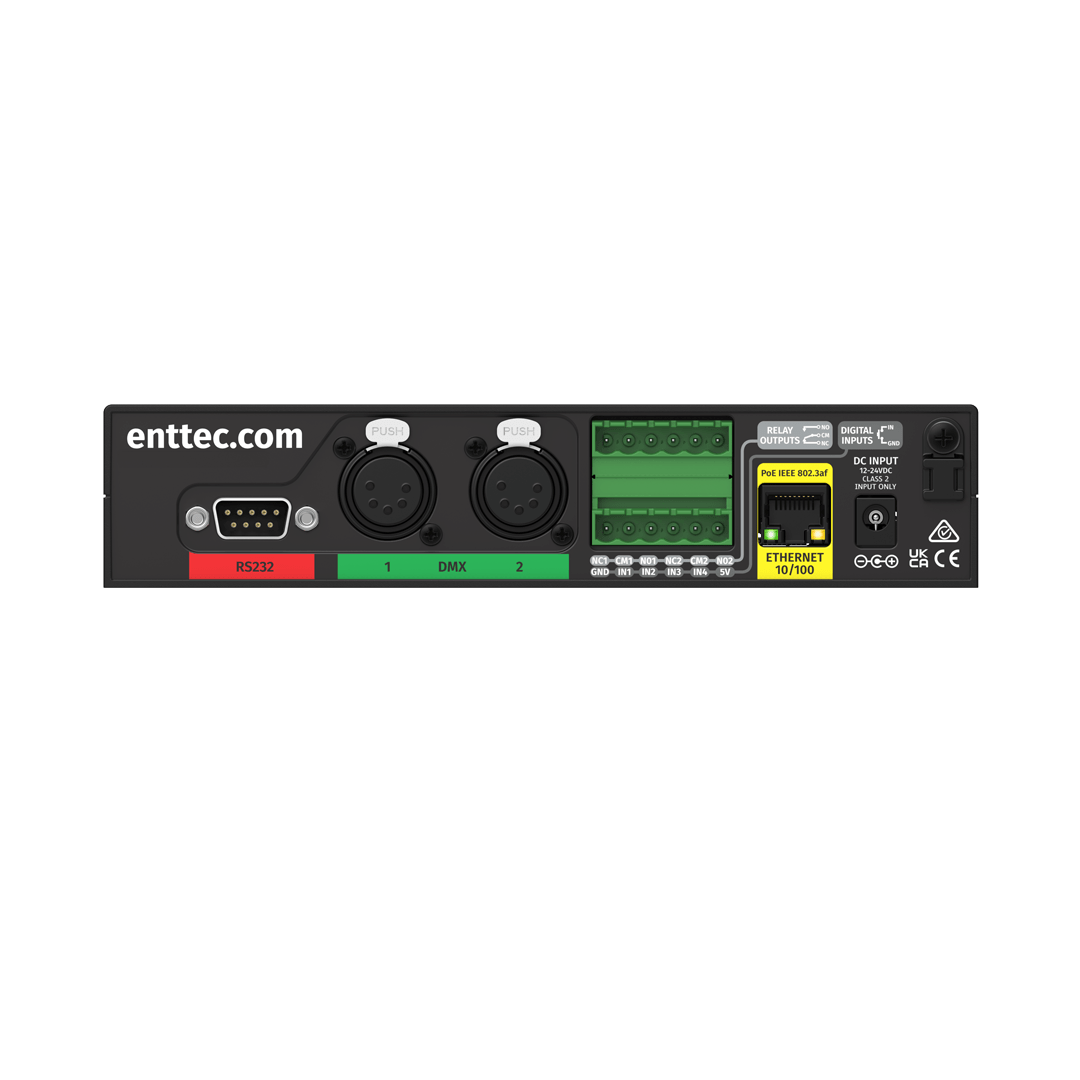

Hardware

• Ethernet / PoE: 1 x RJ45 / PoE IEEE 802.3af
• DMX Ports: 2 x 5-pin XLR (female)
• Digital Inputs: 4 x digital input + 1 x GND + 1 x 5V (6-pin screw terminal)
• Relay Outputs: 2 x relay (6-pin screw terminal); max 50V DC or 60W
• Internal Storage: 8GB (~20 hours of 16 universes at 40fps)
• Expandable Storage: Micro SD card

Software

• DMX Universe Playback: 2 universes (1,024 channels of USITT DMX512-A)
• Art-Net / sACN Universe Playback: 16 universes (8,192 channels)
• Max. Refresh Rate: Art-Net & sACN: 60fps / USITT DMX512-A: 40fps
• Max. Playlist Count: 100
• Max. Cue Tracks per Playlist: 4
• Max. Cues (Static, Dynamic, and Effect): 100
• Max. Triggers: 150
• Max. Events: 150
• Max. Custom Interfaces: 5
• Scheduler: Yes (NTP synchronized)
• OSC API: Yes
• HTTP API: Yes
• Remote Access: No
• Multi-Sync: No

Electrical

• Input Voltage: 12–24V DC / PoE IEEE 802.3af
• Power Input: DC jack (12V PSU with international plugs included)
• Max. Power Draw: 8W
• Cooling Method: Convection

Construction / Physical

• Body Material: ABS plastic and anodized aluminium
• IP Rating: IP20
• Mounting Options: Rack, surface, TS35 DIN-rail (ears, clips, and screws included)
• Unit Dimensions: 200 x 120 x 42 mm
• Unit Weight: 0.47 kg / 1.04 lbs
• Shipping Dimensions: 335 x 265 x 78 mm

Environmental

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 0–95% (non-condensing)

Certifications

• Compliance: UL Listed, RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 3-year return to base manufacturer warranty

What's in the Box

• ENTTEC S-PLAY Lite
• 12V power supply with international plugs
• Rack ears, DIN rail clips, and mounting screws
