S-PLAY NANO

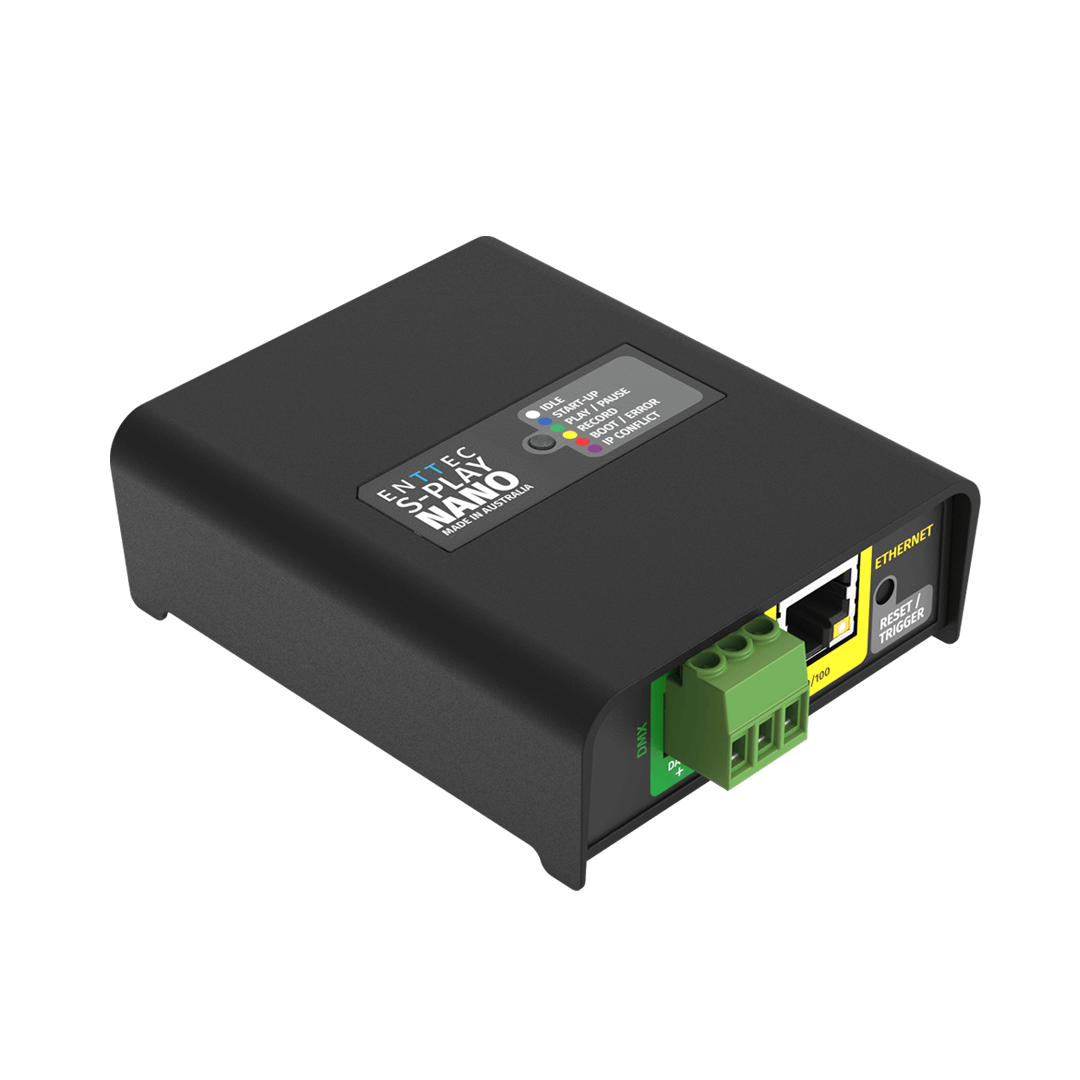

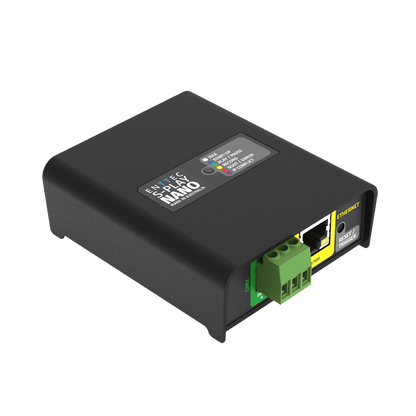

The ENTTEC S-PLAY Nano is a compact 1-universe DIN-rail-mountable smart light show recorder and playback controller with built-in scene creation, timeline editor, and multi-protocol trigger support for simple, set-and-forget architectural and entertainment lighting automation.

From the Manufacturer

The S-PLAY Nano is the most compact member of the S-PLAY family — a 1-universe DMX recorder and playback controller designed for straightforward, professional lighting automation in the smallest possible footprint. It records up to 4 static, dynamic, or effect cues from one complete DMX universe via its onboard Phoenix screw terminal port. A built-in pixel effects generator enables quick gradient effect creation without external software. Playlists are built using an intuitive web-based timeline editor — drag and drop cues, events, and triggers; set fade in/out; control intensity; and loop or group playlists as needed. Up to 4 playlists can run simultaneously, either looping on power-up or triggered via external contact closure, OSC, UDP, DMX, Art-Net, sACN, building automation software, iPad apps, pressure pads, motion detectors, or push buttons.

Sharing the same compact 4-module DIN-rail form factor as the S-PLAY Mini, the Nano fits neatly alongside other ENTTEC DIN-rail devices in control cabinets, with surface mounting also supported via included clips and screws. With 1GB of internal show storage, the Nano holds substantial content for long-term set-and-forget operation. Firmware updates, backup, restore, and playlist management are all handled through the web interface. The OSC API enables integration with third-party control systems and iPad apps such as TouchOSC. A Nano to Mini Upgrade license is available separately for users who need to expand to 2-universe capability.

Features

• 1-universe smart light show recorder and playback controller in a compact 4-module DIN-rail form factor
• Records up to 4 static, dynamic, or effect cues from 1 physical DMX universe via bi-directional 3-pin Phoenix screw terminal
• Built-in pixel effects generator for quick gradient effect creation
• Intuitive web-based timeline editor — drag and drop cues, events, and triggers; adjust duration; set fade in/out; loop, prioritize, and group playlists
• Up to 4 playlists, 1 cue track per playlist, 4 cues, 8 triggers, and 4 events
• Simultaneous multi-playlist playback with overlapping playback options
• Playlists triggerable on power-up or via contact closure, OSC, UDP, DMX, Art-Net, and sACN
• 4 x digital inputs for buttons, switches, sensors, and contact-closure triggers (5-pin Phoenix screw terminal)
• 1 x relay output for third-party device control (3-pin screw terminal)
• 1GB internal show storage
• OSC API for third-party control system and iPad app integration
• Web interface for configuration, firmware updates, backup, restore, and playlist management; factory reset via web interface or reset button
• Surface and TS35 DIN-rail mountable — clips and screws included
• Upgradeable to 2-universe S-PLAY Mini capability via Nano to Mini Upgrade license
• Fanless convection cooling
• RCM, CE/WEEE, UKCA, and FCC certified
• 3-year manufacturer warranty
• Recommended use: Simple architectural lighting automation, permanent single-universe installations, hospitality and hotel lighting, home and building automation integration, DIN-rail control cabinet installations

Specifications

Hardware

• Ethernet Port: 1 x RJ45

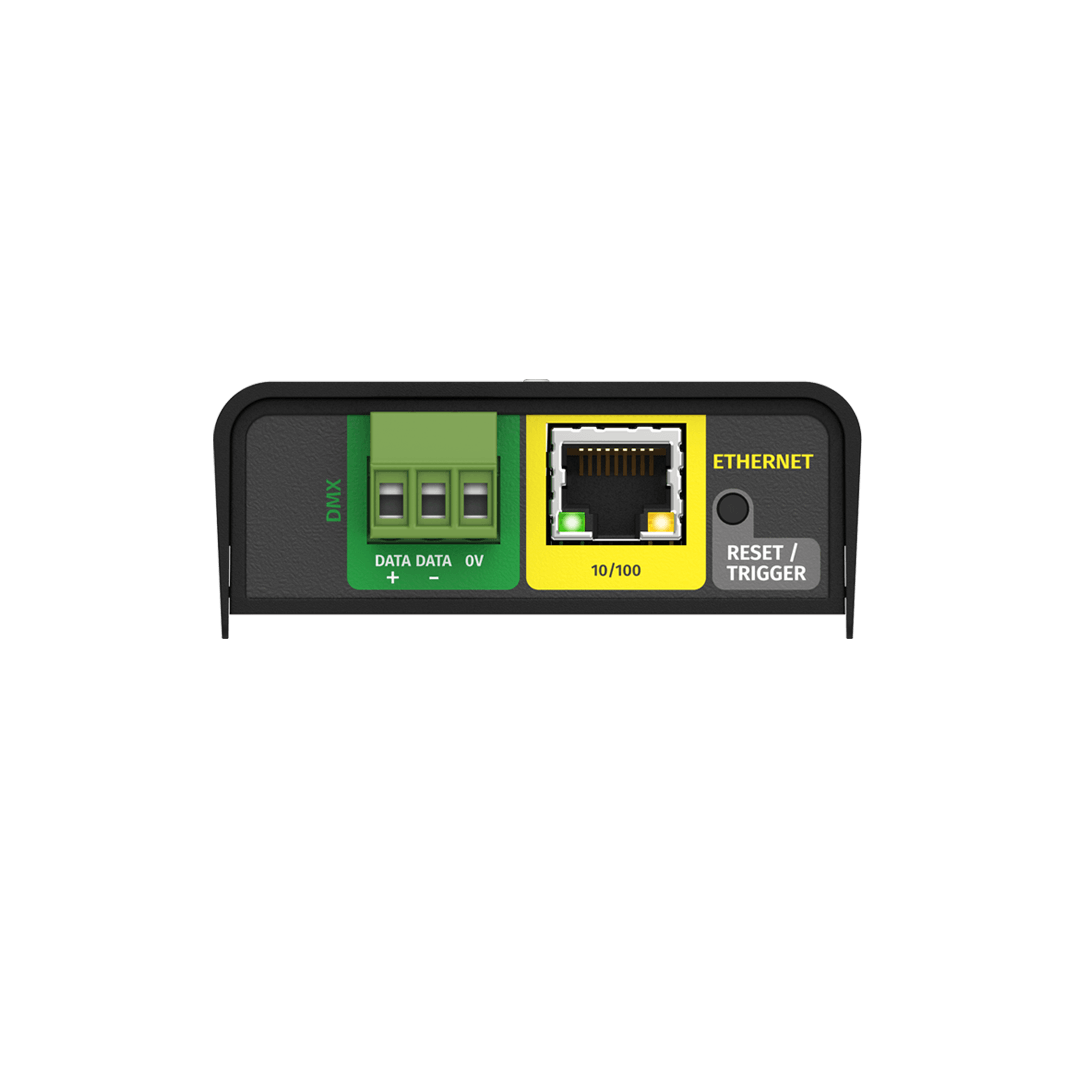

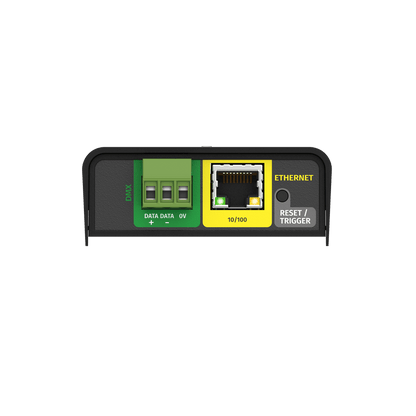

• DMX Port: 1 x bi-directional 3-pin Phoenix screw terminal

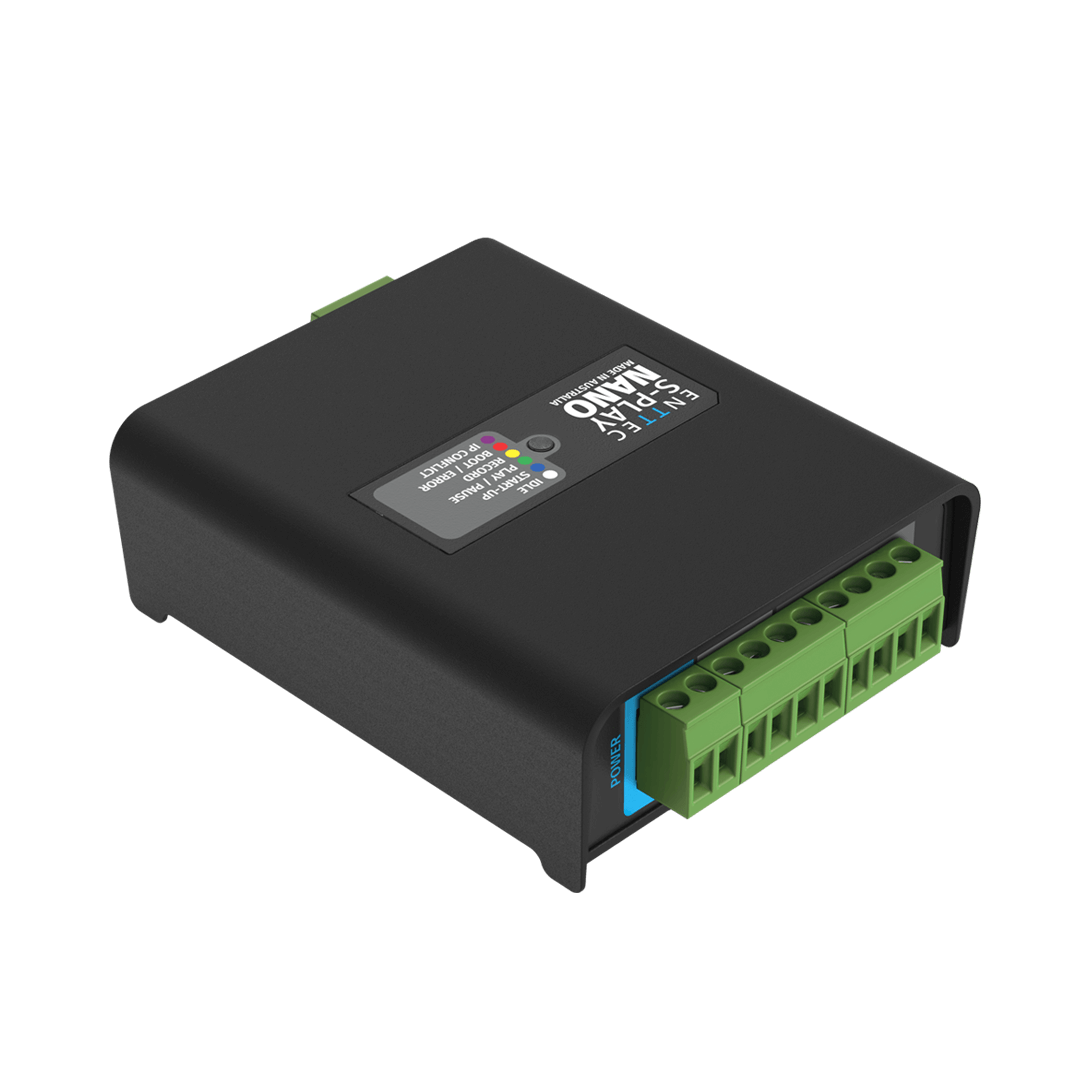

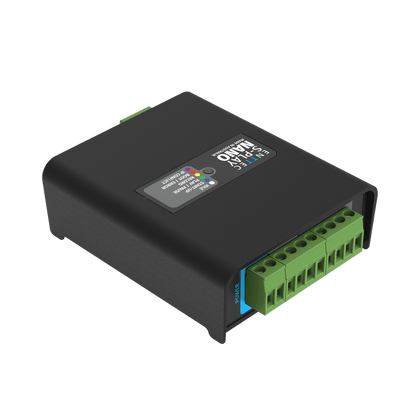

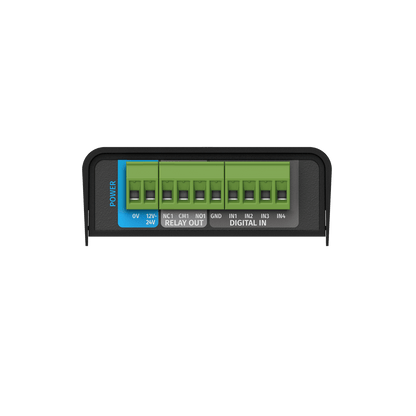

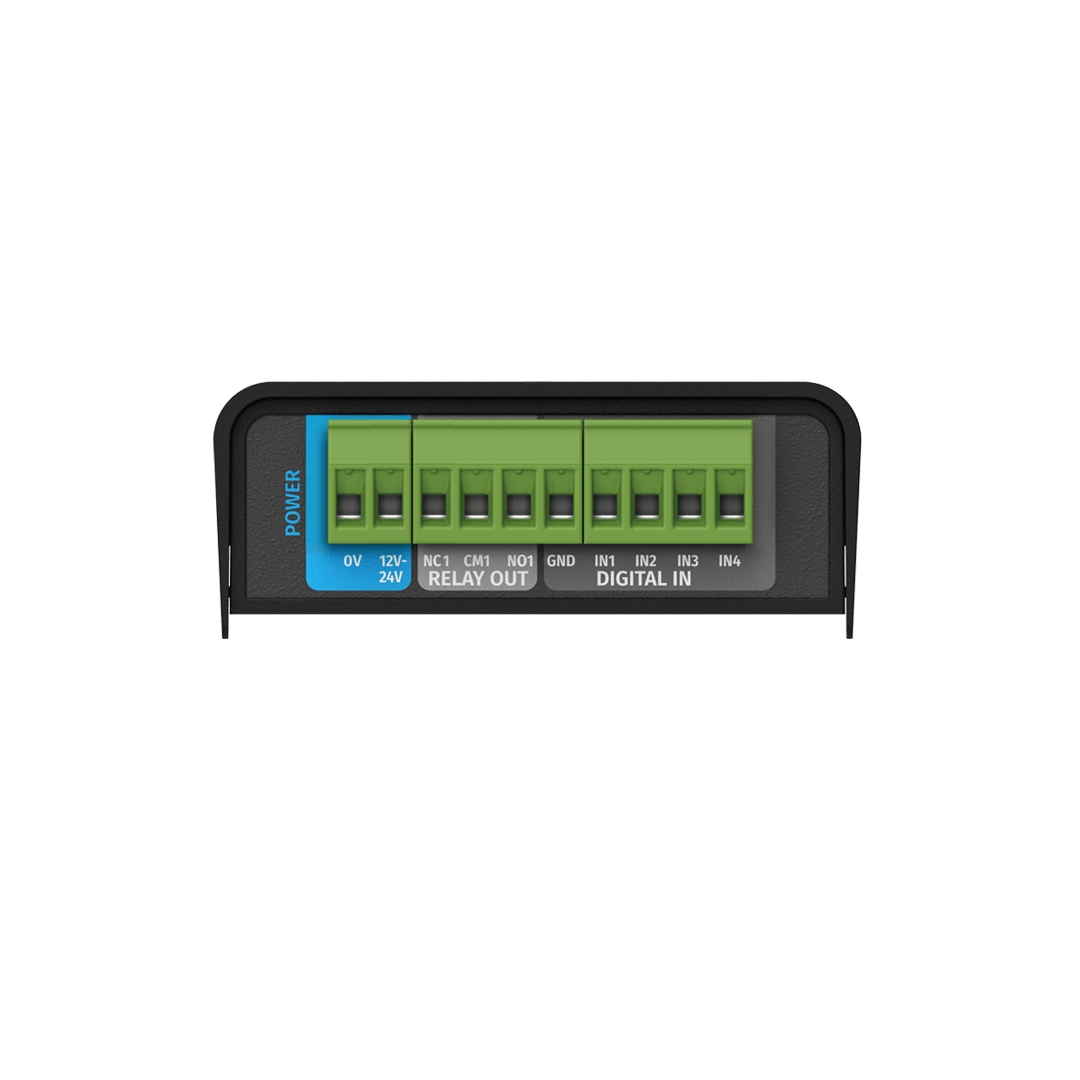

• Digital Inputs: 4 x digital input + 1 x GND (5-pin Phoenix screw terminal)
• Relay Output: 1 x relay (3-pin screw terminal)
• Internal Storage: 1GB

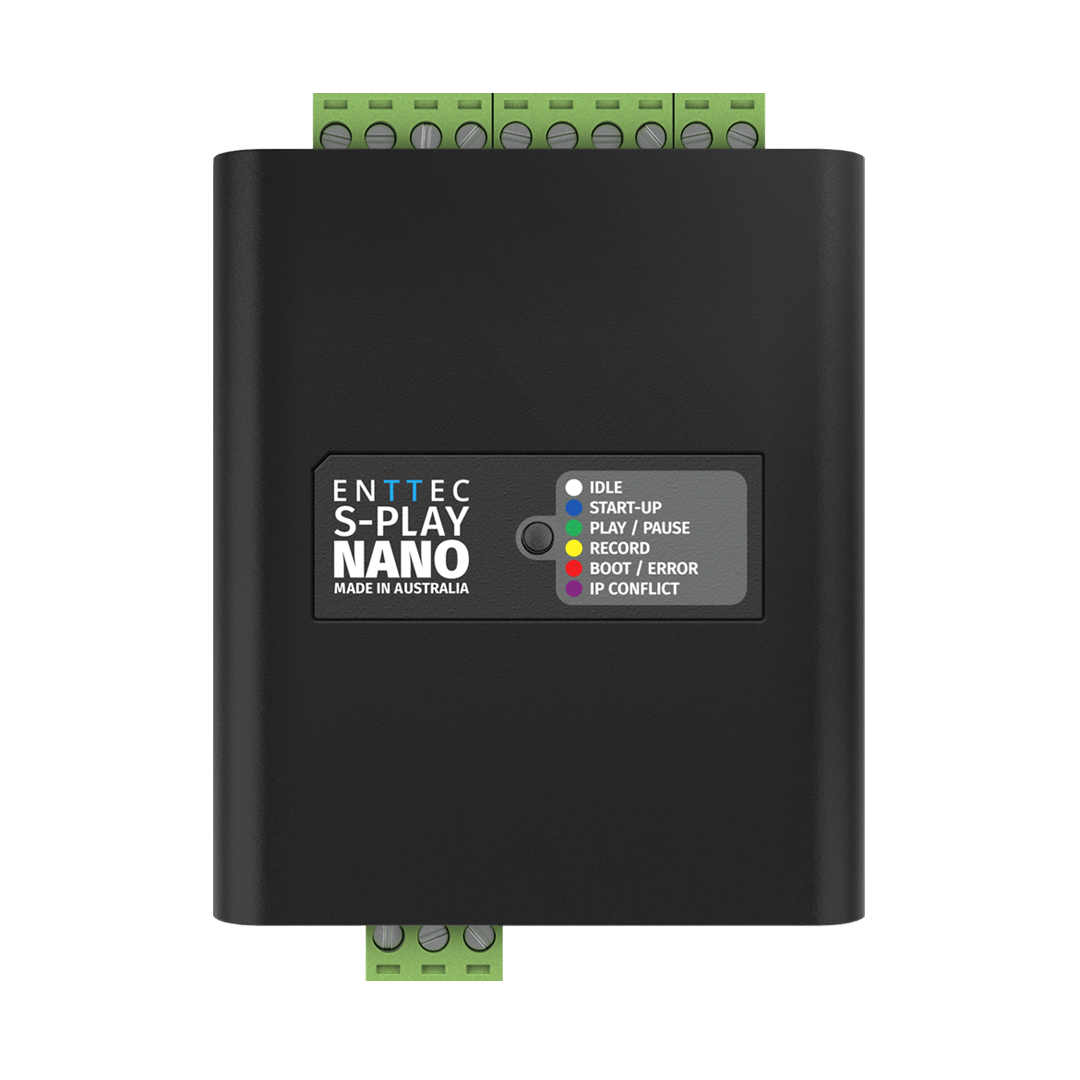

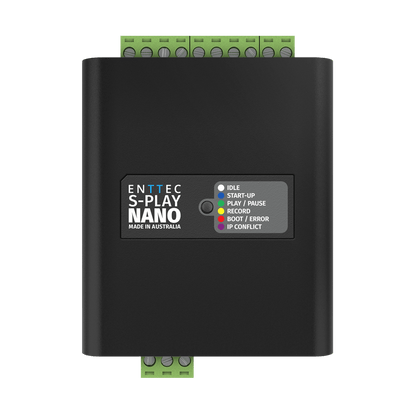

• LED Indicators: Forward-facing status LED; network link/activity integrated into RJ45 port
• Factory Reset: Web interface / reset button

Software

• DMX Universe Playback: 1 universe (512 channels of USITT DMX512-A)
• Max. DMX Refresh Rate: 40fps
• Max. Playlist Count: 4
• Max. Cue Tracks per Playlist: 1
• Max. Cues (Static, Dynamic, and Effect): 4
• Max. Triggers: 8
• Max. Events: 4
• OSC API: Yes

Electrical

• Input Voltage: 12–24V DC
• Power Input: 2-pin Phoenix screw terminal
• Max. Power Draw: 3W
• Cooling Method: Convection

Construction / Physical

• Body Material: ABS plastic
• IP Rating: IP20
• Mounting Options: Surface mount, TS35 DIN-rail mount (clips and screws included)
• Unit Dimensions: 100.5 x 72.25 x 34 mm
• Unit Weight: 0.83 kg / 0.18 lbs
• Shipping Dimensions: 160 x 140 x 40 mm
• Shipping Weight: 0.16 kg / 0.35 lbs

Environmental

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 0–95% (non-condensing)

Certifications

• Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 3-year return to base manufacturer warranty
