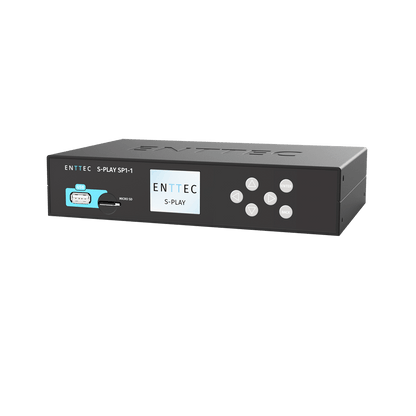

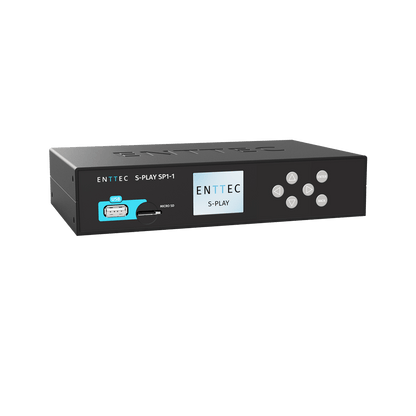

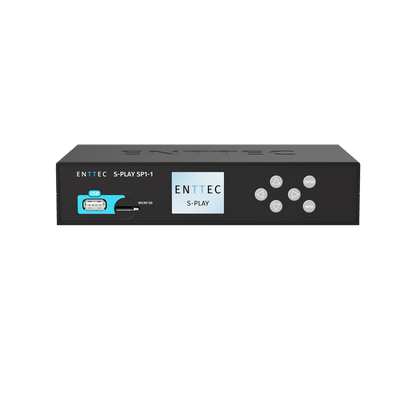

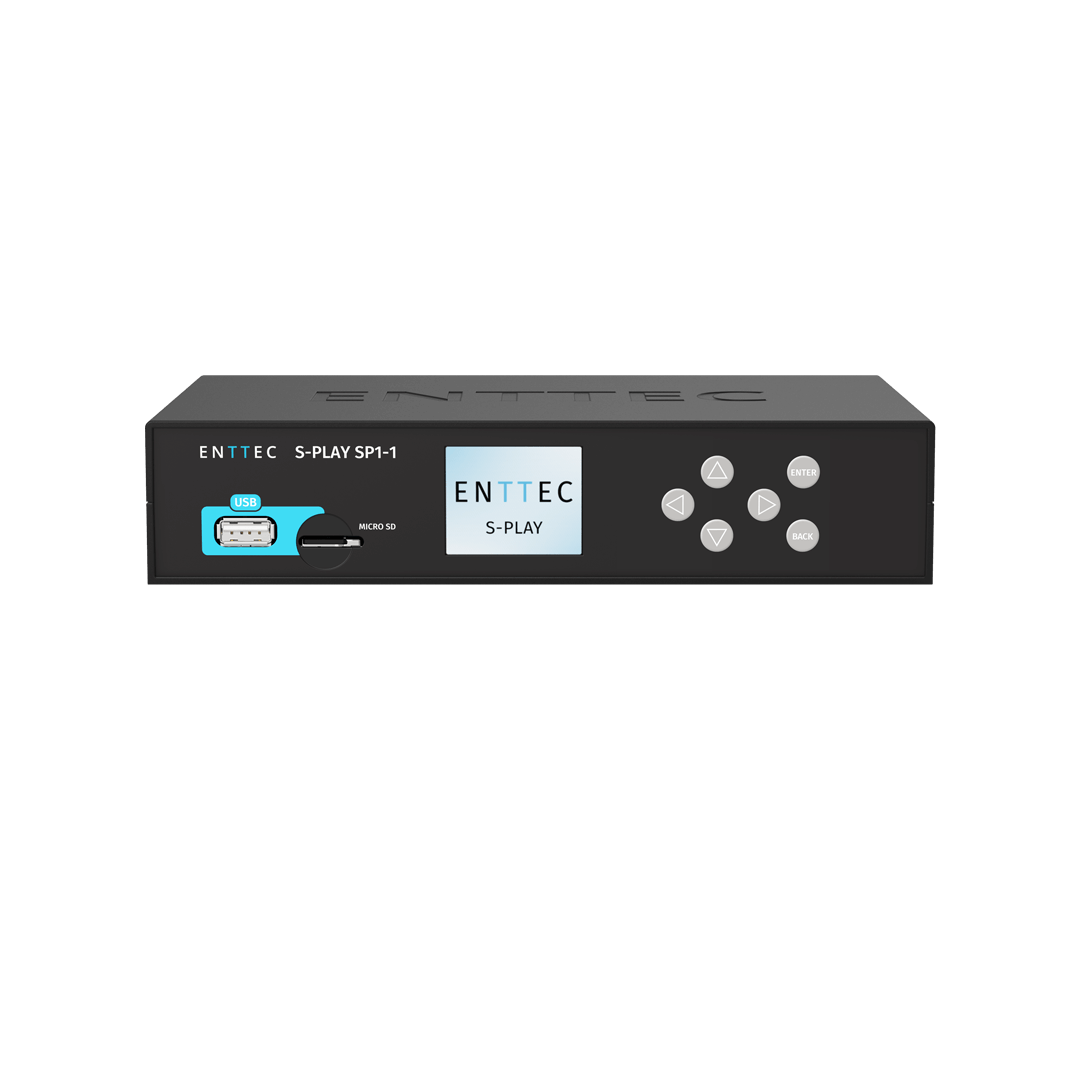

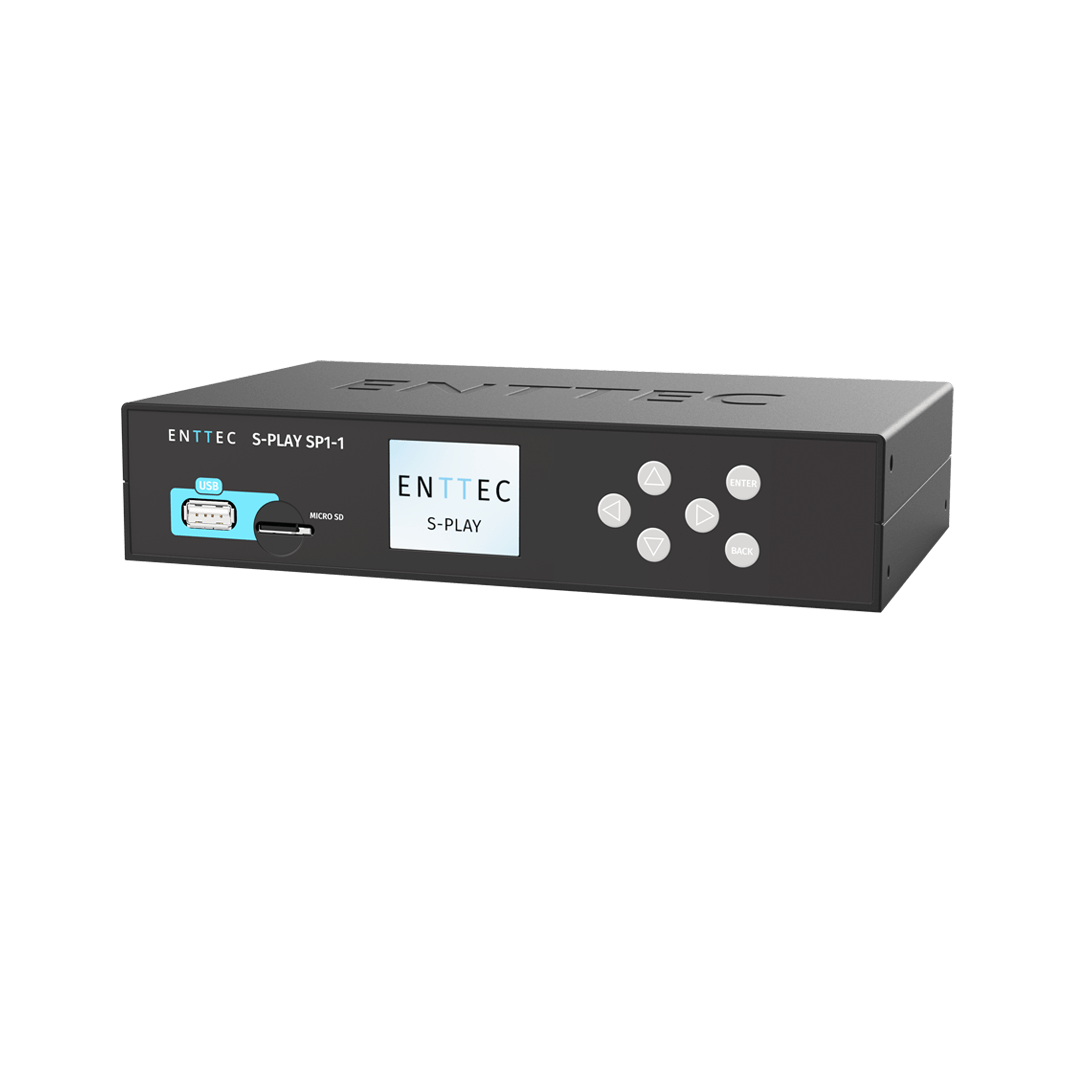

S-PLAY SP1 Smart Player

The ENTTEC S-PLAY SP1-1 is a 32-universe all-in-one smart light show recorder and playback controller with onboard LCD, remote access, Multi-Sync, custom fixture profiles, and full multi-protocol support for professional architectural and entertainment lighting automation.

From the Manufacturer

The S-PLAY SP1-1 is ENTTEC's flagship show recorder and playback controller, engineered for complex, large-scale lighting automation projects. It combines a 32-universe DMX recorder, a web-based scene creation engine with a built-in effects generator, a multi-protocol AV host, and a suite of advanced architectural control features — all in a single rack, surface, or DIN-rail mountable device. Record static and dynamic cues from sACN, Art-Net, or physical DMX input; build playlists using the intuitive timeline editor; and trigger playback in real-time via contact closure, RS232, OSC, UDP, DMX, Art-Net, sACN, or from building automation systems, iPad apps, pressure pads, motion detectors, or push buttons. A built-in LCD with buttons enables direct on-device management without a network connection.

The S-PLAY SP1-1 includes several advanced features not found on the smaller S-PLAY models. Remote access allows one or multiple S-PLAYs to be managed from anywhere in the world via the AWS cloud server. Multi-Sync enables a leader S-PLAY to synchronize follower S-PLAYs on the same network for recording and playback beyond 32 universes. An open HTTP and OSC API provides flexible integration with third-party control systems, Beckhoff PLCs (via free TwinCAT® library), and iPad apps. Firmware 3.2.1 introduces the free S-PLAY Programmer desktop app for offline show design on Mac or Windows, plus custom fixture profile creation directly on the device. Internal storage is 8GB — approximately 10 hours of 32-universe content at 44fps — expandable via removable USB or Micro SD card. Compatible with the ENTTEC I/O Extender for 20 additional digital inputs, 4 relays, and 2 analog inputs.

Features

• 32-universe smart light show recorder and playback controller
• Records static and dynamic cues from sACN, Art-Net, or physical DMX input via 2 x 5-pin XLR ports
• Web-based scene creation engine with built-in effects generator for gradient and simple light scenes
• Custom fixture profile creation directly on the device (firmware 3.2.1+) — assign channel types for moving heads, PARs, washes, and any DMX fixture
• Free S-PLAY Programmer desktop app (Mac/Windows) for offline show design — deploy to S-PLAY SP1-1 when ready (requires firmware 3.2.1+)
• Intuitive timeline editor — drag and drop cues, events, and triggers; adjust duration; set fade in/out; loop, prioritize, and group playlists
• Up to 200 playlists, 4 cue tracks per playlist, 200 cues, 200 triggers, and 200 events
• Simultaneous multi-playlist playback
• Real-time triggering via contact closure (4 digital inputs), RS232, OSC, UDP, DMX, Art-Net, and sACN
• 2 x relay outputs (max 50V DC / 60W) for machinery and mechanical device control
• Scheduler with NTP time synchronization for automated long-term playback
• Up to 10 custom web interfaces for end-user direct control
• Open HTTP API and OSC API for third-party control system integration; free TwinCAT® library for Beckhoff PLC integration
• Remote access via AWS cloud server for worldwide management of one or multiple S-PLAYs
• Multi-Sync — leader S-PLAY synchronizes follower S-PLAYs on the same network for capacity beyond 32 universes

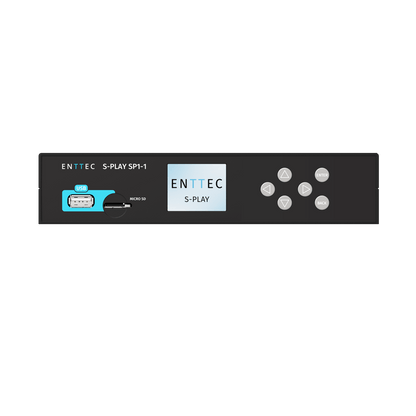

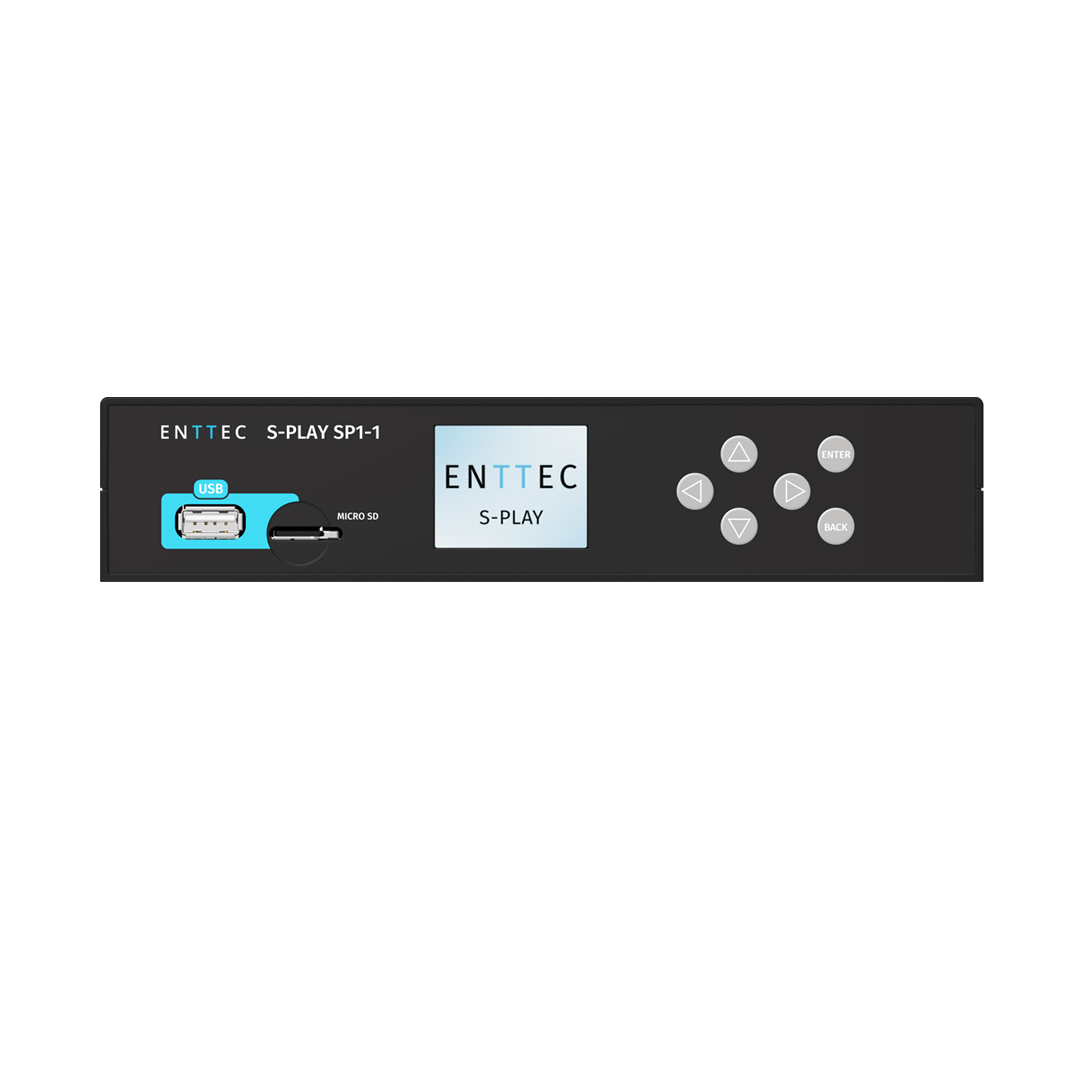

• Onboard LCD with buttons for direct on-device management; factory reset via web interface or LCD menu
• 8GB internal show storage (~10 hours of 32 universes at 44fps); expandable via removable USB and Micro SD card
• Art-Net and sACN output at up to 60fps; DMX512-A output at up to 44fps
• PoE powered via IEEE 802.3af or 12–24V DC jack
• Compatible with ENTTEC I/O Extender for expanded digital inputs, relays, and analog inputs
• Rack, surface, and TS35 DIN-rail mountable — ears, clips, and screws included
• Web interface for configuration, firmware updates, backup, restore, and playlist management
• Fanless convection cooling
• RCM, CE/WEEE, UKCA, and FCC certified
• 3-year manufacturer warranty
• Recommended use: Large-scale architectural lighting automation, permanent installations, façade lighting, hospitality and hotel lighting, art installations, building and home automation integration, complex multi-universe show control

Specifications

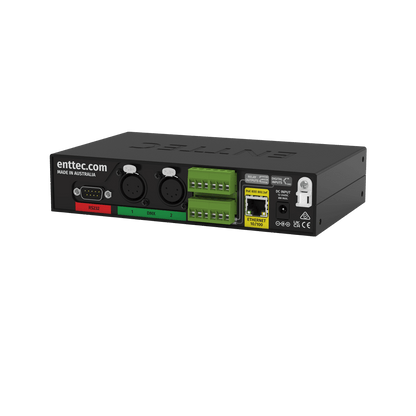

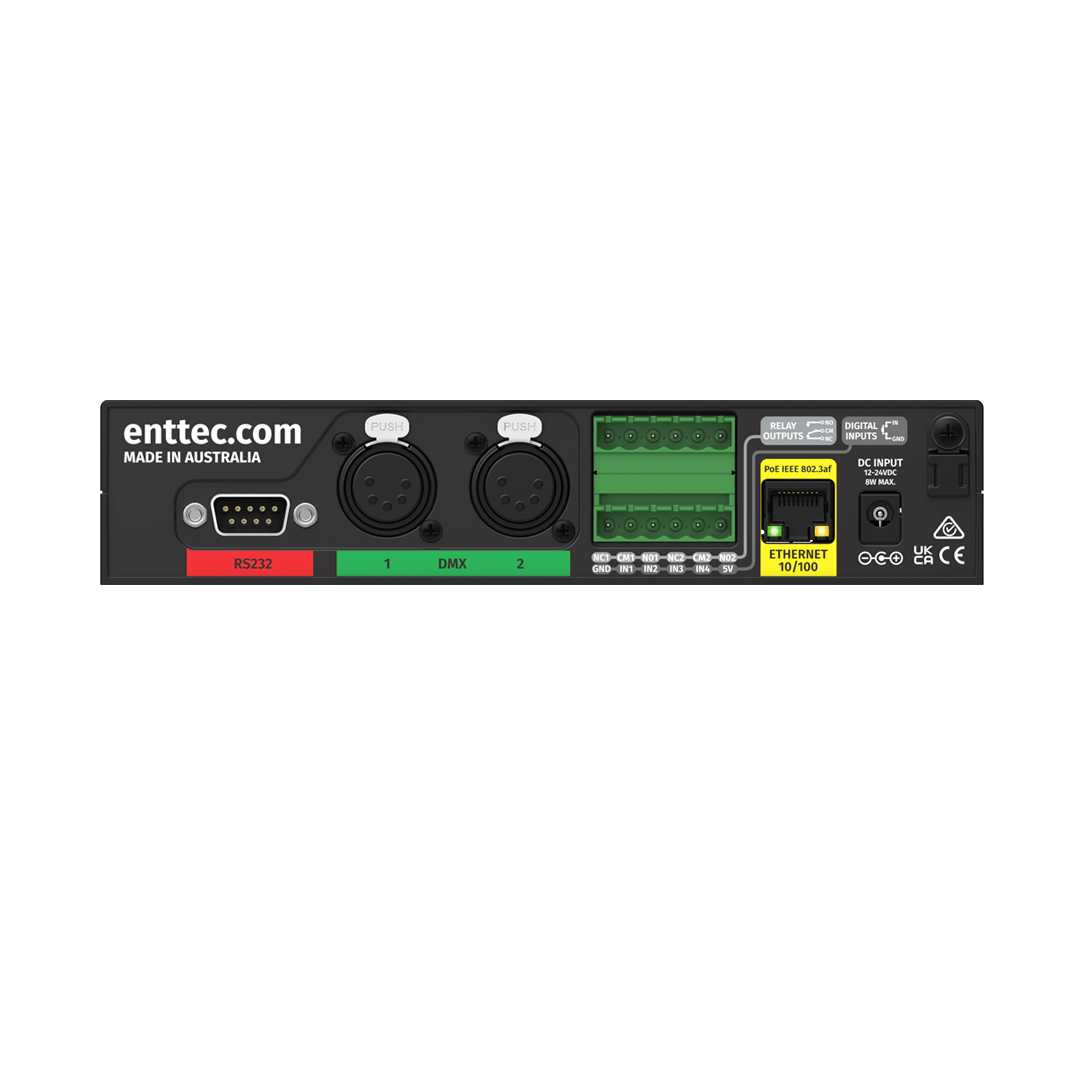

Hardware

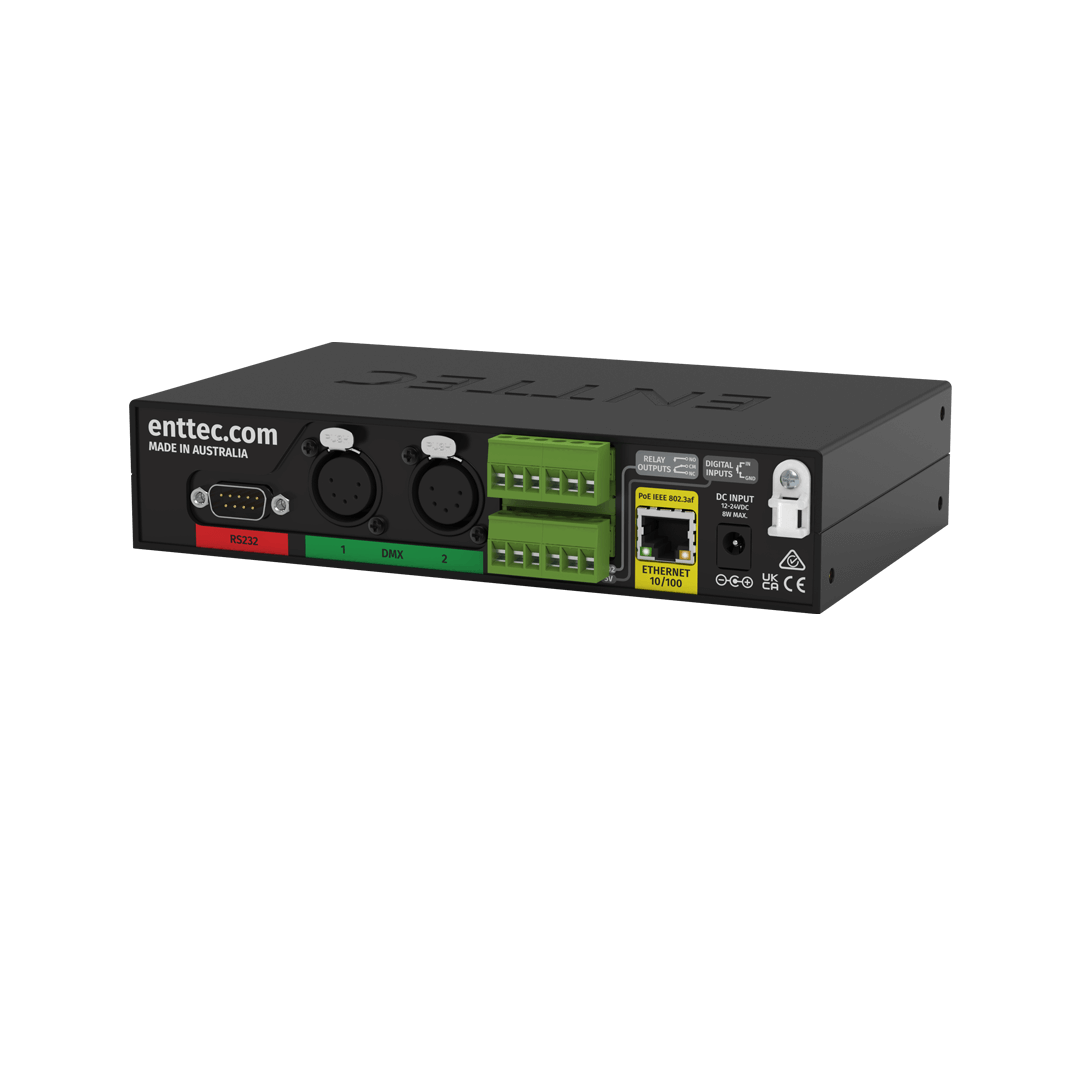

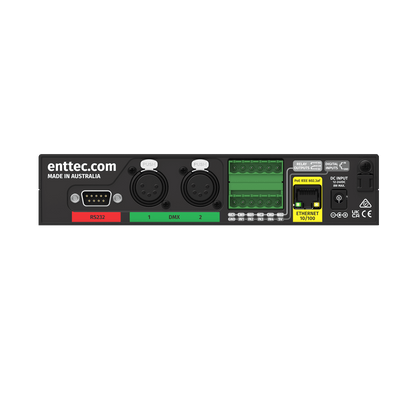

• Ethernet / PoE: 1 x RJ45 / PoE IEEE 802.3af
• DMX Ports: 2 x 5-pin XLR (female)
• Digital Inputs: 4 x digital input + 1 x GND + 1 x 5V (6-pin screw terminal)
• Relay Outputs: 2 x relay (6-pin screw terminal); max 50V DC or 60W
• Internal Storage: 8GB (~10 hours of 32 universes at 44fps)
• Expandable Storage: Removable USB + Micro SD card

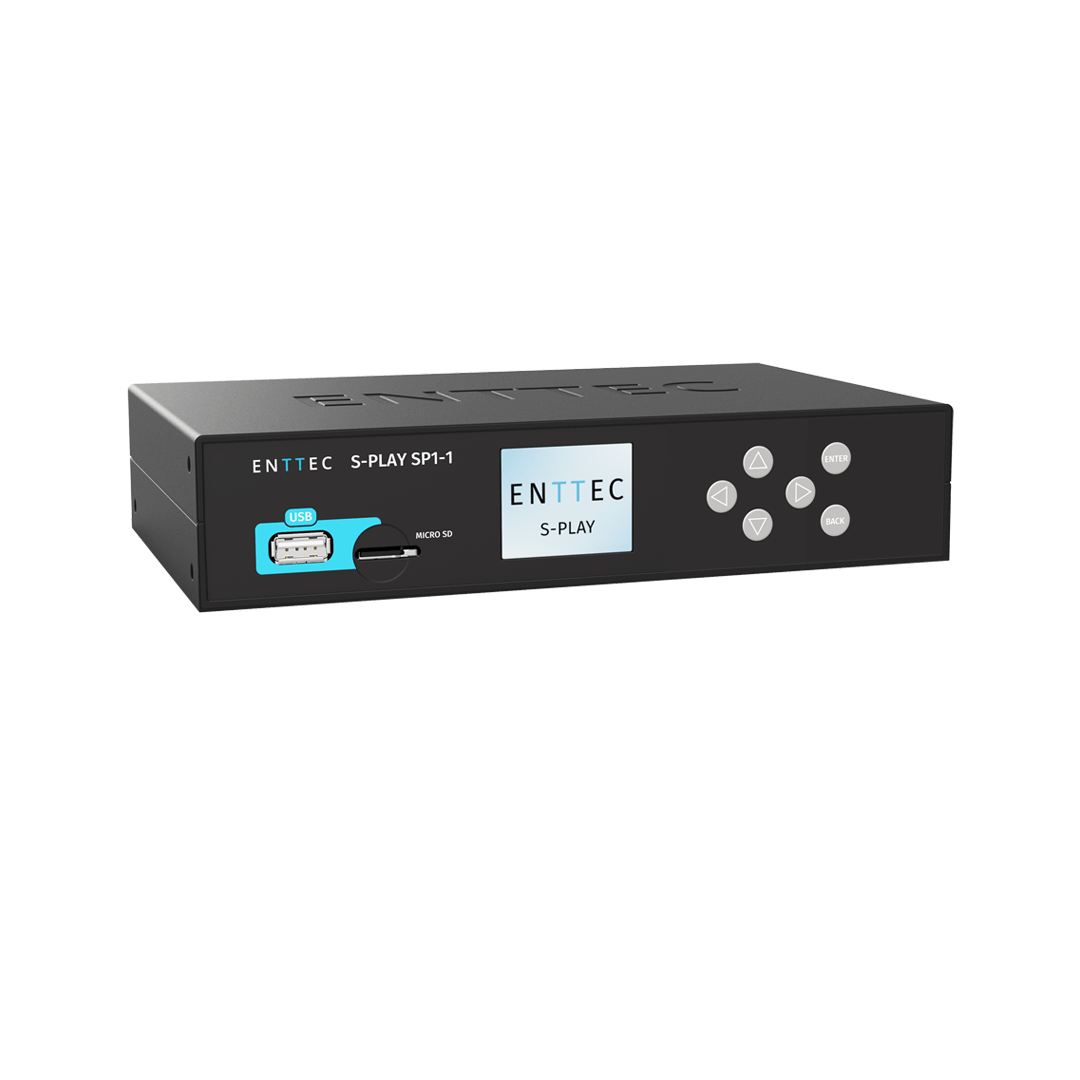

• Display: LCD with buttons
• Factory Reset: Web interface / LCD menu

Software

• DMX Universe Playback: 2 universes (1,024 channels of USITT DMX512-A)
• Art-Net / sACN Universe Playback: 32 universes (16,384 channels)
• Max. Refresh Rate: Art-Net & sACN: 60fps / USITT DMX512-A: 44fps
• Max. Playlist Count: 200
• Max. Cue Tracks per Playlist: 4
• Max. Cues (Static, Dynamic, and Effect): 200
• Max. Triggers: 200
• Max. Events: 200
• Max. Custom Interfaces: 10
• Scheduler: Yes (NTP synchronized)
• OSC API: Yes
• HTTP API: Yes
• Remote Access: Yes (AWS cloud)
• Multi-Sync: Yes

Electrical

• Input Voltage: 12–24V DC / PoE IEEE 802.3af
• Power Input: DC jack (12V PSU with international plugs included)
• Max. Power Draw: 8W
• Cooling Method: Convection

Construction / Physical

• Body Material: ABS plastic and anodized aluminium
• IP Rating: IP20
• Mounting Options: Rack, surface, TS35 DIN-rail (ears, clips, and screws included)
• Unit Dimensions: 200 x 120 x 42 mm
• Unit Weight: 0.47 kg / 1.04 lbs
• Shipping Dimensions: 335 x 265 x 78 mm
• Shipping Weight: 1.20 kg / 2.65 lbs

Environmental

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 0–95% (non-condensing)

Certifications

• Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 3-year return to base manufacturer warranty

What's in the Box

• ENTTEC S-PLAY SP1-1
• 12V power supply with international plugs
• Rack ears, DIN rail clips, and mounting screws
