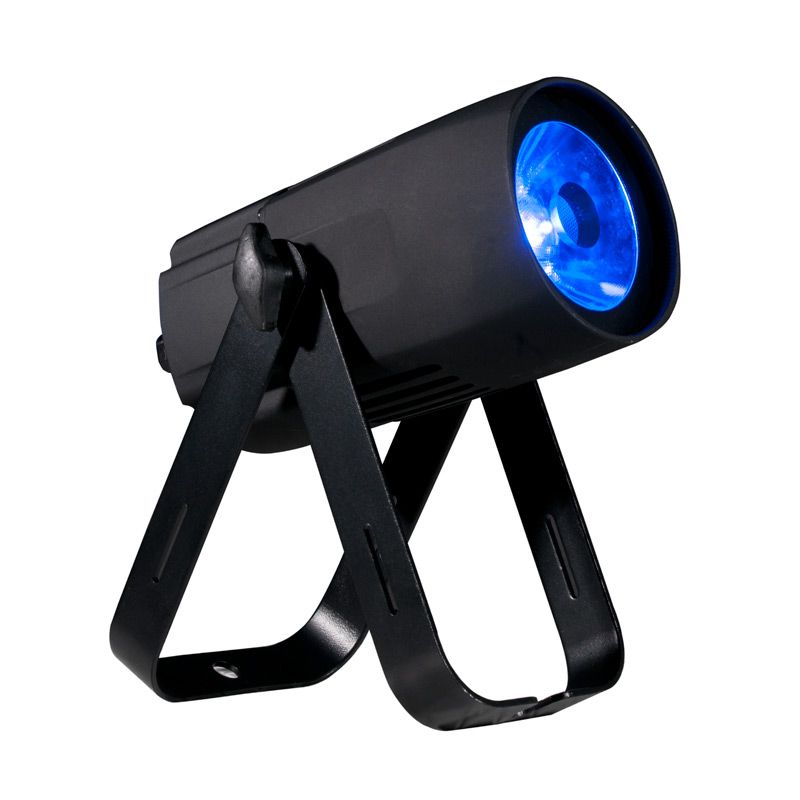

Saber Spot RGBL

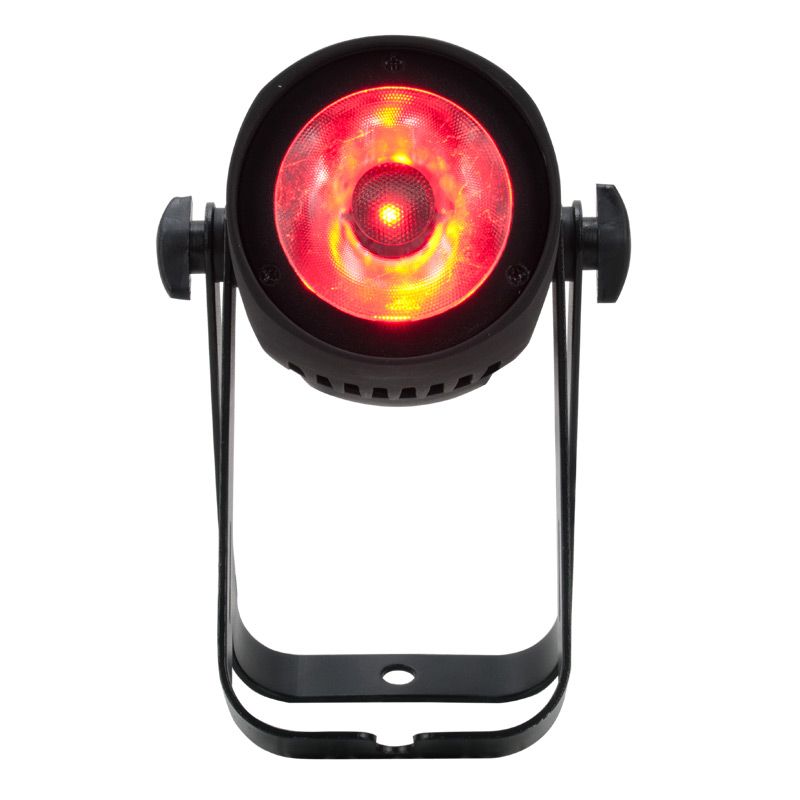

The ADJ Saber Spot RGBL is a new 20-Watt RGBL pinspot fixture. This fixture is a good option for those who want to create arial beam effects or who want to light a mirror ball. We recommend this fixture for use on smaller stages

From the Manufacturer:

The ADJ Saber Spot RGBL is ADJ Lighting next generation LED pinspot with a 20-Watt RGBL LED source, ACL lens for a tight 5.7-degree beam, is DMX and RDM complaint and features bullt-in color macros, color changing programs and has white color temperature presets ranging from 2700K to 7000K.

Details:

Building on the success of its predecessor, the ADJ Lighting Saber Spot RGBL expands on the versatility of the modern LED pinspot. Featuring a 20-Watt RGBL (red, blue, green and lime) LEDs source, advanced ACL lens and a tight 5.7-degree beam angle, the Saber Spot RGBL is designed for spotting tables, objects or mirror balls, and creating mid-air beam effects for light shows.

This fixture is DMX and RDM compliant with 12 DMX channel modes, 63 built-in color macros, 13 built-in color changing programs and has six white color temperature presets ranging from 2700K to 7000K.

A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

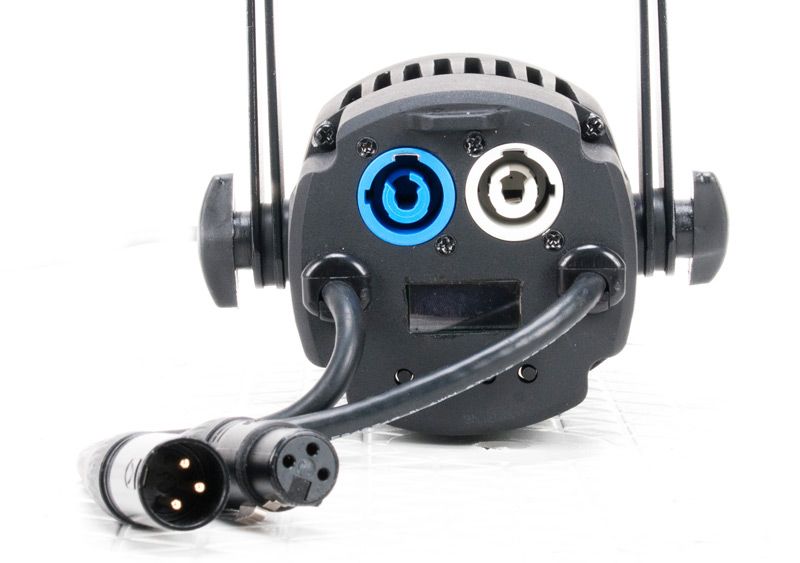

The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls, plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at the back of the fixture.

Features:

• DMX and RDM Compliant

• 6 White Color Temperature Settings: 2700K, 3200K, 4000K, 5600K, 6500K & 7000K

• 63 Built-in Color Macros

• 13 Built-in Color Changing Programs

• 4-button Digital Display for easy navigation

• Electronic Dimming 0 – 100%

• includes a scissor yoke to be hung, or set on the ground

Specifications:

• Source

•  Light Source: 20-Watt, RGBL LED

• LED Life Expectancy: 30,000 Hrs

• Beam Angle: 5.7°

• Includes 2 interchangeable Frost Filter Lens (10-degree & 45-degree)

• LED Refresh Rate: 3.6KHz

• Connections

• Power Input: Indoor Power Locking

• Power Pass through: Indoor Power Locking

• Control: 5-pin DMX In/Out Pigtails

• With Wired Digital Communication Network

• Control

• 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL

• RDM Compliant

• Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Power draw:16.7W

• Power Linking: 95pcs @230V

• Dimensions & Weight

• Dimensions (LxWxH): 170 x 135 x 215mm

• Weight: 1.45 kg.

• Black Die Cast Housing

• Approvals/Ratings

• CE

• ETL (Pending)

• IP20

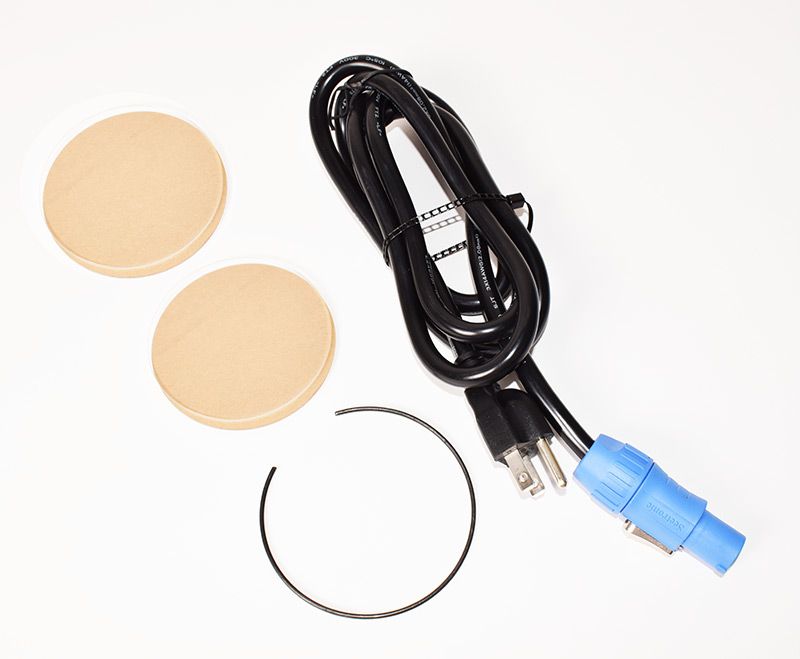

Included:

• (1) scissor yoke to be hung, or set on the ground

• (1) 1.83m Indoor locking power cord

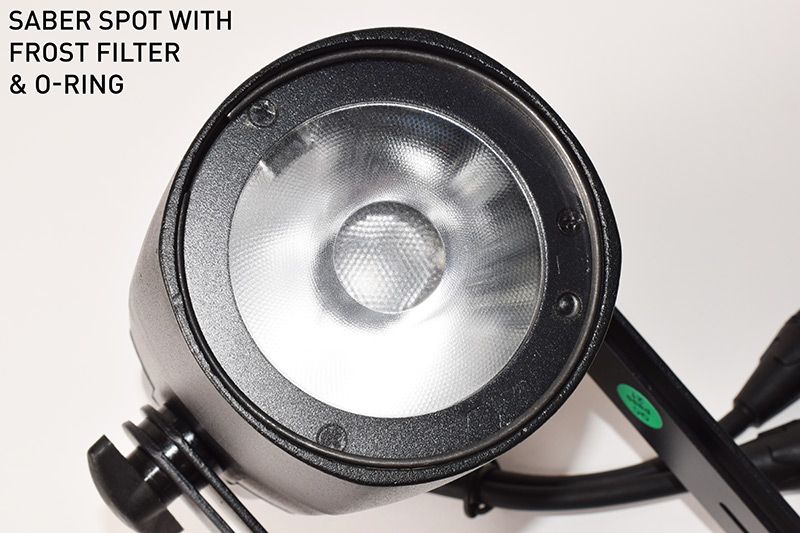

• (2) Frost Filter Lenses (10-degree & 45-degree)

• (1) Metal clip ring for frost filter lens
