VRX932LA-1

The VRX932LA-1 is a scalable line array speaker system of up to 6 units per Line Array. It can be a great scalable option for production companies that cater for a wide variety of events.

From the Manufacturer:

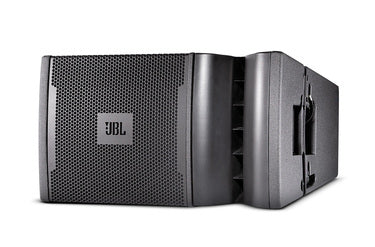

The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.

Features:

• JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.

• VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.

• Constant Curvature waveguide for unprecedented array coherence.

• Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or

• tripod stand.

• Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.

• Array Configuration Selector permits “array shading” in passive mode.

Specifications:

• Power Rating

• 800 W / 1600 W / 3200 W

• Frequency Range (-10dB)

• 57 Hz - 20 kHz

• Dimensions (H x W x D)

• 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)

• Frequency Response (±3 dB)

• 75 Hz - 20 Hz

• Coverage Pattern

• 100 x 15 nominal

• Crossover Modes

• Bi-amp / passive, externally switchable

• Crossover Frequency

• 132 dB SPL peak 1.2 kHz

• Maximum SPL (1m)

• 130 dB SPL peak (passive mode)

• LF: 130 dB HF:

• 139 dB

• Sensitivity

• Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL

• LF Driver

• 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.

• HF Driver

• 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver

• Nominal Impedance

• Passive = 8 ohm

• Bi-amp LF = 8 ohm

• Bi-amp HF = 8 ohm

• Active Tunings

• Tunings available at www.jblpro.com

• Enclosure

• 18 mm, 11-ply birch plywood

• Suspension / Mounting

• Optional VRX932LA-AF line array frame kit

• Finish

• Black DuraFlex™ finish

• Grille

• Power coated, black, 16-guage perforated steel with with acoustically transparent foam

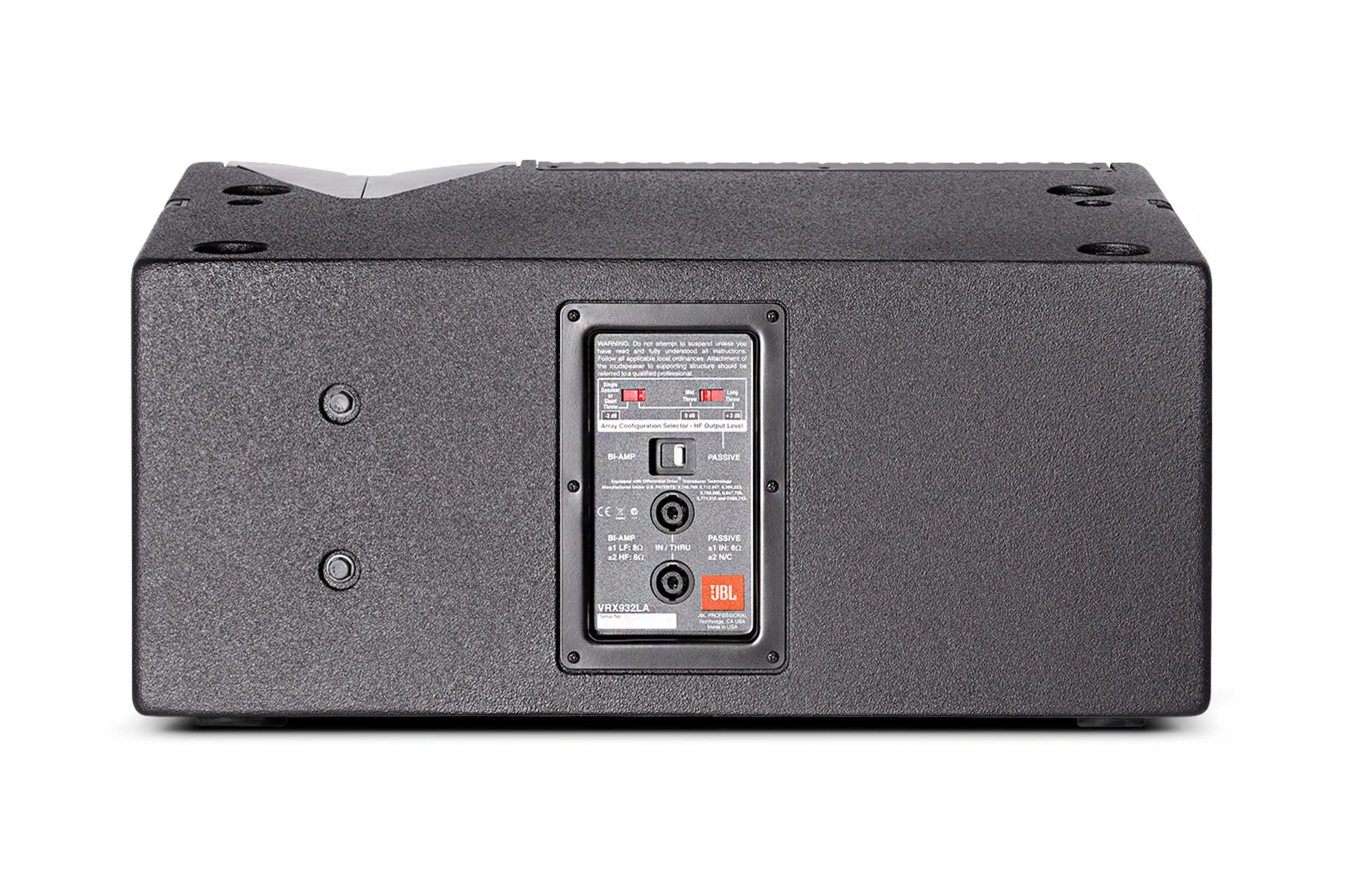

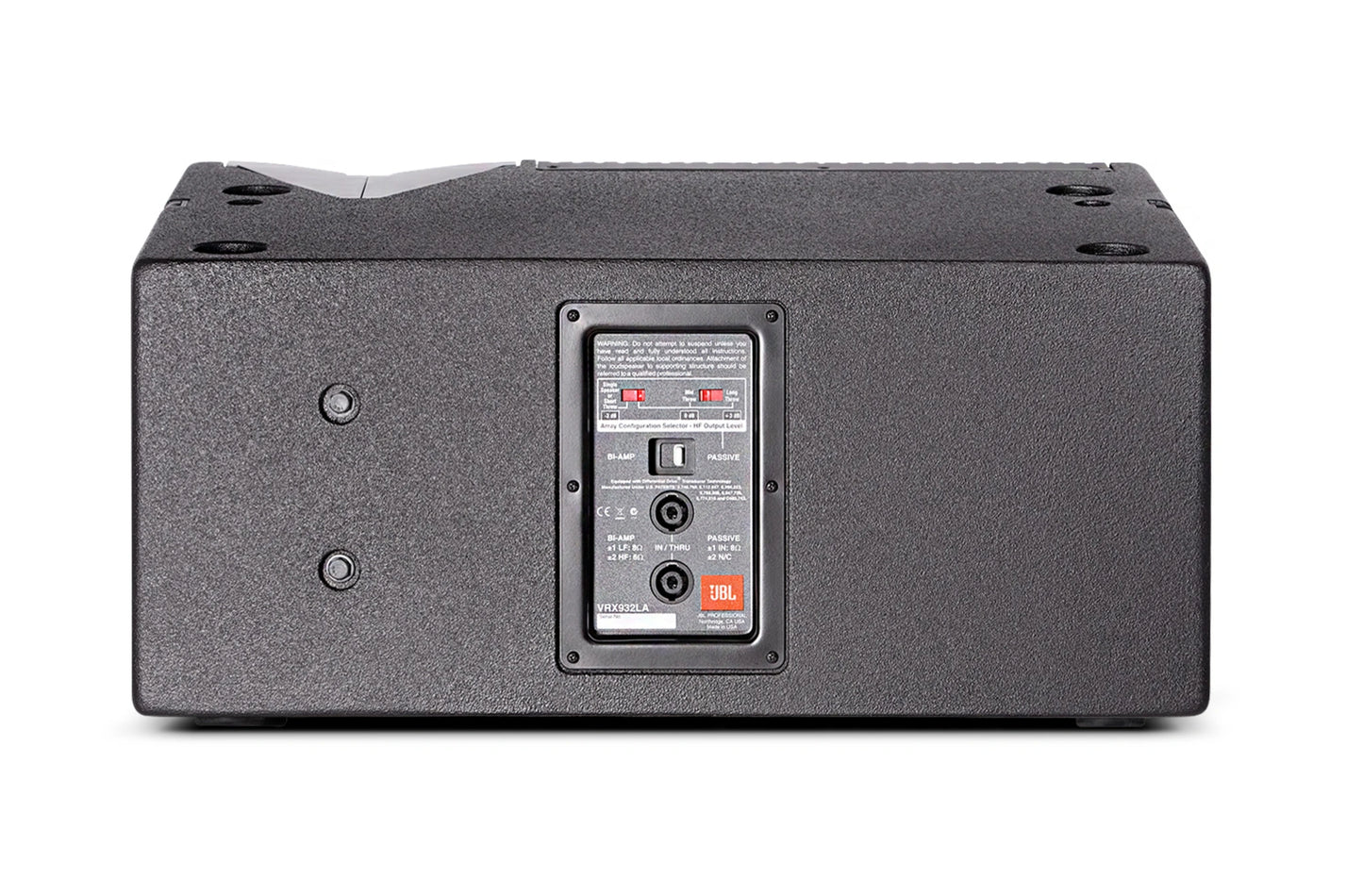

• Inputs

• Neutrik® Speakon® NL-4 (x2)

• Net Weight (each)

• 21 kg (46 lb)

• Optional Accessories

• VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only

• Outputs

• 1 x XLR

• System Type

• Constant Curvature 12" Two-Way Line Array System
