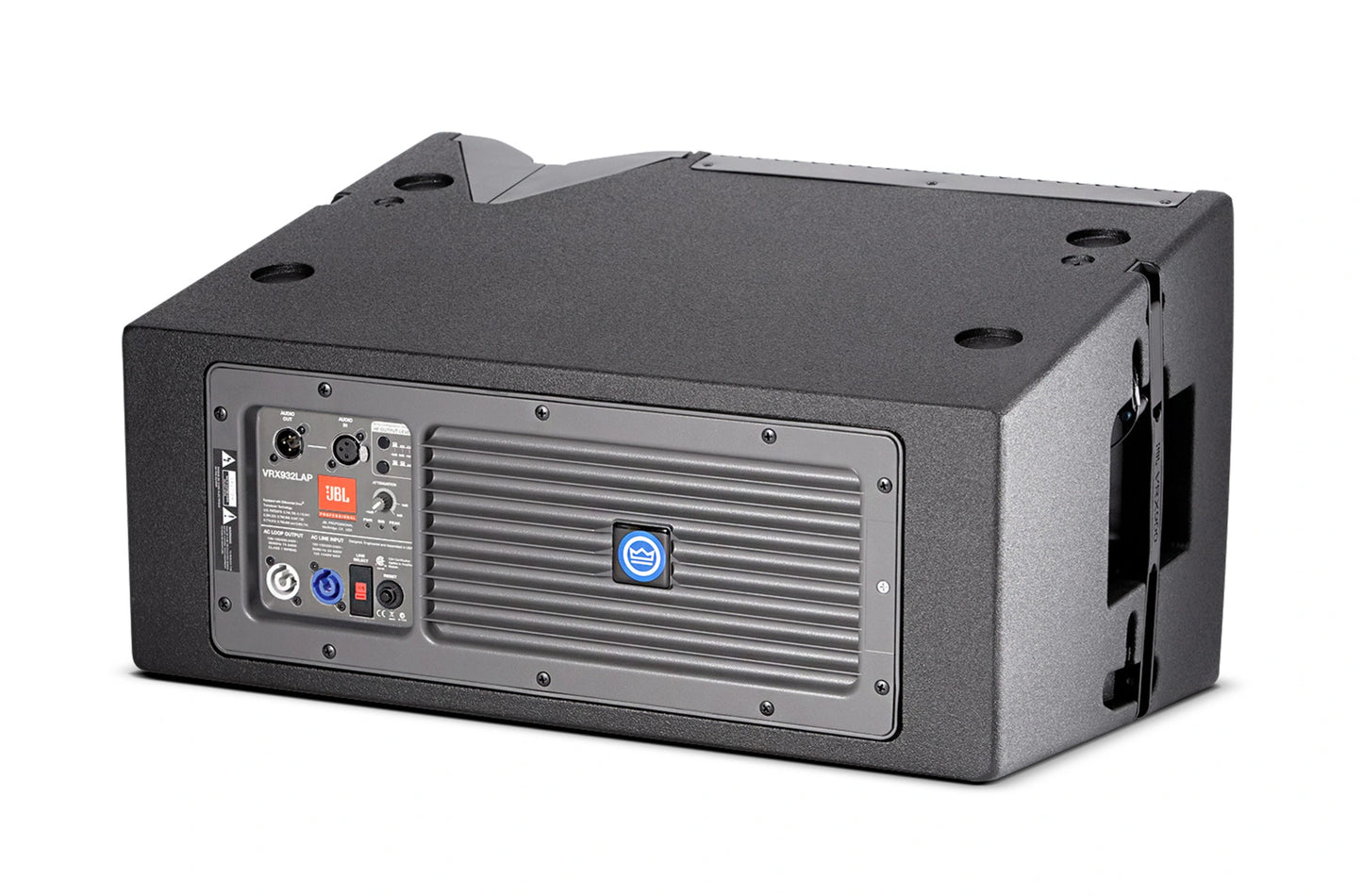

VRX932LAP

The VRX932LAP is a compact constant line array system that is easy to setup and works well for indoor venues that don't require a very long-throw. It can be a great addition for a medium sized PA system for a production company.

From the Manufacturer:

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Features:

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.

• JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.

• VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.

• Constant Curvature waveguide for unprecedented array coherence.

• Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.

• Array Configuration Selector permits "array shading".

Specifications:

• Power Rating

• 1750 Watts Peak875 Watts Continuous

• Frequency Range (-10dB)

• 57 Hz - 20 kHz

• Dimensions (H x W x D)

• 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)

• Frequency Response

• 75 Hz - 20 kHz (+/-3db)

• Maximum SPL (1m)

• 136 dB SPL

• Coverage Pattern

• 100 x 15 nominal

• DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance)

• LF: 750 Watts, HF: 125 Watts

• DPC-2 Output Section

• LF: Dual-Bridged Technology™, Class D

• Inputs

• XLR with loop through

• LF Driver

• 1 x JBL 2262FF 305 mm (12 in) neodymium magnet

• HF Driver

• 3 x JBL 2408J, 38 mm (1.5 in)

• User Controls

• Input Attenuator (0-16 dB)

• Signal Processings

• DSP based, resident in Input Module

• AC Power Operating Range

• 90-132 VAC or 216-264 VAC, 50/60 Hz

• AC Input Connector

• Neutrik PowerCon (NAC 3MPA)

• AC Loop Through Connector

• Neutrik PowerCon (NAC 3MPB)

• AC Current Requirements

• 6A per system at 120V, 3A per system at 240V

• Enclosure

• 25/15 mm, 11-ply birch plywood

• Suspension / Mounting

• Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting

• Finish

• Black DuraFlex™ finish

• Grille

• Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam

• Net Weight (each)

• 24 kg

• 52 lb

• Optional Accessories

• VRX-AF: Suspension array frame

• Outputs

• 1 x XLR

• System Type

• Constant Curvature 12" Two-Way Powered Line Array System

• Nominal Impedance

• NA - amplification is integrated
