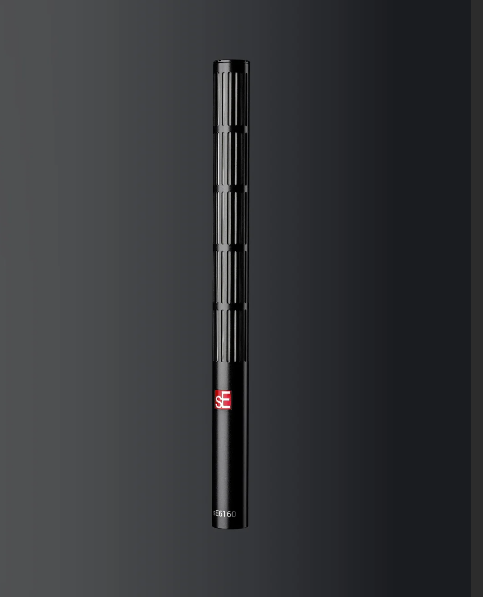

sE6160 Shotgun Microphone

The sE Electronics sE6160 is a professional shotgun condenser microphone designed for precise, directional audio capture in live sound, film production, broadcasting and recording applications. Featuring a handcrafted condenser capsule, a supercardioid/lobar pickup pattern and low self-noise, it delivers clear, detailed audio while rejecting unwanted off-axis sound. Its rugged metal construction, switchable low-cut filters and selectable attenuation pads make it suitable for demanding professional environments.

From The Manufacturer:

The sE6160 is a compact shotgun microphone featuring a handcrafted small-diaphragm true condenser capsule, low-noise electronics and a transformerless output. Its carefully engineered acoustics provide excellent off-axis rejection and high gain before feedback. Built with a durable, roadworthy metal housing, it includes switchable low-cut filters to reduce unwanted low-frequency noise and attenuation pads to accommodate high sound-pressure levels. The microphone is suitable for live sound reinforcement, audience recording, film production and orchestral spot miking.

Key Features:

• Handcrafted small-diaphragm true condenser capsule.

• Supercardioid/lobar shotgun pickup pattern for directional audio capture.

• Frequency response spanning 20 Hz to 20 kHz.

• Low equivalent noise level of 13 dB(A).

• Switchable 10 dB and 20 dB attenuation pads.

• Switchable 80 Hz and 160 Hz low-cut filters.

• Maximum sound-pressure level of up to 157 dB SPL with the 20 dB attenuation pad engaged.

• Durable, roadworthy metal construction.

• Standard 3-pin male XLR connector.

• Compatible with professional audio equipment providing 48 V phantom power.

• Available individually or as part of a factory-matched pair.

Specifications:

• Brand: sE Electronics

• Model: sE6160

• Microphone Type: True condenser shotgun microphone

• Capsule: Handcrafted small-diaphragm condenser

• Polar Pattern: Supercardioid/lobar

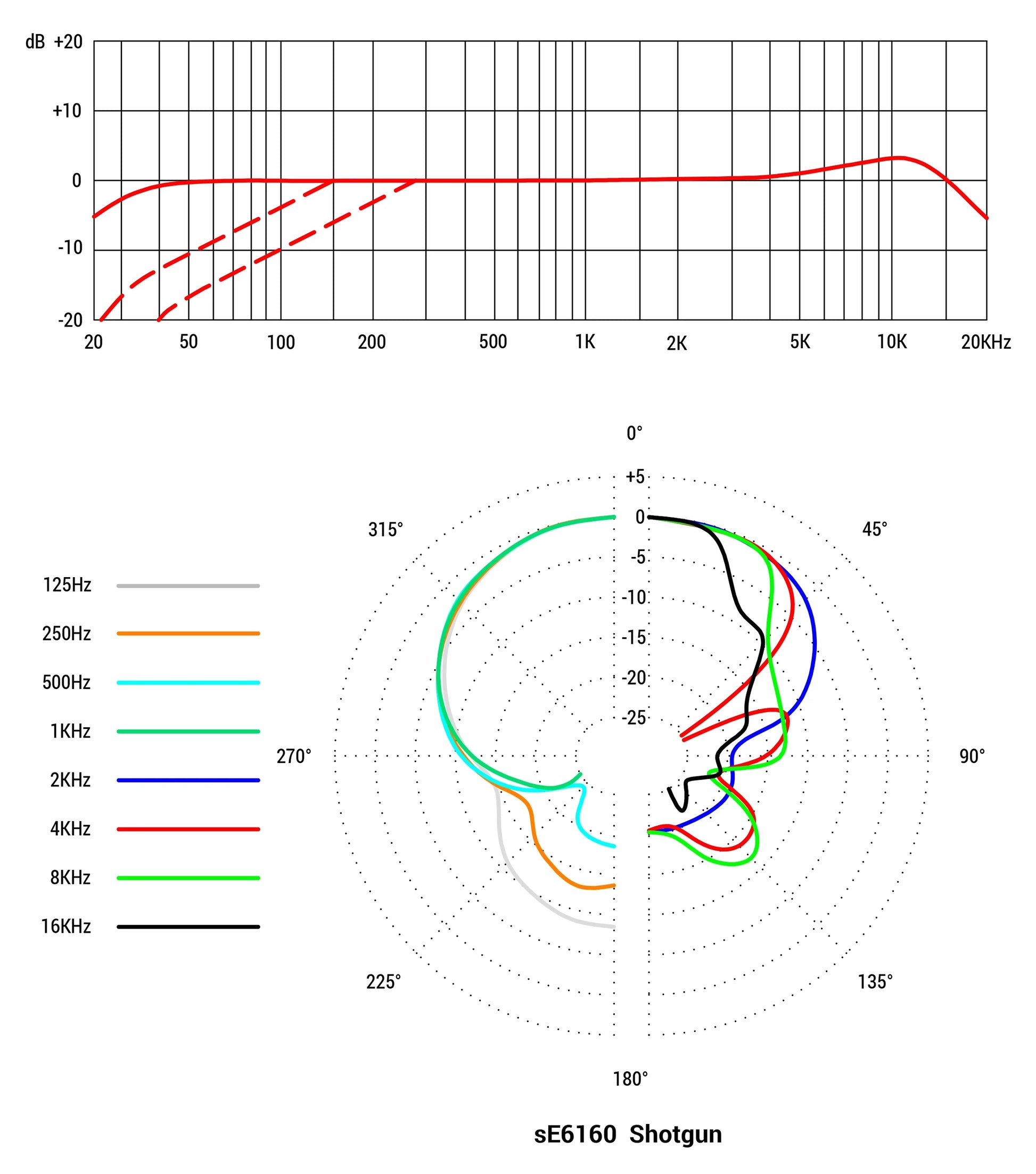

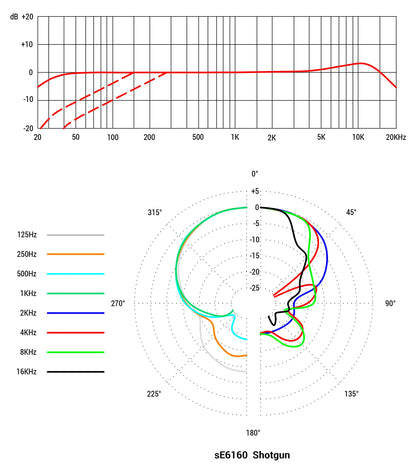

• Frequency Range: 20 Hz – 20,000 Hz

• Sensitivity: 25 mV/Pa (-32 dBV)

• Equivalent Noise Level: 13 dB(A)

• Signal-to-Noise Ratio: 81 dB

• Maximum SPL (0.5% THD): 137 / 147 / 157 dB SPL (0 / 10 / 20 dB attenuation)

• Dynamic Range: 124 / 134 / 144 dB (0 / 10 / 20 dB attenuation)

• Low-Cut Filter: Switchable 80 Hz / 160 Hz, 6 dB per octave

• Attenuation Pad: Switchable 10 dB / 20 dB

• Power Requirement: 48 V phantom power

• Electrical Impedance: 110 ohms

• Recommended Load Impedance: Greater than 1 kΩ

• Current Consumption: 2.6 mA

• Connector: 3-pin male XLR

Included Accessories:

• Microphone clip

• Thread adapter

• Windscreen

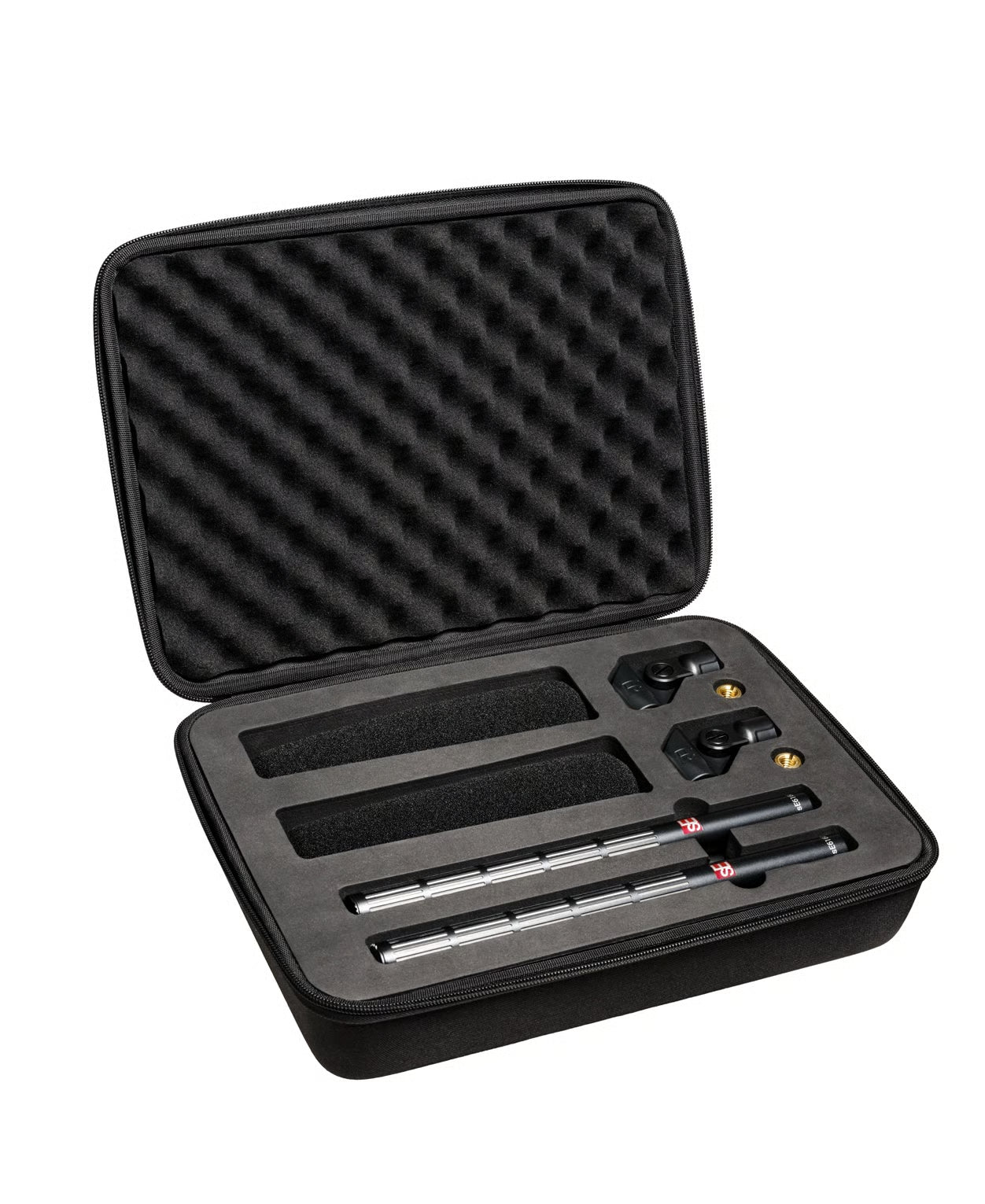

• Soft carrying case

Applications:

• Film and television production.

• Directional dialogue and location recording.

• Live sound reinforcement and stage ambience capture.

• Audience and crowd recording.

• In-ear monitor (IEM) ambient microphone applications.

• Broadcasting and electronic news gathering.

• Orchestral spot miking.

• Recording environmental sounds and sound effects.

Accessories (Not Included):

• XLR microphone cable.

• Microphone stand or boom pole.

• Camera microphone mount or shock mount.

• External microphone preamplifier or audio interface, if required.

• Compatible 48 V phantom power supply, if not available from the connected equipment.

• Additional wind protection for outdoor recording.

Size:

• Microphone Diameter: 19.6 mm (0.77 inches).

• Microphone Length: 250 mm (9.84 inches).

Weight:

• Microphone Weight: 110 g (3.88 oz.).

Electrical/Thermal:

• Operating Power: 48 V DC phantom power.

• Current Consumption: 2.6 mA.

• Electrical Impedance: 110 ohms.

• Recommended Load Impedance: Greater than 1 kΩ.

• Thermal Specifications: Operating temperature range not verified.
