SE7

The sE Electronics sE7 is a compact small-diaphragm condenser microphone designed to capture instruments with clear, natural sound and accurate transient detail. Its cardioid polar pattern, switchable -20 dB attenuation pad and 80 Hz low-cut filter make it suitable for recording acoustic guitars, pianos, drums, percussion, cymbals, woodwinds and orchestral instruments. A durable all-metal housing and gold-plated XLR connector support reliable performance in studio and live sound environments.

From The Manufacturer:

The sE7 is a high-quality back-electret small-diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond.

With an optimized acoustic design, discrete Class-A circuitry and a transformerless output, it delivers clear, natural sound quality at all frequencies.

The specialized capsule features an ultra-thin diaphragm for excellent transient response, while the cardioid polar pattern makes it suitable for a wide range of studio and stage applications.

Key Features:

• Small-diaphragm condenser microphone

• 1/2-inch back-electret condenser capsule

• Cardioid polar pattern

• Clear, natural sound reproduction

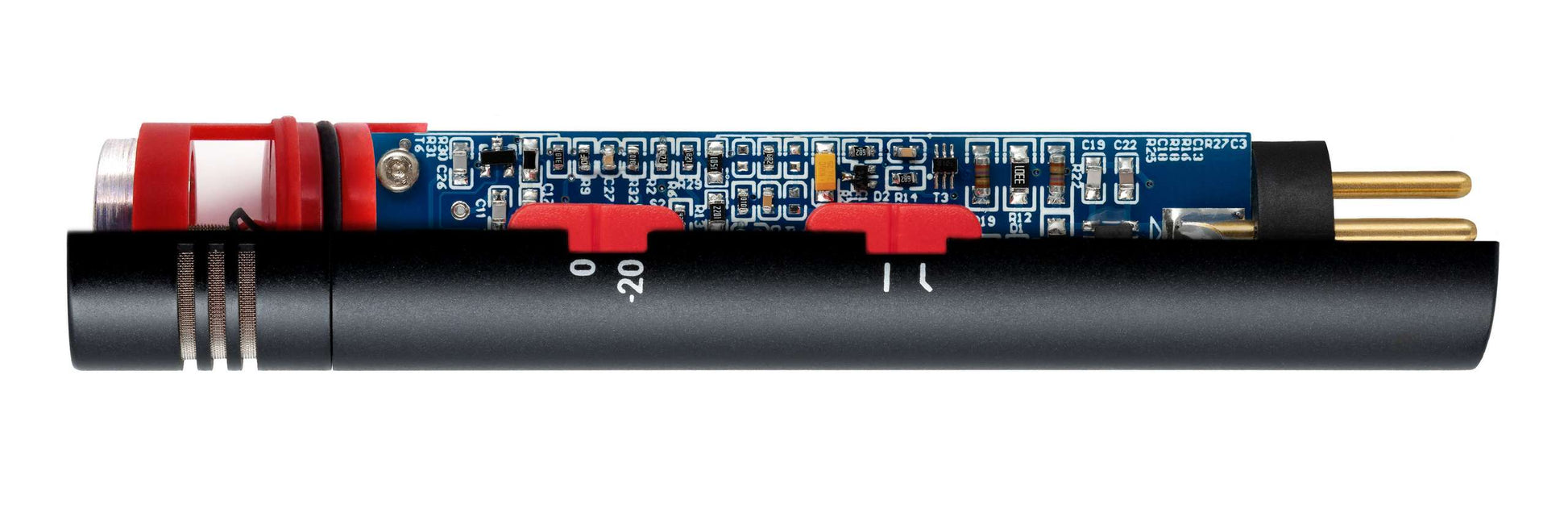

• Discrete Class-A circuitry

• Transformerless output design

• Switchable -20 dB attenuation pad

• Switchable 80 Hz low-cut filter

• High maximum SPL handling

• Low-noise electronics

• All-metal housing

• Gold-plated 3-pin XLR connector

• Suitable for studio and live sound applications

Specifications:

• Product Type: Small-Diaphragm Condenser Microphone

• Manufacturer: sE Electronics

• Model: sE7

• Capsule: 1/2-inch Back-Electret Condenser

• Polar Pattern: Cardioid

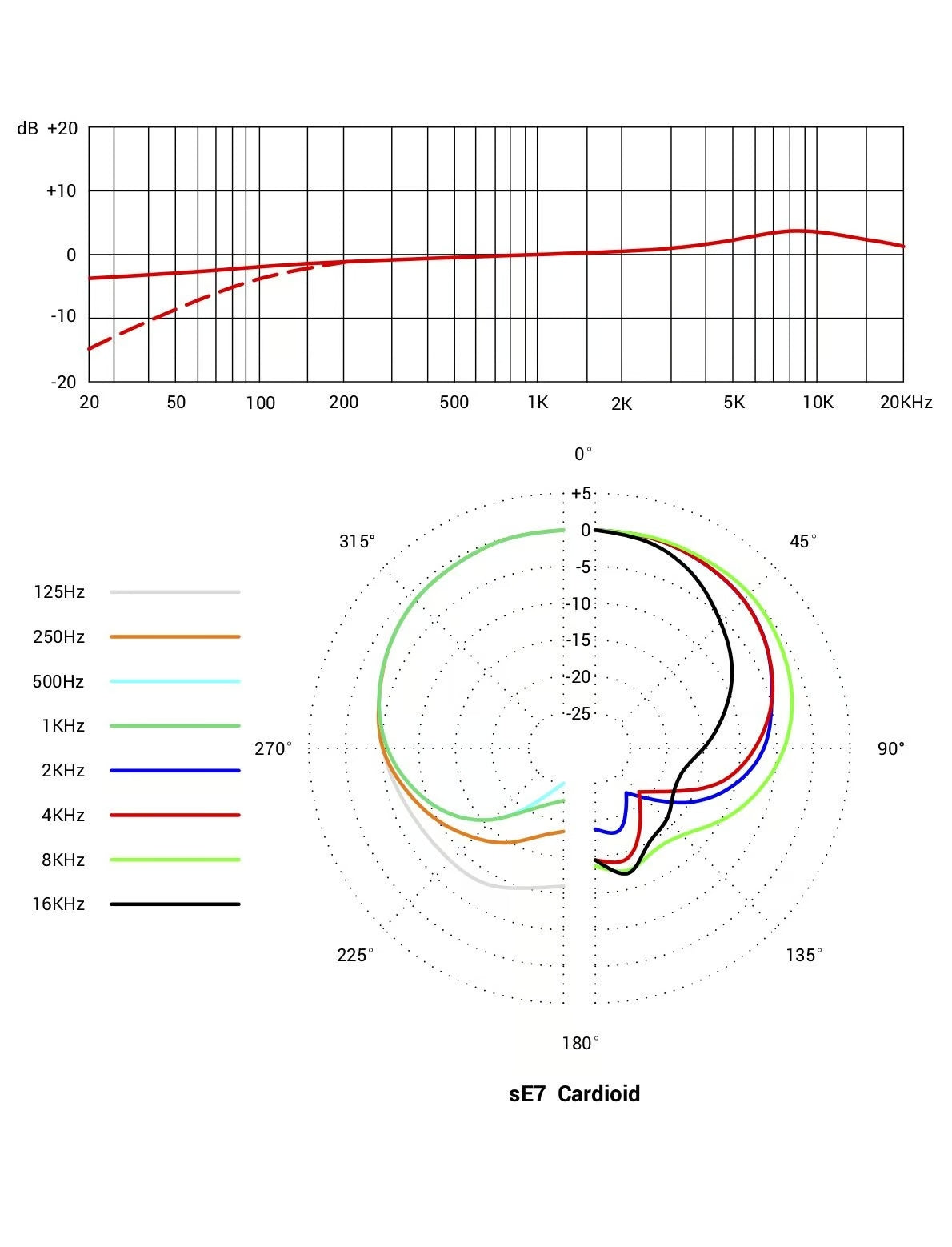

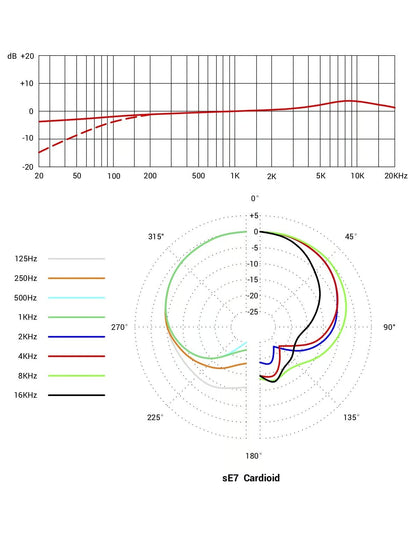

• Frequency Response: 20 Hz–20 kHz

• Sensitivity: 19 mV/Pa (-34.5 dBV)

• Maximum SPL: 136 dB SPL

• Maximum SPL with Attenuation Pad: 156 dB SPL

• Equivalent Noise Level: 16 dB(A)

• Dynamic Range: 120 dB

• Dynamic Range with Attenuation Pad: 140 dB

• Signal-to-Noise Ratio: 78 dB

• Low-Cut Filter: 80 Hz, 6 dB/octave, switchable

• Attenuation Pad: -20 dB, switchable

• Electrical Impedance: <200 Ohms

• Recommended Load Impedance: >1 kOhm

• Power Requirement: 48 V Phantom Power

• Current Consumption: 3.0 mA

• Connector: 3-pin Male XLR

Applications:

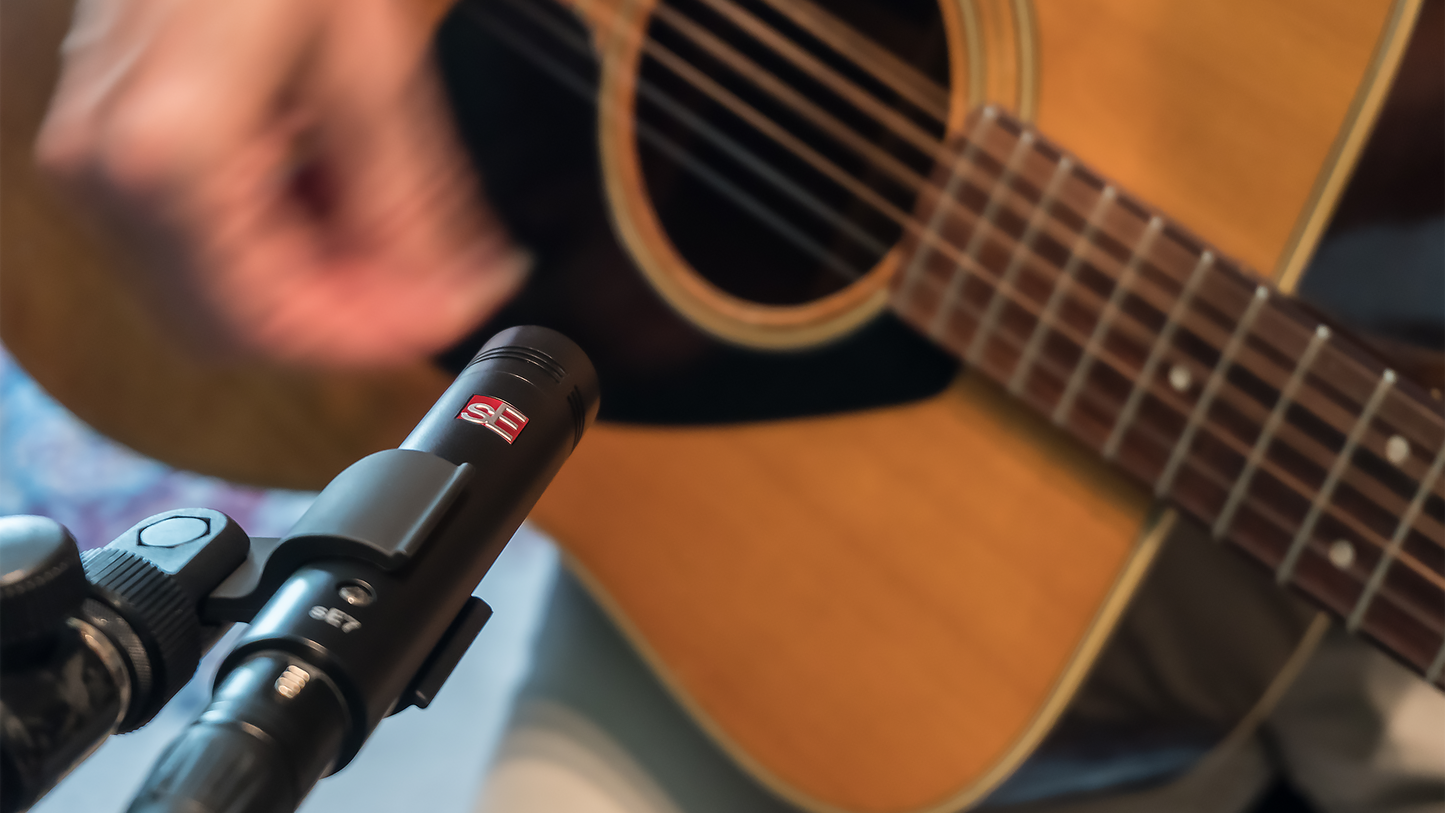

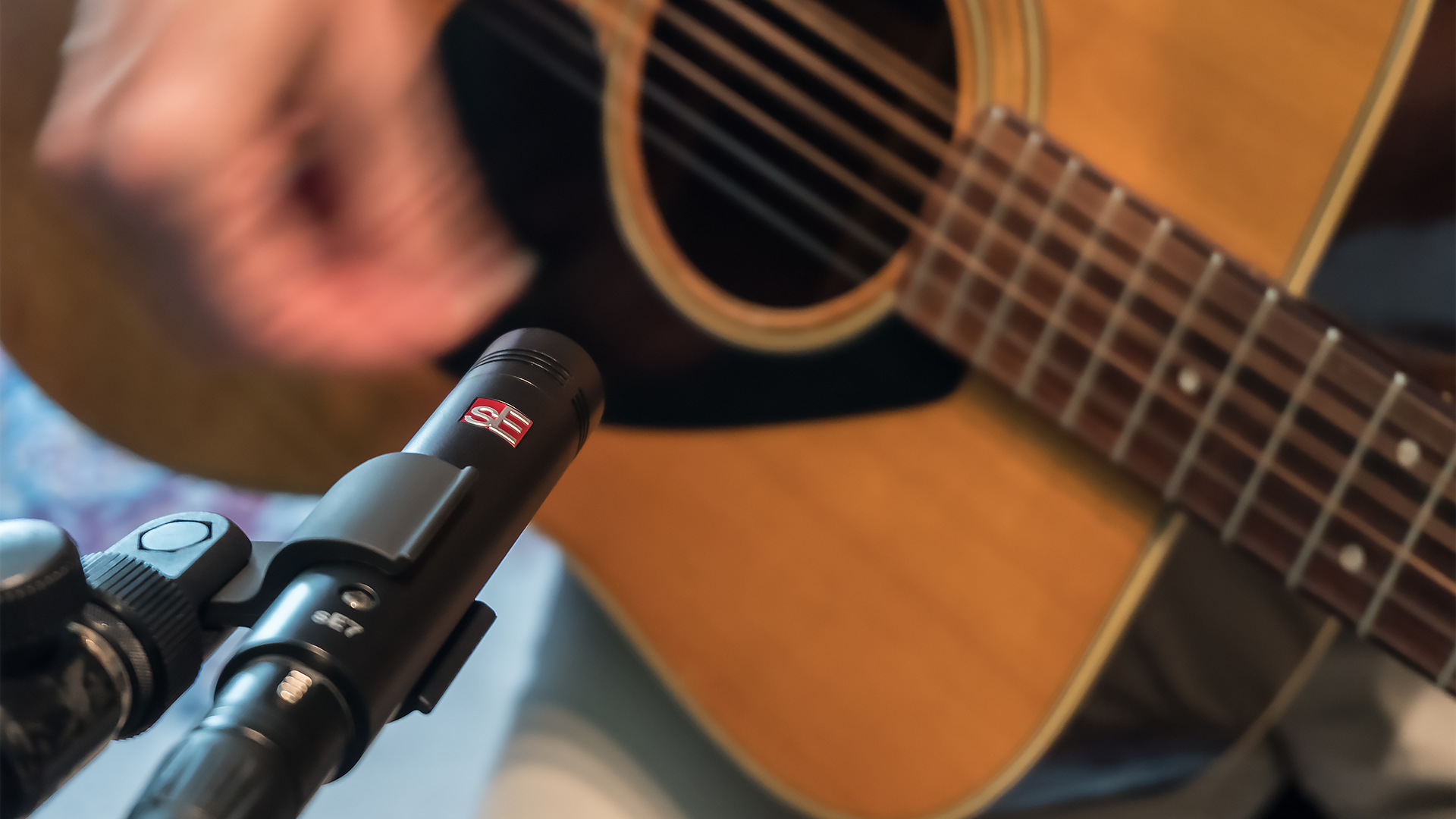

• Acoustic guitar recording

• Piano recording

• Drum overheads

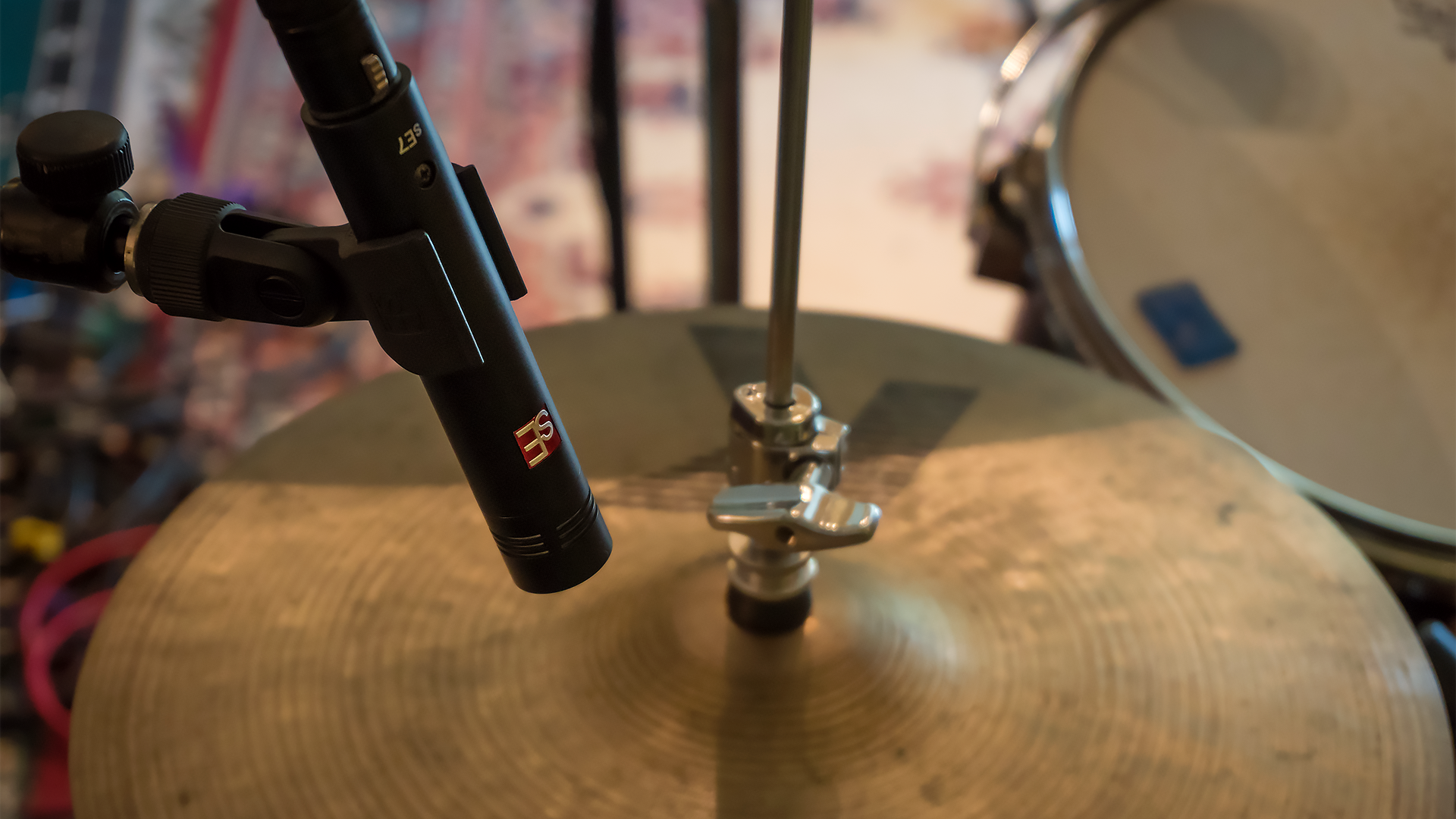

• Cymbals

• Percussion

• Brass instruments

• Woodwind instruments

• Choirs

• Orchestral instruments

• Strings

• Studio recording

• Live sound reinforcement

Included Accessories:

• Microphone clip

• Thread adapter

• Windscreen

Accessories (Not Included):

• Microphone stand

• XLR microphone cable

• Audio interface or mixing console with 48 V phantom power

Size:

• Diameter: 23 mm

• Length: 120 mm

Weight:

• 128 g

Electrical / Thermal:

• Power Requirement: 48 V Phantom Power (P48)

• Current Consumption: 3.0 mA

• Electrical Impedance: <200 Ohms

• Recommended Load Impedance: >1 kOhm

• Connector: 3-pin Male XLR
