Sku:
GL-OCULUS7X40

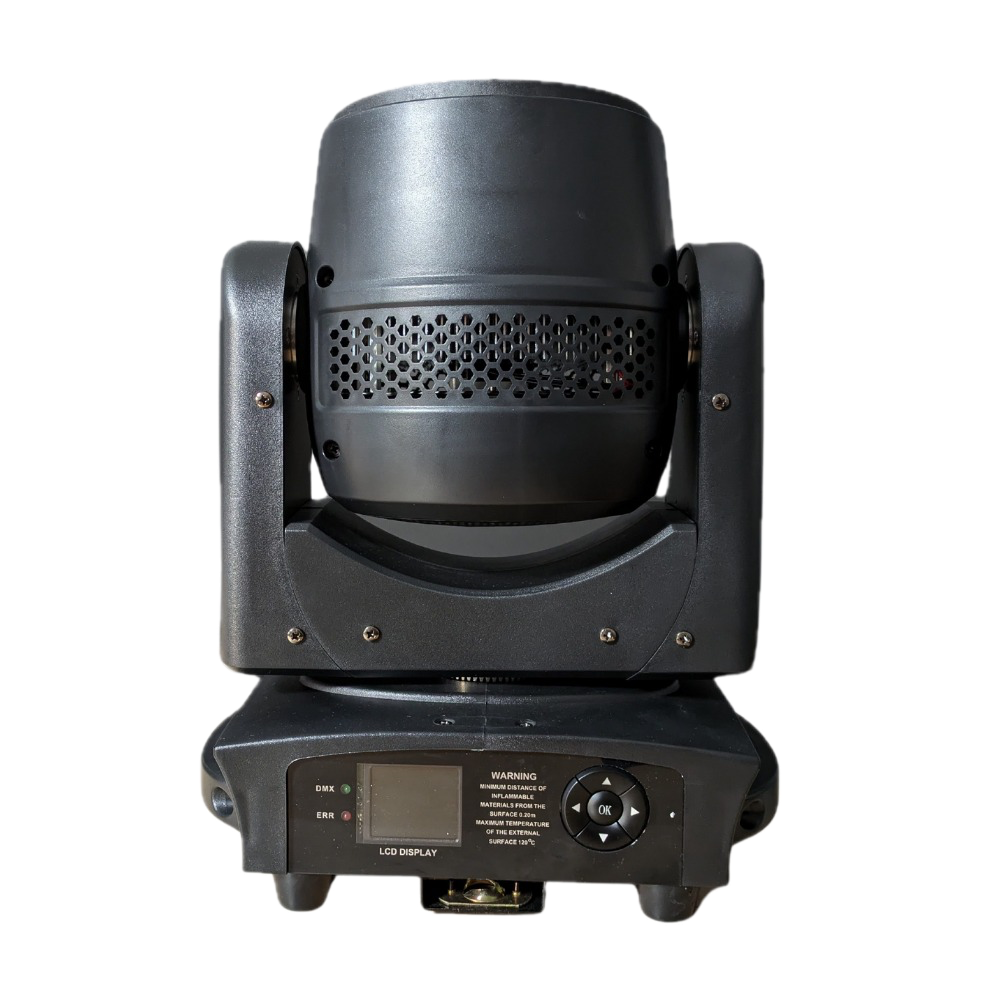

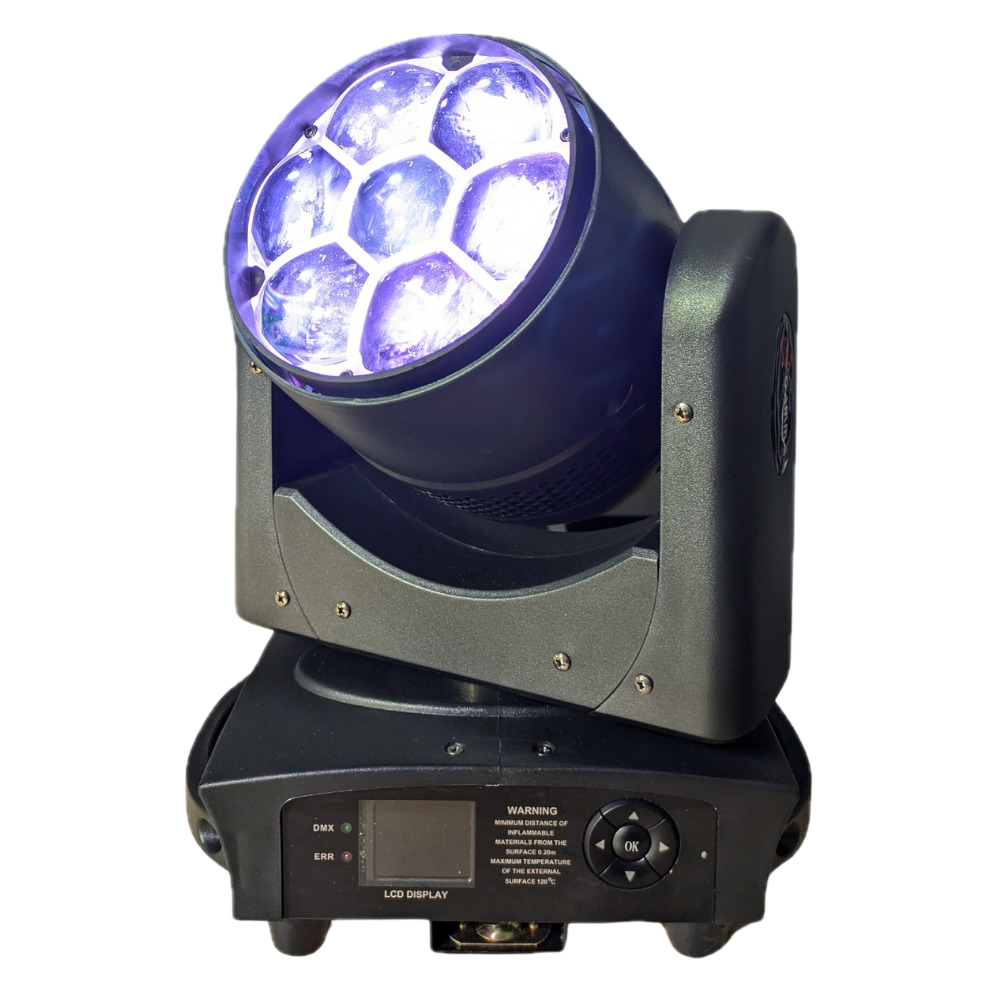

Silhouette Oculus 7X40
Regular price
$786.00
Regular price
Sale price
$786.00
Unit price
per
Shipping calculated at checkout.
Vendor: GAMMA LED Vision
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The Silhouette Oculus is a LED Moving Wash Fixture intended for use on smaller stages. It features some great capabilities such as a motorized zoom and Pixel Mapping.
Specifications:
- 7x40 watt LED’S
- Motorized Zoom
- Pixel Mapping
- Lens Rotation
In the box:
- (1) Silhouette Oculus 7X40
- (1) Power Cable
- (1) DMX Cable
- (1) Safety Cable
Light Source:
- LED Power: (7)x40w LED’s
- LED Color Mixing: 4in1 (RGBW)
- Beam Angle: 8º – 41º
- Dimming: 0-100% 16 bit
- Strobe: 1-20 times/sec
- Color Output: Linear Color System
- 50,000 hours LED lifetime
Effects:
- Pixel Mapping: 24 Individual Pixel Mapped LED’s
- Lens Rotation: Beam Scatter and Rotation
- Macros: 44 Color Macros & Effects
Housing:
- Internal Housing: Die-casting Aluminum
- Display: 4 Button Menu
- DMX in & out: 3-Pin & 5- Pin DMX input & output
- Power: PowerCon™ Input & Output
Electrical:
- Voltage: AC100-240V
- Max Power: 250w
Control:
- Control Protocol: DMX 512/ 3-pin or 5-pin interfaces/ ArtNet control with RDM
- Control System: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 11CH, 17CH
Working Environment:
- Cooling System: Efficient Low Fan Cooling System
- IP Grade: IP-20
Dimensions:
- Net Weight: 13.5 lbs
- Dimensions: 6.7 x 11.5 x 13.5″ in
