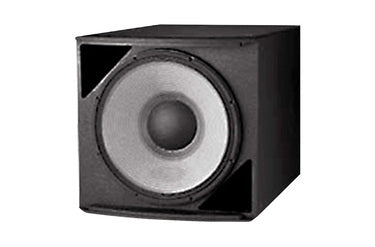

ASB6118

The ASB6118 is a compact high powered subwoofer. It can be great addition to installs in venues that often host performing artists.

From the Manufacturer:

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

Features:

• Large vent area for high output.

• FIR Tuning Set Matches Phase Profile to Full-Range Models

• For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Specifications:

• Frequency Range (-10dB)

• 28 Hz – 1 kHz

• Frequency Response (±3 dB)

• 35 Hz – 1 kHz

• Transducer Power Rating (AES)

• 1200 W (4800 W peak), 2 hrs

• System Power Rating

• 800 W (3200 W peak), 100 hrs

• Maximum SPL (1m)

• 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)

• System Sensitivity (1w @ 1m)

• 30 Hz – 100 Hz: 98 dB100 Hz – 500 Hz: 98 dB

• Nominal Impedance

• 8 ohms

• LF Driver

• 1 x JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in) voice coil

• Nominal LF Driver Impedance

• 8 ohms

• Enclosure

• Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood

• Suspension Attachment

• 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware

• Environmental

• Mil-Std 810; IP-x3 per IEC529.

• Net Weight (each)

• 98 lbs. (44.5 kgs)
