Sku: Skywriter HPX M-10

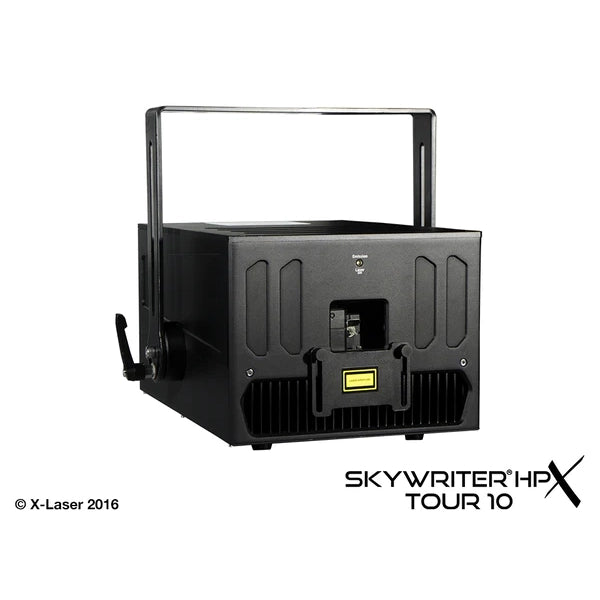

Skywriter HPX M-10

Regular price
$6,899.00
Regular price
Sale price
$6,899.00
Shipping calculated at checkout.
Vendor: X-Laser

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

This Mercury laser is incredible because it allows you to get full control via X-Laser's Mercury system, enabling simple control of a wide variety of beam patterns, morphing between those patterns, and more!

From the Manufacturer:

Ultimate Power. Ultimate Control. Ultimate Laser

The Skywriter HPX M-10 is engineered to outmatch the competition by offering superior brightness, superior control and superior value. For the largest venues and audiences, indoors and out, X-Laser’s highest-powered lasers are the perfect solution for incredible laser effects. The Skywriter HPX M-10 boasts 10W of RGB full-color laser effects and is perfect for large-scale professional touring and install applications. With the ultimate in RGB color mixing technology and total control featuring integrated X-Laser Mercury control for pro lighting consoles (DMX, sACN, Art-Net), the Skywriter HPX M-10 is an ultra-high-powered unit that makes a lasting impression. (The Skywriter HPX MF-10 is also available with X-Laser Mercury control and Pangolin FB4 integrated).

From the GEAR Pro's:

The Skywriter M10 is a great laser for mid-large venues.  The beauty of the Mercury system is that it allows you to work with the laser both like a light and like a projector - essentially stacking layers of gobos that can morph and change color in sections on the fly (and smoothly) to add a new dimension to your events.

In addition to the laser, a working system also includes an Etherstop pendant and the operator must have a variance (recommended that you acquire it through the Variance by X-Laser).  An Etherstop is include with this laser as well as a road case.

In the Box:

  • (1) Skywriter HPX M-10
  • (1) Locking Power Cable
  • (1) Beam Block Foil
  • (1) Remote E-Stop Plug
  • (1) Keys
  • (1) Road Case
  • (1) Etherstop Pendant

     Features:

    • Laser: 10W balanced RGB laser engine
    • Beam source: Direct-injection diode modules
    • Wavelengths:
      • 650nm red
      • 532nm green
      • 445nm blue
    • Color modulation: Analog, 1,000+ colors
      • Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 20K PPS at 8-degrees
      • Beam divergence: 1-2 mRad
      • Cooling: External heat sink and fan system
      • Effects:
        • 450+ gobos
        • 11 digital prisms
        • 50 color macros
        • 60 motion macros with variable speed and amplitude
      • Control Protocol: X-Laser Mercury control
      • IP Grade: IP20

      Class 4 High-Powered Laser; FDA Variance required. EZ Variance Kit available separately

      Tech Specs

      Optics:

      Light Source Type: Laser

      Light Source Wattage: 10w

      Control

      DMX 5-Pin Connectors?: Yes

      Physical:

      Length: 16 in

      Width: 13.5 in

      Height: 13.5 in

      Weight: 33 lb

      Electrical

      Maximum Wattage: 300w

      Power Cable Connector - Fixture Side: PowerCON

      Main Power Connector on Included Cable: Edison

      Warranty

      Warranty: 12 months / 1 year
