This Mercury laser is incredible because it allows you to get full control via X-Laser's Mercury system, enabling simple control of a wide variety of beam patterns, morphing between those patterns, and more!

From the Manufacturer:

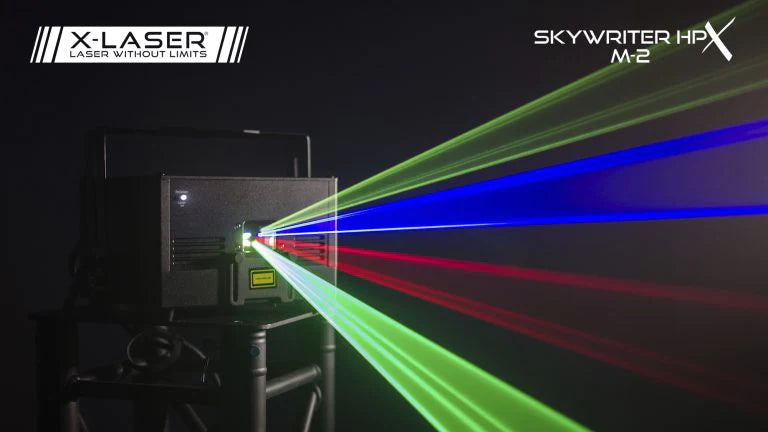

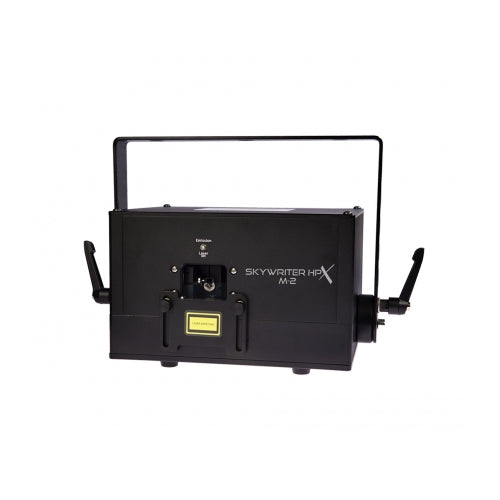

The Skywriter HPX M-2 is the most affordable way to access X-Laser’s Mercury laser control system in a fixture that is truly road ready.

The Skywriter HPX M-2 is ideal for small and medium-sized productions where vibrant laser effects can stand out on their own or be used to complement other effect lighting. Lighting professionals can easily integrate the M-2 into their lighting rigs and control it in unison with the rest of their lighting, from just about any major console or lighting controller. The Skywriter HPX M-2 has 2W of full RGB laser power and can be used indoors or outdoors, in venues with audiences of up to 1,000 guests.

The Skywriter HPX M-2 is the lower-power, lower-cost sibling of our most popular projector, the Skywriter HPX M-5, and combined with our Mercury control system allows for large arrays of lasers with incredible capabilities, all controlled from a lighting console to create amazing cascading movement, dimmer and color chases.

From the GEAR Pro's:

The Skywriter M2 is a great laser for mid-sized venues.  The beauty of the Mercury system is that it allows you to work with the laser both like a light and like a projector - essentially stacking layers of gobos that can morph and change color in sections on the fly (and smoothly) to add a new dimension to your events.

In addition to the Laser, a working system also includes an Etherstop pendant and the operator must have a variance (recommended that you acquire it through the Variance by X-Laser)

Video Review:

In the Box:

  • (1) Skywriter HPX M-2
  • (1) Locking Power Cable
  • (1) Beam Block Foil
  • (1) Remote E-Stop Plug
  • (1) Keys

 Features:

  • Laser: 2W balanced RGB laser engine
  • Beam source: Direct-injection diode modules
  • Wavelengths:
    • 638nm red
    • 520nm green
    • 445nm blue
  • Color modulation: Analog, 1,000+ colors
    • Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 30K PPS at 8-degrees
    • Beam divergence: <1.6 mRad
    • Cooling: Forced air through heat sink and TEC
    • Effects:
      • 450+ gobos
      • 11 digital prisms
      • 50 color macros
      • 60 motion macros with variable speed and amplitude
    • Control Protocol: X-Laser Mercury control, ILDA
    • IP Grade: IP20

    Class 4 High-Powered Laser; FDA Variance required. EZ Variance Kit available separately

    Tech Specs

    Optics:

    Light Source Type: Laser

    Light Source Wattage: 2w

    Control

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 15 in

    Width: 12.3 in

    Height: 9.4 in

    Weight: 15 lb

    Electrical

    Maximum Wattage: 85w

    Power Cable Connector - Fixture Side: PowerCON

    Main Power Connector on Included Cable: Edison

    Warranty

    Warranty: 6 months / 1 year
