Sku: SLIMBANKH18ILS

SlimBANK H18 ILS

$309.99
$309.99
Shipping calculated at checkout.
Vendor: Chauvet DJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

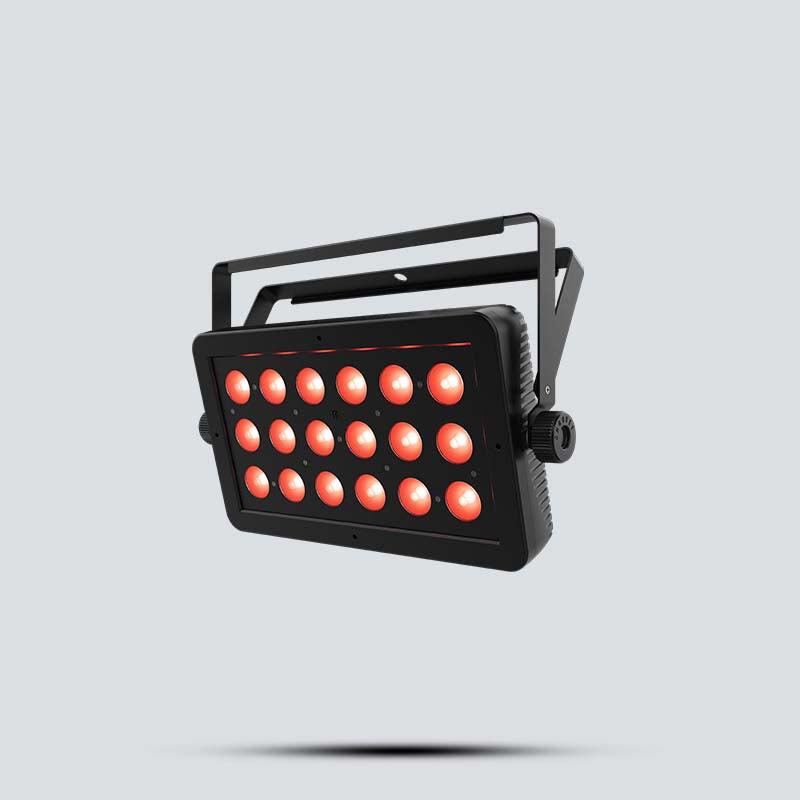

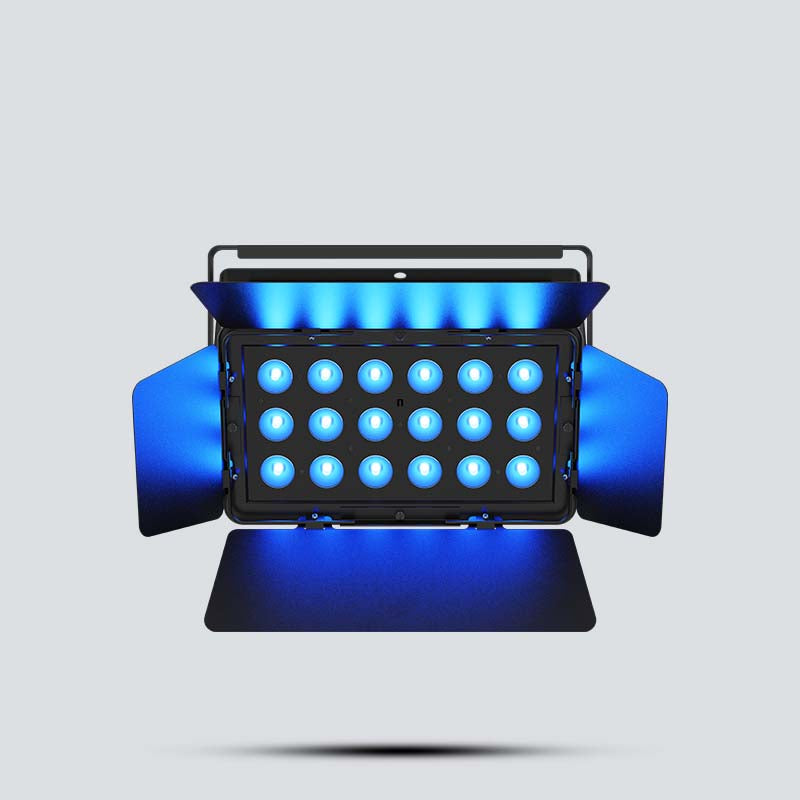

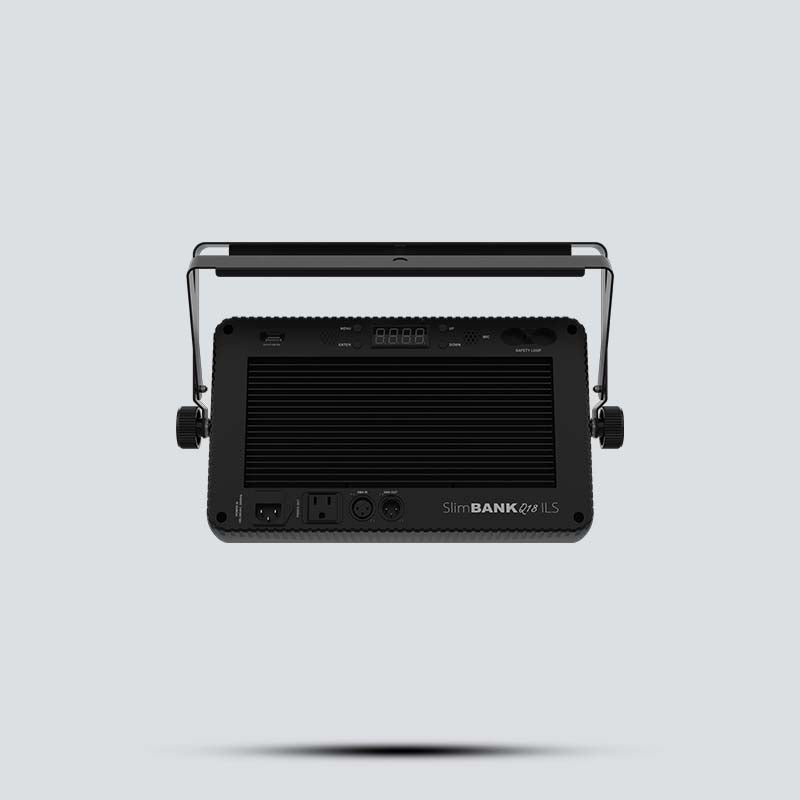

The SlimBANK H18 ILS isn't going to blow you away with it's brightness or it's color quality.  But, if you need a cheap, quick, but still reliable uplight without wireless DMX, this is a great one for you!

From the Manufacturer:

SlimPar 64 RGBA ILS is a compact wash light with 180quad-color (Red, Green, Blue, and Amber) LEDs. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures thanks to punchy amber LEDs. Its multiple user-configurable settings and power linking capabilities make this fixture ideal for a range of wash lighting needs.

The following video review is for a previous version of this fixture.


In the Box:

  • (1) SlimBANK H18 ILS
  • (1) IEC Power Cable

Features:

  • DMX Channels: 6, 8, 12 or 22

  • DMX Connectors:3-pin XLR

  • Light Source: 18 LEDs (hex-color RGBAW+UV) 6.2 W, (1.6 A), 50,000 hours life expectancy

  • Strobe Rate: 0 to 20 Hz

  • Beam Angle: 27°

  • Field Angle: 43°

  • Illuminance: 3,111 lux @ 2 m

  • Lumens: 3,356

  • Power Linking: 8 units @ 120 V; 14 units @ 230 V

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current: 68 W, 1 A @ 120 V, 60 Hz, 67 W, .5 A @ 230 V, 50 Hz

  • Weight: 6 lb. (2.7 kg)

  • Size: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)

  • Approvals: CE, RoHS

  • Optional Controllers: IRC-6, ILS Command

  • Bracket Mounting Hole: 13 mm

  • Beam Angle: 27°

  • Field Angle: 43°

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Tech Specs

Optics:

Light Source Type: RGBA LED

Light Source Wattage: 18x 4w

Minimum Beam Angle: 17.0°

Maximum Beam Angle: 17.0°

Control

DMX Channel Modes: 4 / 6 / 10 / 16

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: No

Physical:

Length: 8.2 in

Width: 14 in

Height: 2.2 in

Weight: 6 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 65w

Power Cable Connector - Fixture Side: IEC

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 2 Years
