SLP14/T

A sleek low-profile 2-way on-wall installation speaker designed for background and foreground audio in commercial spaces, delivering clear, wide coverage with a discreet architectural design.

From The Manufacturer:

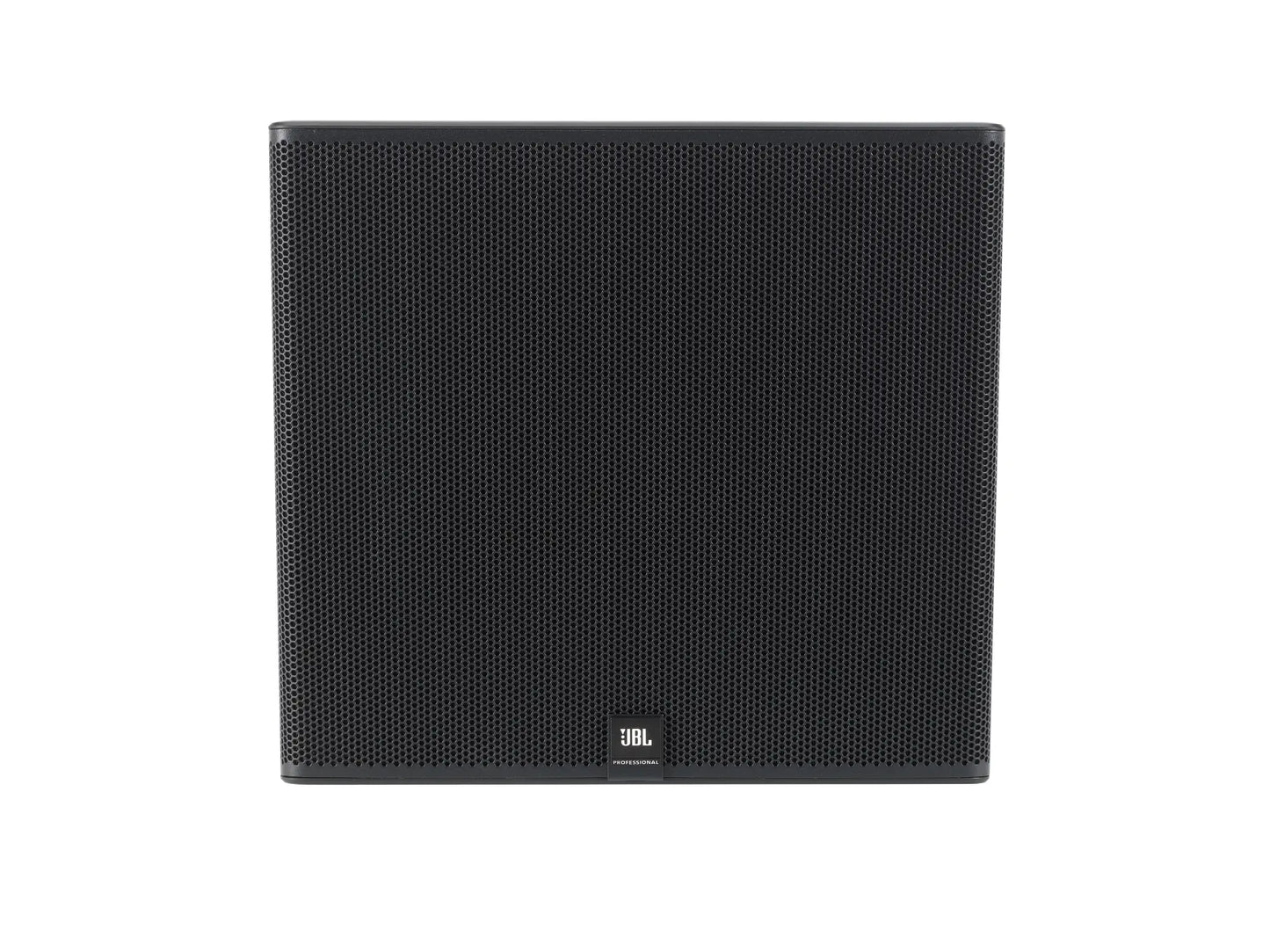

The JBL SLP14/T is a two-way on-wall loudspeaker that provides rich, detailed wide-range sound and broad, consistent coverage in a slim enclosure. It features a 4-inch woofer and dome tweeter system, designed for professional installed sound applications. It includes a multi-tap transformer for 70V/100V systems and can also be used in 8-ohm direct mode.

It is designed for easy installation using an included slide-in wall bracket, with a 15° down-tilted acoustic design for flush wall mounting.

Features:

• 2-way on-wall installation loudspeaker

• 4-inch (approx. 100–120 mm) woofer with dome tweeter system

• Wide, consistent coverage for installed sound environments

• 15° down-tilted acoustic design for wall flush mounting

• Multi-tap transformer for 70V / 100V distributed audio systems

• Switchable 8-ohm low impedance mode

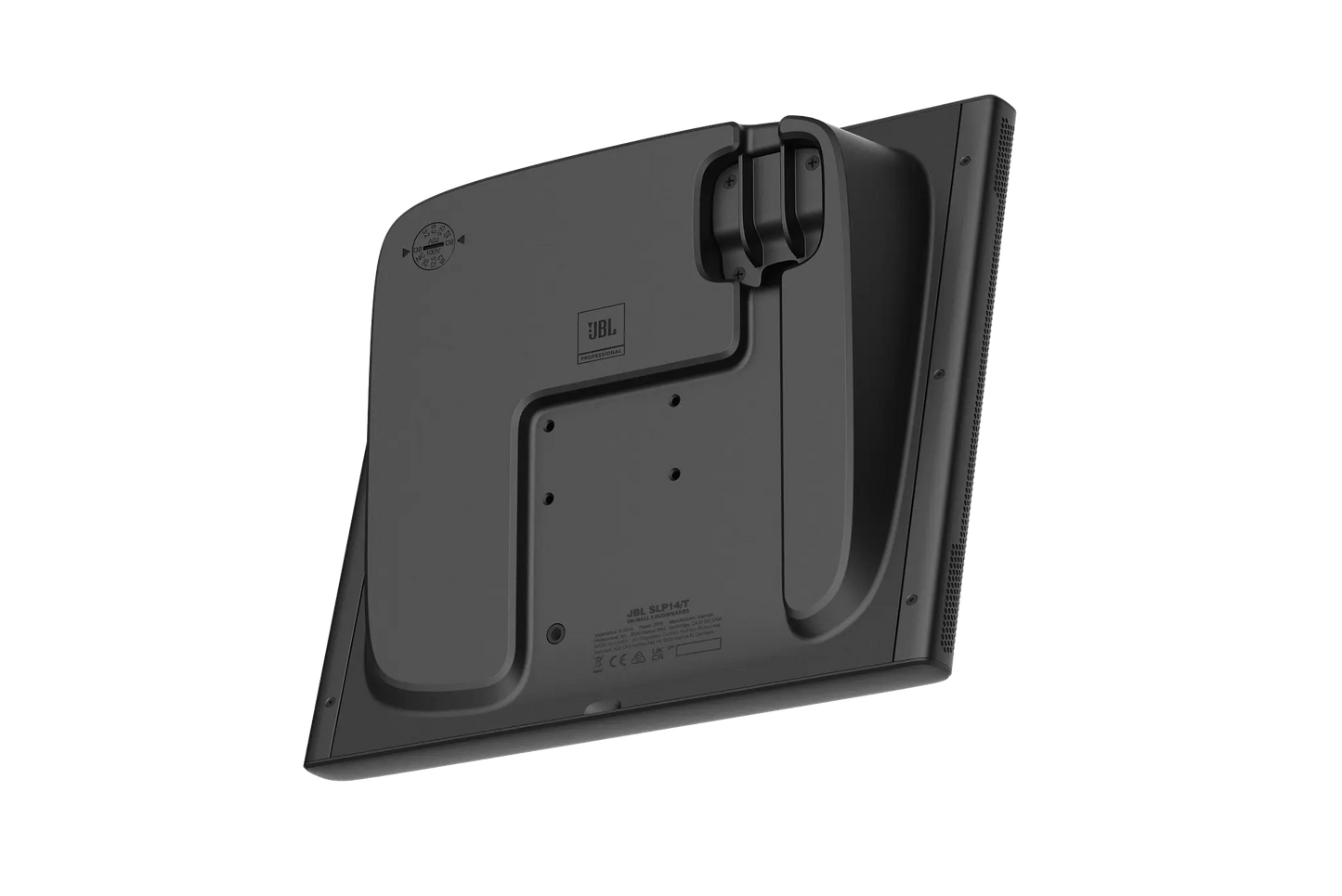

• Includes slide-in wall mounting bracket for fast installation

• Optional rain cover for outdoor-protected use

• Slim, ADA-compliant low-profile design

• Available in black or white finishes

Specification:

• System Type: 2-way on-wall installation speaker

• Frequency Range (-10 dB): 70 Hz – 20 kHz

• Frequency Response (±3 dB): 80 Hz – 18 kHz

• Coverage: 140° horizontal × 120° vertical

• Power Handling:

• 100 W program

• 50 W continuous pink noise (2 hrs)

• Sensitivity: 85 dB (1W/1m, wall-mounted)

• Maximum SPL: 108 dB peak @ 1m

• Nominal Impedance: 8 ohms

• Transformer Taps (70V): 25 W / 12.5 W / 6.3 W / 3.2 W

• Transformer Taps (100V): 25 W / 12.5 W / 6.3 W

• Drivers:

• 4" woofer

• 1" dome tweeter

• Enclosure: ABS + polycarbonate (flame rated UL94-V0)

• Dimensions: 286 × 263 × 100 mm

• Weight: 2.8 kg

Included:

• 1 × JBL SLP14/T speaker

• 1 × slide-in wall mounting bracket system

• 1 × 4-pin Euroblock connector

• 1 × protective terminal cover (for outdoor use)
