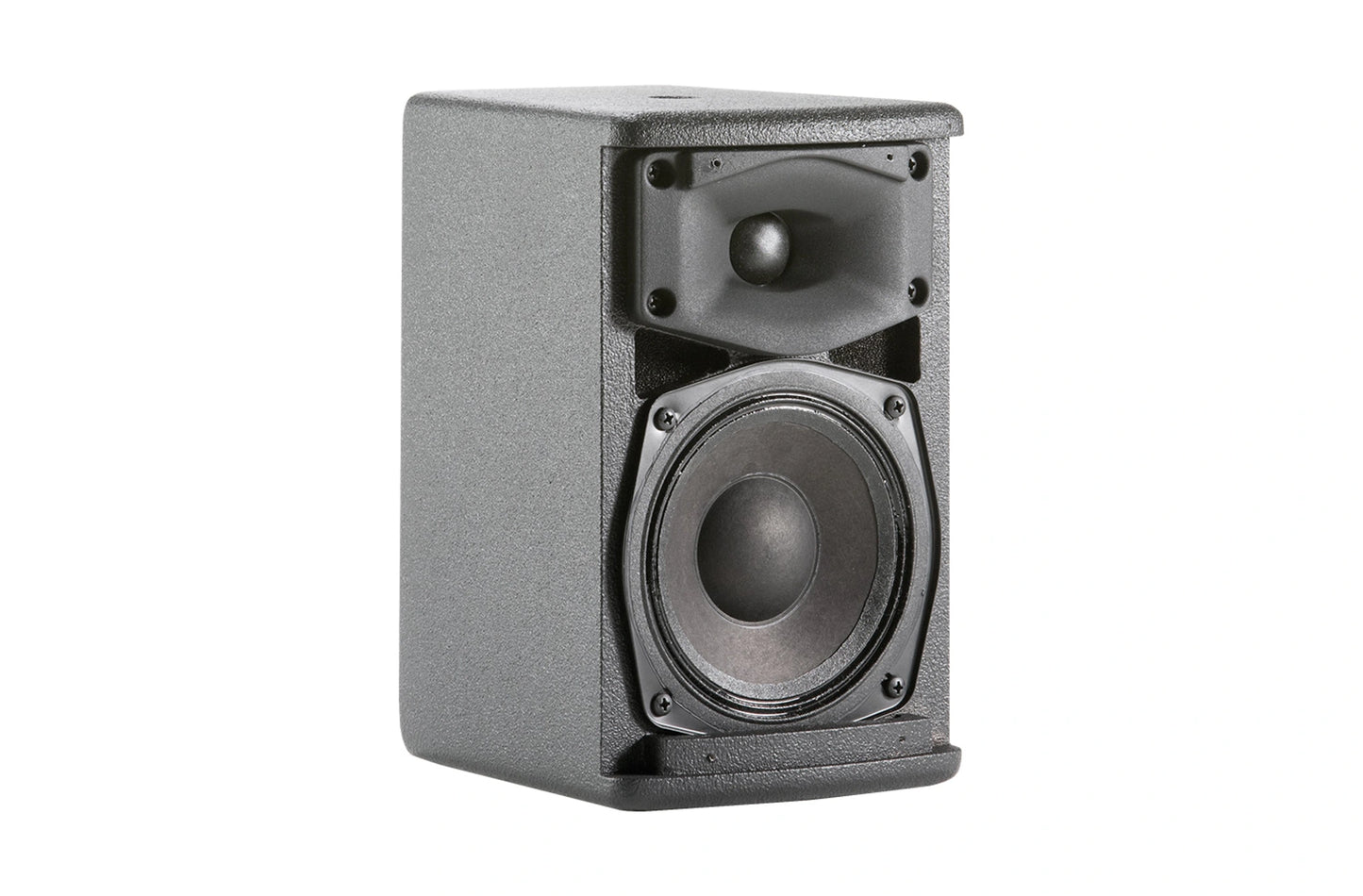

AC15

The AC15 is a compact loudspeaker that still provides high output, it is a great option for smaller installs that require a cost effective solution.

From the Manufacturer:

An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.

Features:

• 1” Dome Tweeter with 90° x 90° Coverage.

• 135 mm (5.25 in) LF transducer

• Ultra compact enclosure

• 300W Program Power

• Dual Neutrik NL4 connectors plus screw terminal

• Attachment points for optional U-bracket

Applications:

• Performing Arts Facilities

• Theatrical Sound Design

• Auditoriums

• Worship Facilities

• Live Clubs

• Dance Clubs

• Sports Facilities

• Themed Entertainment Venues

Specifications:

• Frequency Range (-10dB)

• 80 Hz -20 kHz

• Frequency Response (±3 dB)

• 90 Hz -18 kHz

• System Power Rating

• 225 W (AES rated)

• 150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)

• Impedance

• 16 ohms

• Coverage Pattern

• 90° x 90°

• Dimensions (H x W x D)

• 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)

• Net Weight (each)

• 4.7 kg (10.5 lb)

• Crossover Modes

• Passive

• Maximum SPL (1m)

• 108 dB

• System Sensitivity (1w @ 1m)

• 86 dB SPL

• Nominal Section Impedances

• 16 ohms

• LF Driver

• 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil

• Nominal LF Driver Impedance 16 Ohms

• HF Driver

• 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter

• Enclosure

• 12 mm exterior grade multi-ply hardwood plywood

• Suspension Attachment

• 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT

• Environmental

• Mil-Std 810; IPx3 per IEC529.
