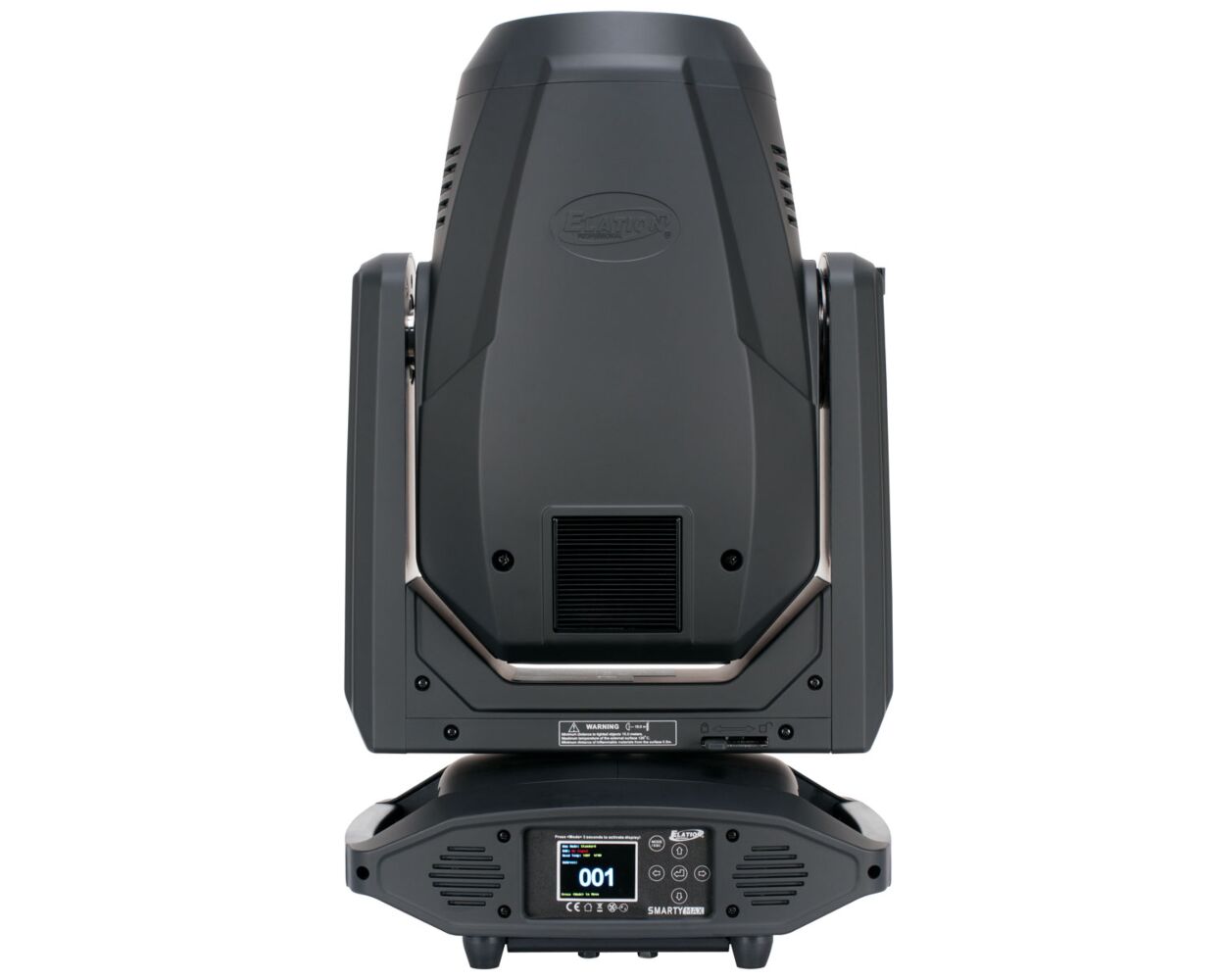

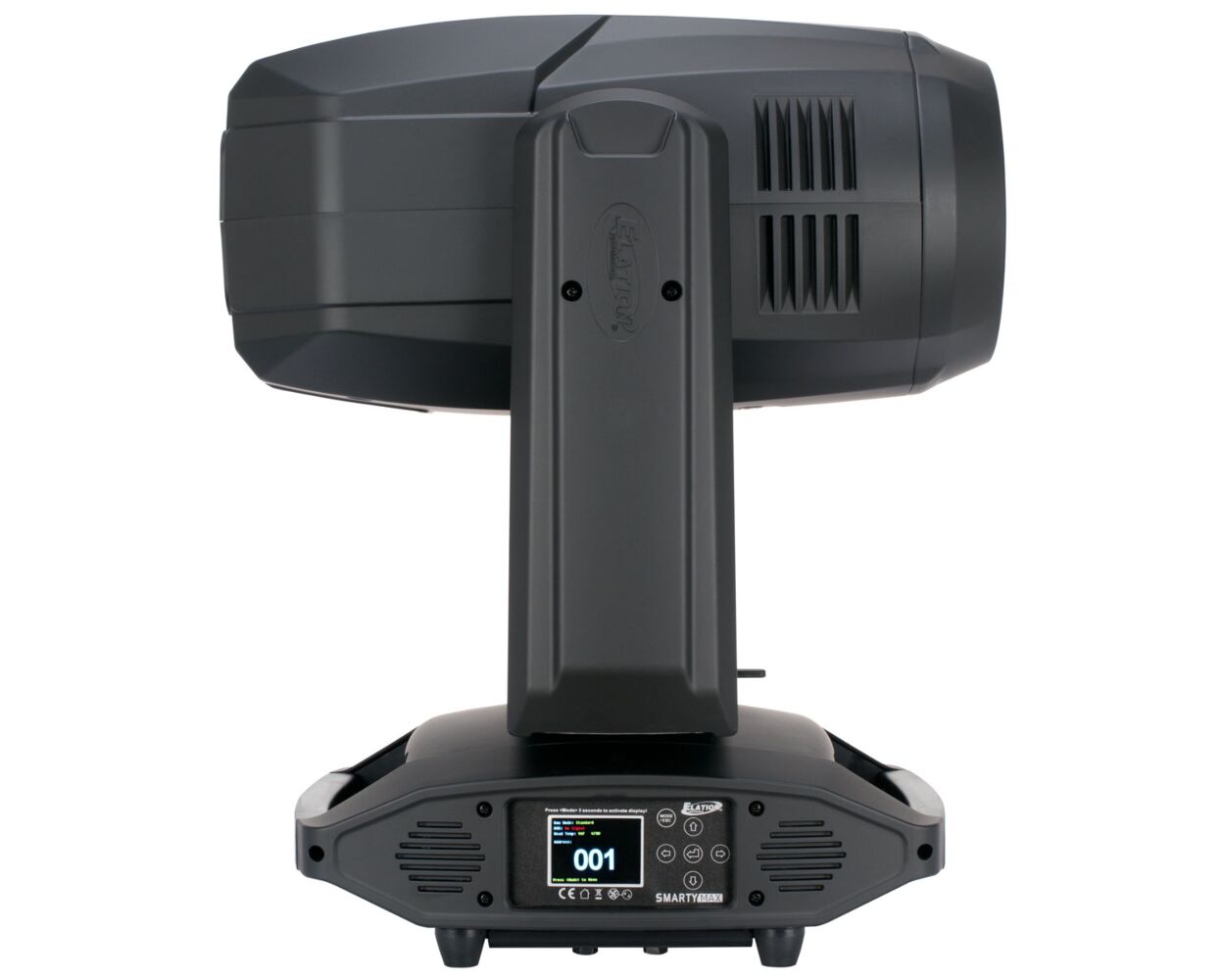

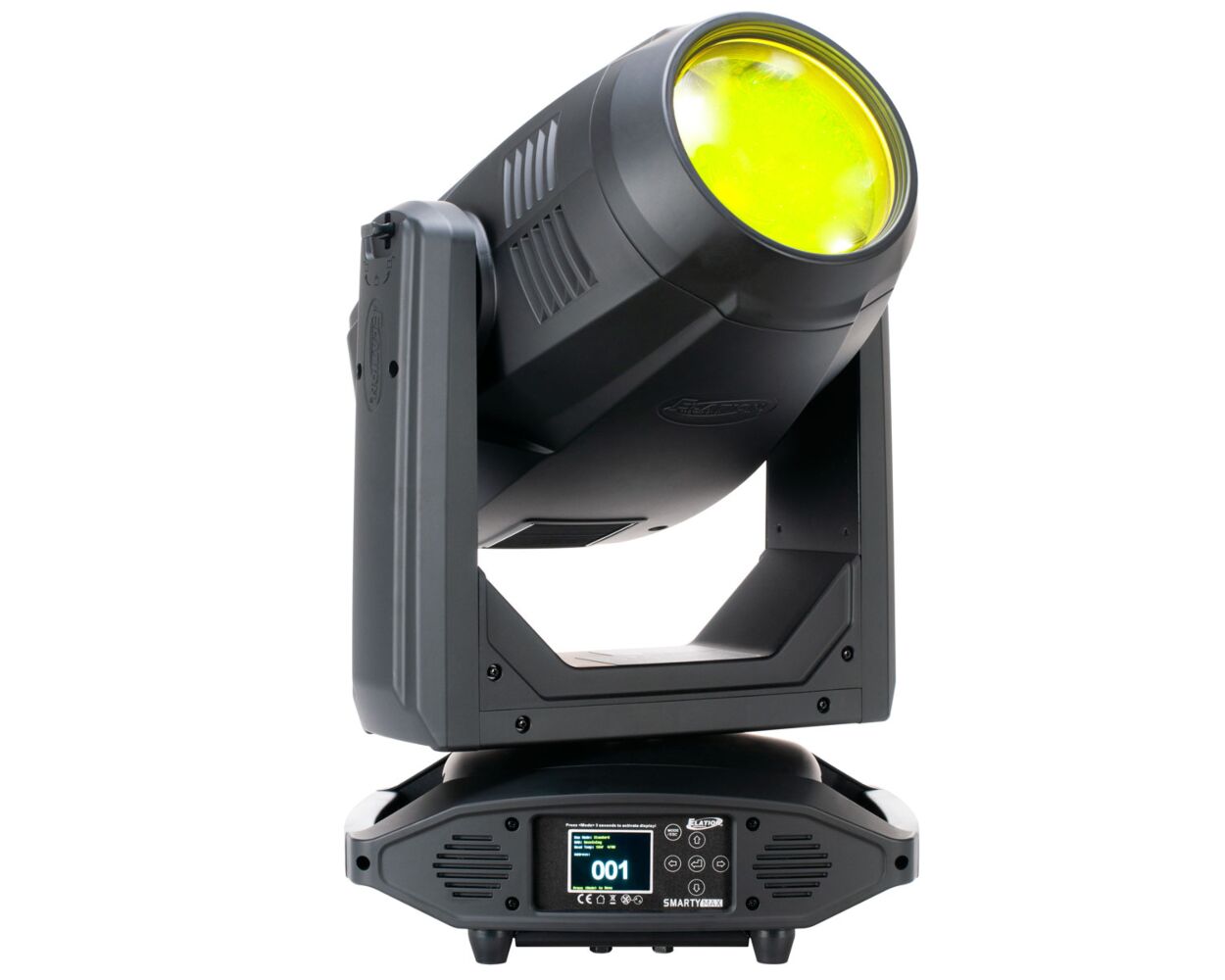

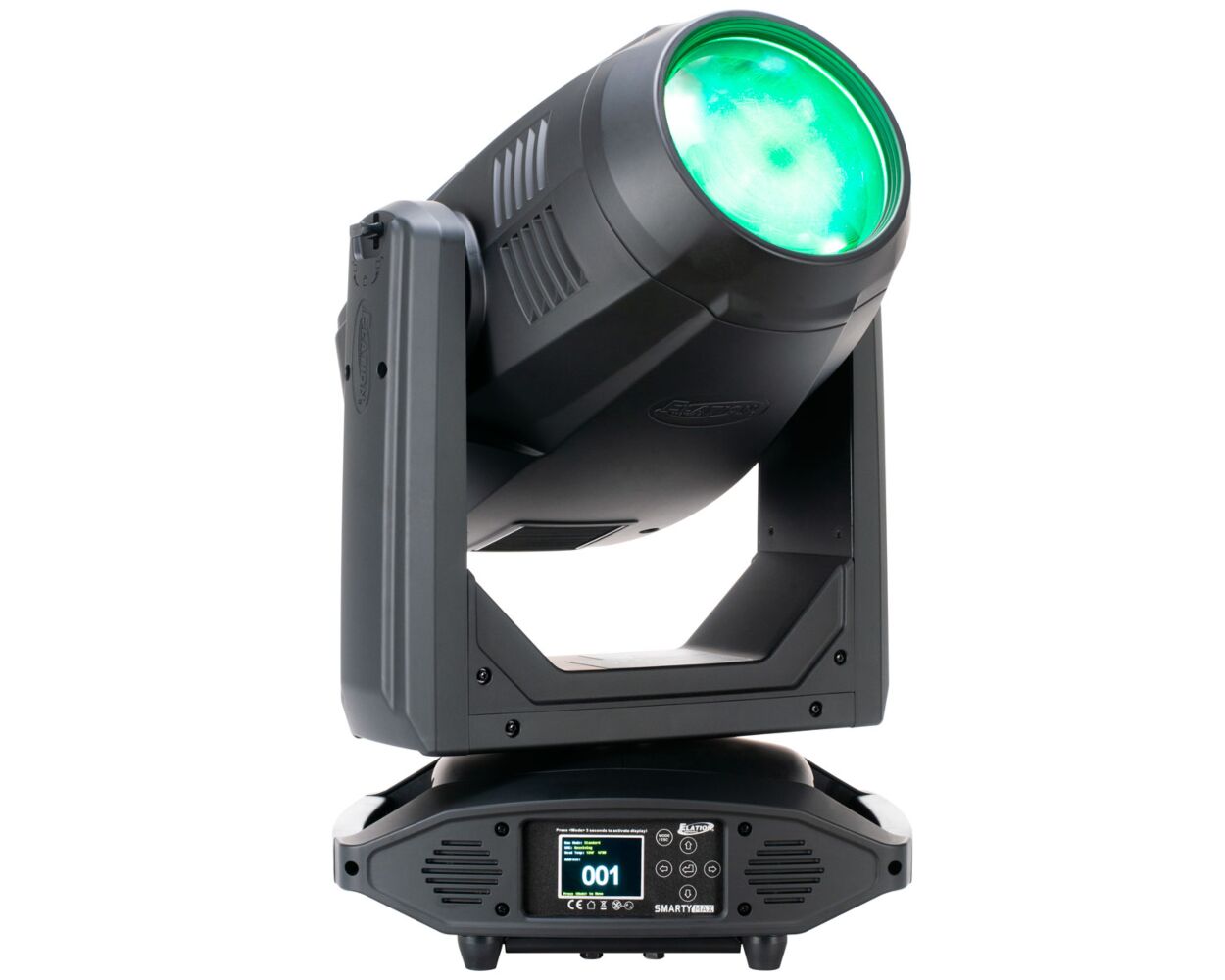

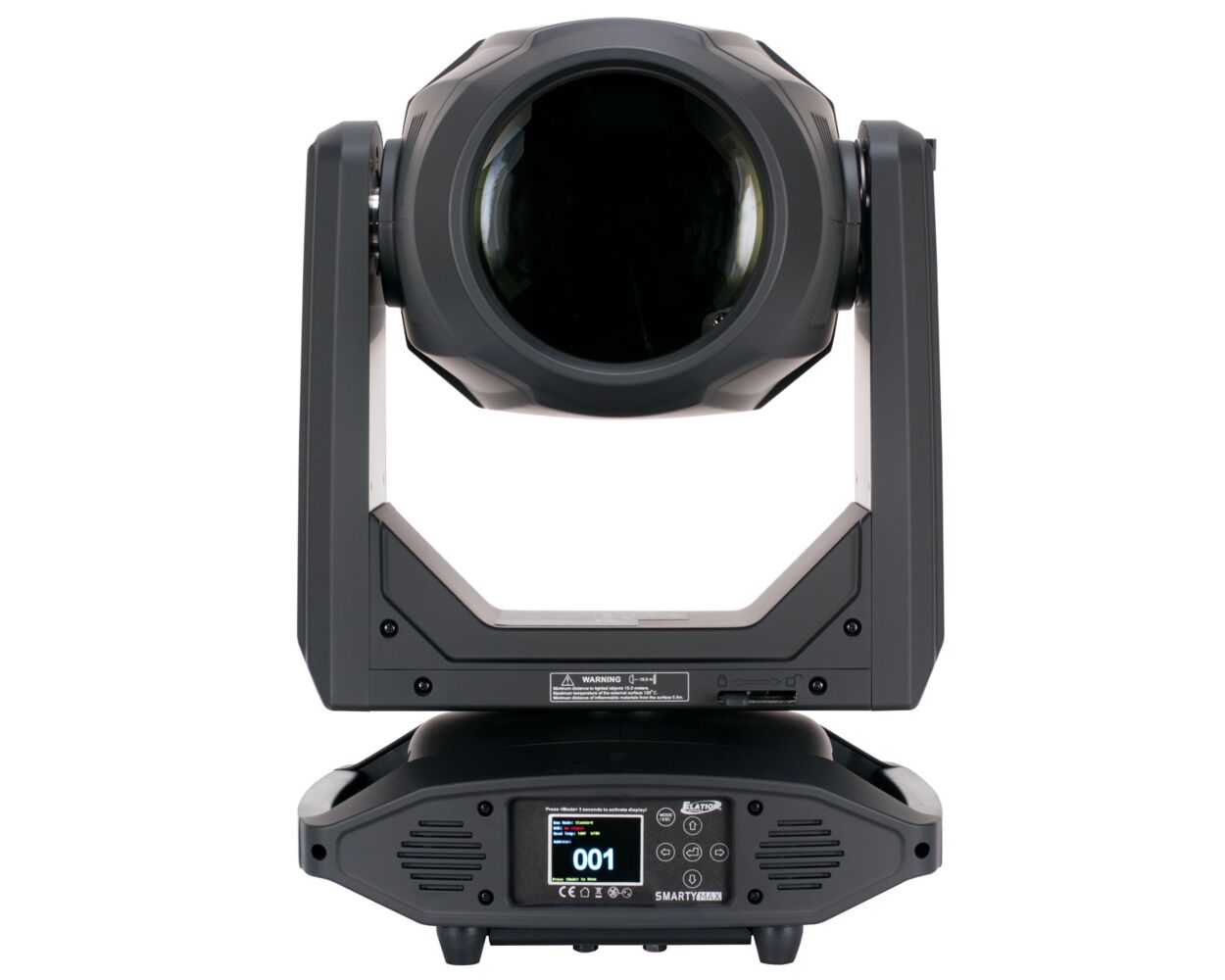

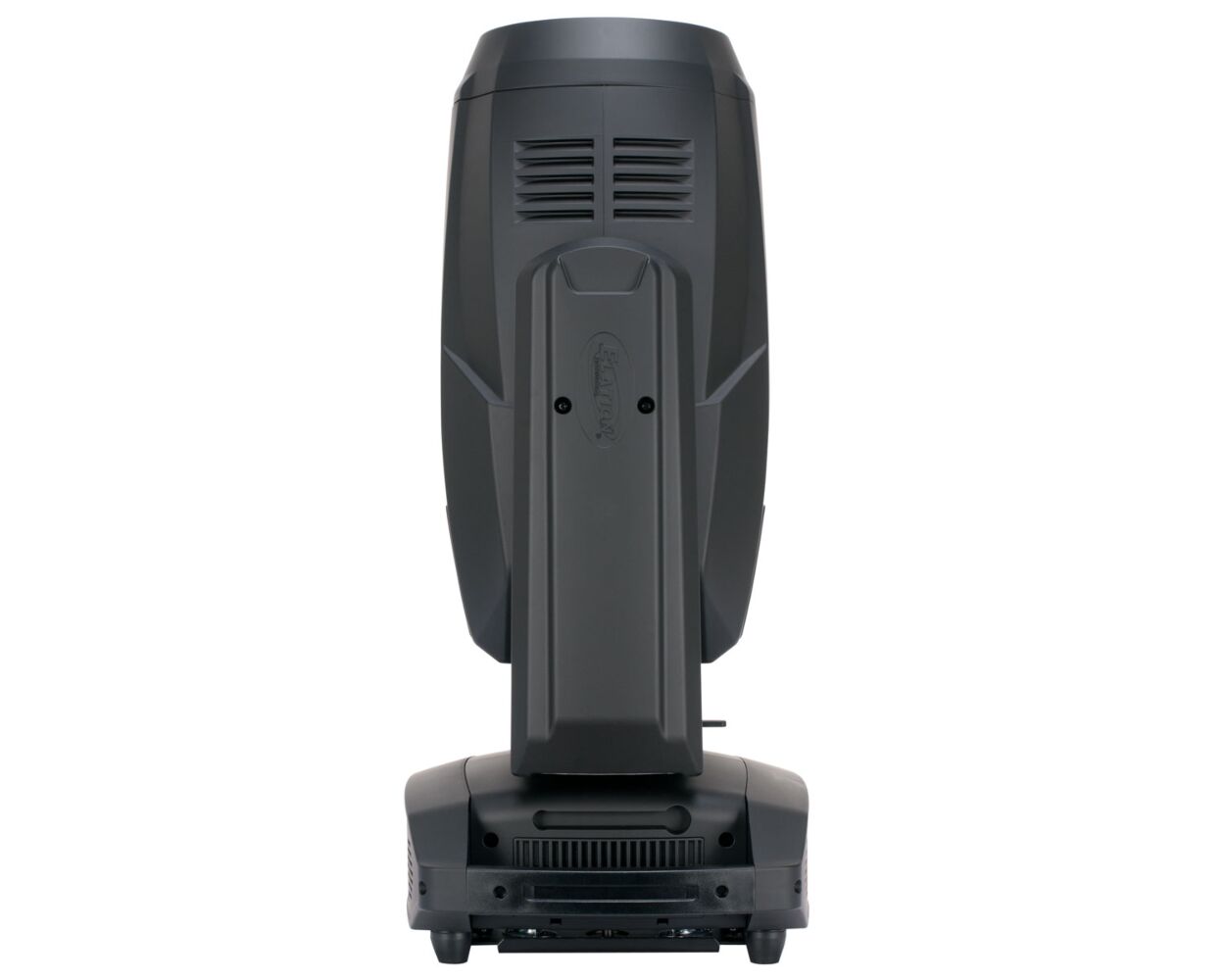

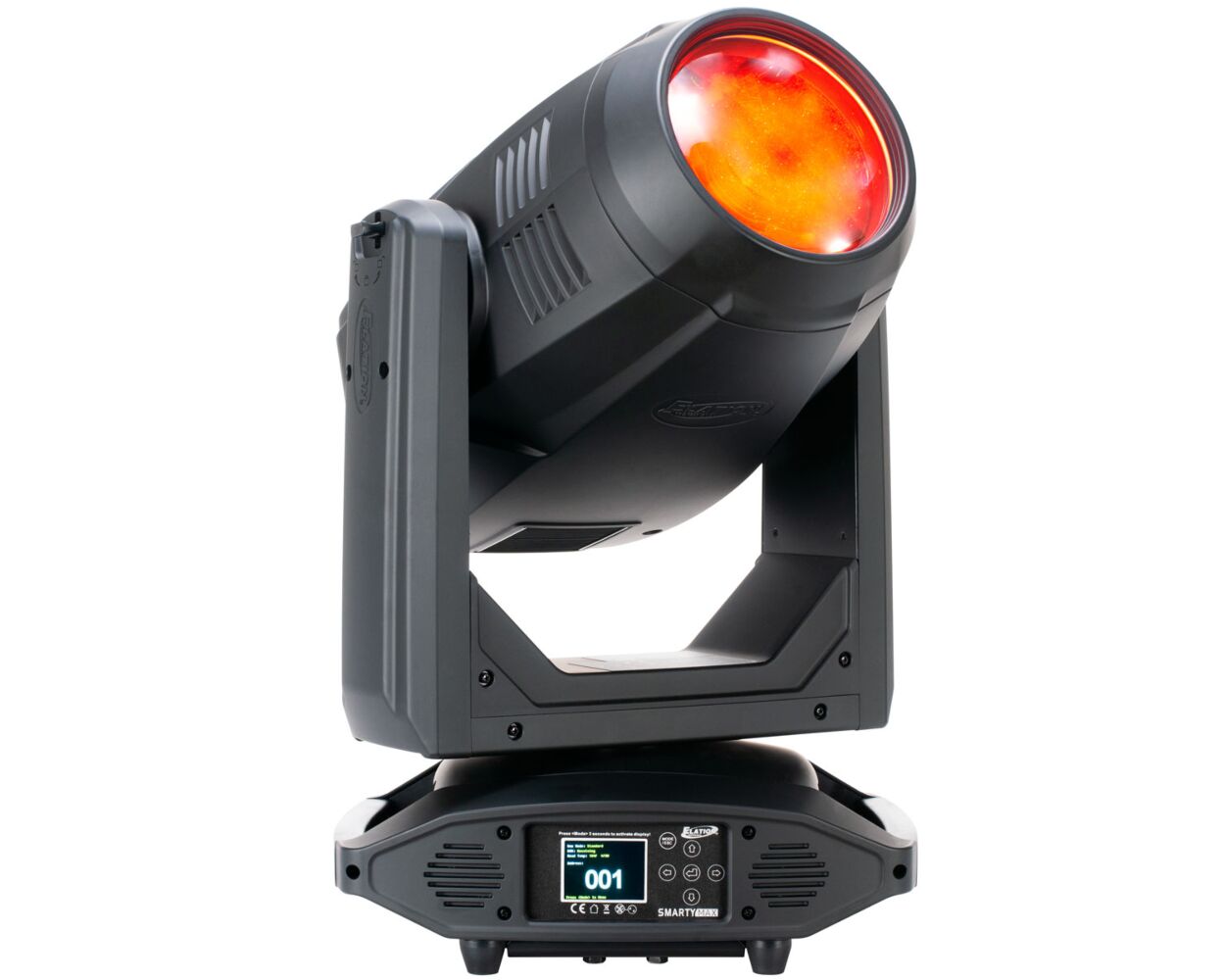

Smarty Max

The  Smarty Max is a high output compact and portable. It can be a great option for production companies looking for a light that is easily portable and will work well for medium sized events but still has all the features of a larger fixture.

From the Manufacturer:

The SMARTY MAX™ combines high output and long lamp life in a feature packed compact and lightweight Hybrid fixture. SMARTY MAX is the Extreme Output Hybrid featuring the new Philips MSD Platinum FLEX 400 lamp and Elation's 2 year / 4,000 hours Ultimate Warranty.** Rated at 480W and up to 4,000 hours smart lamp life the SMARTY MAX includes CMY and variable CTO and is the world’s first Hybrid incorporating a full Iris for dynamic beam effects. Four prisms on two planes, dual frosts plus dual gobo wheel and the unique dual track animation round out the comprehensive FX package in a compact and lightweight housing. Delivering 21,000 lumens from its large 160mm front aperture, the SMARTY MAX has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.

Features:

• Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture

• Flex Lamp Technology from 370 to 480W plus Smart Hibernation with up to 4,000 Hour Lamp Life

• Full CMY Color Mixing System, Variable CTO, Color Wheel

• Creative FX Package: 8 Rotating and 14 Static Gobos, Dual Track Animation, Iris 4x Prism on Dual Planes, 2x Frost

• Ultra-Fast Zoom: Beam 2° - 20° | Spot 3° - 30° | Wash 9° - 35°

• 2 Years / 4,000 Hours Ultimate Warranty**

• **First 2 Years of operation or 4,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance.

Specifications:

• SOURCE

• Philips MSD Platinum 400 Flex 480W Lamp

• Variable Lamp Power 370/470/480W

• Automated Lamp Hibernation with Instant Recovery

• Up to 4,000 Hour Lamp Life*

• Photometric Data

• 21,000+ Lumen Total Fixture Output

• 1.5° Beam: 1,784,448 LUX (165,781 FC) @5m (16.4ft)

• 3° Spot: 462,508 LUX (42,968 FC) @5m (16.4ft)

• Beam

• Zoom Range 2° - 20°

• Beam Angle 0.8° - 6.5°

• Field Angle 1.8° - 16.2°

• Spot

• Zoom Range 3° - 30°

• Beam Angle 1.7° - 14.8°

• Field Angle 3° - 26.5°

• Wash

• Zoom Range 9° - 35°

• Beam Angle 6.8° - 29°

• Field Angle 12.8° - 39.4°

• Effects

• Beam, Spot and Wash Modes

• Motorized Zoom

• Dual Frost Filter for Light Frost/ Full Wash

• 4 Prisms on Dual Planes

• Iris

• CMY Color, Gobo, Prism Macros

• Motorized Focus with Auto-Focus Feature

• High Speed Shutter and Strobe

• Pan Angle: 540°/630°

• Tilt Angle: 248°

• Color

• Full CMY Color Mixing System

• Variable CTO

• 13 Position Color Wheel

•


• Gobos

• 2 Gobo Wheels

• 8 Interchangeable-Rotating / Indexing Glass Gobos

• 14 Static-Stamped Metal Gobos

• Dual Track Animation Wheel

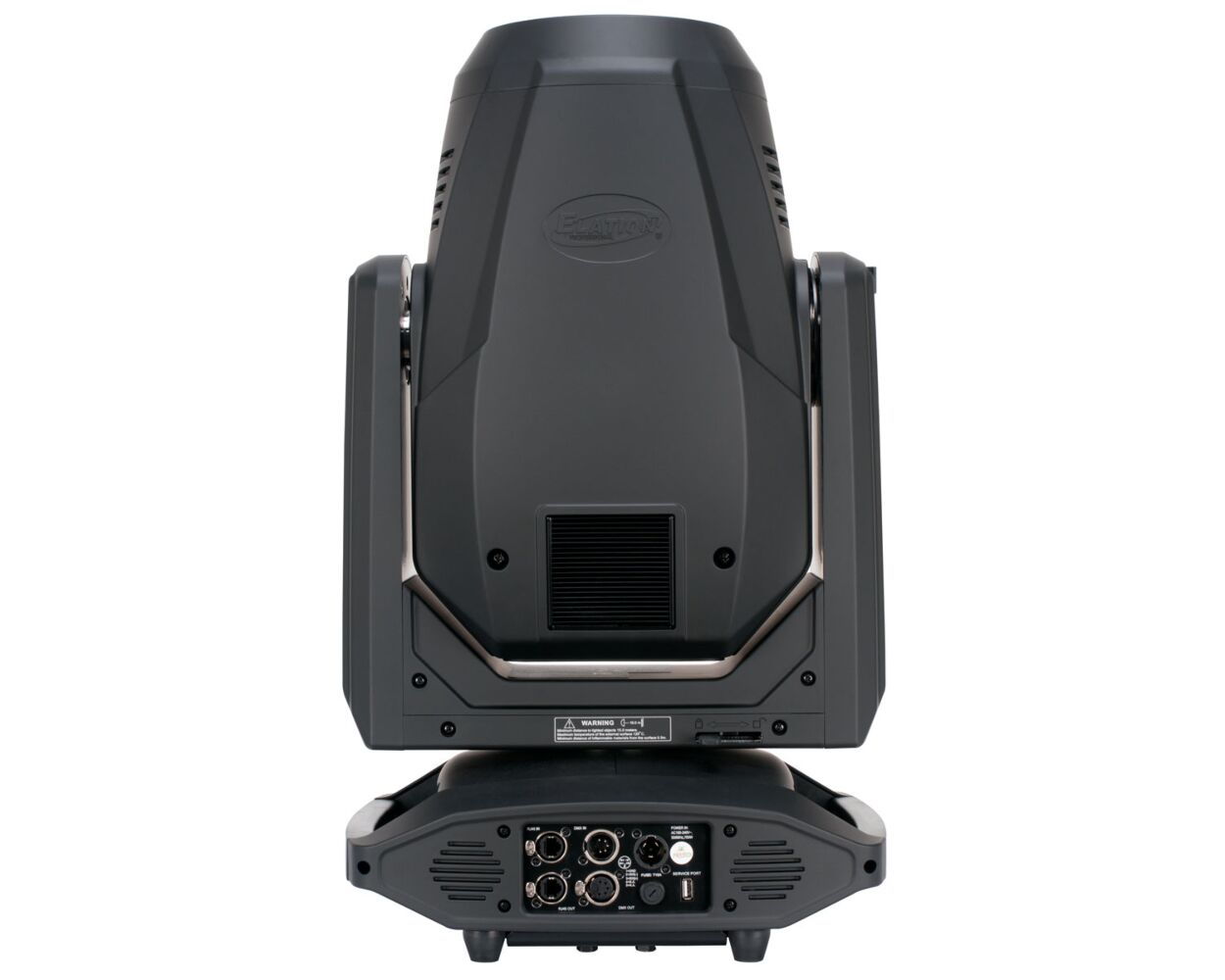

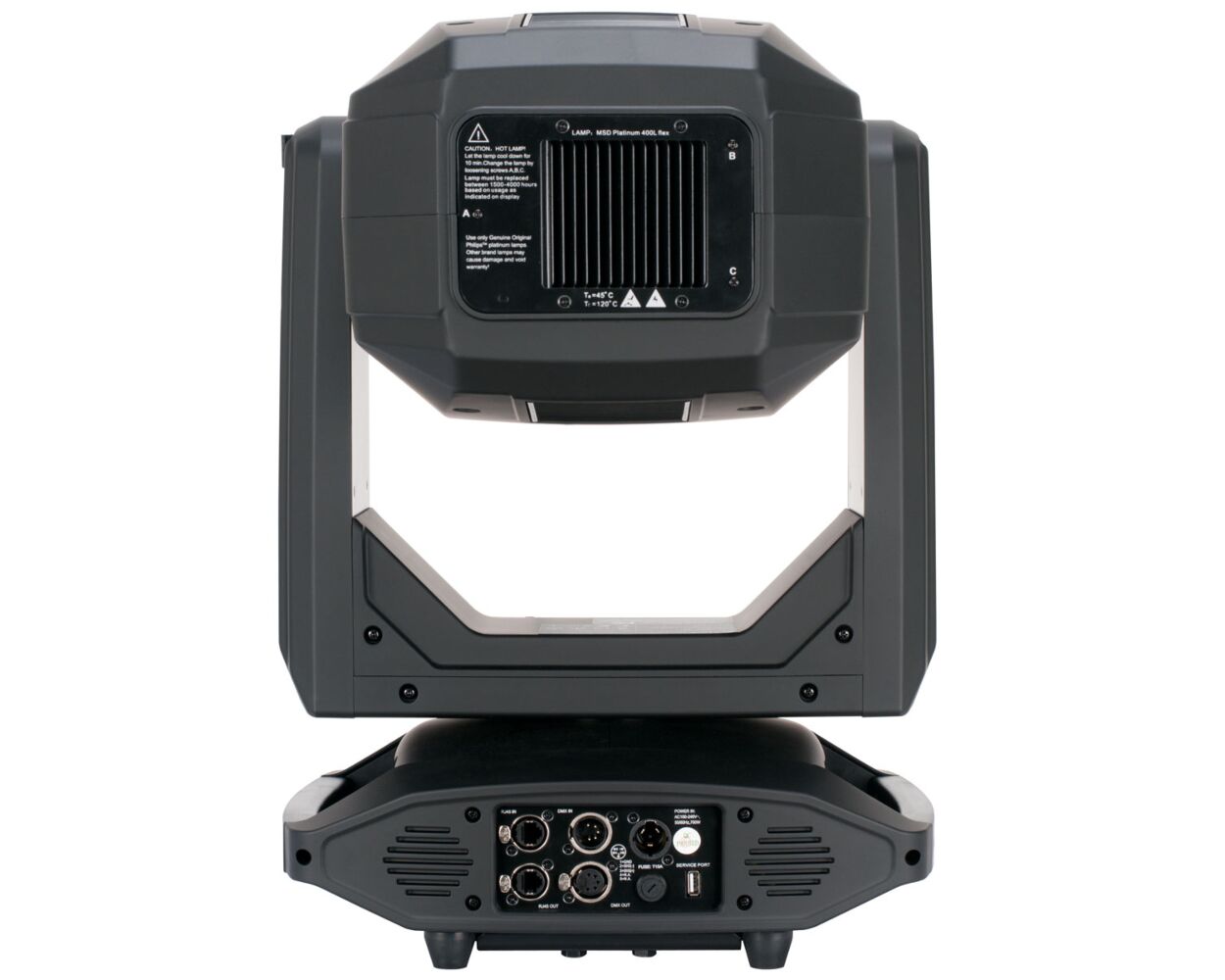

• Control / Connections

• 2 DMX Channel Modes (27 / 44 Channels)

• (6) Button Touch Panel

• Full Color 180° Reversible LCD Menu Display

• DMX, RDM, Art-Net and sACN Protocol Support

• 5pin D MX In/Out

• RJ45 Ethernet In/Out

• IP65 Locking Power Cable In/Out

• With Wired Digital Communication Network

• Size / Weight

• Length: 15.34” (389.8mm)

• Width: 17.53” (445.3mm)

• Height: 25.27” (642mm)

• Weight: 60.0 lbs. (27.2kg)

• Electrical / Thermal

• AC 100-240V 50/60Hz

• 700 W Max Power Consumption (estimated)

• 14°F to 113°F (-10°C to 45°C)

• BTU/hr (+/- 10%) 2387
