SOL II

The SOL II is a versatile blinder type fixture. It can be a great option to add to your medium sized live performances. Multiple units can be stacked together making this fixture even more versatile.

From the Manufacturer:

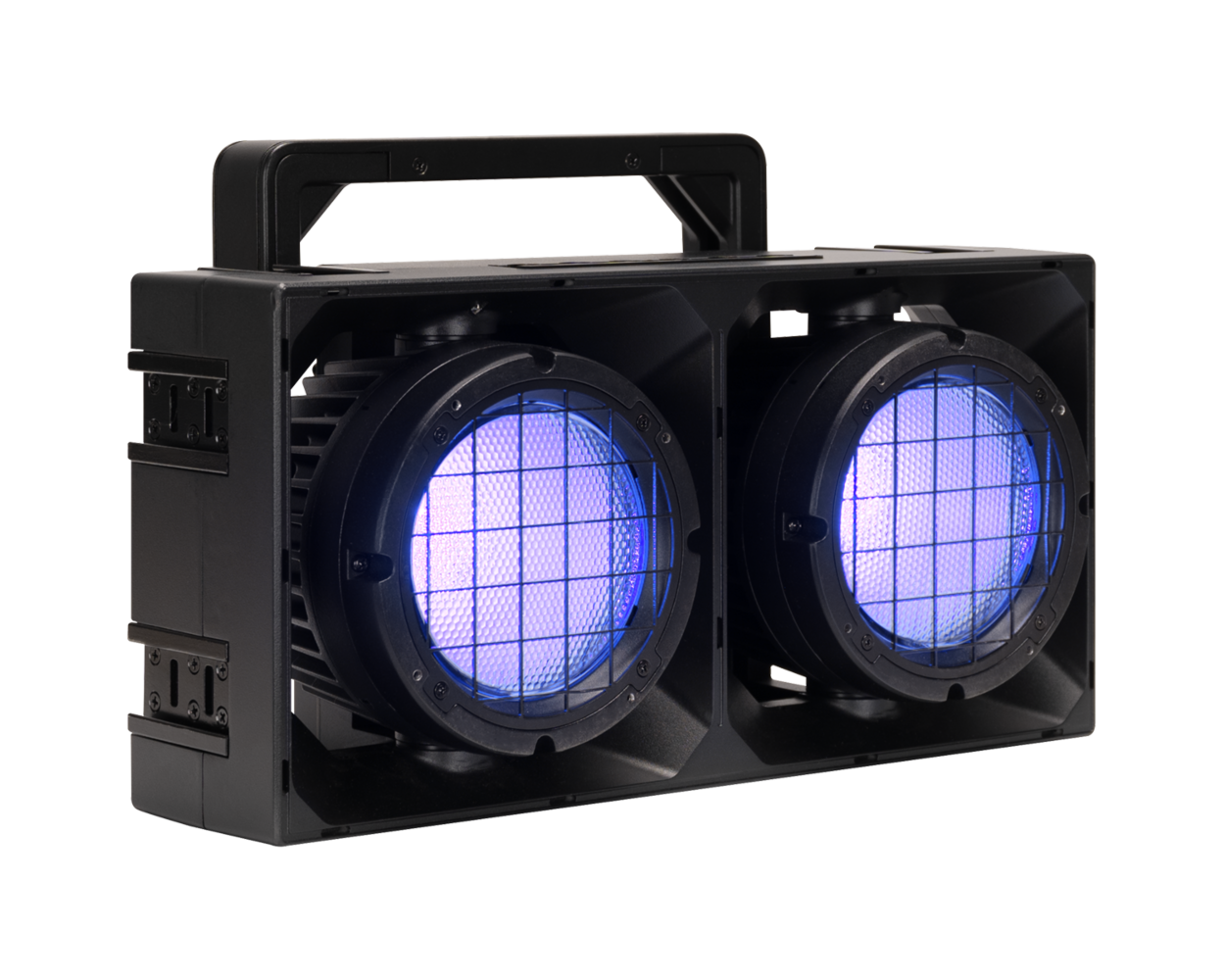

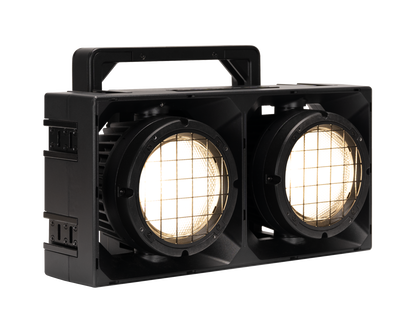

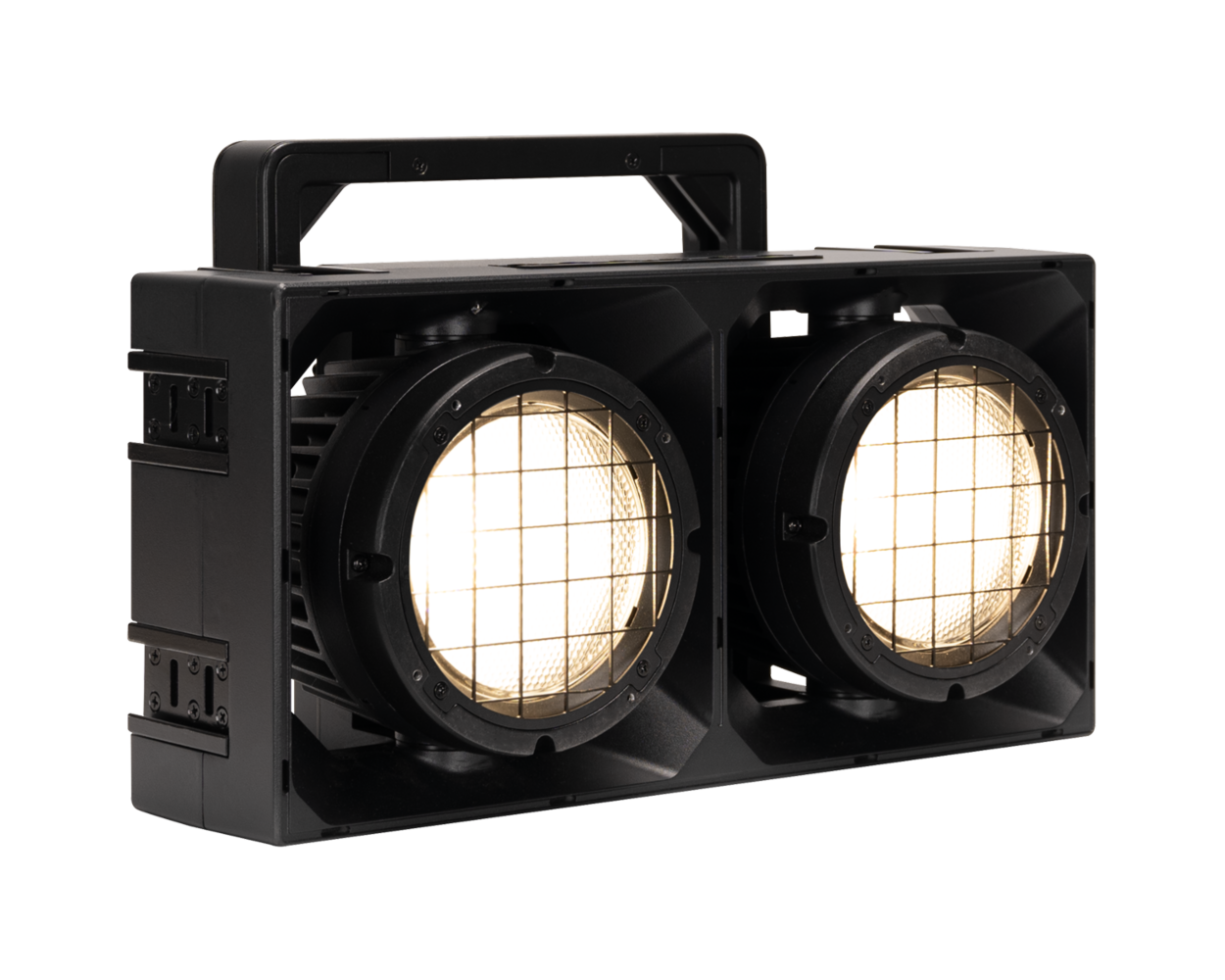

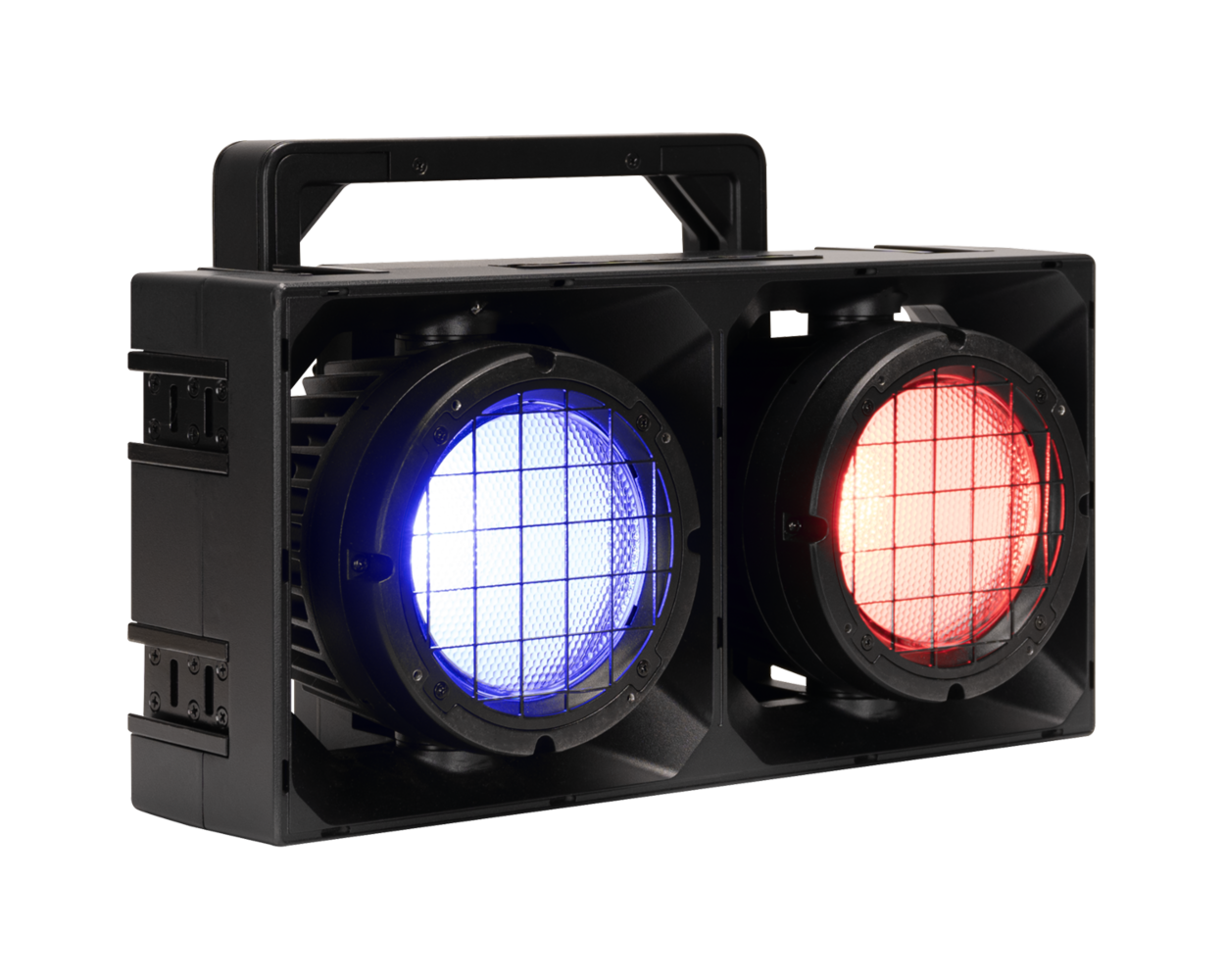

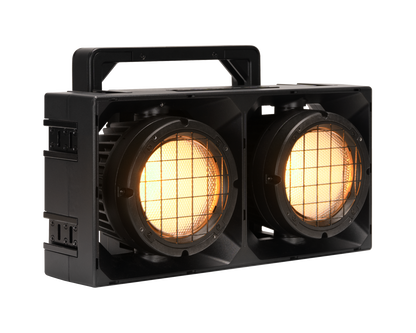

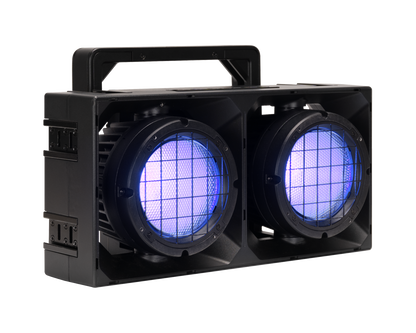

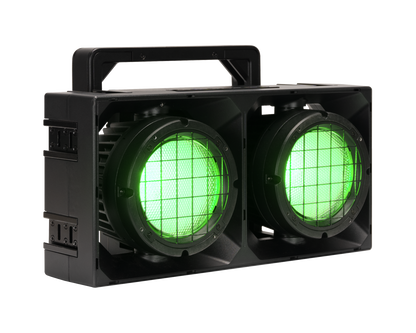

Introducing the SŌL II BLINDER, the next evolution in the SŌL Series, offering double the impact with two fixtures housed in a single modular unit, arranged side-by-side. Maintaining all the innovative features of the SŌL I BLINDER, the SŌL II provides even greater flexibility for creative configurations and designs.

The SŌL II’s housing is designed for seamless connectivity on all sides, allowing multiple units to be stacked together in any configuration imaginable. This makes it easier than ever to build expansive lighting arrays, custom shapes, and versatile effects panels that truly stand out.

With the same powerful 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and robust IP65 rating, the SŌL II BLINDER delivers unmatched brightness, color fidelity, and durability, just like its single-fixture counterpart. Whether you’re using it as a standalone unit or integrating multiple fixtures into your design, the SŌL II BLINDER elevates your creative possibilities, offering limitless options for crafting unforgettable visual experiences.

Illuminate your stage with the enhanced power and flexibility of the SŌL II BLINDER – redefining what's possible in entertainment lighting design.

Features:

• 2x 350W RGBLAW LED

• 30,750 Total Fixture Lumen Output (Sphere)

• 46° Beam Angle

• Simple 'Array Mode' Addressing System

• Individual Pan Adjustment with Lock

• Dim-to-Warm/ Red Shift Emulation

• High Output Blinder Mode or Constant Output Mode Options

• Unique Horizonal and Vertical Array Rigging Method (Compatible with SŌL IV, SŌL I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR)

• IP65 Rated

Specifications:

• Source:

• 2x 350W RGBLAW LED

• 30,000 Hour Average LED Life*

• Photometric Data

• Total Lumen Output:

• 30,750 (Integrating Sphere)

• CRI TBA

• Compound Lens

• Beam Angle: 46°

• Field Angle: 85°

• No Lens

• Beam Angle: 52°

• Field Angle: 95°

• Effects

• Variable Strobe Rate: 1- 20Hz

• Dim-to-Warm/ Red Shift Emulation

• Variable 16-bit Dimming Modes and Curves

• High Output Blinder Mode or Constant Output Mode Options

• Color

• RGBLAW Color Array

• CMY Emulation

• Variable CCT 1800K - 8500K

• Virtual Gel Swatch Book

• Control / Connections

• 18 DMX Channel Modes (1ch, 2ch, 2ch, 4ch, 3ch, 5ch, 4ch, 8ch, 6ch, 12ch, 7ch, 10ch, 22ch, 37ch, 16ch, 25ch, 16ch & 25 ch)

• Simple 'Array Mode' Addressing System

• Manual and DMX Controlled Dimmer and Color

• 4 Button Control Panel, LED Display

• Aria x2 Wireless Device Management

• RDM (Remote Device Management)

• 5pin DMX and IP65 Locking Power Cable In/Out

• Size / Weight (Without Accessories)

• Length: 9.3" (236mm)

• Width: 16.5” (420mm)

• Vertical Height: 10.3” (261mm)

• Weight (Fixture Only): 24.7 lbs (11.2 kg)

• Electrical / Thermal

• AC 100-240V - 50/60Hz

• 650W Max Power Consumption

• 5°F to 113°F (-15°C to 45°C)

• BTU/hr (+/- 10%) 2216.5
