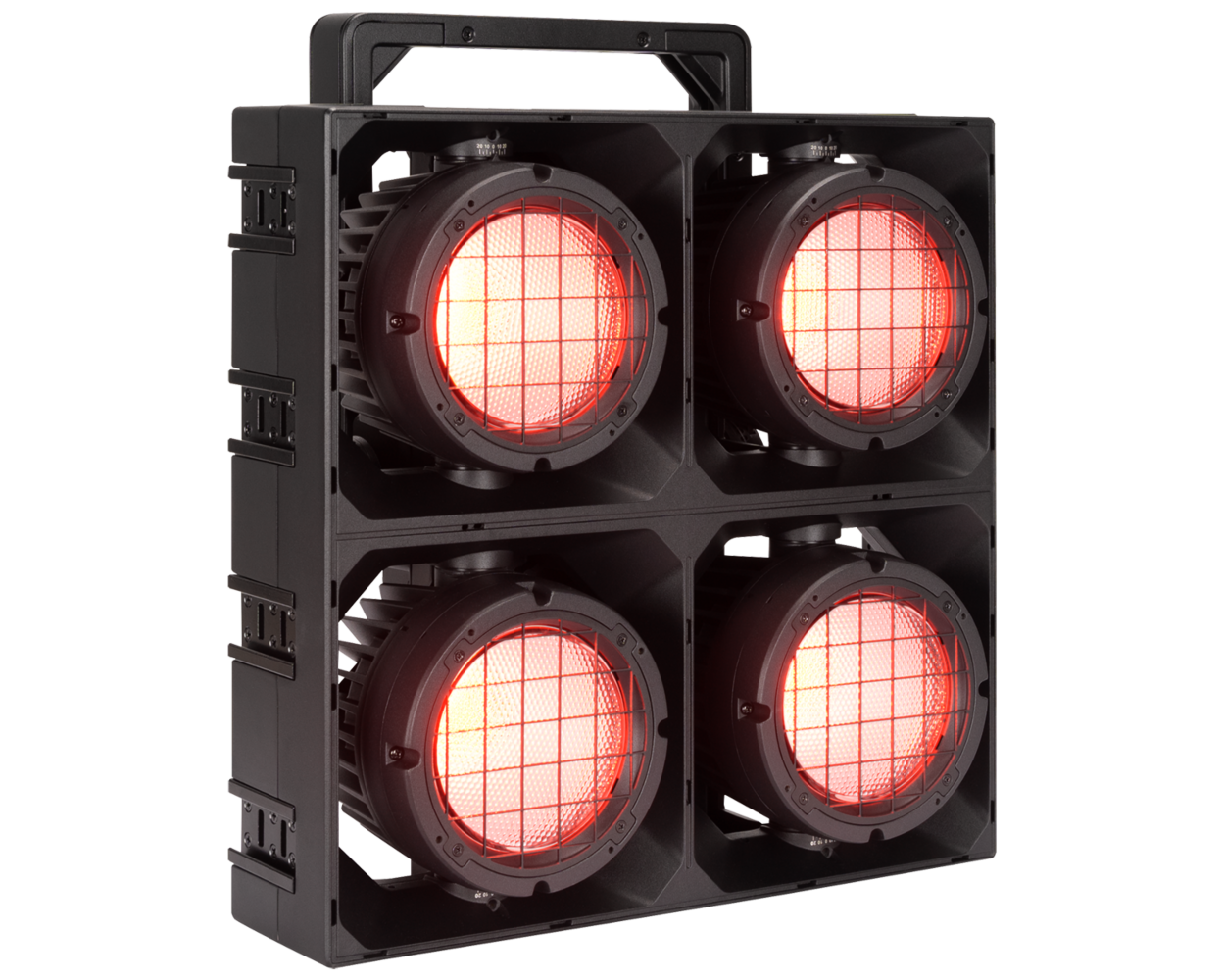

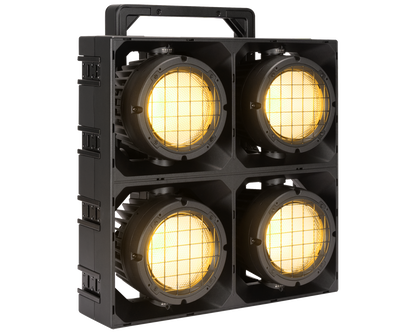

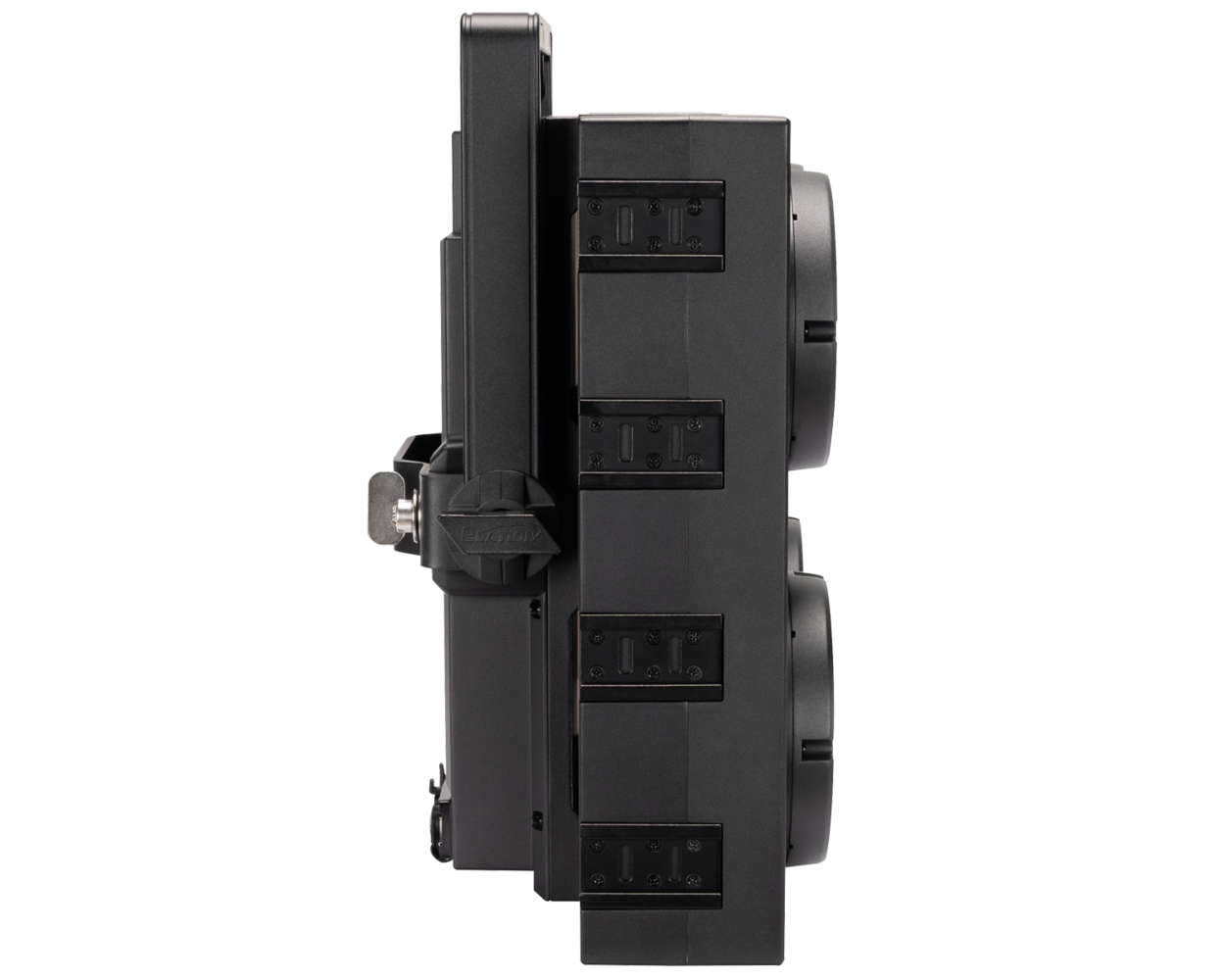

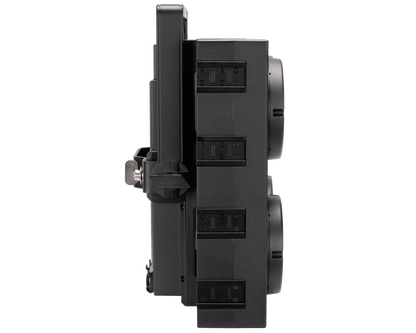

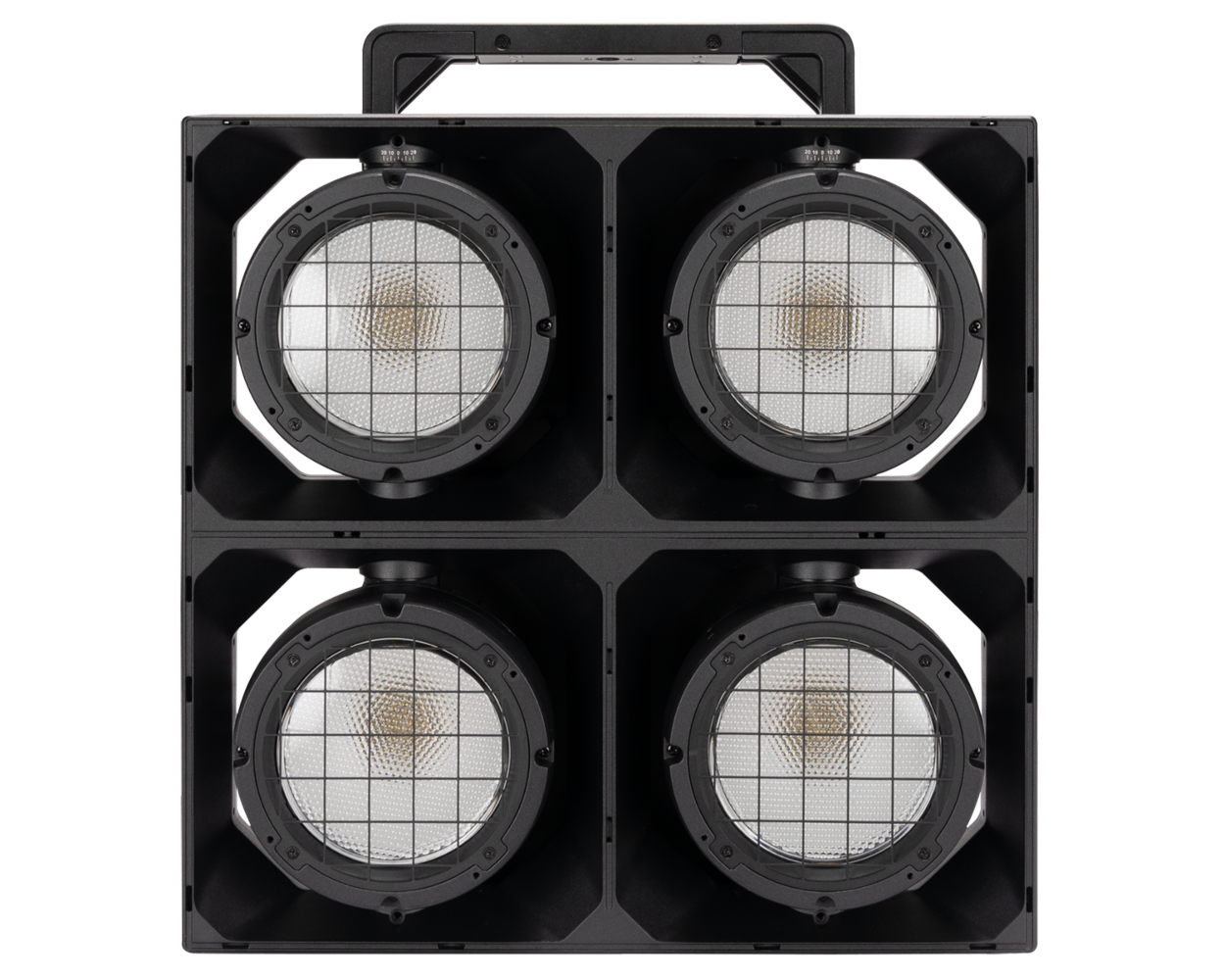

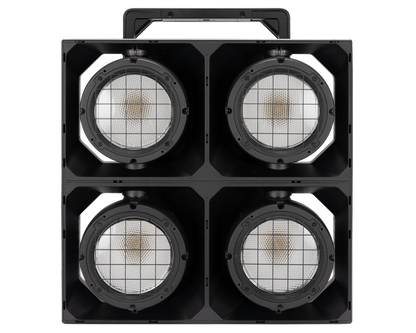

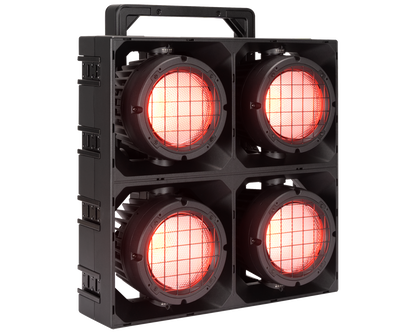

SOL IV

The SOL IV is a blinder type fixture. It is a housing consisting of several different fixtures, that can be fitted in a multitude of different configurations.  This makes for a very versatile fixture. This fixture is great for medium and larger live events.

From the Manufacturer:

Introducing the SŌL IV BLINDER, the most versatile addition to the SŌL Series yet, featuring a grid of four fixtures in a single modular housing. Like the SŌL I and SŌL II, the SŌL IV offers the same cutting-edge technology and powerful LED engine but with even greater creative potential through its multi-fixture design.

The SŌL IV BLINDER can be used as a standalone fixture or interconnected in endless configurations with additional SŌL IV units, as well as the SŌL I and SŌL II models. This flexibility allows lighting professionals to craft expansive arrays, intricate shapes, and dynamic effects that adapt to any stage or event setup.

With the same 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and IP65-rated durability, the SŌL IV delivers unmatched brightness, color fidelity, and performance. Whether you’re looking for an impactful standalone solution or a fixture that integrates seamlessly into a larger lighting design, the SŌL IV BLINDER provides the ultimate canvas for your creativity.

Features:

• 4x 350W RGBLAW LED

• 59,830 Total Fixture Lumen Output (Sphere)

• 46° Beam Angle

• Simple 'Array Mode' Addressing System

• Individual Pan Adjustment with Lock

• Dim-to-Warm/ Red Shift Emulation

• High Output Blinder Mode or Constant Output Mode Options

• Unique Horizonal and Vertical Array Rigging Method (Compatible with SŌL II, SŌL I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR)

• IP65 Rated

Specifications:

• Source

• 4x 350W RGBLAW LED

• 30,000 Hour Average LED Life*

• Total Lumen Output: 59,830 (Integrating Sphere)

• CRI TBA

•


• Compound Lens

• Beam Angle: 46°

• Field Angle: 85°

• No Lens

• Beam Angle: 52°

• Field Angle: 95°

• Effects

• Variable Strobe Rate: 1- 20Hz

• Dim-to-Warm/ Red Shift Emulation

• Variable 16-bit Dimming Modes and Curves

• High Output Blinder Mode or Constant Output Mode Options

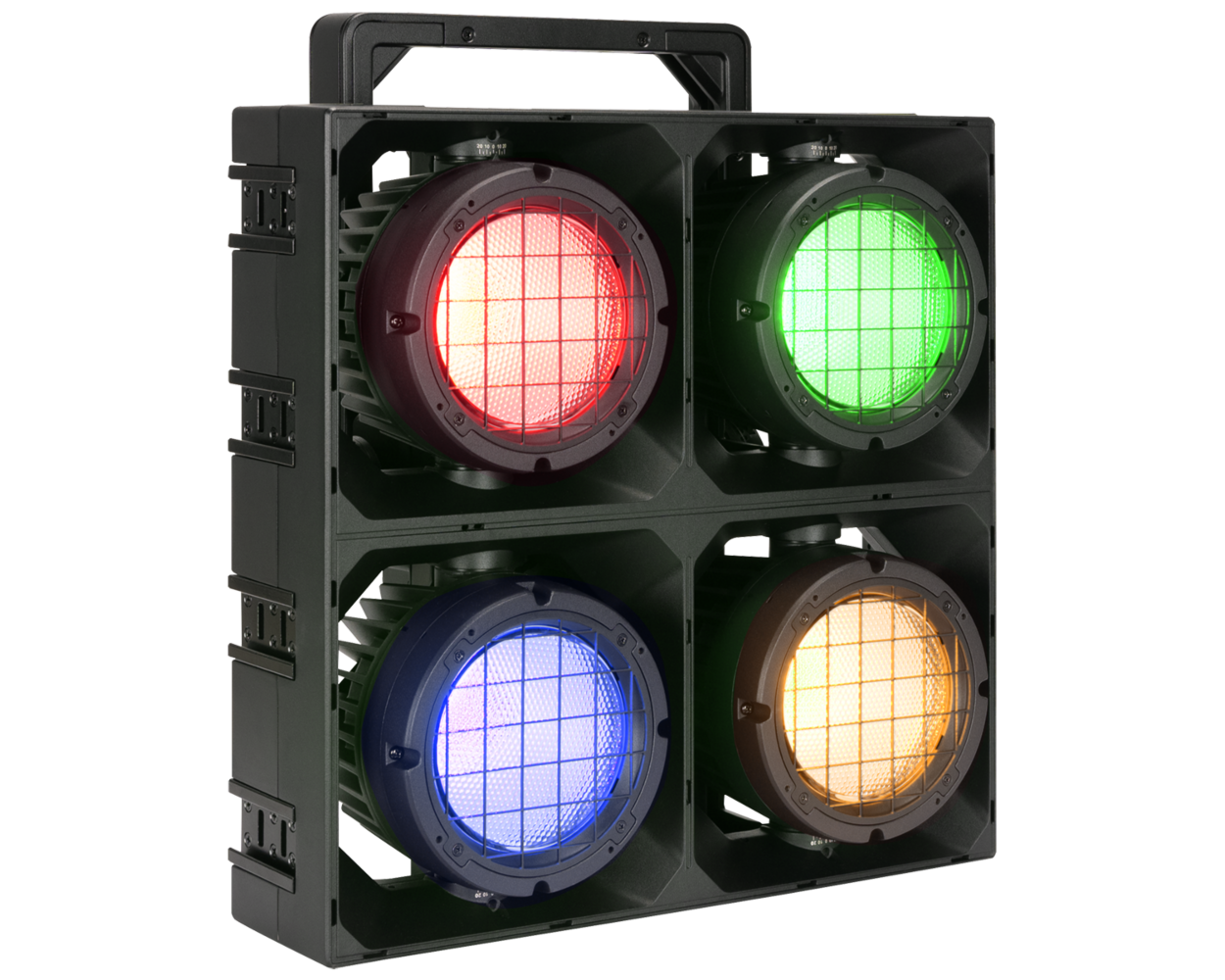

• Color

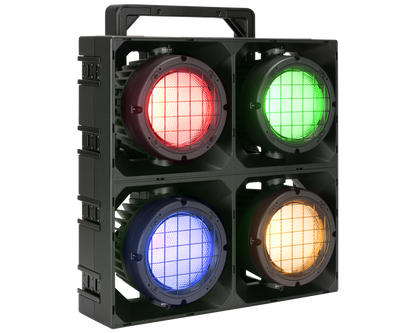

• RGBLAW Color Array

• CMY Emulation

• Variable CCT 1800K - 8500K

• Virtual Gel Swatch Book

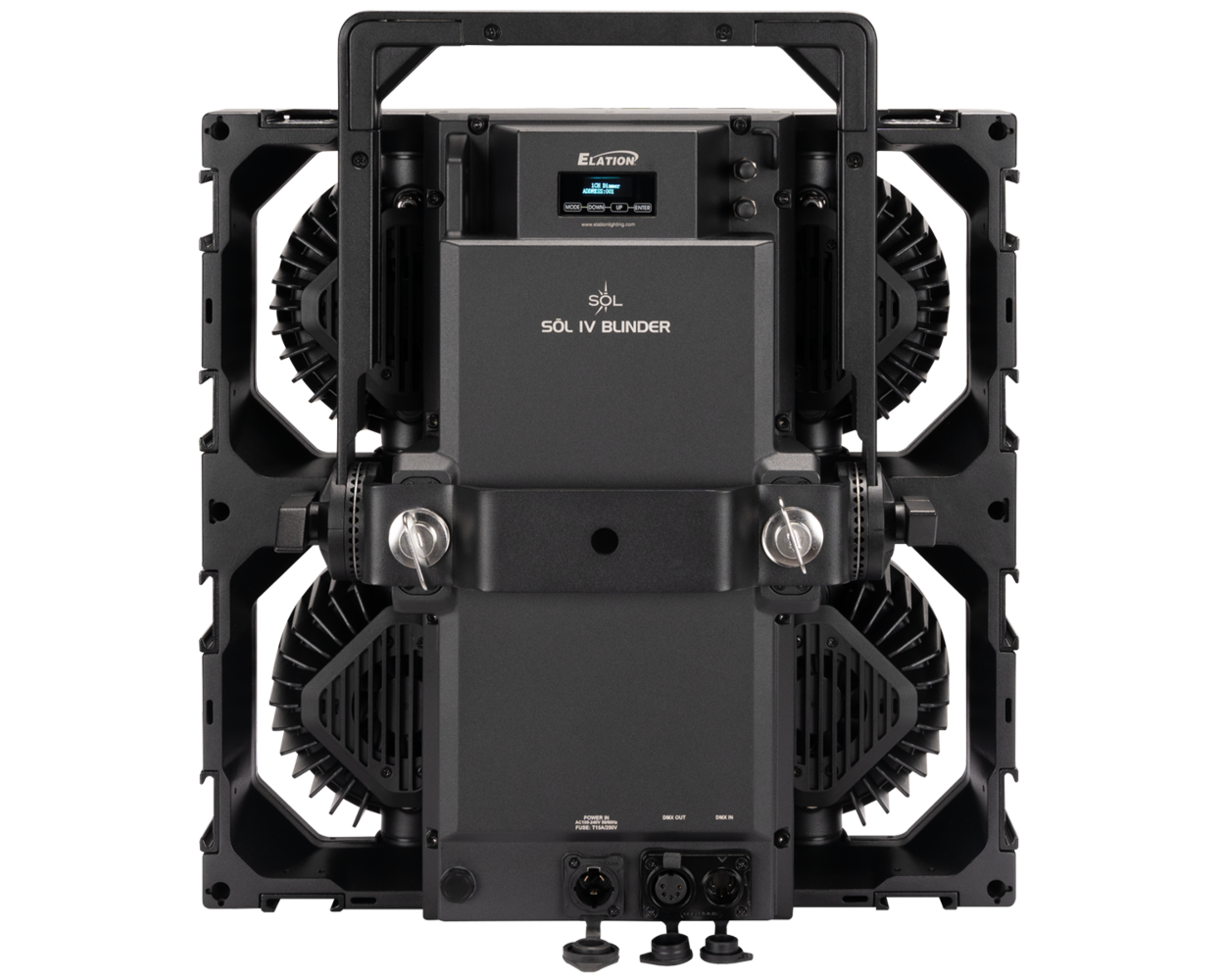

• Control / Connections

• 24 DMX Channel Modes (1ch, 2ch, 4ch, 2ch, 4ch, 8ch, 3ch, 5ch, 9ch, 4ch, 8ch, 16ch, 6ch, 12ch, 24ch, 7ch, 10ch, 16ch, 40ch, 69ch, 28ch, 45ch, 28ch & 45ch)

• Simple 'Array Mode' Addressing System

• Manual and DMX Controlled Dimmer and Color

• 4 Button Control Panel, LED Display

• Aria x2 Wireless Device Management

• RDM (Remote Device Management)

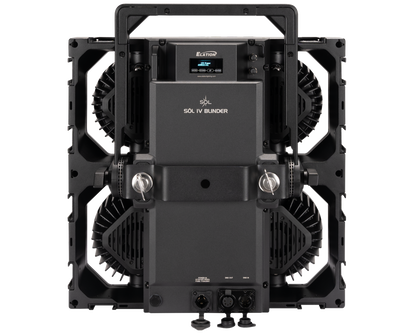

• IP65 5pin DMX Cable In/Out

• IP65 Locking Power Cable In

• Size / Weight (Without Accessories)

• Length: 9.4" (240mm)

• Width: 16.5” (420mm)

• Vertical Height: 18.6” (471mm)

• Weight (Fixture Only): 41.9 lbs (19.0 kg)

• Electrical / Thermal

• AC 100-240V - 50/60Hz

• 1300W Max Power Consumption

• 5°F to 113°F (-15°C to 45°C)

• BTU/hr (+/- 10%) 4262.5

Included Items:

• Removable Fixture Yoke / Omega Bracket

• 2x Fixture Interconnect Splices

• Safety Cable

• IP65 Locking Power Cable
