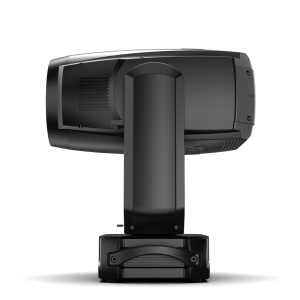

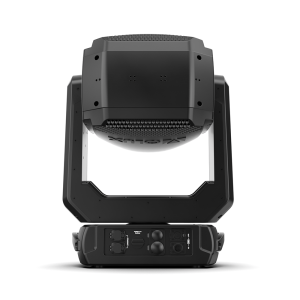

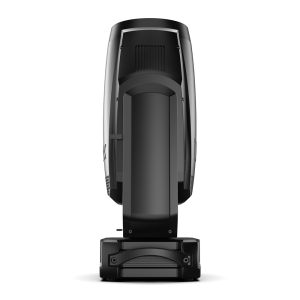

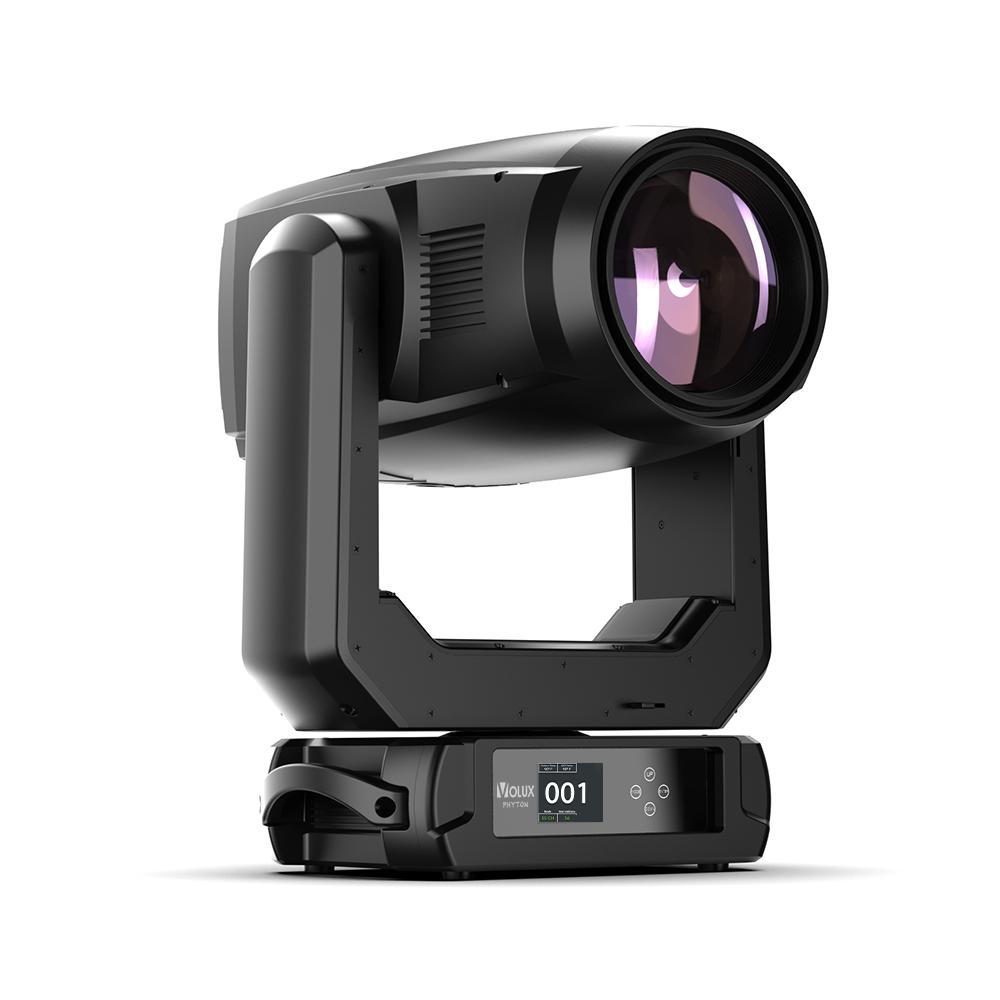

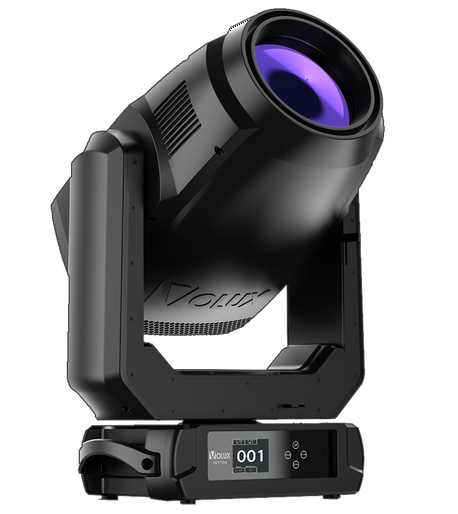

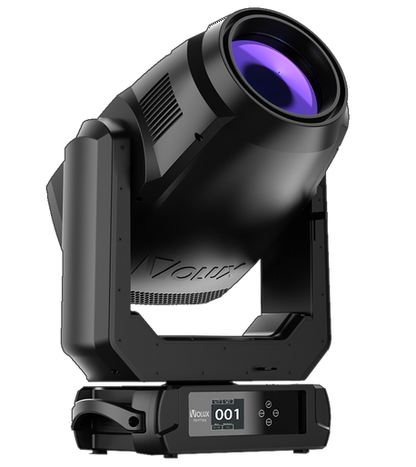

Phyton

A high-output IP66-rated hybrid profile moving head delivering extreme brightness, long-throw beam performance, and advanced effects in a single versatile fixture for touring, festivals, and installations.

From The Manufacturer:

The PHYTON redefines workhorse versatility as a fully featured profile luminaire with true beam capabilities, creative effects, and immense power. Driven by a 600W LED engine and high-efficiency optics, it delivers up to 32,000 lumens with a zoom range of 1.9°–52°, enabling both long-throw beams and wide spot projections with precision framing and advanced effects.

Features:

• 600W LED engine with up to 32,000 lumens output

• 1.9° – 52° motorized zoom for beam, spot, and wash versatility

• IP66-rated for outdoor and harsh environments

• Full blackout framing shutters with rotation

• CMY + CTO color mixing with color wheel and CRI filter

• Static and rotating gobo wheels

• 6 layerable prisms across two planes

• Animation wheel, iris, and dual frost filters

• Integrated LumenRadio CRMX wireless DMX

• Supports DMX, Art-Net, sACN, RDM control protocols

• Designed for low noise operation and high-speed movement

Specification:

• Optical

• Light Source: 600W LED

• Colour Temperature: ~6000–6500K

• Luminous Output: 32,000 lumens

• Illuminance: up to 200,000 lux @ 5 m

• Zoom Range: 1.9° – 52°

• Beam Angle (with iris): as narrow as 0.7°

• CRI: ≤72 (with optional CRI 90 filter)

• Source Life: 50,000 hours

• Effects & Color

• Color Mixing: CMY + CTO

• Color Wheel: 7 dichroic colours (incl. CRI filter)

• Gobo Wheels: 7 rotating gobos (interchangeable), 8 static gobos

• Framing System: 4-blade, full blackout, rotatable

• Prisms: Multiple (up to 6, multi-plane)

• Frost: Dual frost filters

• Iris: Motorized

• Control

• Protocols: DMX512, RDM, Art-Net, sACN, CRMX

• DMX Channels: 47 (Basic) / 52 (Extended)

• Wireless: Integrated LumenRadio CRMX

• Display: Full-color LCD interface

• Movement & Body

• Pan: 540°

• Tilt: 270°

• Construction: Magnesium die-cast, aluminum, polymer

• Cooling: Variable-speed fans

• Electrical

• Power Supply: 100–240V AC

• Max Power Consumption: 900W

• Physical

• IP Rating: IP66

• Dimensions: approx. 16.5" × 27" × 9.9"

• Weight: 31 kg / 68.3 lbs

Included:

• 1 × PHYTON moving head fixture

• 1 × PowerCON TRUE1 power cable

• 1 × 5-pin XLR cable

• 2 × Omega mounting brackets

• 1 × Safety cable

• 1 × Protective insert
