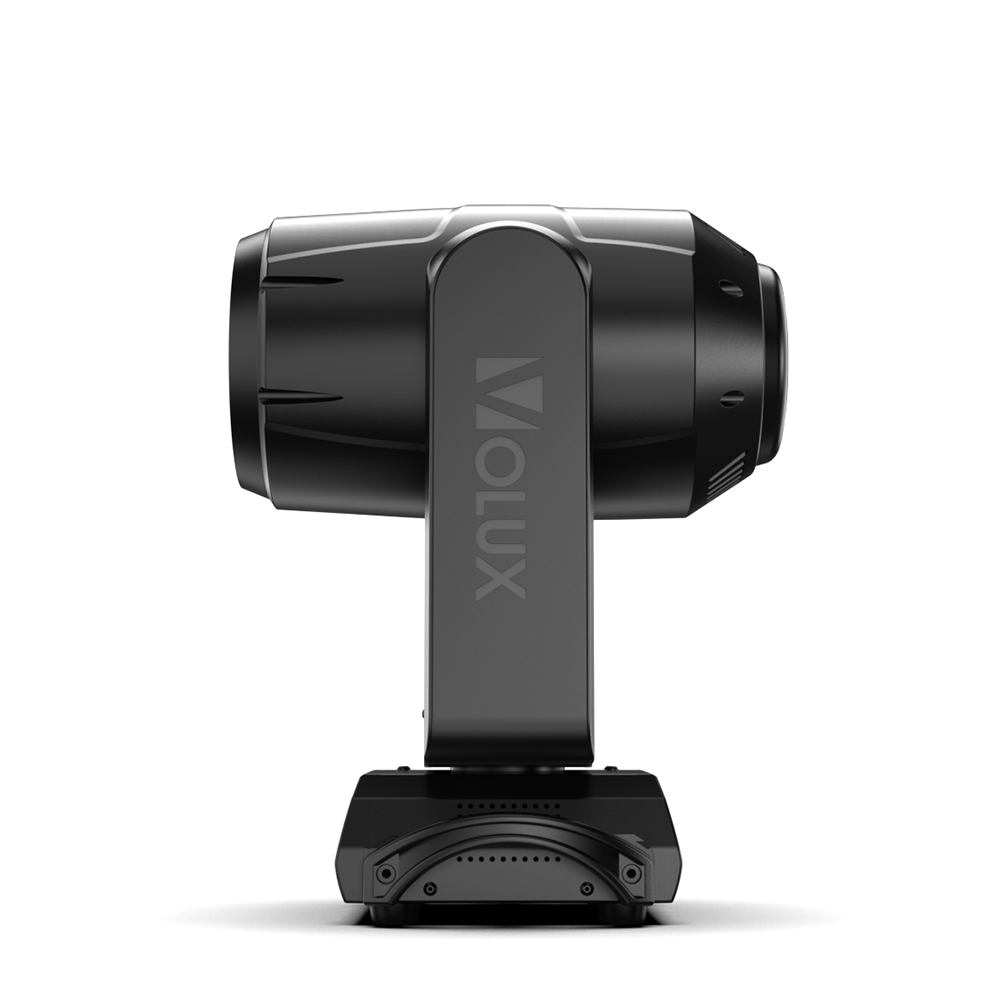

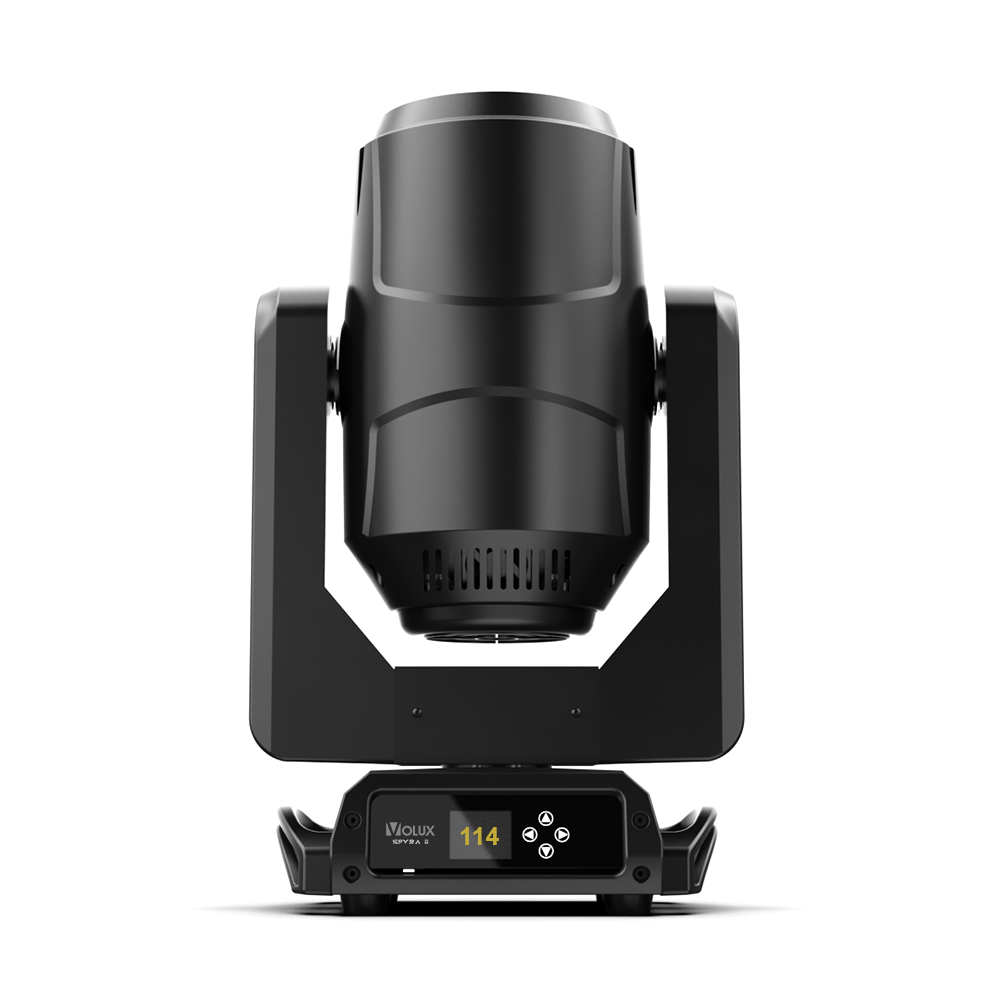

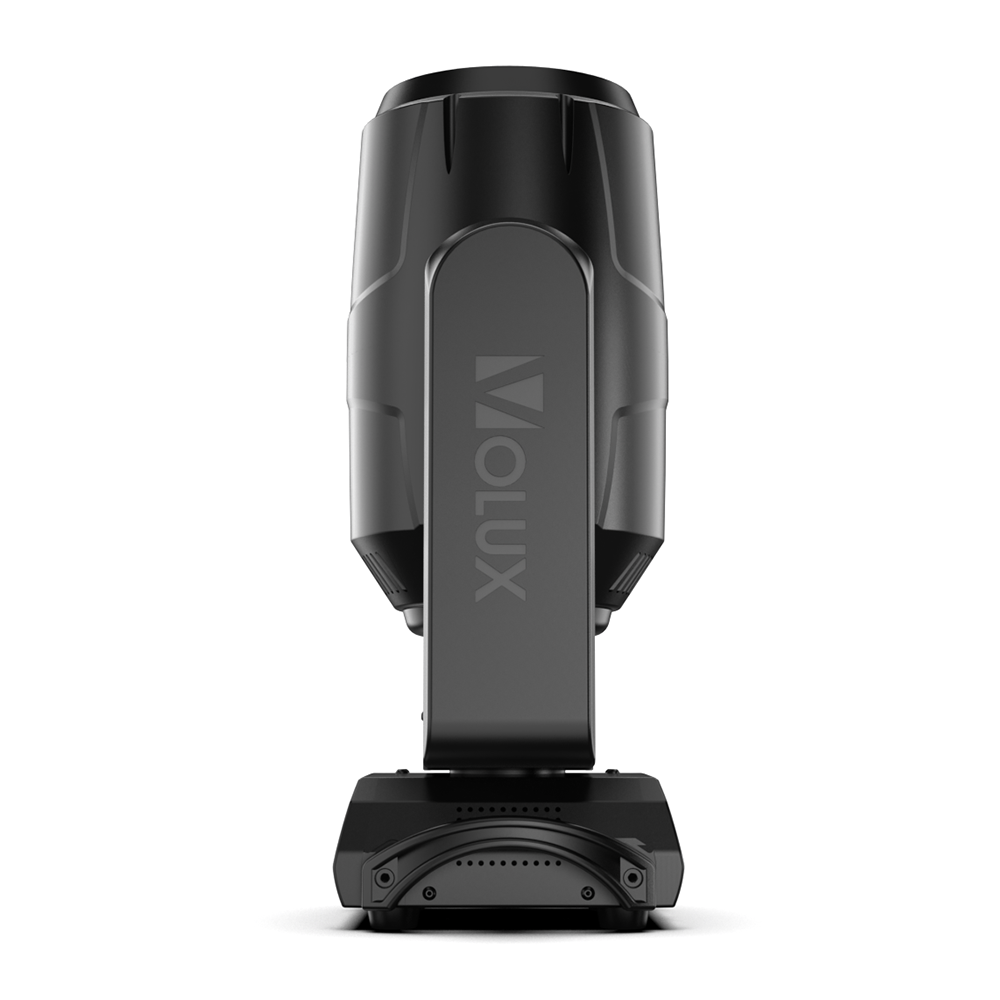

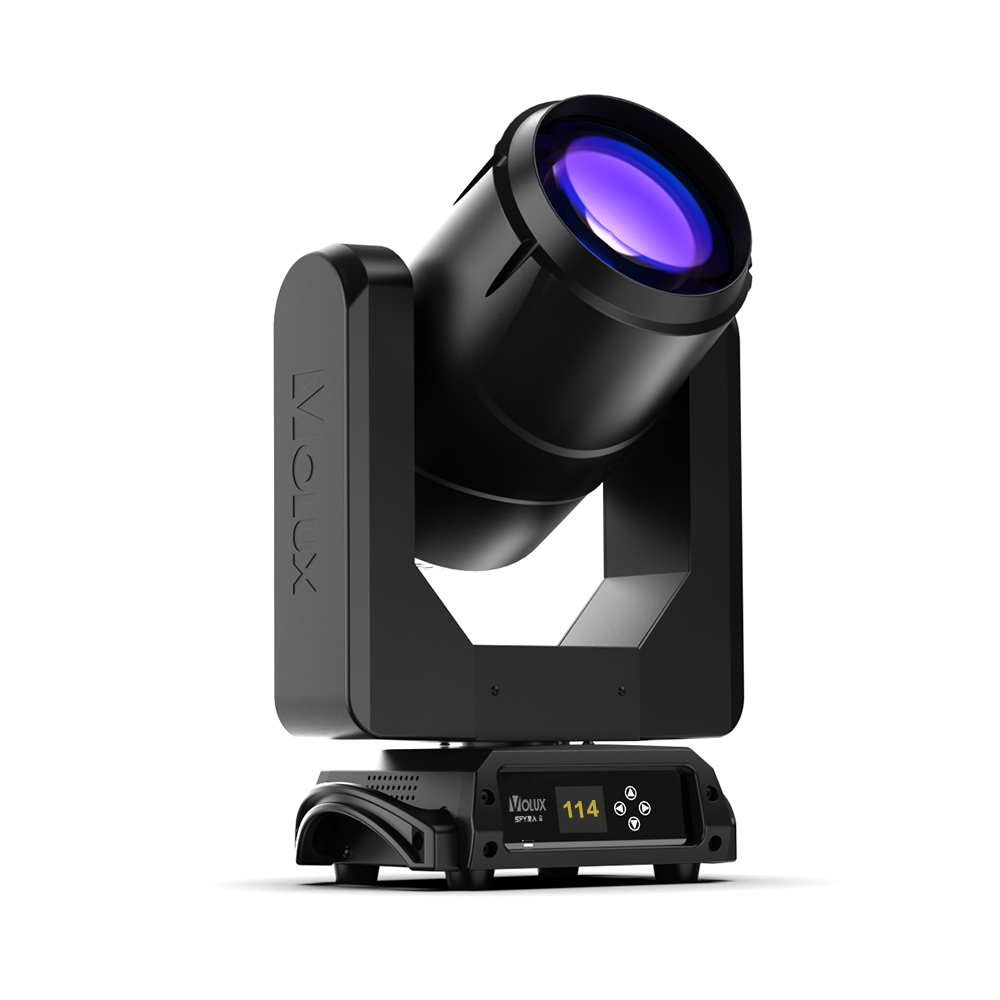

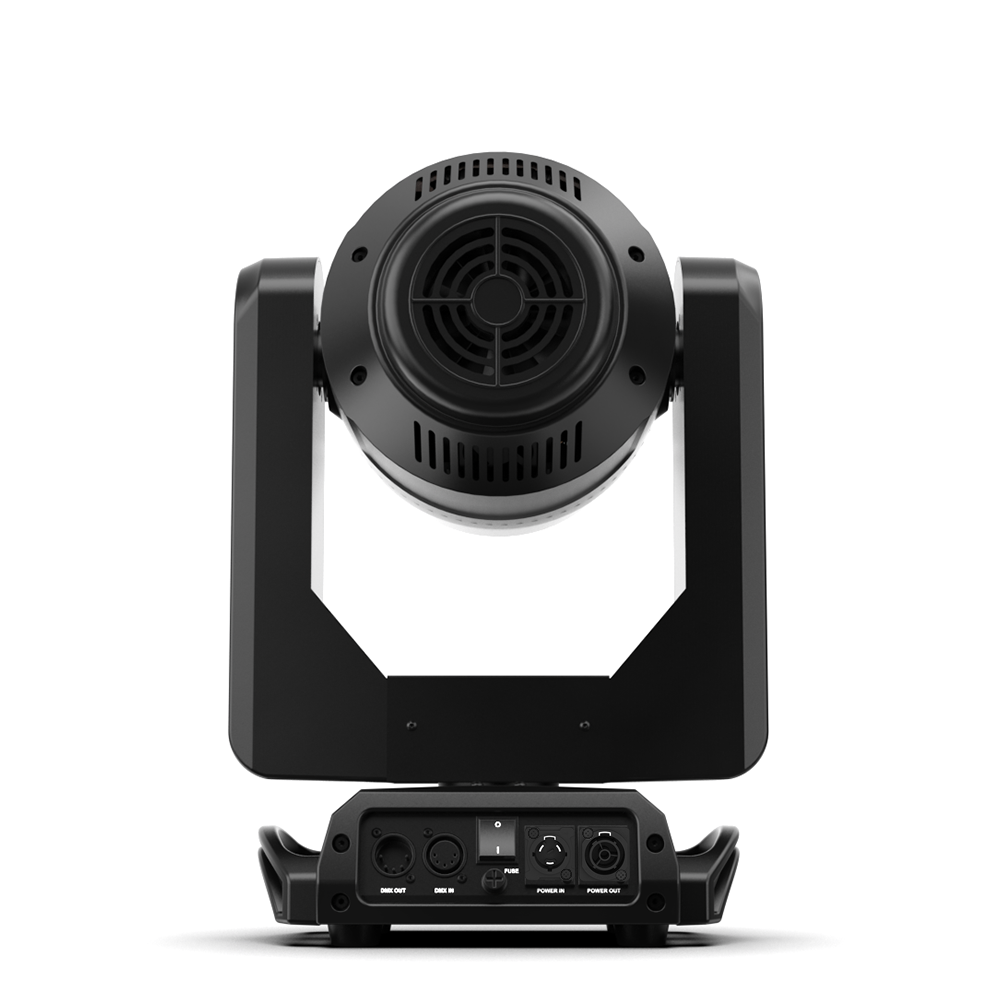

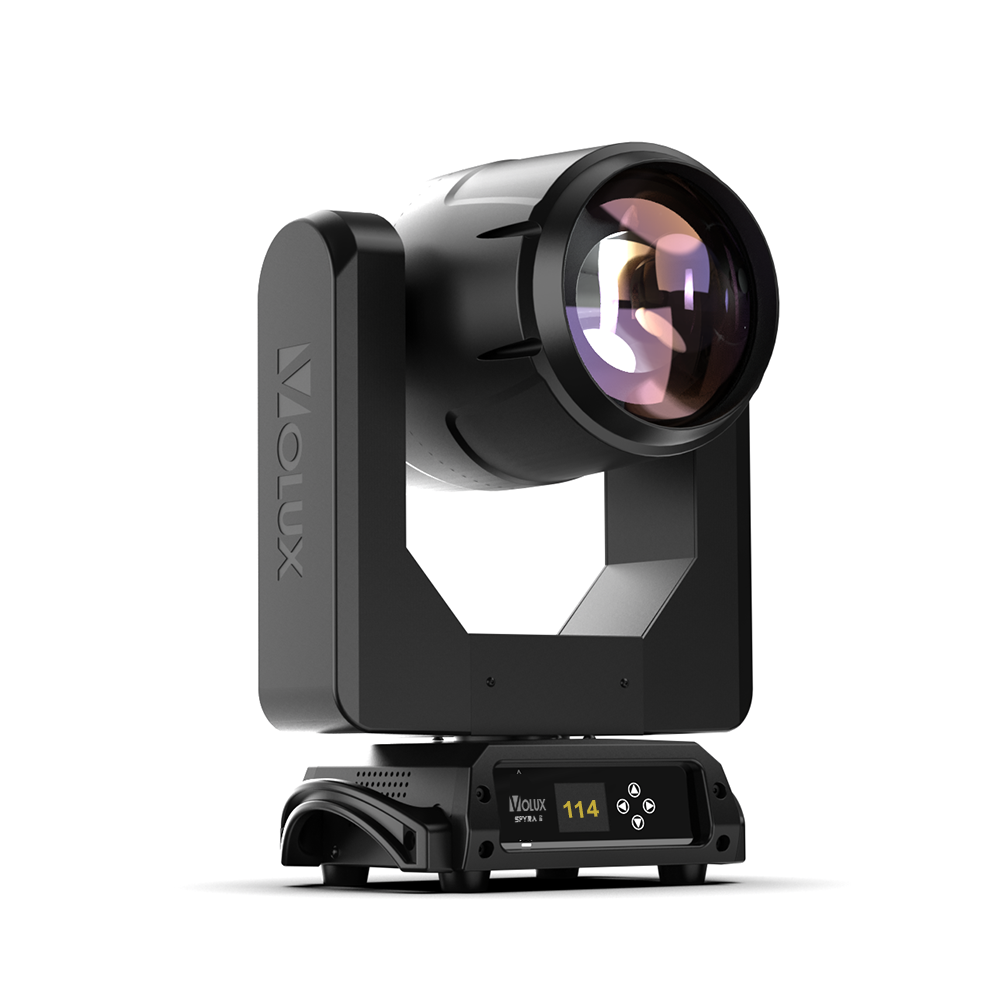

Spyra II

The Spyra II is a high quality moving beam type fixture. It is a bright fixture with good quality light, It can be a great option for those looking for a beam fixture to use on small to medium sized events.

Take note of the continuous pan and tilt as well as many prism options!

From the Manufacturer:

Built on the success of the original SPYRA, SPYRA II increases output and creative effect capabilities while maintaining an extremely compact form factor with infinite pan/tilt. Incorporating a 200W, 8,000K cold-white LED engine, SPYRA II delivers piercing output with a sharp 2-degree, hotspot-free beam. Its refined optics optimize throw distance and features 3 dynamic overlapping prisms including a 45º, 48-facet prism for exciting mid-air looks. SPYRA II offers fast pan/tilt movements with 360-degree infinite rotation capabilities, complemented by 13 intense colors including (2) CTO filters + CTB filter, frost filter, and 15 static gobos. All combined into a lightweight design with remarkable power efficiency.

Specifications:

• Optical

  • Source: 200W Cold White LED

  • Color Temperature: 8,000K

  • Lumens: 9,200

  • Illuminance: 170,000 lux @ 5M

  • CRI: 72+

  • Source Life Expectancy: 20,000 Hours

  • Beam Angle: 2º

  • Field Angle: 2.7º – 4º

  • Lens Diameter: 120mm

  • Focus: Motorized

• Color System

  • Color Wheel: 13-Dichroic Colors

  • Color Temperature Flags: CTO3200K, CTO2500K, CTB8000K

  • Color Wheel FX: Variable Speed Color Scrolling + Split Colors

• Dynamic Effects

  • Static Gobos: 15 Static Gobos w/ 3 Beam Reducers

  • Gobo FX: Scrolling + Gobo Shake

  • FX Generator: Electronic Shutter Pulse FX

  • Prism 1: 6-Facet Linear Rotating, Indexable

  • Prism 2: 48-Facet 45º Degree Rotating, Indexable

  • Prism 3: 8-Facet Static + Frost Filter

  • Frost: Soft-Edge Wash

  • Focus: Motorised

  • Infinite Pan/Tilt

• Body

  • Pan Range: 640° + Continuous Pan Rotation

  • Tilt Range: 360° + Continuous Tilt Rotation

  • Pan/Tilt Resolution: 16-bit

  • Feedback: Automatic repositioning

  • Maximum Speeds:

  • Pan: 2.8s

  • Tilt: 1.6s

  • Infinite Pan: 85RPM

  • Infinite Tilt: 100RPM

• Control

  • Protocols: DMX512, RDM

  • DMX channels: 18ch Standard

  • RDM: RDM for remote monitoring and settings

  • Display: LCD high-resolution display

  • Firmware Upgrade: USB – DMX interface (not included)

• Electronics

  • Dimmer: 16-bit linear 0 ~ 100% electronic dimmer

  • Strobe / Shutter: 1 – 20 Hz, electronic

  • Operating Temperature: -10° ~ +50°

• Electrical

  • Power Supply: 100-240V – 50/60Hz

  • Max Power Consumption: 290W

  • Power factor: >0.98

• Physical

  • Ingress Protection Rating: IP20

  • Cooling: Forced Air Fan

  • Rigging: Quick-turn omega bracket

  • Signal connection: 5-Pin XLR IN/THRU

  • Power connection: Seetronic TRUE1 Compatible IN/THRY

  • Dimensions (WxHxD): 12.6″ x 20.4′ x 12.8”

  • Weight: 22lbs / 10kg

• What’s Included

  • SPYRA II Beam

  • PowerCON TRUE1 Power Cable

  • 5-Pin DMX Cable

  • (2x) Omega Bracket

  • Safety Cable

• Optional Accessories:

  • 4-Unit Flight Case

Features

• 200W 8,000K LED Engine

• 2º Beam Angle

• Linear 16-Bit Dimming

• High-Speed 16-Bit Pan/Tilt Movement

• 360º Infinite Pan/Tilt Rotation

• 3 Overlapping Prisms (48F Circular, 6F Linear, 8F Static)

• Frost Filter

• Motorized Focus

• 13-Slot Dichroic Color Wheel w/ CTO + CTB Filers

• Color Wheel Scroll + Split Color Effects

• Electronic Shutter/Strobe

• DMX, RDM Control

• PowerCon True1 IN/THRU Connector

• 5-Pin DMX XLR Connector

• 18 Channel DMX Mode
