SQ-1500 Rackmount 3 step 15A sequencer

The Juice Goose SQ-1500 is a stand-alone, rack mounted power sequencer for applications requiring local or remote control.

From the Manufacturer

The SQ-1500 is an economical power sequencer for single rack applications when local or remote control is required. Remote activation with a latching contact closure makes installation and operation simple and efficient.

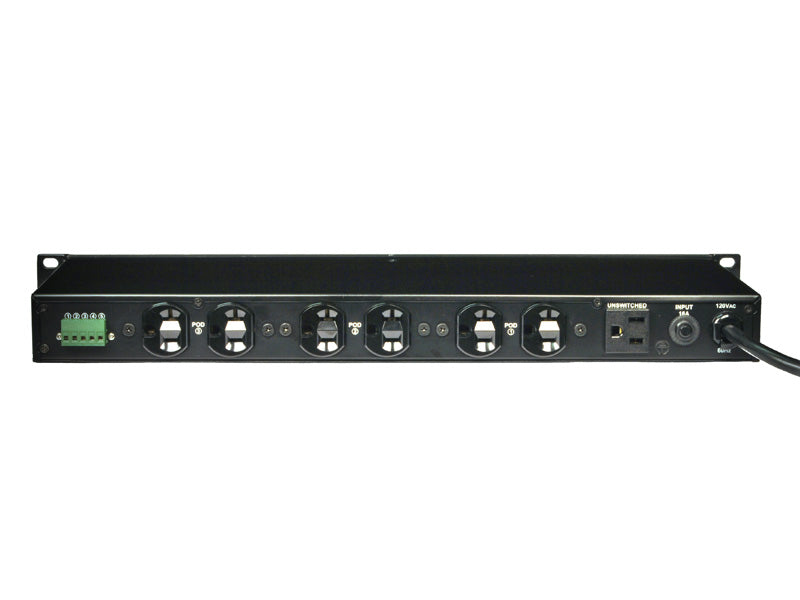

This item has a fifteen amp capacity with seven  AC power outputs on the rear of the chassis. One output is unswitched. The remaining six outputs are grouped into three Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection as well as line noise filtration.

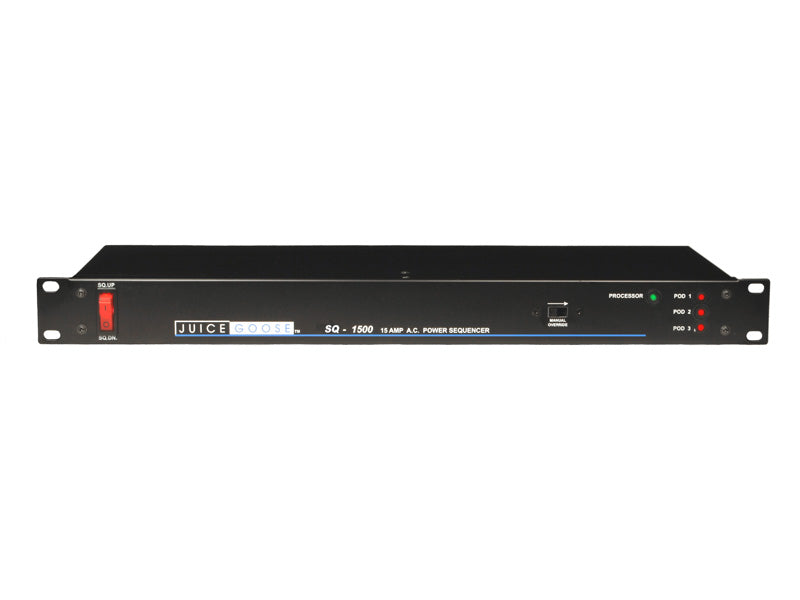

This product features LEDs on the front of the chassis for real time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched.

Features

• 15 amps
• Requires no master controller
• Remote control with contact closure
• Designed for single rack systems
• Chassis: 16 gauge steel
• Dimensions: .75”H x19”W x 7”D
• Weight: 10 lbs
• Circuit Breaker: 15A thermal on back of the chassis
• Relay Current Rating: 30A
• Number of Sequence Events: Three
• Power Input: Seven foot power cord with  NEMA 5/15P plug
• Power Output: Six NEMA 5/15R (Sequenced) & one NEMA 5/15R (Unswitched)
• Input Voltage: US standard (120 VAC @60Hz)
• Signal Connections: Five position terminal for 14 to 24 AWG connection
• Monitor Features: Front panel monitor LEDs
