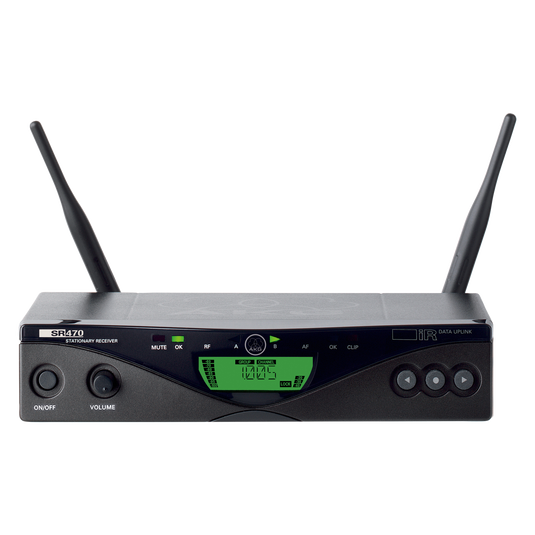

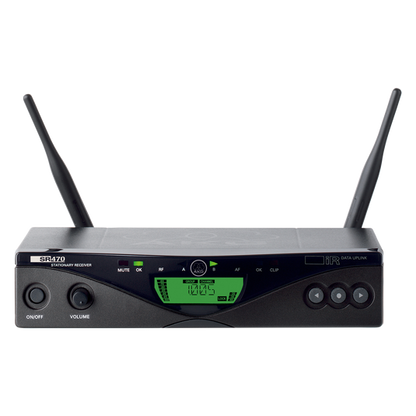

SR470 BD7/BD8

The AKG SR470 is a wireless stationary receiver, available in two frequency options, with features designed for quick, simple system setup.

From the Manufacturer:

SR470 analog space diversity professional wireless receiver comes in a rugged half-rack metal housing. The enhanced Auto Setup, Environment Scan and Rehearsal mode allows a very quick and easy system setup. The programmable backlight changes color to warn the user of critical operating conditions e.g. transmitter low battery information, audio peaks, or low radio signal strength. A wide range of professional antenna splitters, power supplies, and high quality remote antennas are available to handle complex antenna systems and up to 48 simultaneous wireless channels, even with large covering area.

Features:

• Enhanced automatic setup with channel preview: For quick and easy system setup
• Pre-coordinated TV channel frequency presets: Maximum channel density for multichannel systems
• Environment scan and rehearsal functions: For secure operation even in crowded radio frequency environments
• Programmable multicolor backlight display: Clear visual information of selectable warning signals
• External antenna connectors: Connect splitters, remote antennas, and long cable runs to multi channel systems

Specifications:

• Switching bandwidth: 30.5 MHz (depending on local regulations)
• Modulation: FM
• Sensitivity: 6 dBµV / -100 dBm
• Receiver type: Super heterodyne
• Diversity system: µC controlled space diversity
• Audio bandwidth: 35 to 20,000 Hz
• THD at 1 kHz: <0.3%
• Signal-to-noise: 120 dB(A)
• Audio outputs: balanced XLR, switchable to -30 or 0 dBm ; unbalanced TS 1/4" jack
• Audio output level: +9 dBu (max.)
• Antenna inputs: 2x 50-ohm BNC female connectors
• Transmitter battery indication: low battery
• Power supply: 12 V / 500 mA DC
• Dimensions: 200 x 44 x 190 mm (7.8 x 1.7 x 7.4 in.)
• Weight: 972 g (2.2 lbs.)
