Sku: STAGEDESIGNER50

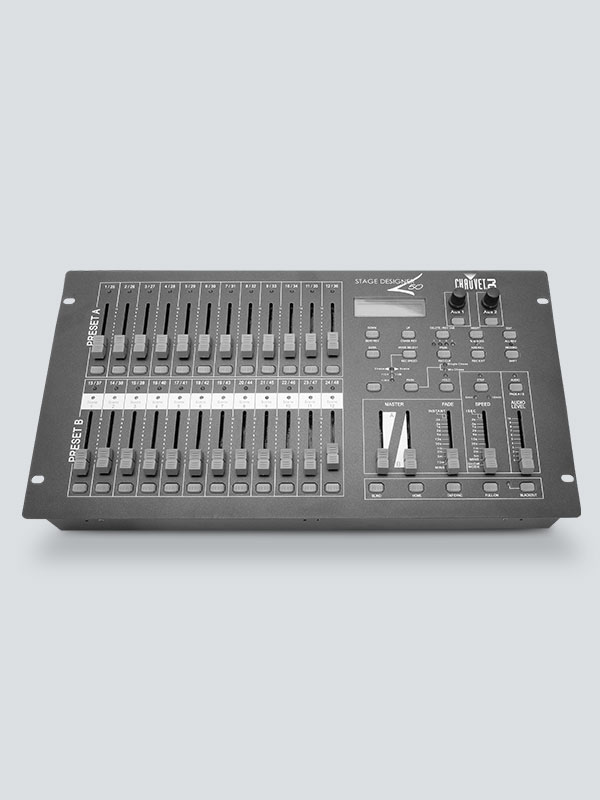

Stage Designer 50

$259.99
$259.99
Shipping calculated at checkout.
Vendor: Chauvet DJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

Chauvet's Stage Designer 50 24-Channel Dimming Console combines the size of a 24-channel dimming console with the capabilities of a 48-channel console into a single powerful dimming unit. The Stage Designer 50 can store up to 8 pages of 12 scenarios each and has 96,000 programmable steps. The console allows the user to reassign channels and accept MIDI input.

From the Manufacturer:

The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.

Highlight

  • Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs

  • Saves desk space by squeezing 48 channels into a 24-channel console

  • Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders

  • Increase programming and playback versatility with two programmable auxiliaries

  • Simplify programming by using DMX channel patching to reassign channels

  • Increase flexibility with built-in MIDI support for remote dimming and scene triggering

  • Coordinate your light shows to music using the direct audio input connector or built-in microphone

  • Ability to stack scenes for simultaneous or sequential playback

In the Box:
  • (1) Power cord
  • (1) User manual
  • (1) Warranty card
  • (1) External power supply

     Features:

    • DMX Channels:48
    • DMX Connectors:3- and 5-pin XLR
    • Input Voltage:9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
    • Weight:9.9 lb (4.5 kg)
    • Size:19 x 10.5 x 3.5 in (483 x 267 x 89 mm)
    • Approvals:CE
    • Rackmount: 6U

    Tech Specs

    Control

    DMX 3-Pin Connectors?: Yes

    Physical:

    Length: 19 in

    Width: 10.5 in

    Height: 3.5 in

    Weight: 9.9 lb

    Electrical

    Voltage Range: 100 to 240 VAC

    Main Power Connector on Included Cable: 9 VDC, 500mA (external power supply: 100 to 240 VAC, 50/60 Hz)

    Stage Designer 50
    Stage Designer 50

    $259.99
