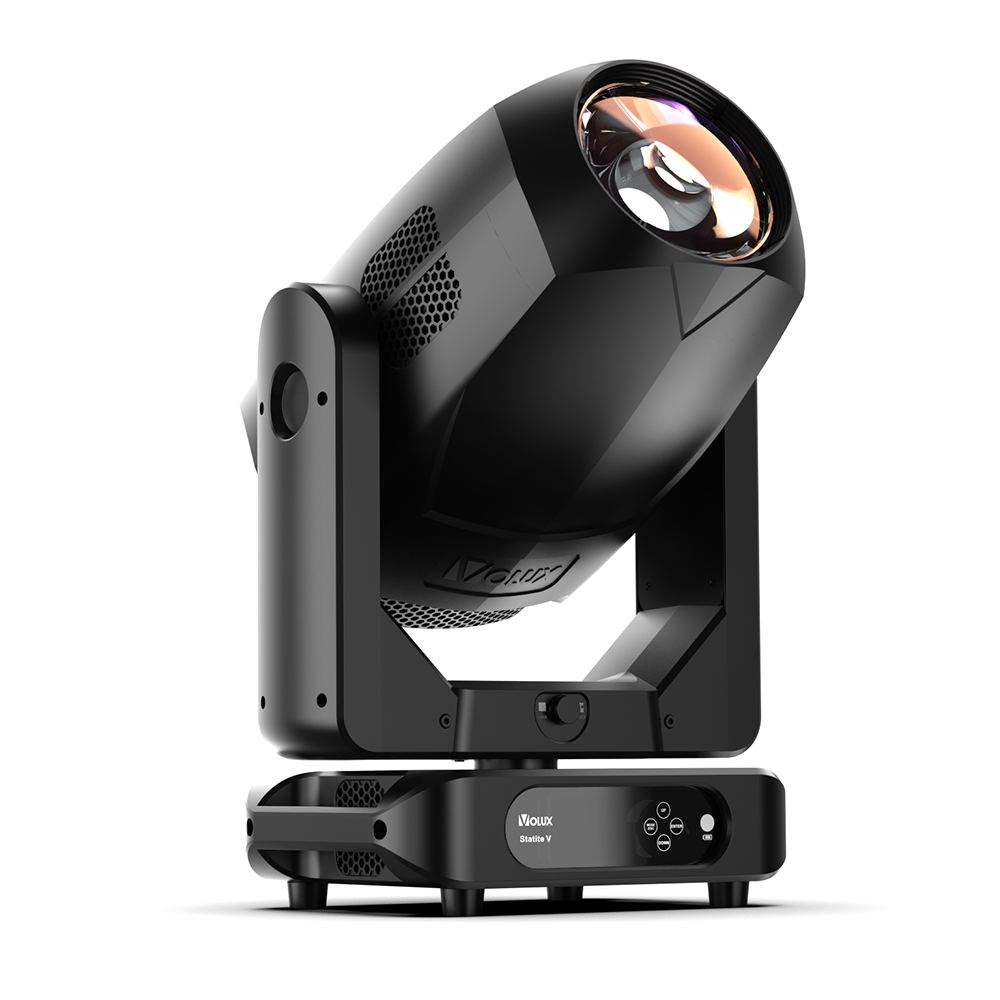

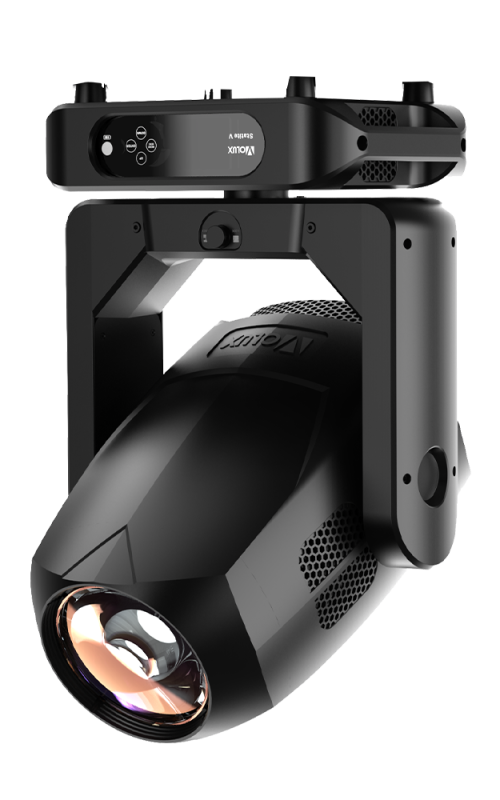

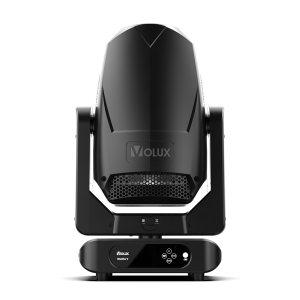

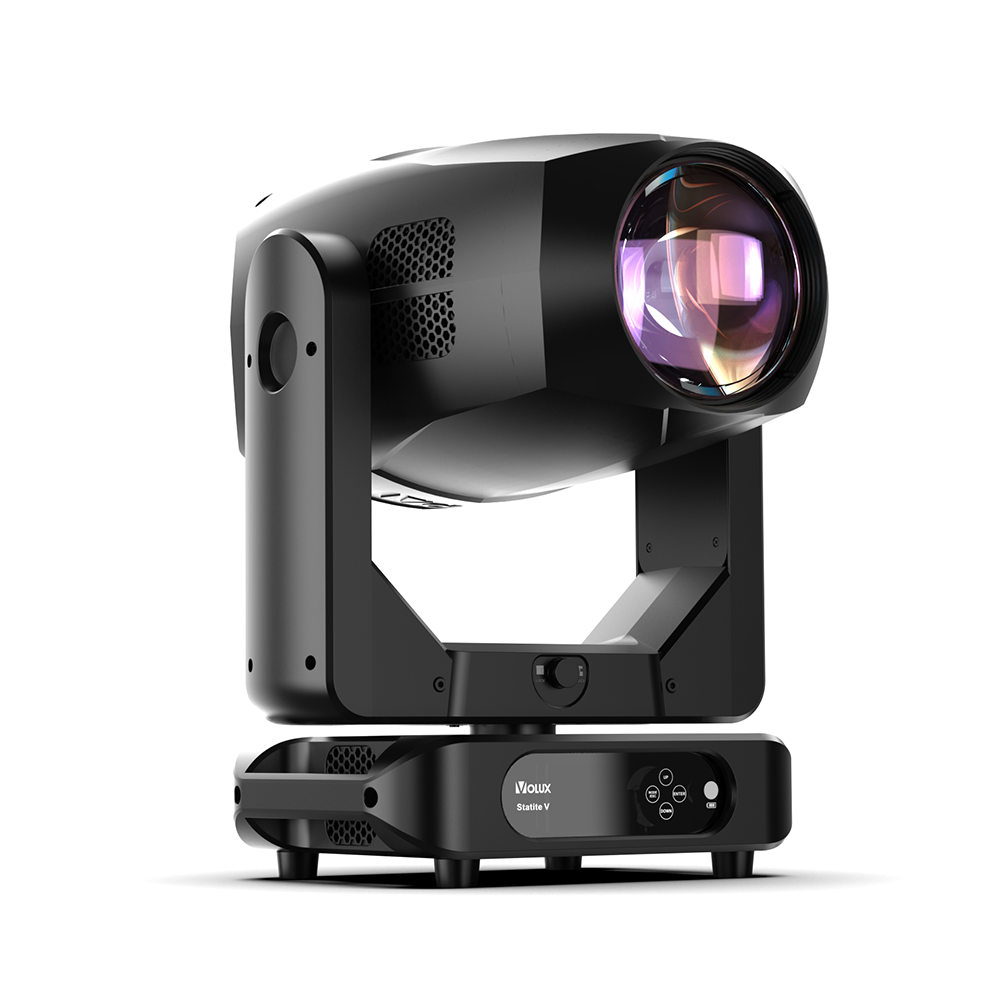

Statite V

Statite V is a compact, high-output 550W LED profile fixture delivering 28,000 lumens with a wide 4.5°–55° zoom range.

It features full CMY + CTO color mixing, dual gobos, rotating animation wheel, framing shutters, prisms, iris, and ultra-low noise operation—ideal for professional theater, broadcast, and live productions.

From The Manufacturer:

Statite V is a compact, yet fully-featured profile luminaire offering exceptional output with razor-sharp projection quality, a dynamic range of effects, and ultra-low noise operation. Delivering 28,000 output lumens from a high-efficiency 550W, 6,500K LED engine, Statite V features an exceptionally wide zoom range of 4.5 – 55º that maintains a crisp, flat field projection with auto-focus functions and exceptionally smooth linear dimming.

Designed with noise-sensitive environments in mind, Statite V operates as low as 36 dBA with minimal loss of light output.

A dynamic effects system comprises an advanced 4-blade, full-blackout framing shutter system with 180-degree rotation capability, a full rotating animation wheel, iris, static and rotating glass gobos, dual frost filters, and dual prisms for stunning surface and aerial effect capabilities.

Statite’s signature color mixing palette offers variable CMY + CTO color mixing, a dichroic color wheel including a High-CRI filter for vibrant color output with unsacrificed brightness. All within an exceptionally lightweight and compact size, integrated with DMX, Art-Net, sACN, and wireless CRMX for leading ROI in the most demanding applications.

Specification:

• 550W 6,500K LED Engine – 50,000 Hour Life

• 28,000 Total Lumen Output

• Low Noise Operation [44 dBA Fan Auto | 38 dBA Fan Quiet]

• Linear 16-Bit Dimming w/ DMX Adjustable Dimming Speed & Refresh Rate

• 4.5 – 55º Zoom Range

• Motorized Focus + Auto-Focus

• 7-Slot Interchangeable Rotating Gobo Wheel w/ Glass Gobos

• 8-Slot Fixed Gobo Wheel

• (4) Full-Blackout 2-Way Adjustable Framing Shutters with 180º Rotation

• Variable CMY + CTO Color Mixing

• (1) 5 Slot Dichroic Color Wheel including UV

• Rotating, Indexable Animation Wheel

• 16-Blade Motorized Iris

• Dual 4-Facet Circular & Linear Prisms

• DMX, ArtNet, RDM, sACN

• Integrated LumenRadio CRMX Wireless Interface

• Battery-Powered On-Board Interface

• PowerCon True1 IN/THRU Connector

• 5-Pin + 3-Pin XLR + EtherCon Connector

• Total Height (Head Up): 24.6″ / 627mm

• Height (Head 90º): 19.7″ / 502mm

• Total Width: 14.8″ / 376mm

• Head Length: 17.8″ / 454mm

• Net Weight: 48.5lbs / 22kg

• Electrical:

• LED Engine: 550W

• Total Power Consumption: 730W

• Voltage: 120-240V AC

Included:

• Statite V Profile

• PowerCON TRUE1 Power Cable

• 5-Pin XLR Cable

• (2x) Omega Bracket

• Safety Cable
