Storm 10

The Storm10 is a compact, 10-universe Ethernet-to-DMX converter, converting sACN, Art-Net, or ESP protocols to DMX512 with ease. Mount it using one of four options, and configure or update remotely via its intuitive web interface. It features 10 outputs and 2 front-facing ports for flexible cabling and future expansion. With an internal buffer and sync logic, the Storm10 ensures smooth, jitter-free LED matrix displays and perfect synchronization across your show.

The Perfect Package

The Storm10 provides flexible control for any project, handling 10 universes of DMX data with options to expand by linking multiple units. Power it via PoE or DC. Configure each port individually for unique setups, adjusting protocols, merging options, and more. It supports Art-Net, sACN, ESP, and DMX512, with RDM for remote status updates and settings.

Easy, Web-Based Configuration

ENTTEC pioneered the introduction of user-friendly web browser interfaces in the lighting control sector. Just like all ENTTEC network products, simply connect to your Storm10 from anywhere on the same network using your favorite web browser to configure, manage, and update your device settings.

Merging Support

Choose from either LTP or HTP merging per port (with up to 2 sources). Use another control source and let the Storm10 handle the output just to test your setup, then revert back to the master source when required.

Polarity-Protected Data Ports & Surge Protection

The Storm10 is designed to block DC power from entering each of the data ports in the case of a short circuit or incorrect wiring, so rogue power can't pass through to your wider installation. It's also engineered with two layers of surge protection for 24/7 operation — any voltage spike or electrical noise on your data lines is automatically suppressed before it reaches your other equipment.

Integration-Ready

Combine the Storm10 with the ENTTEC S-PLAY show controller to trigger or schedule lighting states, or integrate with a wide range of building management and smart home systems for reliable, set-and-forget show control.

3-Year Warranty

Enjoy peace of mind with ENTTEC's 3-year manufacturer's defects warranty, backed by their renowned global technical support team.

Firmware Update — V1.5.4

Storm 10 just got a whole lot faster. Overdrive is here.

Firmware V1.5.4 is a landmark release for the Storm 10. For the first time, Overdrive and RDM coexist on the same output — no trade-offs, no compromises. Crank refresh rates up to 2 Mbit/s, push up to 4 DMX universes down a single port, and still discover, address, and monitor your RDM fixtures without breaking a sweat. It's a free update, available now for all 10 outputs, supporting up to 40 universes total.

Download Firmware V1.5.4

• Overdrive mode — up to 2 Mbit/s: Faster refresh rates and higher throughput on every output, with up to 4 DMX universes per port (40 universes total across all 10 outputs).

• RDM in both modes: Discover, address, and monitor up to 512 RDM fixtures directly from the Storm 10 — in standard and Overdrive modes, with full GET/SET pass-through for your console or software via Art-Net.

• Redesigned web interface: Cleaner, faster UI with light/dark themes and a live DMX buffer view so you can inspect output levels straight from the browser.

• Per-port HTP/LTP merge: Blend multiple sources per universe with Art-Net Sync support, per port.

• Safe, clean upgrades: Settings auto-validate on boot — incompatible configs reset to sensible defaults so you're never left with a blank or garbled page after an update.

Running high-density LED pixels? Overdrive mode was built for exactly this — whether you're driving Chinese dot strings, LED bars, or any other pixel-hungry fixture, the Storm 10 now delivers the throughput and refresh speed to keep every pixel in step, with RDM still in play for addressing and monitoring.

Before you update: on first boot after installing V1.5.4, any settings incompatible with V1.5.x are automatically reset to safe defaults. Please review your port configuration — mode, universes, and merge settings — after upgrading.

Features:

• 10-Universe Ethernet to DMX Gateway — up to 40 universes total in Overdrive mode

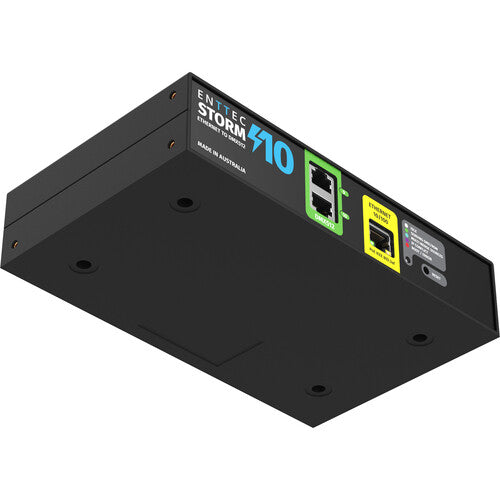

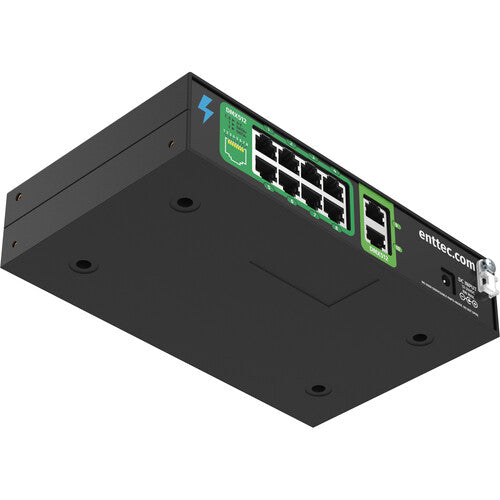

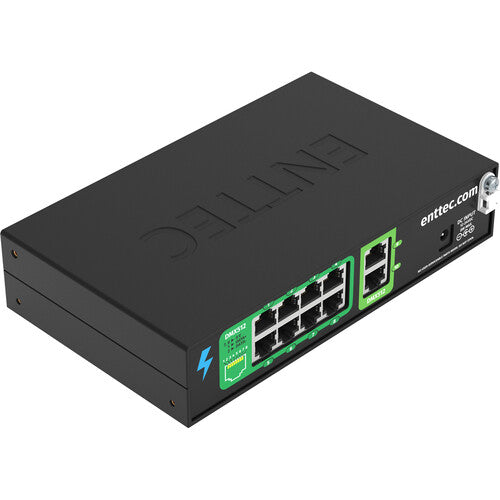

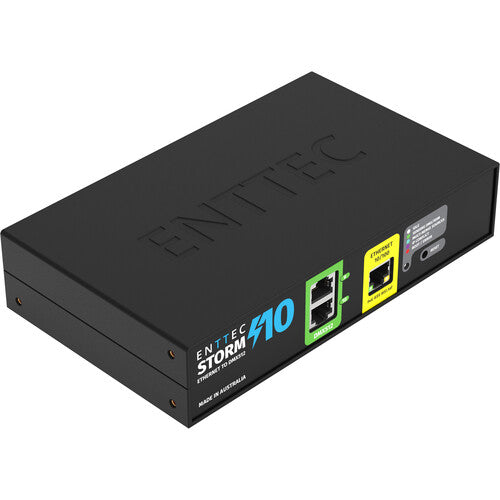

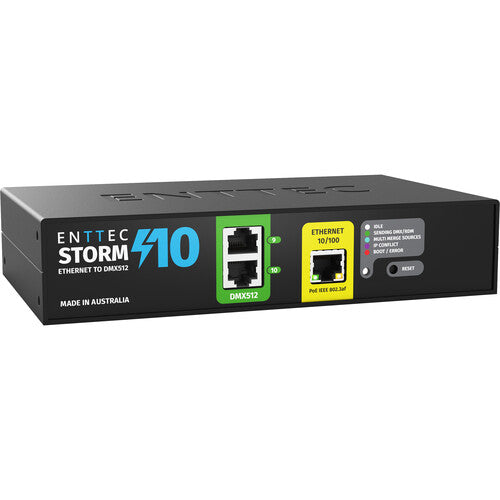

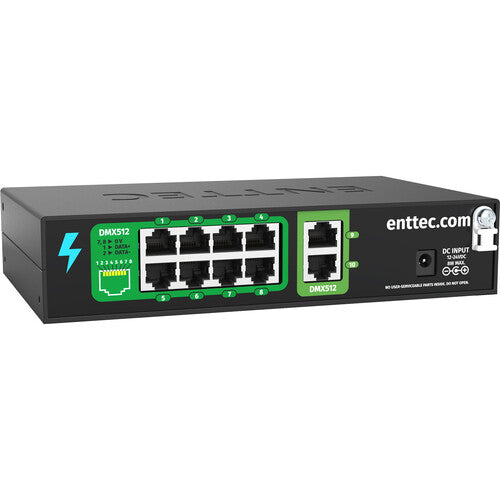

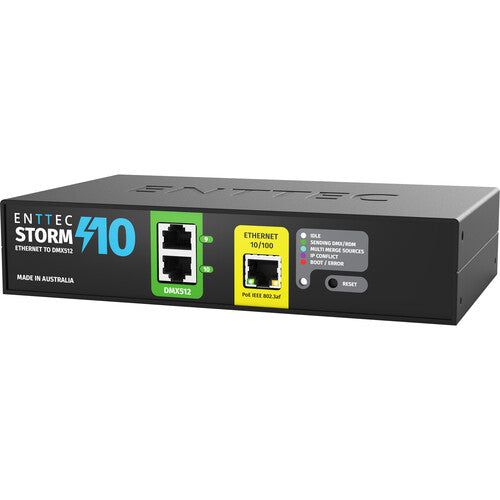

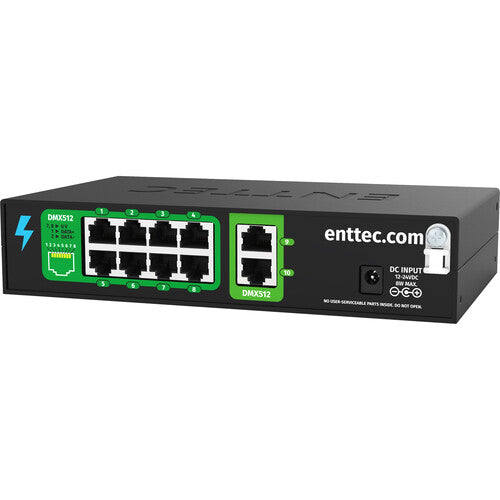

• 10 Outputs Plus 2 Front-Facing Ports for Flexible Cabling and Future Expansion

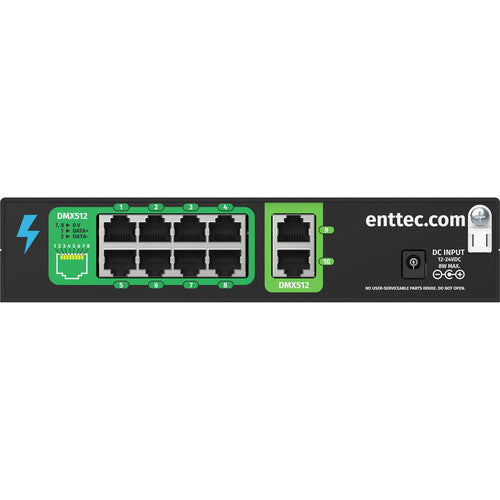

• RJ45 DMX Outputs

• Converts sACN, Art-Net, or ESP to DMX512

• Overdrive Mode — Up to 2 Mbit/s Refresh Rate with RDM Still Active

• RDM Support for Up to 512 Fixtures, in Standard and Overdrive Modes

• Per-Port HTP/LTP Merging (Up to 2 Sources) with Art-Net Sync Support

• Internal Buffer and Sync Logic for Jitter-Free Performance

• Polarity-Protected Data Ports and Dual-Layer Surge Protection

• Redesigned Web Interface with Light/Dark Themes and Live DMX Buffer View

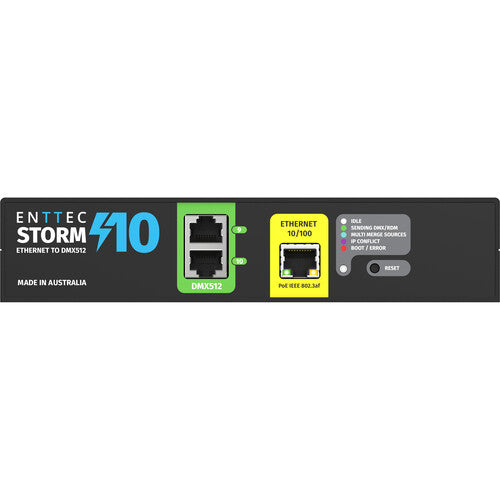

• LED Status Indicators

• Power over Ethernet or DC Input

• Compact Unit, Intuitive Web-Based Configuration

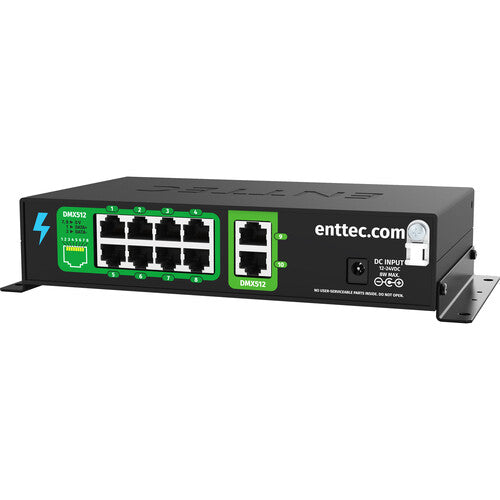

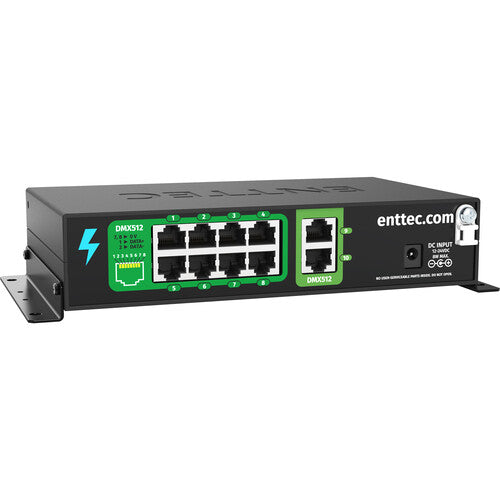

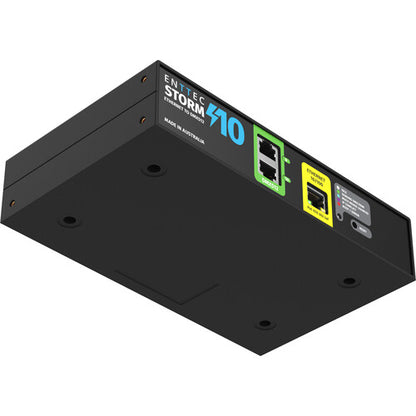

• Surface, DIN, or Rack Mounting

• Includes Ethernet Cable and Power Supply

• Includes Mounting Accessories
