Strike Array 1

Chauvet’s Strike Array 1 is the perfect stacking blinder for broadcast applications, able to mimic incandescent fixtures with excellent low end dimming performance.

From the Manufacturer

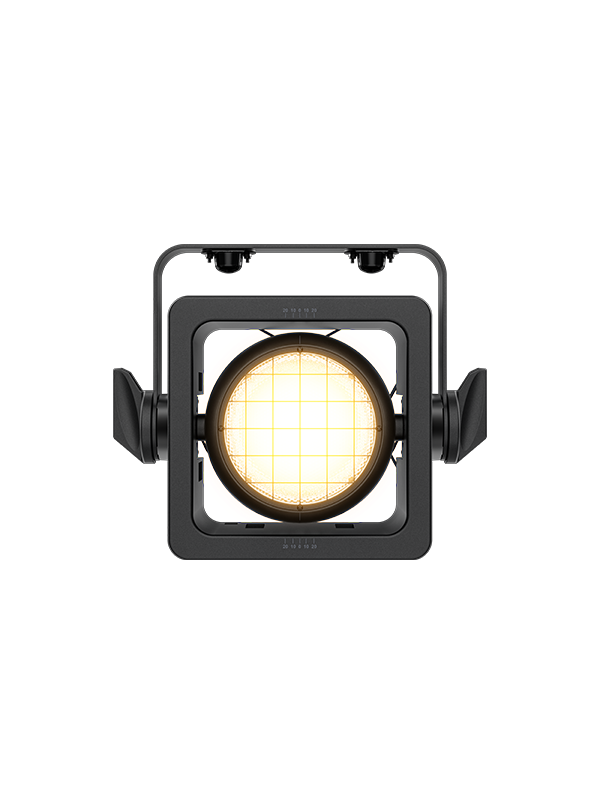

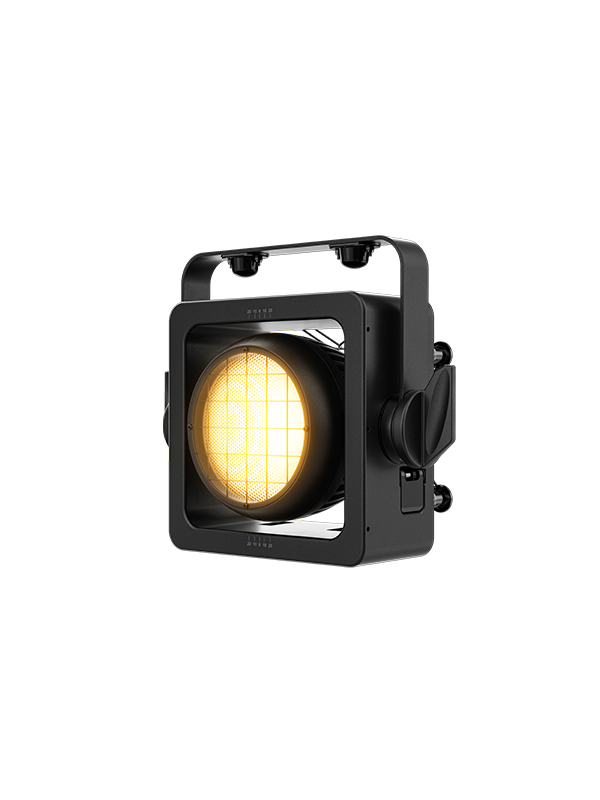

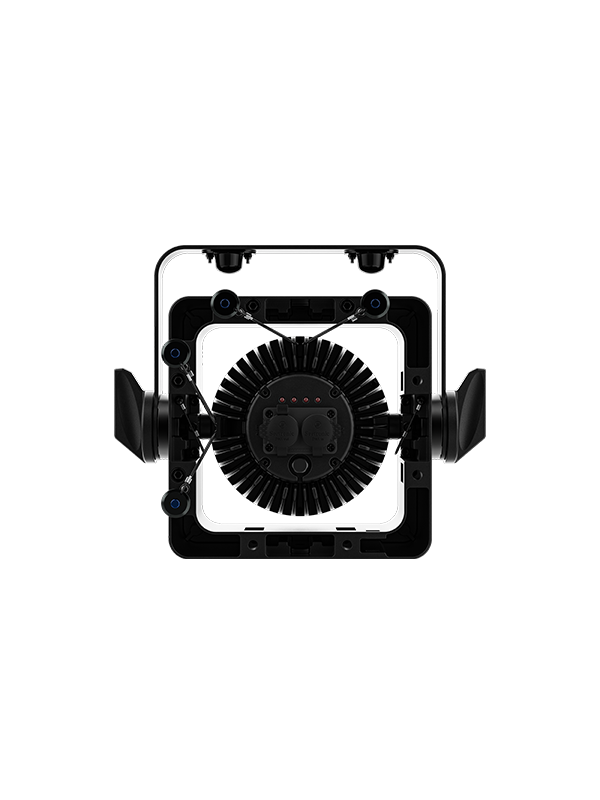

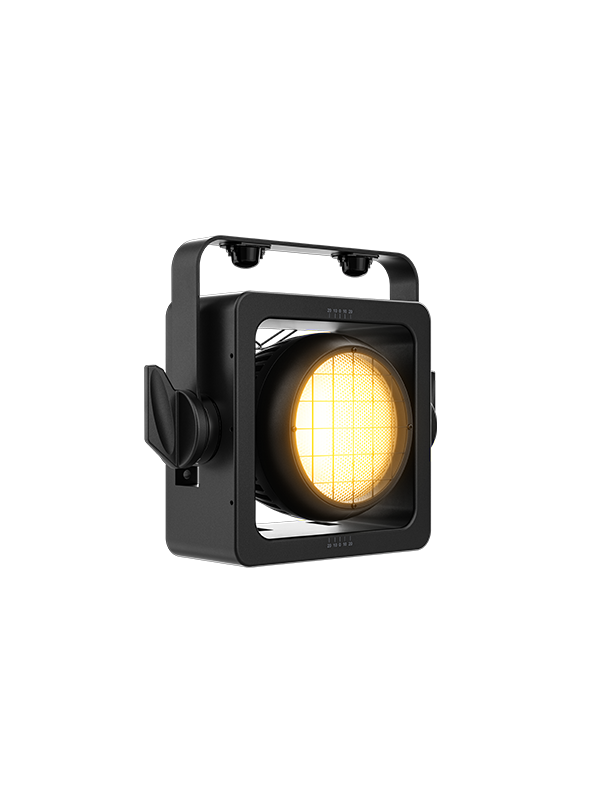

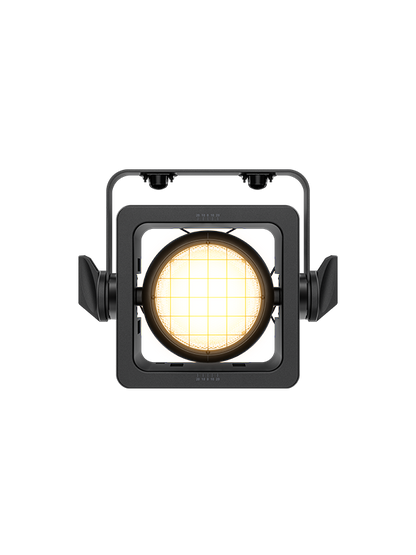

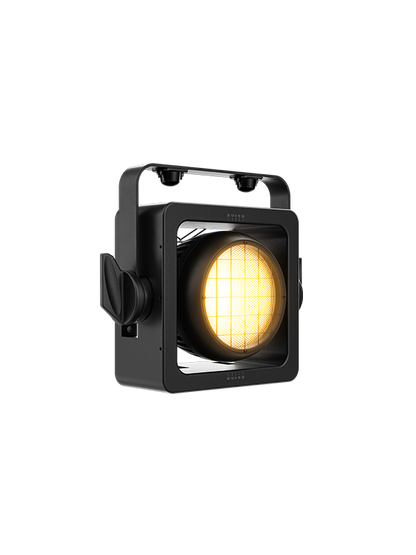

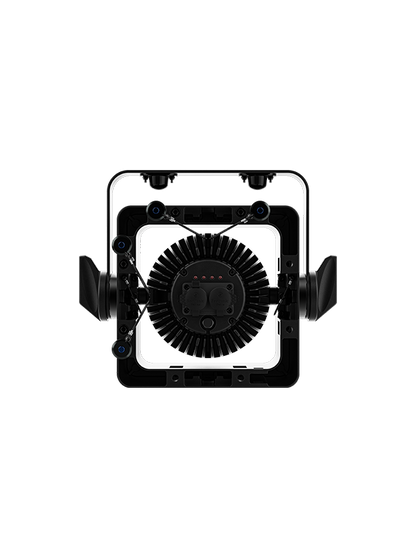

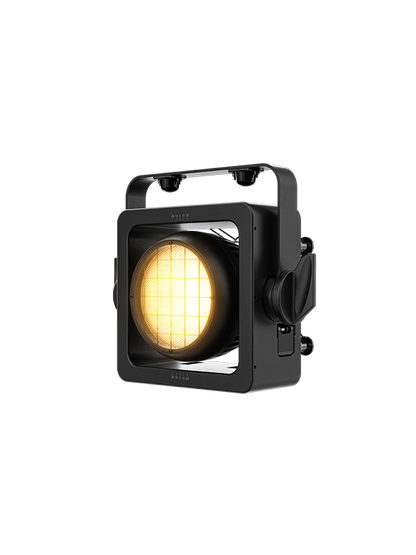

STRIKE Array 1 is an IP65-rated audience blinder powered by intense warm white LEDs housed in an independently focusable pod. Its proprietary tool-free interlocking system enables STRIKE Array 1 to be easily interconnected with multiple units for scalable configurations. For additional rigging versatility, the STRIKE Array 1 pod can be removed from its frame and mounted using the included standard yoke. STRIKE Array 1 delivers superb low end dimming performance and Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make it an ideal blinder for broadcast applications.

Features

• Intense, stacking blinder/strobe rated IP65 for all-weather use

• Remote driver unit with automatic addressing of up to 8 pods for clean installations.

• Heads are removable from the frame and can be mounted in standard (included) yoke for a more traditional look.

• Emulated “red shift” to mimic incandescent fixtures perfectly.

• Manual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output.

• Innovative interlocking system to connect multiple fixtures together.

• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

Specifications

• Optical:

• Light Source (Single Pod): 48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy

• Light Source (Single Pod): 5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy

• Color Temperature (at full): 2657 K

• CRI: 83.9

• Beam Angle: 62.8°

• Field Angle: 104.5°

• Lumens (Single Pod): 4,353 lm @ 5 m

• Illuminance (total) (Single Pod): 153 lux @ 5 m

• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

• Dynamic Effects:

  • Dimmer: Electronic

  • Strobe Rate: 0 to 25 Hz

  • Dim Modes: 4

  • Built-in Automated Programs: Yes

• Construction / Physical:

  • Dimensions: 8.19 x 8.62 x 4.57 in (208 x 219 x 116 mm) (Single Unit with Bracket)

  • Dimensions: 7.48 x 7.48 x 4.57 in (190 x 190 x 116 mm) (Single Unit with Frame)

  • Dimensions: 10.87 x 9.06 x 4.57 in (276 x 230 x 116 mm) (Single Unit with Frame and Bracket)

  • Dimensions: 7.375 x 4.00 x 7.375 in (186.87 x 101.6 x 186.87 mm) (Control Box)

  • Weight: 3.2 lbs (1.5 kg) (Single Unit with Bracket)

  • Weight: 6.6 lbs (3.0 kg) (Single Unit with Frame)

  • Weight: 7.6 lbs (3.5 kg) (Single Unit with Frame and Bracket)

  • Weight: 6.4 lbs (2.9 kg) (Control Box)

  • Exterior Color: Black

  • Housing Material: Aluminum die-cast

• Connections:

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

  • Power Input: Seetronic Powerkon IP65

  • Power Output: Seetronic Powerkon IP65

  • Device Outputs (4): 4-pin XLR

  • Data Connectors: 5-pin IP65 XLR, Seetronic Etherkon IP65

  • Software Connection: USB

  • Cable Length (power): 5 ft (1.5 m)

  • Total max. cable length (shielded cables) between Driver and last Head: 147 ft (45 m)

• Control:

  • Control Protocol: DMX, RDM, ArtNet, sACN

  • DMX Channels: 1,2,5,4P-5CH,4P-14CH,4P-23CH,4P-26CH,8P-9CH,8P-26CH,8P-43,8P-46CH

• Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current (4 PODS): 253 W, 2.13 A @ 120 V, 60 Hz

  • Power and Current (4 PODS): 248 W, 1.21 A @ 208 V, 60 Hz

  • Power and Current (4 PODS): 248 W, 1.09 A @ 230 V, 50 Hz

  • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V

  • Power Linking: 5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V

  • Power and Current (8 PODS): 509 W, 4.22 A @ 120 V, 60 Hz

  • Power and Current (8 PODS): 494 W, 2.38 A @ 208 V, 60 Hz

  • Power and Current (8 PODS): 490 W, 2.14 A @ 230 V, 50 Hz

• Certifications / Qualifications:

  • CE, MET, FCC

  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M6 GORE valve

  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• 4pc Strike Array 1, mounted in the Square Frame with Yokes

• 4pc linking cables (1m)

• 1pc Seetronic Powerkon IP65

• 1pc driver

• 4pc “head only yokes”

• 5pc Omega Bracket

Optional Accessories:

• Professional Clamps: CTC-50HC, CTC-50HCN

• Safety Cable: SC-07

• IP Rated Seetronic® Powerkon Extensions

• IP Rated DMX cables

• IP Rated EtherCon Cables

• UPLOAD 03 software uploader
