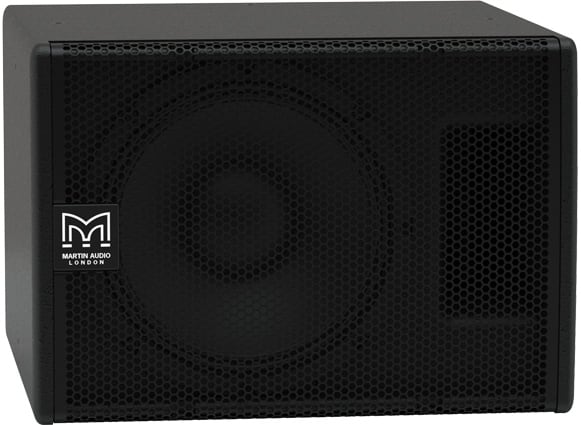

SX110 Slimline 1x10" Subwoofer

From the Manufacturer:

The SX110 is an slimline subwoofer designed for applications that call for increased impact and low frequency performance in a visually unobtrusive enclosure. Its very small size makes it perfectly suited to installed sound applications where space is limited such as under banquette seating.

Features:

• Slimline direct-radiator subwoofer

• 1 x 10” (250mm) driver with 2” (50mm) voice coil

• Large port for reduced air noise

• Perforated steel grille

• 8Ω nominal impedance

• M8 flying inserts

Applications:

• Retail outlets

• Cafes, bars and restaurants

• Museums and Houses of Worship

• Fitness clubs

• Educational facilities

• Hotels and convention centers

Specifications:

• Type

• Slimline, direct radiating subwoofer

• Frequency Response

• 50Hz-150Hz ± 3dB,

• -10dB @ 42Hz

• Driver

• 1 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet

• Rated Power

• 250W AES, 1000W peak

• Recommended Amplifier

• VIA 2502

• Sensitivity

• 97dB

• Maximum SPL

• 121dB continuous, 127dB peak (half space)

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• Omnidirectional

• Crossover

• 80-120Hz active

• Enclosure

• Plywood

• Finish

• Black or white

• Protective Grille

• Perforated steel

• Connectors

• 2 x NL4 type

• Pin Connections (Input)

• +1, -1 Link through: +2, -2

• Pin Connections (Link)

• +1, -1 Link through: +2, -2

• Fittings

• 12 x M8 inserts

• Dimensions (INCL Feet)

• (W) 417mm x (H) 297mm x (D) 415mm

• (W) 16.4ins x (H) 11.7ins x (D) 16.3ins

• Weight

• 12kg (26.5lbs)
