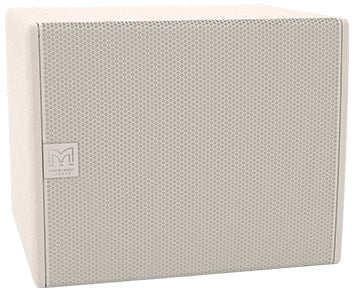

SX112 Subwoofer System

The SX112 is a compact subwoofer for use with full range speakers. It is a great option for medium to large install applications.

From the Manufacturer:

The SX112 is an ultra-compact direct radiating sub-bass system designed to extend the bandwidth and increase the headroom of full-range loudspeaker models. It features a very efficient 12" (300mm) long-throw bass driver with a high power 3" (75mm) voice coil and generously-sized reflex ports for low noise, high power operation.

Features:

• Ultra-Compact, single driver, direct radiating subwoofer

• 12” (300mm) driver with 3” (75mm) voice coil

• Water resistant cone

• Large ports for reduced air noise

• Perforated steel grille

• Black or white standard colour options

• Integrated flying points

Applications:

• Live Music Clubs and Bars

• Nightclubs

• Bars and Restaurants

• Museums and AV Spaces

• Convention Centres

• Hotels

• Retail Outlets

• Leisure Centres

• Houses of Worship

Specifications:

• Type

• Compact, single driver, direct radiating subwoofer

• Frequency Response

• 48Hz-150Hz ± 3dB -10dB @ 35Hz

• Drivever

• 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone

• Rated Power

• 400W AES, 1600W peak

• Sensitivity

• 100dB

• Maximum SPL

• 126dB continuous, 132dB peak (half space)

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• Omnidirectional

• Crossover

• 80-120Hz active

• Enclosure

• 52 litre, Plywood

• Finish

• Black or white textured paint

• Protective Grille

• Black or white perforated steel

• Connectors

• 2 x NL4

• PIN Connections

• Left to right: Input+, Input -, Link -, Link+

• Fittings

• 12 x M10 inserts

• Dimensions

• (W) 487mm x (H) 390mm x (D) 410mm

• (W) 19.2ins x (H) 15.4ins x (D) 16.1ins

• Weight

• 21.5kg

• 47.3lbs
