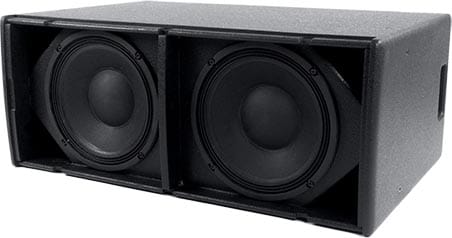

Slimline SX210 Subwoofer

The SX210 is a dual-driver subwoofer. It is a great option for those looking for a visually unobtrusive enclosure.

From the Manufacturer:

The SX210 is a slimline dual-driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singly, stacked or flown via integral M8 inserts and its ultra-compact size makes it ideal for applications where space is limited. It features dual 10” (250mm)/2” (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.

Features:

• Slimline direct-radiator subwoofer

• 2 x 10” (250mm) drivers with 2” (50mm) voice coils

• Large ports for reduced air noise

• Perforated steel grille

• 4Ω nominal impedance

• M8 flying inserts

Applications:

• Portable sound reinforcement

• Live music clubs

• Bars and restaurants

• Nightclubs

• Corporate AV events and conferences

• Weddings and parties

• Secondary stages at festivals

• HoW, leisure centres and retail outlets

Specifications:

• Type

• Slimline dual, direct radiating subwoofer

• Frequency Response

• 50Hz-150Hz ± 3dB, -10dB @ 42Hz

• Driver

• 2 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet

• Rated Power

• 500W AES, 2000W peak

• Sensitivity

• 103dB

• Maximum SPL

• 127dB continuous, 133dB peak (half space)

• Nominal Impedance

• 4Ω

• Dispersion (-6dB)

• Omnidirectional

• Crossover

• 80-120Hz active

• Enclosure

• Birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel

• Connectors

• 4 x NL4 type

• Pin Connections (Input)

• 1+/1-

• Pin Connections (Link

• 1+/- to 1+/-

• Fittings

• 16 x M8 inserts, 2 x bar handles

• Dimensions

• (W) 718mm x (H) 295mm x (D) 465mm

• (W) 28.3ins x (H) 11.4ins x (D) 18.3ins

• Weight

• 20kg

• 44.1lbs
