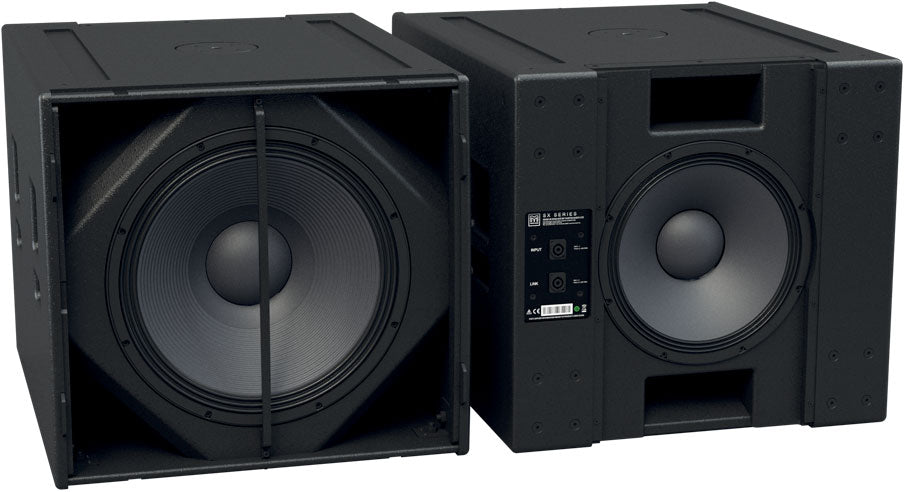

SXC118 Compact Cardioid Subwoofer (Ground-Stack Version)

The SXC118 is a cardioid active subwoofer. It is a great option for medium sized events or install applications.

From the Manufacturer:

Designed for touring sound and installations, the SXC118 is a compact, high performance cardioid subwoofer. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP.

Features:

• Compact, cardioid subwoofer

• Front facing 18” (460mm)/4” (100mm) voice coil driver

• Rear facing 14” (356mm)/3.5” (88mm) voice coil driver

• Cardioid dispersion pattern

• 28dB rear rejection at 75Hz

• High output capability

• Tour-grade plywood enclosure with flying inserts

Applications:

• Live sound reinforcement

• Fixed installations including live event venues and nightclubs

• Theatre sound

• Corporate AV events

• Acoustically-challenging rooms

• Outdoor restaurant, bar and hotel entertainment areas

• Concourses and Theme Parks

Specifications:

• Type

• Compact, cardioid subwoofer

• Frequency Response

• 43Hz – 150Hz ±3dB, -10dB @ 34Hz

• Drivers

• 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone

• 14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone

• Rated Power

• 18”: 1000W AES, 4000W peak

• 14”: 800W AES, 3200W peak

• Sensitivity

• 104dB

• Maximum SPL

• 140dB peak

• Nominal Impedance

• 18”: 8Ω

• 14”: 8Ω

• Dispersions (-6dB)

• Cardioid

• Enclosure

• Multi-laminate birch and poplar ply

• Finish

• Textured black paint

• Protective Grille

• Black HEX perforated steel

• Connectors

• 2 x NL4

• Pin Connections (Input)

• 18”: +1, -1; 14”: +2, -2

• Pin Connections (Link)

• 18”: +1, -1; 14”: +2, -2

• Fittings

• Two skids on base, with mating channels on top

• M20 top-mounted thread plate for pole mounting

• Two bar handles on each side

• Four fittings for optional transit cover

• 16 x M10 Mounting Points

• 16 x M8 inserts for optional castors

• Two bar handles on each side

• Dimensions (INCL Skids)

• (W) 650mm x (H) 603mm x (D) 812mm (940mm incl castors)

• (W) 25.6in x (H) 23.7in x (D) 32in (37in incl castors)

• Weight

• 69kg (152lbs)

• 73kg (161lbs) incl castors
