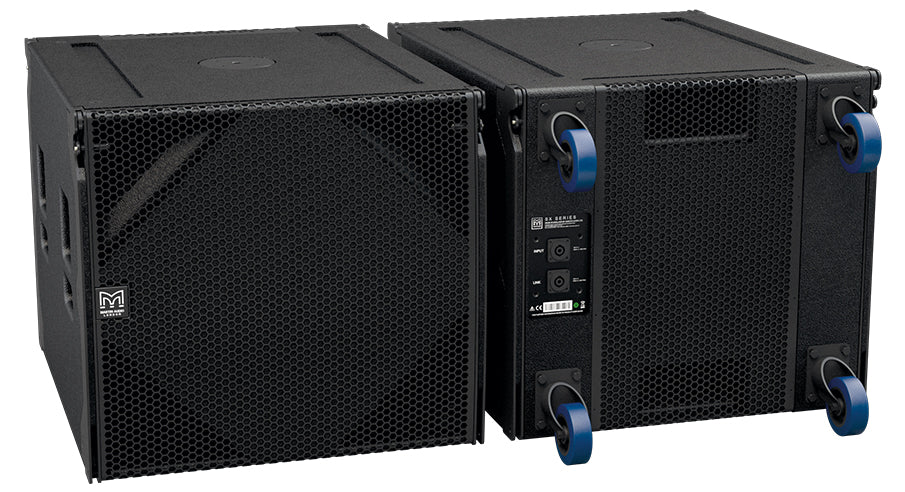

SXCF118-MTA flying Subwoofer

The SXCF118-MTA  is the flying version of the SXCF118. It is a great option for install or live events.

From the Manufacturer:

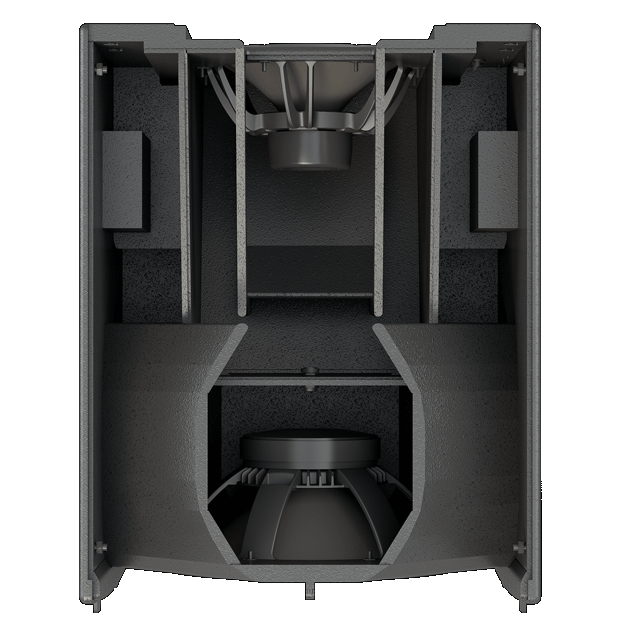

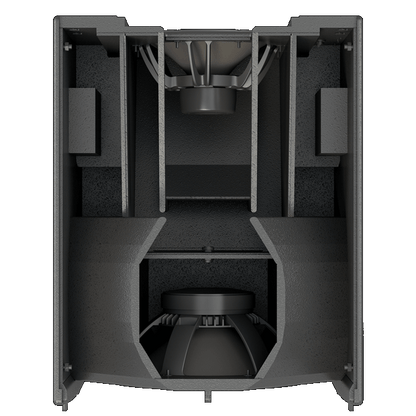

The SXCF118 is a compact, high performance cardioid subwoofer. The flown version of the SXC118, it is the ideal partner for flown WPS or TORUS T12 arrays — combining maximum low frequency output with pattern control. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimized bass reflex porting.

Features:

• Compact, cardioid flown subwoofer

• Front facing 18” (460mm)/4” (100mm) voice coil driver

• Rear facing 14” (356mm)/3.5” (88mm) voice coil driver

• Cardioid dispersion pattern

• 28dB rear rejection at 75Hz

• High output capability

• Tour-grade plywood enclosure

Applications:

• Live sound reinforcement

• Fixed installations including live event venues and nightclubs

• Theatre sound

• Corporate AV events

Specifications:

• Type

• Compact, cardioid subwoofer

• Frequency Response

• 43Hz – 150Hz ±3dB, -10dB @ 34Hz

• Drivers

• 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone

• 14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone

• Rated Power

• 18”: 1000W AES, 4000W peak

• 14”: 800W AES, 3200W peak

• Sensitivity

• 104dB

• Maximum SPL

• 140dB peak

• Nominal Impedance

• 18”: 8Ω

• 14”: 8Ω

• Dispersion (-6dB)

• Cardioid

• Enclosure

• Multi-laminate birch ply

• Finish

• Textured black polyurea

• Protective Grille

• Black HEX perforated steel

• Connectors

• 2 x NL4

• Pin Connections (Input)

• 18”: +1, -1; 14”: +2, -2

• Pins Connections (Link)

• 18”: +1, -1; 14”: +2, -2

• Fittings

• Two skids on base, with mating channels on top

• M20 top-mounted thread plate for pole mounting

• Two bar handles on each side

• Four fittings for optional transit cover

• Dimensions (INCL Skids)

• (W) 650mm x (H) 611mm x (D) 812mm (940mm incl castors)

• (W) 25.6in x (H) 24.1in x (D) 32.0in (37.0in incl castors)

• Weight

• 75kg (165lbs)

• 78kg (172 lbs) incl castors
