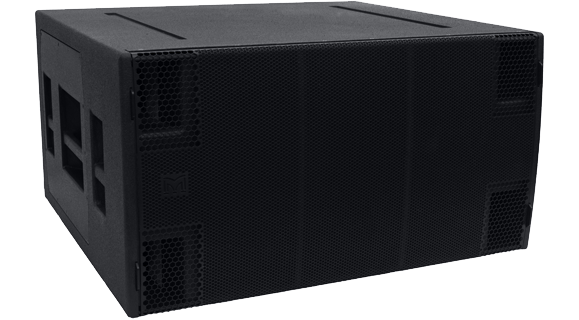

SXH218 2x18" Ultra-High Output Subwoofer (Ground-Stack Version)

The SXH218 2x18" Ultra-High Output Subwoofer is a professional subwoofer compatible with WPS, WPC and WPL arrays. It is a good option for larger outdoor events.

From the Manufacturer:

 The SXH218 is the ultimate in subwoofer performance capable of producing 148dB peak output at 1m. It is the ideal partner for both WPS, WPC and WPL arrays where maximum low frequency output is required as well as a standalone solution for premium permanent installations such as nightclubs

Features:

• Ultra-high output ground-stacked subwoofer

• Hybrid® horn/reflex loading for maximum acoustic efficiency and low frequency extension

• Dual long-excursion 18” (460mm)/4.5” (115mm) voice coil neodymium drivers

• Forward or rear-facing operation

Applications:

• Outdoor festivals

• Stadiums, arenas and theaters

• Concert halls

• Nightclubs

• Outdoor restaurant, bar and hotel entertainment areas

• Concourses and Theme Parks

Specifications:

• Type

• Hybrid® horn/reflex subwoofer

• Frequency Response

• 32Hz – 150Hz ±3dB, -10dB @ 27Hz

• Driver

• 2 x 18” (460mm)/4.5” (115mm) voice coil, long excursion, neodymium magnet, waterproof cone

• Rated Power

• 3000W AES, 12000W peak

• Recommended Amplifier

• iKON iK42

• Sensitivity

• 107dB

• Maximum SPL

• 148dB peak

• Nominal Impedance

• 4Ω

• Dispersion (-6dB)

• Omnidirectional/or Cardioid (paired)

• Enclosure

• Multi-laminate birch/poplar ply

• Finish

• Durable Polyurea Coating

• Protective Grille

• Black perforated Zintec

• Connectors

• 2 x NL4

• Pin Connections (Input)

• Input +1/-1

• Pins Connections (Link)

• Refer to SXH218 datasheet or Input panel diagram for linking options

• Fittings

• Two skids on base, with mating channels on top

• Four rear-mounted 100mm (4in) castors

• 6 x bar handles, 3 on each side

• 4 x fittings for optional transit cover

• Dimensions (INCL SKIDS)

• (W) 1112mm x (H) 609mm x (D) 1023mm (1151mm incl. castors)

• (W) 43.8in x (H) 24in x (D) 40.3in (45.3in incl. castors)

• Weight

• 116kg (256lbs), with castors 120kg (265lbs)
