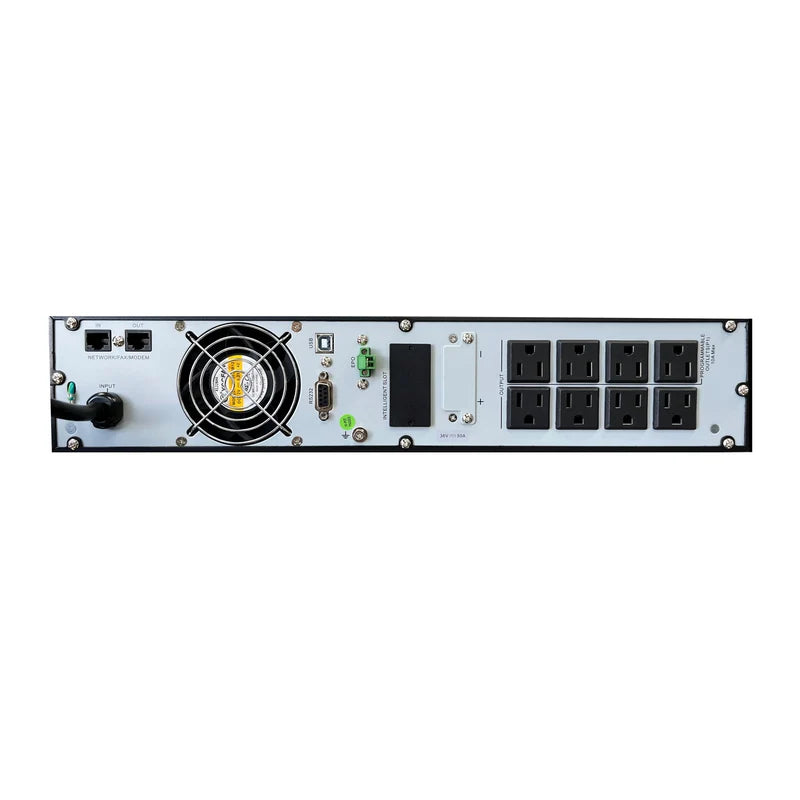

SXP-1001

The Juice Goose SXP-1001 is a professional 1000 VA / 1000 W on-line UPS designed to provide dependable battery backup and clean pure sine-wave power for critical AV and electronic equipment. Its rack-mountable design, replaceable batteries, programmable outlets, and multiple monitoring interfaces make it well suited to professional AV, broadcast, control, and installation environments.

Key Features:

• 1000 VA on-line UPS

• 1000 W rated output

• Pure sine-wave output

• Rack-mountable design

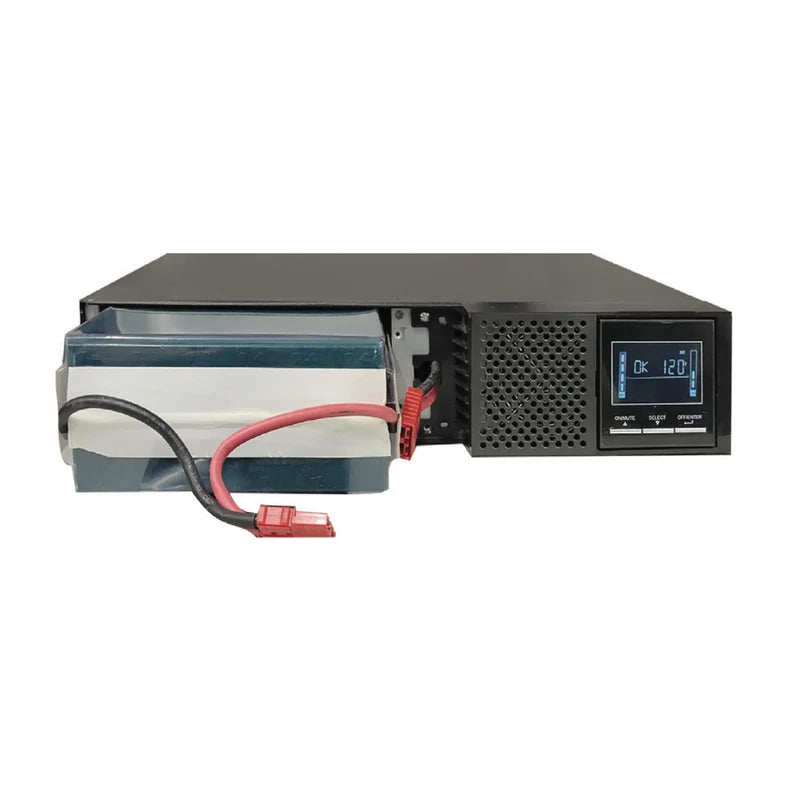

• Replaceable batteries

• Approximately 3-minute runtime at full load

• 8.0 A adjustable charger

• Smart LCD display

• 8 × NEMA 5-15R output receptacles

• 4 programmable output receptacles as a group

• RS-232 connectivity

• USB connectivity

• REPO connection

• Intelligent expansion slot

• TAA compliant

Specifications:

• Product Type: On-Line Uninterruptible Power Supply

• Model: SXP-1001

• Manufacturer: Juice Goose

• Capacity: 1000 VA

• Rated Power: 1000 W

• Output Waveform: Pure Sine Wave

• Full-Load Runtime: Approximately 3 Minutes

• Charger: 8.0 A Adjustable

• Battery: Replaceable

• Input Connection: NEMA 5-15P

• Input Cable Length: 6 ft

• Output Receptacles: 8 × NEMA 5-15R

• Programmable Outputs: 4 Receptacles, Programmable as a Group

• Display: Smart LCD

• Communications: RS-232 and USB

• Emergency Power Off: REPO

• Expansion: Intelligent Slot

• Compliance: TAA

• Certifications: UL, cUL, RoHS

Included:

• Juice Goose SXP-1001 UPS

• Integrated 6 ft input power cord

Applications:

• Professional AV systems

• Broadcast equipment

• Control systems

• Audio equipment

• Video equipment

• Network infrastructure

• Installed AV systems

• Critical electronic equipment

Included Accessories:

• Manufacturer package contents could not be fully verified

Accessories (Not Included):

• Optional monitoring/communication accessories

• Rack hardware where not supplied

• Replacement battery packs

Size:

• 17.2 × 15.1 × 3.5 in

• Approximately 437 × 384 × 89 mm

• Rack Height: 2U

Weight:

• 25.5 lb (approximately 11.6 kg)

Electrical/Thermal:

• Capacity: 1000 VA

• Rated Output: 1000 W

• Output Waveform: Pure Sine Wave

• Full-Load Runtime: Approximately 3 Minutes

• Charger: 8.0 A Adjustable

• Input Plug: NEMA 5-15P

• Outputs: 8 × NEMA 5-15R

• Replaceable Battery System
