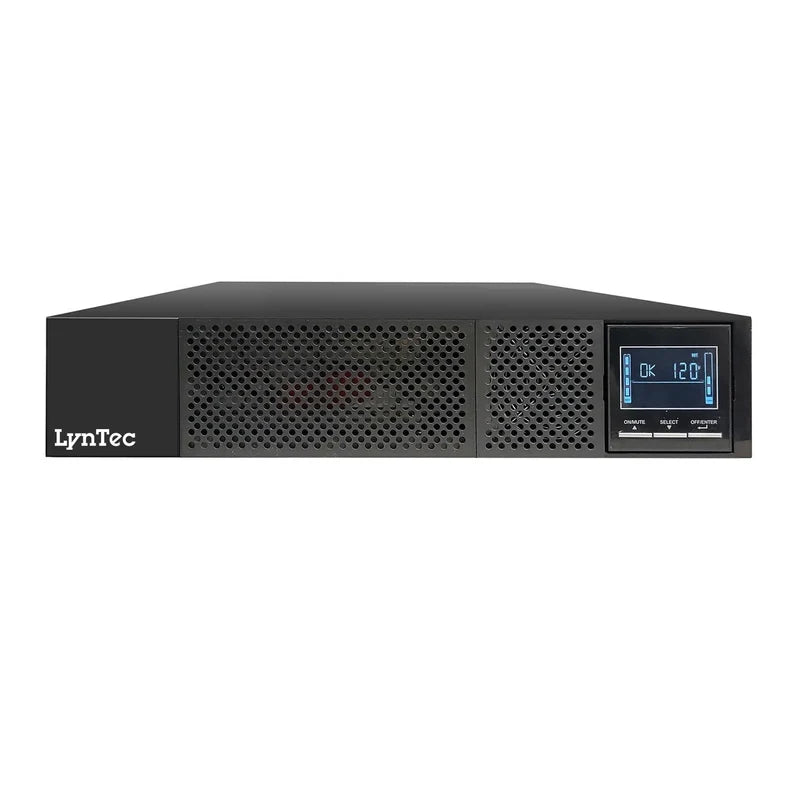

SXP-1501

The Juice Goose SXP-1501 is a professional 1500 VA / 1450 W on-line UPS designed to provide reliable battery backup and pure sine-wave power for critical AV and electronic equipment. Its 2U rack-mount design, replaceable batteries, programmable outlets, and multiple monitoring interfaces make it well suited to professional AV, broadcast, control, and installation environments.

From The Manufacturer:

LynTec branded On Line UPS battery back up. 1500VA (1450Watts). 8.0A adjustable charger. Pure Sine Wave. Rack mountable. Replaceable batteries. 3 min run time under full load.

Three year full warranty covering electronics and batteries. Features a 6 ft input line cord with 5-15 plug, eight 5-15R output receptacles with four programmable as a group, Smart LCD screen, Intelligent Slot, RS-232, USB port, and REPO connections.

Key Features:

• 1500 VA on-line UPS

• 1450 W rated output

• Pure sine-wave output

• Rack-mountable 2U design

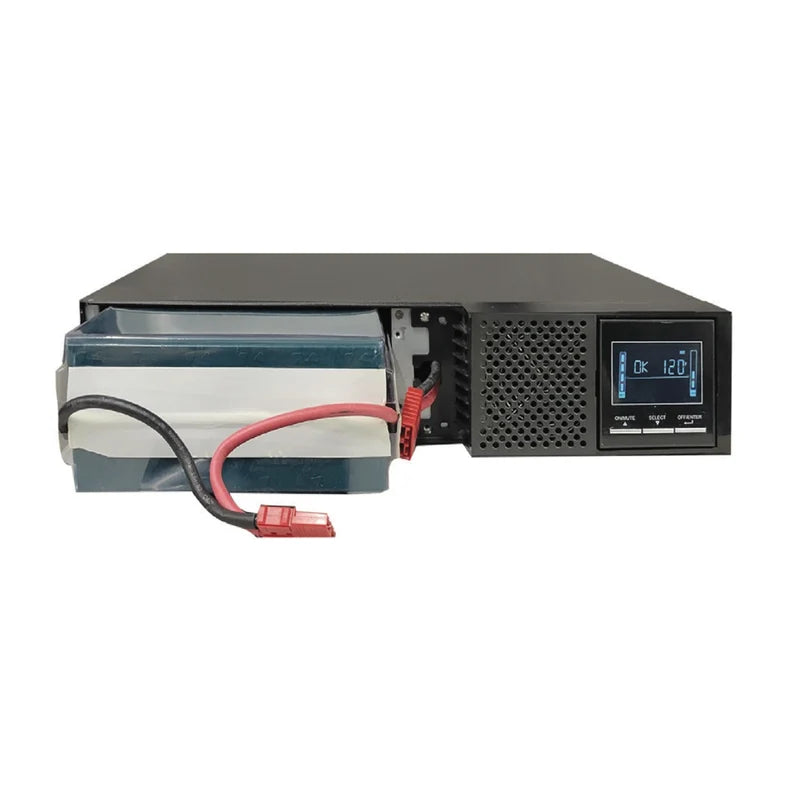

• Replaceable batteries

• Approximately 3-minute runtime at full load

• 8.0 A adjustable charger

• Smart LCD display

• 8 × NEMA 5-15R output receptacles

• 4 output receptacles programmable as a group

• RS-232 connectivity

• USB connectivity

• REPO connection

• Intelligent expansion slot

• TAA compliant

• UL, cUL and RoHS approved

Specifications:

• Product Type: On-Line Uninterruptible Power Supply

• Model: SXP-1501

• Capacity: 1500 VA

• Rated Output Power: 1450 W

• Output Waveform: Pure Sine Wave

• Charger: 8.0 A Adjustable

• Full-Load Runtime: Approximately 3 Minutes

• Battery: Replaceable

• Input Connection: NEMA 5-15P

• Input Cord Length: 6 ft

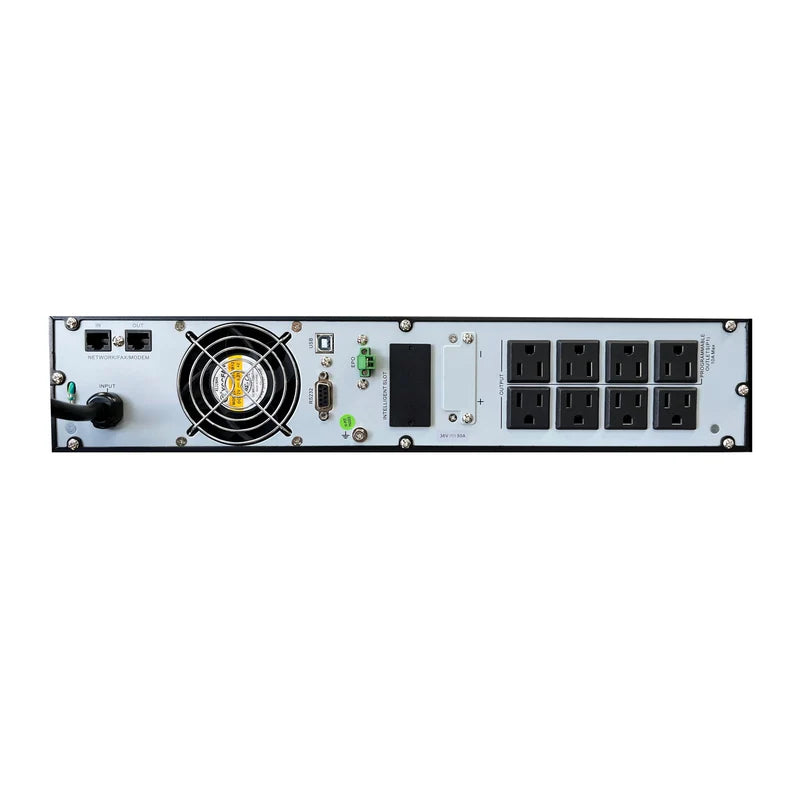

• Output Receptacles: 8 × NEMA 5-15R

• Programmable Outputs: 4 Receptacles, Programmable as a Group

• Display: Smart LCD

• Communications: RS-232 and USB

• Emergency Power Off: REPO

• Expansion: Intelligent Slot

• Compliance: TAA

• Certifications: UL, cUL, RoHS

• Warranty: 3 Years – Electronics and Batteries

Included:

• Juice Goose SXP-1501 UPS

• Integrated 6 ft input power cord

Applications:

• Professional AV systems

• Broadcast facilities

• Audio systems

• Video systems

• Control equipment

• Network infrastructure

• Installed AV systems

• Critical electronic equipment

Included Accessories:

• Complete manufacturer package contents could not be verified

Accessories (Not Included):

• Optional monitoring / communication card

• Replacement batteries

• Additional rack accessories as required

Size:

• 17.2 × 15.1 × 3.5 in

• Approximately 437 × 384 × 89 mm

• Rack Height: 2U

Weight:

• 34.2 lb (approximately 15.5 kg)

Electrical/Thermal:

• Capacity: 1500 VA

• Rated Output: 1450 W

• Output Waveform: Pure Sine Wave

• Charger: 8.0 A Adjustable

• Full-Load Runtime: Approximately 3 Minutes

• Input: NEMA 5-15P

• Outputs: 8 × NEMA 5-15R

• Replaceable Battery System
