SXP-3001

The Juice Goose SXP-3001 is a professional 3000 VA / 2880 W online UPS designed to provide continuous battery-backed power for critical AV and electronic equipment. Featuring true online double-conversion architecture, pure sine-wave output, hot-swappable batteries, flexible rack or tower mounting, and comprehensive monitoring connections, it is ideal for demanding professional AV, broadcast, control, and infrastructure applications.

From The Manufacturer:

The Juice Goose SXP Series of UPS battery backup models feature a true online, double conversion architecture that powers the connected load off the batteries 100% of the time. This design provides clean, high quality power and unconditional voltage stability regardless of problems on the local utility grid.

An easy-to-read LCD display provides real-time indication of major system parameters and status, including load and battery levels and fault signals. Communications options allow remote monitoring and management.

Key Features:

• 3000 VA online UPS

• 2880 W rated output

• True online, double-conversion architecture

• Pure sine-wave output

• 8 A adjustable charger

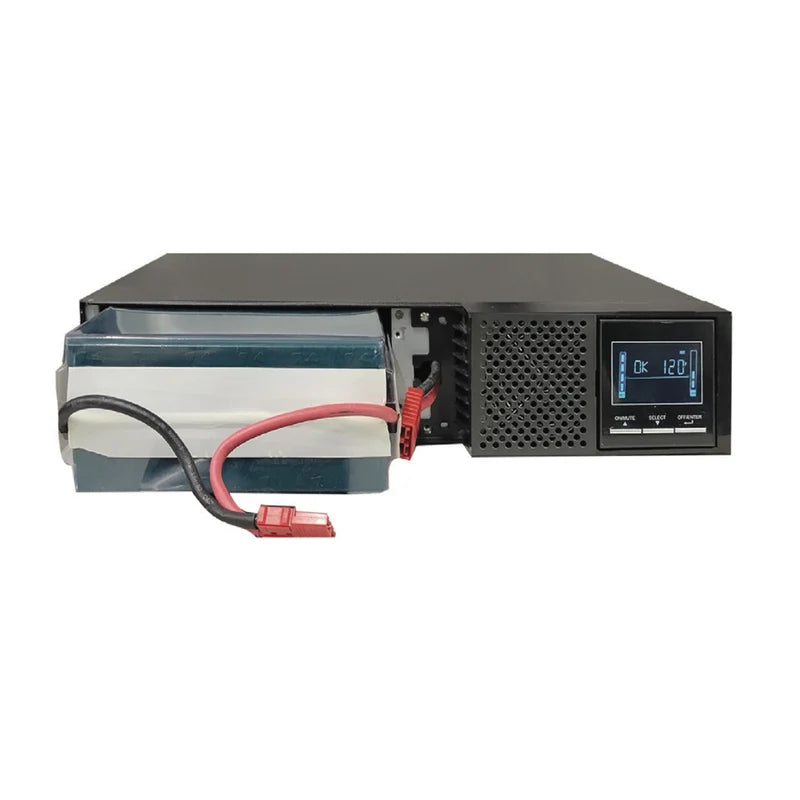

• Hot-swappable, replaceable batteries

• Approximately 3-minute runtime at full load

• Smart LCD display

• 1 × NEMA L5-30R output

• 6 × NEMA 5-15/20R outputs

• 3 × 5-15/20R outputs programmable as a group

• 6 ft input power cord

• Tower mounting configuration

• Two-post and four-post rack mounting

• RS-232 connectivity

• USB connectivity

• Emergency Power Off connection

• Intelligent expansion slot

• TAA compliant

• UL, cUL and RoHS approved

Specifications:

• Product Type: Online Double-Conversion UPS

• Model: SXP-3001

• Capacity: 3000 VA

• Rated Output Power: 2880 W

• Architecture: True Online Double Conversion

• Output Waveform: Pure Sine Wave

• Charger: 8 A Adjustable

• Full-Load Runtime: Approximately 3 Minutes

• Batteries: Hot-Swappable / Replaceable

• Input Connection: NEMA L5-30P

• Input Cord Length: 6 ft

• Output Receptacles:

• 1 × NEMA L5-30R

• 6 × NEMA 5-15/20R

• Programmable Outputs: 3 × NEMA 5-15/20R, Programmable as a Group

• Display: Smart LCD

• Communications: RS-232 / USB

• Emergency Power Off: EPO / REPO

• Expansion: Intelligent Slot

• Mounting: Tower / 2-Post Rack / 4-Post Rack

• Compliance: TAA

• Certifications: UL / cUL / RoHS

• Warranty: 3 Years on Electronics and Batteries

Included:

• Juice Goose SXP-3001 UPS

• Integrated 6 ft input power cord

Applications:

• Professional AV systems

• Broadcast facilities

• Audio systems

• Video systems

• Control equipment

• Network infrastructure

• Installed AV systems

• Commercial AV installations

• Critical electronic equipment

Accessories (Not Included):

• Optional monitoring / communication card

• Replacement battery packs

• Additional rack mounting hardware where required

Size:

• 17.2 × 23.8 × 3.5 in

• Approximately 437 × 605 × 89 mm

• Rack Height: 2U

Weight:

• 60.6 lb (approximately 27.5 kg)

Electrical/Thermal:

• Capacity: 3000 VA

• Rated Output: 2880 W

• Architecture: True Online Double Conversion

• Output Waveform: Pure Sine Wave

• Charger: 8 A Adjustable

• Full-Load Runtime: Approximately 3 Minutes

• Input: NEMA L5-30P

• Outputs: 1 × L5-30R + 6 × 5-15/20R

• Hot-Swappable, Replaceable Batteries
