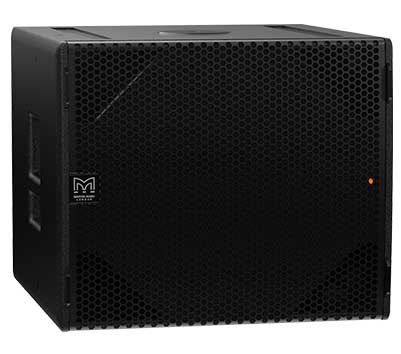

SXP118 Compact, high-performance 1x 18" powered subwoofer, Black

The SXP118 is an active subwoofer. It is a great option for those looking for a portable option for  medium sized live events.

From The Manufacturer:

The SXP118 is a compact, high-performance subwoofer that extends the low frequency operating range of a CDD-LIVE! full-range system to 40Hz — providing exceptional low frequency impact and increasing headroom. It features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver with a water-resistant cone and triple roll surround in a compact reflex enclosure. The design of the 18” driver maximizes output while minimizing power compression and distortion, and the four reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a maximum SPL capability of 135dB peak at 1 meter, the SXP118 is the ideal subwoofer for theater and portable live sound applications, as well as premium installations that require the maximum output from a compact enclosure.

Features:

• Compact, self-powered subwoofer

• 1 x 18” (460mm) driver with 4” (100mm) voice coil

• Onboard Class D amplification and DSP

• Dante™ Digital Audio networking

• Global mains operation with Power Factor Correction

• Tour-grade plywood enclosure with flying inserts

• IP24 rating option with rain cowl

Applications:

• Live sound reinforcement

• Theater sound

• Corporate AV events

• Fixed installations in concert halls, ballrooms and HoW

• Bars and clubs

• Outdoor restaurant, bar and hotel entertainment areas

• Concourses and Theme Parks

Specifications:

• Type

• Compact, direct radiating powered subwoofer

• Frequency Response

• 47Hz – 150Hz ±3dB, -10dB @ 41Hz

• Driver

• 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone

• Input Sensitivity

• 20dBu for 100dB SPL (CDD12/15 pre-set)

• -13dBu for 100dB SPL (CDD8 pre-set)

• Maximum SPL

• 132dB continuous / 135dB peak

• Dispersion

• Omnidirectional / or Cardioid (paired)

• Crossover

• Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired)

• Connectors

• Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon

• Analogue Input Impedance

• 20 kΩ balanced to ground

• Maximum Analogue Input Level

• 24.6 Vpp (+21dBu), over voltage protected

• Internal Processing

• Multi-channel DSP, programmable via TCP/IP using VU-Net software

• PEQ/shelving filters

• Up to 48dB/Oct LPF

• Up to 200ms input delay

• Pre-set selection via rear panel switch

• Type

• 2 channel switch-mode, class D, Bridged Tied

• Peak Output Power

• 2000W total

• Average Efficiency

• 89%

• Cooling

• External fan

• Maximum Ambient Temperature

• 40°C (104°F) for full output

• Power Supply Type

• Switch mode, fixed frequency with PFC

• AC Input Operating Range

• 85 – 265V ~ AC, 50 - 60Hz

• Power Factor

• > 0.98

• Nominal Power Consumption

• 550W

• Mains Connector

• Neutrik® Powercon True1

• Enclosure

• Extensively braced multi-laminate plywood.

• Finish

• Durable Polyurea Coating

• Protective Grille

• Black perforated Zintec

• Fittings

• Two skids on base, with mating channels on top

• 16 x M8 inserts for optional castors

• M20 top-mounted thread plate for pole mounting

• 16 x M10 mounting points

• 2x Bar handles, 1 on each side

• 4x fittings for optional transit cover

• IP Rating

• IP24

• Dimensions

• (W) 600mm x (H) 507mm x (D) 632mm (760mm including castors)

• (W) 23.62in x (H) 20in x (D) 24.86in (29.90in including castors)

• Weight

• 46.5kg (103lbs) w/o castors

• 50kg (110lbs) with castors

Contents:

• Network Connectors

• 2 x Neutrik® Ethercon

• Network Protocol

• TCP/IP and UDP/IP
