T1

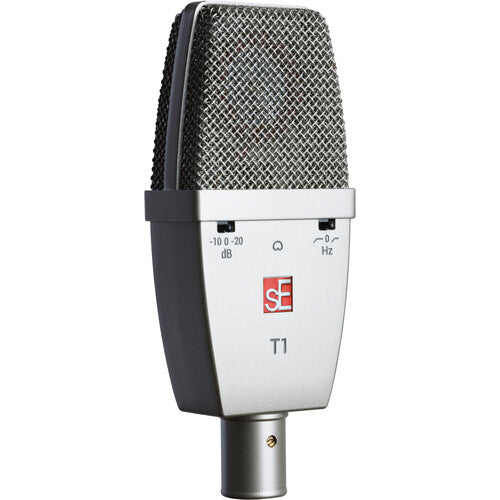

The SE Electronics T1 is a large-diaphragm cardioid true condenser microphone with a titanium-sputtered capsule for recording drums, percussion, piano, and bass cabinets.

From the Manufacturer

Meet the T1, the latest addition to our renowned range of large-diaphragm true-condenser microphones. This cardioid-only version of the multi-pattern T2 comes with the same sleek design, ultra-fast transient response and warm, smooth sound, making it an ideal choice for a wide variety of applications such as piano, percussion instruments and bass cabinets. Featuring the very same hand-crafted twin 1" titanium-sputtered brass capsule as the T2, the T1 delivers accurate definition and fast transient response. Built roadworthy with all-metal housing and an innovative close-miking shockmount, the T1 includes 80 / 160 Hz low-cut filters and -10 / -20 dB pads.

Features

• The cardioid-only version of the renowned T2
• The very same hand-crafted twin 1" titanium-sputtered brass capsule as the T2
• Titanium-sputtered true condenser cardioid capsule
• Accurate definition and fast transient response
• Built roadworthy with all-metal housing
• Innovative close-miking shockmount
• 80 / 160 Hz low-cut filters and -10 / -20 dB pads

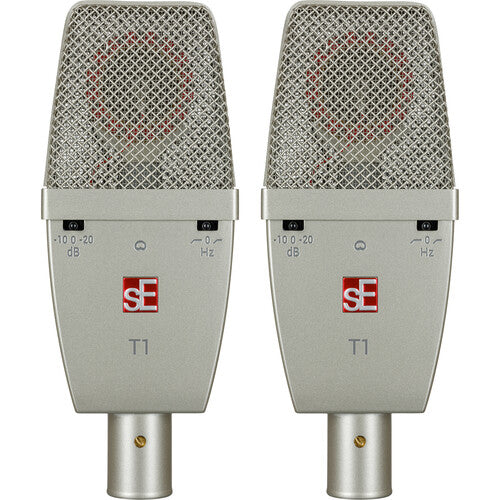

• Available in a matched-pair configuration
• Recommended use: Drums, percussion, overheads, hi-hats, orchestral + strings, piano, bass guitar cab, acoustic guitar, electric guitar cab, vocals, woodwinds, brass

Specifications

Components

• Capsule: Hand-crafted 1" titanium-sputtered true condenser
• Diaphragm: Titanium-sputtered mylar

Power

• Electrical Impedance: 125 Ohms
• Connectivity: 3-pin male XLR connector
• Powering: 48V Phantom power (P48 according to IEC 61938)

Sound

• Polar Pattern: Cardioid
• Frequency Range: 20 Hz - 20 kHz
• Sensitivity: 25 mV / Pa (-32 dBV)
• Max SPL: 137 / 147 / 157 dB (0/10/20 dB Attenuation Pad - 0.5% THD)
• Equivalent Noise Level: 9 dB(A)
• Signal to Noise Ratio: 85 dB
• Low-Cut Filter: 80 / 160 Hz, 6 dB/Oct, switchable
• Attenuation Pad: 10 / 20 dB, switchable

Dimensions

• Mic Weight: 290 g (10.23 oz.)
• Mic Length: 146 mm (5.75 in.)
• Mic Width: 29 mm (1.10 in.)

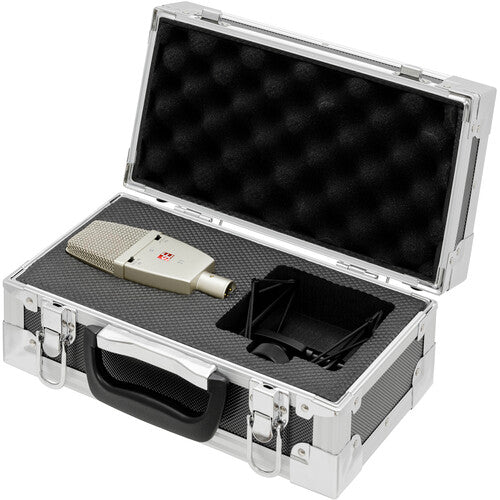

What's in the T1 Box

• T1 microphone
• Custom shockmount + thread adapter
• Metal case

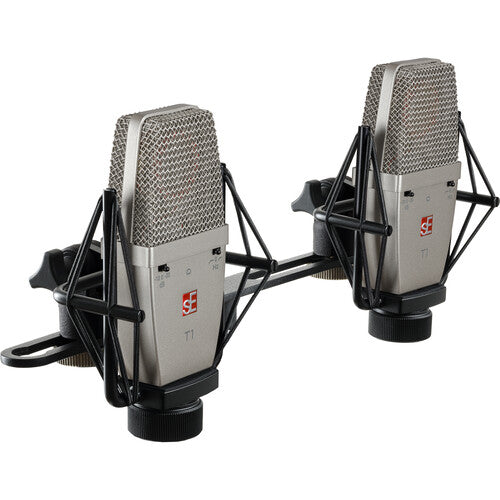

What's in the T1 Pair Box

• T1 microphone (x2)
• Custom shockmount + thread adapter (x2)
• Stereo mounting bar
• Metal case
