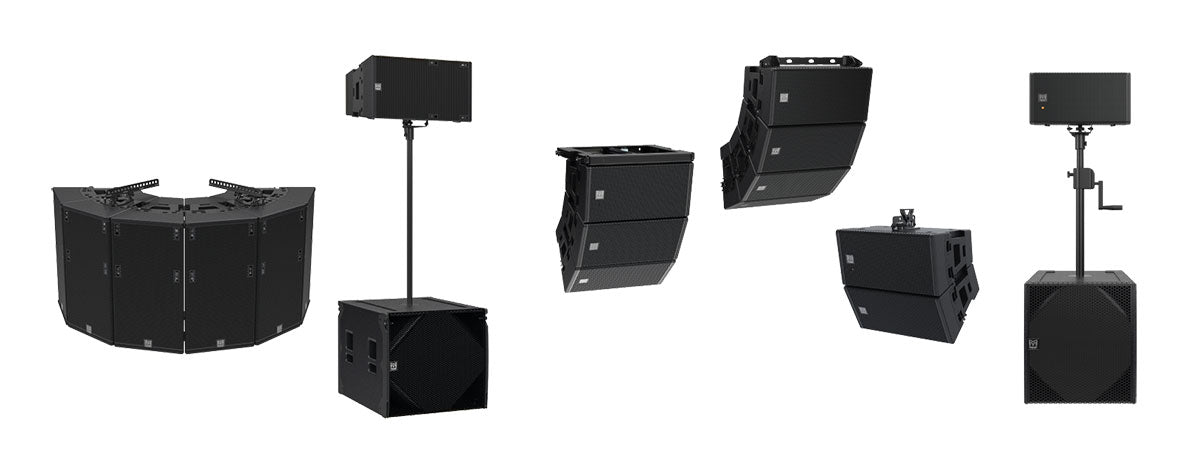

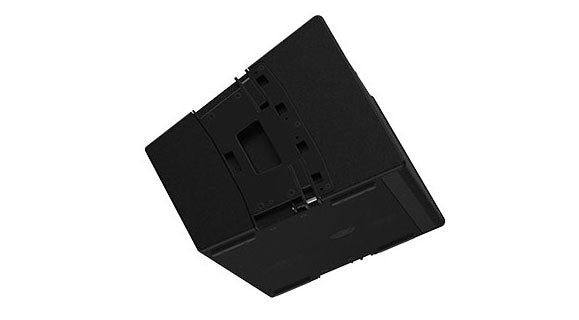

Torus T1215 2-Way 15-Degree Constant Curvature Enclosure Passive Speaker, Vertical

The Torus T1215 is a scalable line array system. It is intended for larger sound install applications that require a medium-throw.

(We advice you to request a quote before purchasing this product.)

From the Manufacturer:

For applications that typically require a throw between 15-30m (50-100ft), a full-blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL.

TORUS T1215 is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency.

T1215 offers a narrow fixed vertical pattern of 15° with a flexible horizontal pattern that can be manually adjusted between 90° and 60° or 75° (asymmetrical) via the Dynamic Horn Flare™.

Features:

• Two-way passive, constant curvature array element

• Compact enclosure with high output capability

• 1 x 12” (300mm) LF driver plus 3 x 1.4” (35mm)/1” (25mm) exit HF drivers

• Dynamic Horn Flare™ manually adjustable between 90° and 60° or 75° (asymmetrical) for flexible horizontal coverage

• Fixed 15° narrow vertical dispersion pattern

• Phase plug for increased mid-band output

• Easy-to-use integral rigging for quick set-up

• Integral fittings to facilitate pole-mounting

• Optimised coverage via DISPLAY 3

• Powered by iKON amplifiers

Applications:

• Medium-throw live sound and music playback

• Theatre sound

• Fixed installations

• Fills, centre clusters and delays

• Portable DJ and corporate events

Specifications:

• Product Name

• TORUS 12: T1215

• Type

• Passive 2-way Constant Curvature 15° enclosure

• Frequency Response (with iKON settings)

• 65Hz – 18kHz ± 3dB, -10dB @ 50Hz

• Drivers

• LF: 12”, 3” Voice Coil, Neodymium

• HF: 3 x 1” exit, 1.4” Voice Coil, HT Polymer dome neodymium compression driver

• Sensitivity

• (2.83V 1m free-field) 100dB

• Nominal Impedance

• 8 ohms

• Rated Power

• AES 400W, PEAK 1600W

• Maximum SPL (System)

• 128dB continuous, 134 dB peak*

• Dispersion

• 60-75-90° horizontal, 15° vertical

• Pin Connections (Input)

• 1+/- or 2+/-

• Pin  Connections (Link)

• 1+/- and 2+/-

• Dimensions

• (W) 650mm, (H) 369mm, (D) 452mm

• (W) 25.59ins, (H) 14.51ins, (D) 17.80ins

• Weight

• 31kg (68.34 lbs)

(*Martin Audio continues to specify a crest factor of 2 with 6dB between peak and continuous which best mirrors real-world performance. Simply add a further 6dB for comparison with manufacturers quoting a crest factor of 4 ie. 12dB between continuous and peak.)
