NovaStar TB30

The TB30 is the third-generation multimedia player created by NovaStar for full-color LED displays. It integrates both playback and sending capabilities, allowing users to publish content and control LED displays with a PC, mobile phone, or tablet. The TB30 replaces the TB3 as the recommended multimedia player for digital signage LED applications.

Key Features:

• Synchronization mechanism for multi-screen playing
• Powerful processing capability
• Comprehensive control plans

Dual-Wi-Fi mode
Redundant backup

In addition to solution publishing and screen control via PC, mobile phones, and LAN, the comprehensive control plans also support cloud-based centralized publishing and monitoring.

For output redundancy, 1 master and 1 backup Ethernet ports are provided.

Hardware Features:

• Loading capacity up to 650,000 pixels, with a maximum width of 4096 pixels and a maximum height of 1920 pixels
• Wired Gigabit Ethernet Port
• Support for 4G (Module sold separately)
• 16GB Internal Storage
• Onboard light sensor connector allowing for automatic and scheduled brightness adjustment

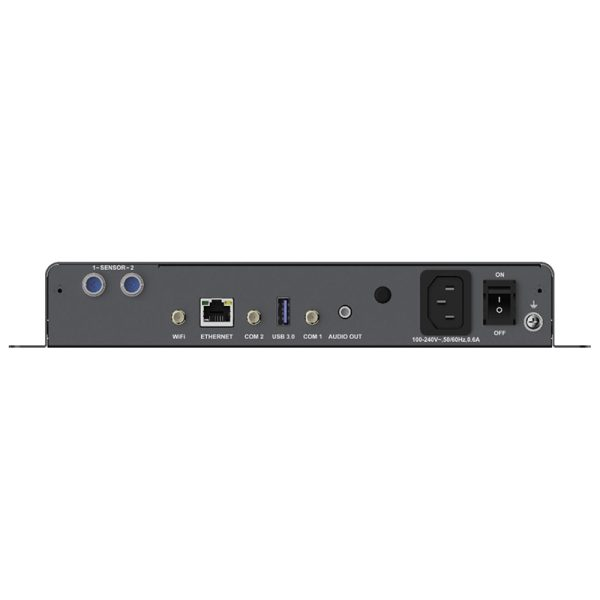

Connectors:

• 1x SIM card slot
• 1x USB 3.0 (Type A) port
• 2x Gigabit Ethernet outputs (LED out)
• 2x Sensor connections
• 1x Wi-Fi antenna connector
• 1x Gigabit Ethernet port (LAN/PC)
• 2x GPS & 4G antenna connectors (COM1 & COM 2)
• 1x Audio Out
