Sku:
5074
Tetra Driver 16
Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Unit price
per
Shipping calculated at checkout.
Vendor: Mega Lite
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

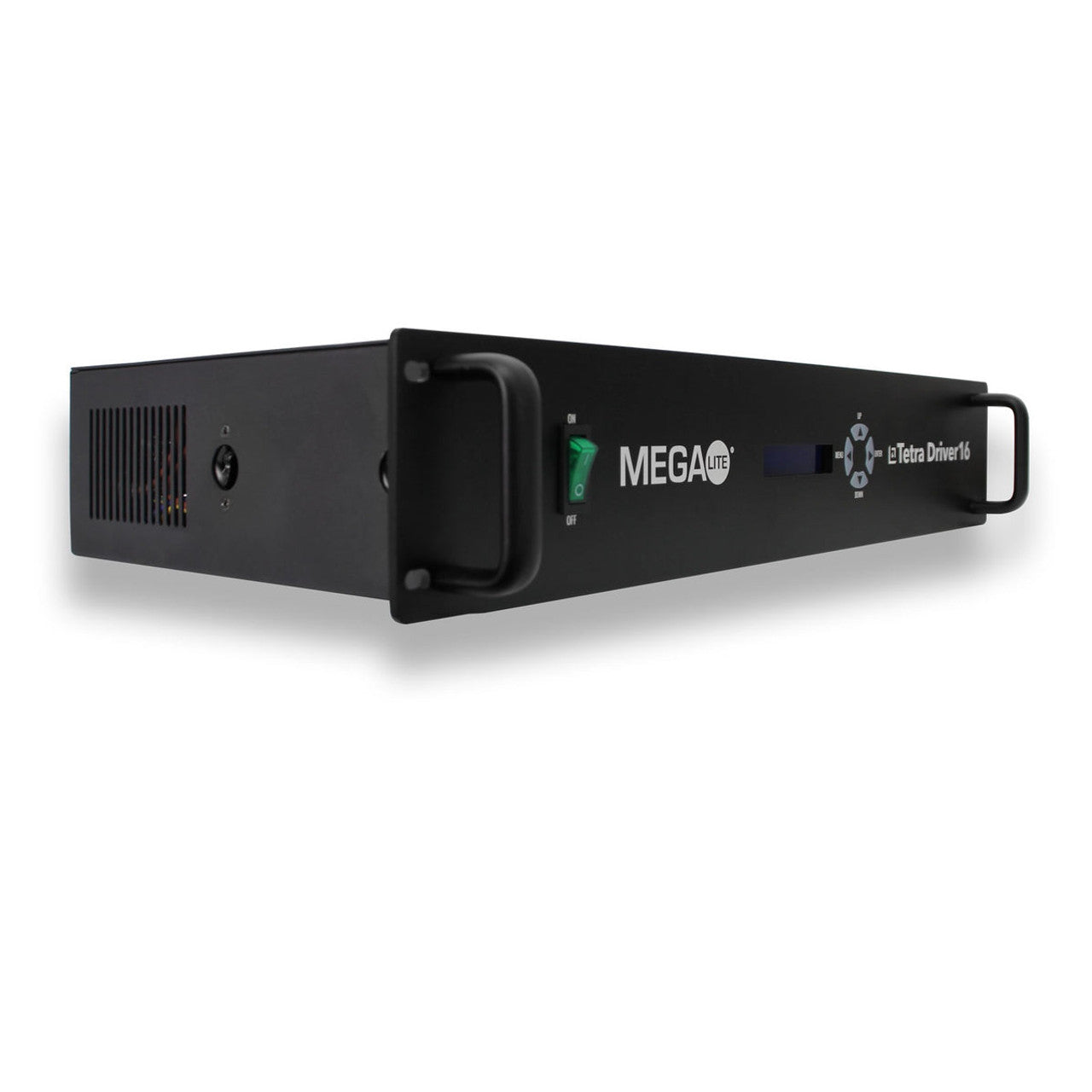

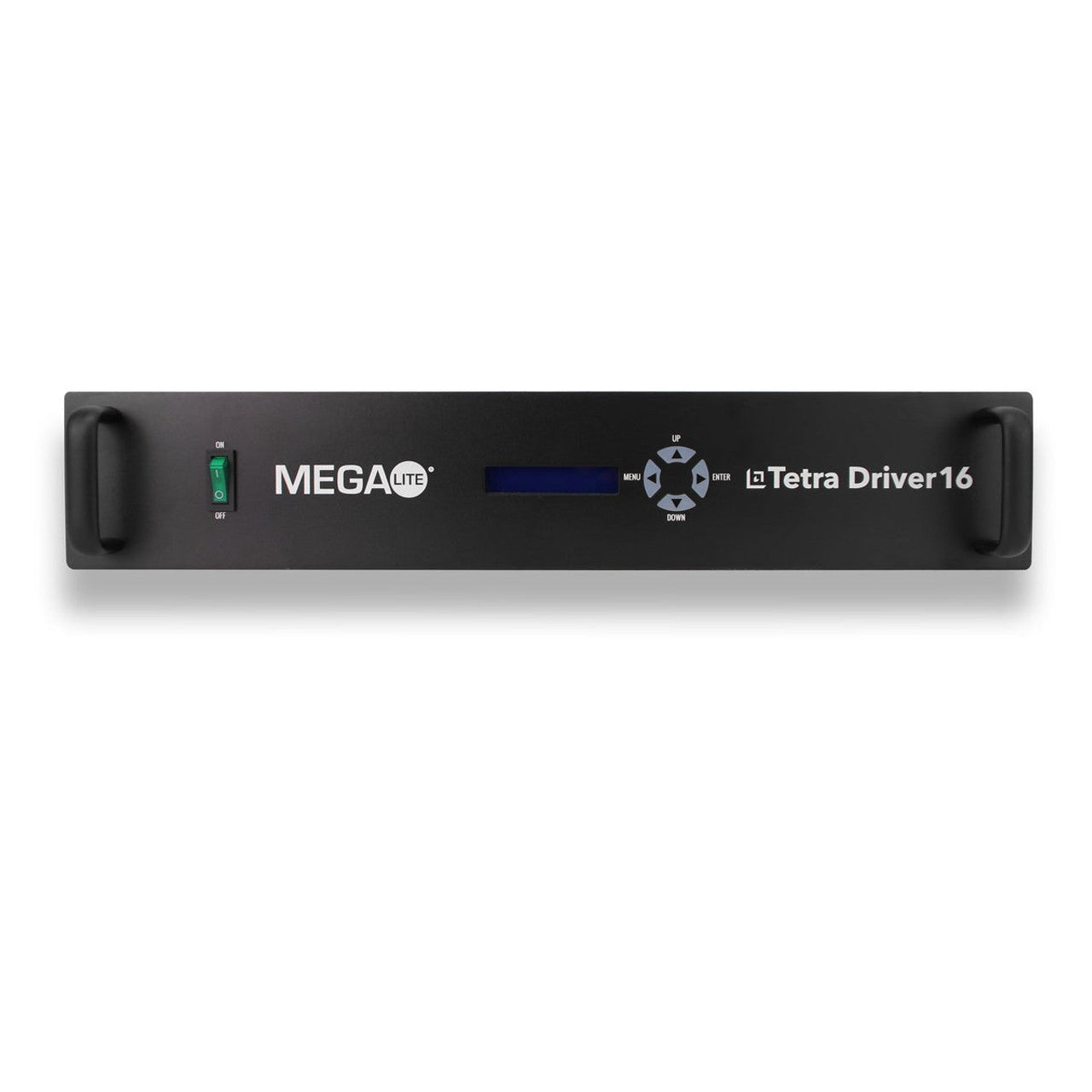

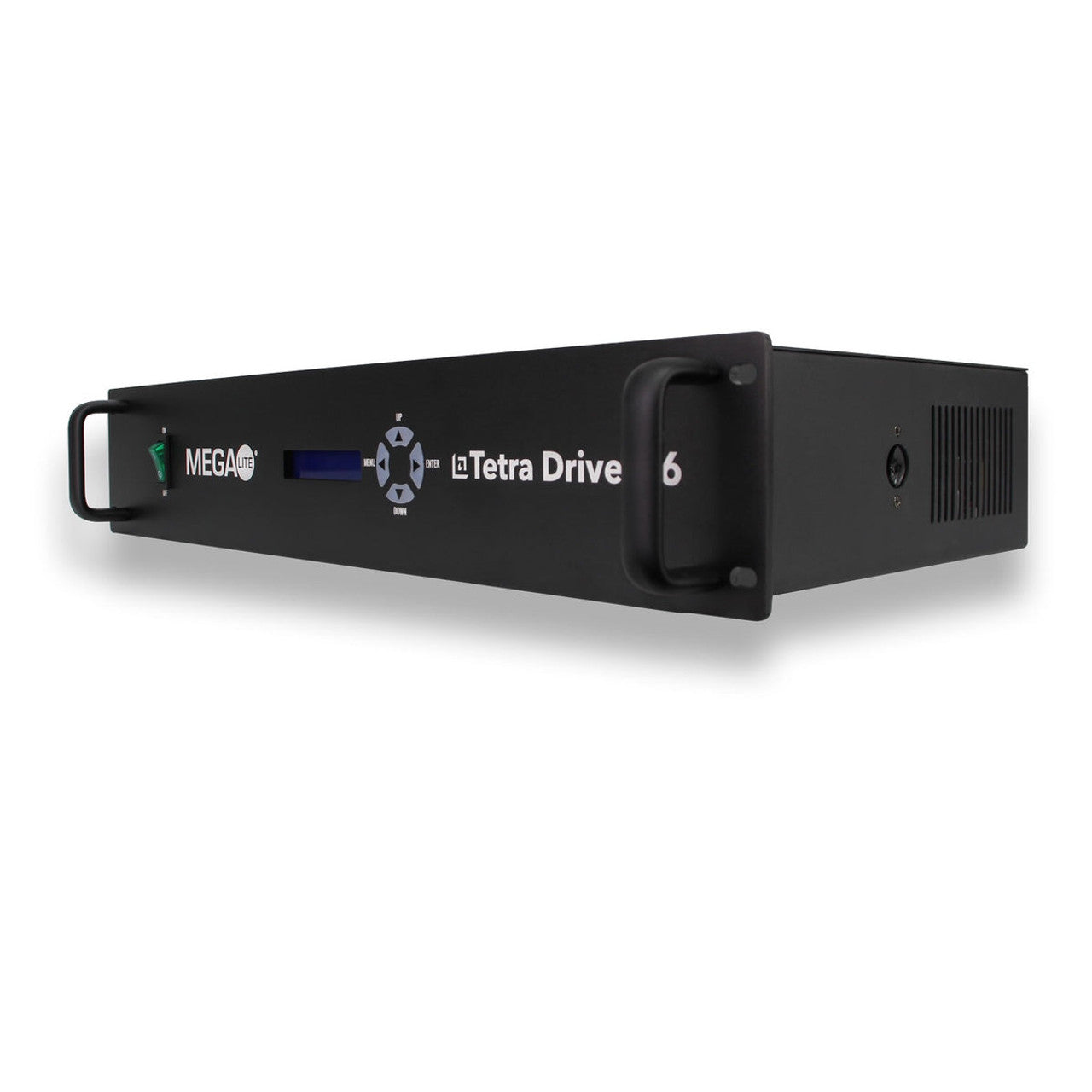

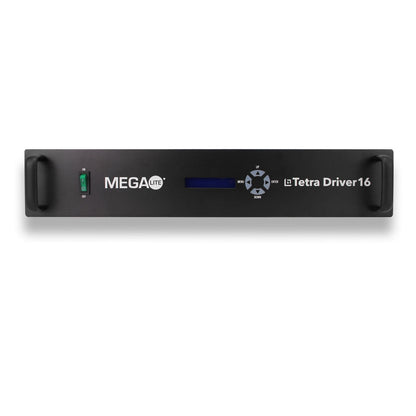

The Mega-Lite Tetra Driver 16 has 16 outputs to control the Light Pipe or Tetra Series units, with RDM signal regeneration and a flexible field-mountable design.
From the Manufacturer:
Designed to seamlessly control our Light Pipe and Tetra Series, this all-in-one solution has 16 outputs that can be individually addressed within your preferred channel mode. To further enhance versatility, this powerful driver features removable rack ears, allowing for easy wall mounting, rack mounting, or rear rack installation, accommodating various setup requirements.
Features:
- 16 Individual Controls: This versatile device features a remarkable 16 60W outputs, Each port can connect up to 60W of power. When using our Light Pipe series you can create many different combinations of lengths.
- RDM: Benefit from the added advantage of Remote Device Management (RDM) signal regeneration. The Tetra Driver 16 restores and stabilizes RDM signals, allowing you to maintain constant control and monitoring of your DMX lighting fixtures.
- Field Mountable: With its flexible field-mountable design, this unit is perfect for indoor installations, ensuring precise lighting control and enhancing the ambiance of your events.
Specifications:
Mechanical Specifications:
- IP Rating: 20
- Installation System: Rack Mountable & Removable Clamp & Wall Mount
- Power Connection: Power Con Type Cable Mounted to NEMA 5-15
- DMX Connection: RJ45 Input and Output & 5-Pin XLR Connector
Electrical Specifications:
- Power Supply: Two (2) Electronic Mean Well UHP580
- Power Input: 90-264V AC 50/60Hz
- Power Consumption: Pertinent to Fixture
- Voltage: Constant Voltage
- Output Voltage: 16 Outputs, 24V each
- Output Wattage: 60W Each

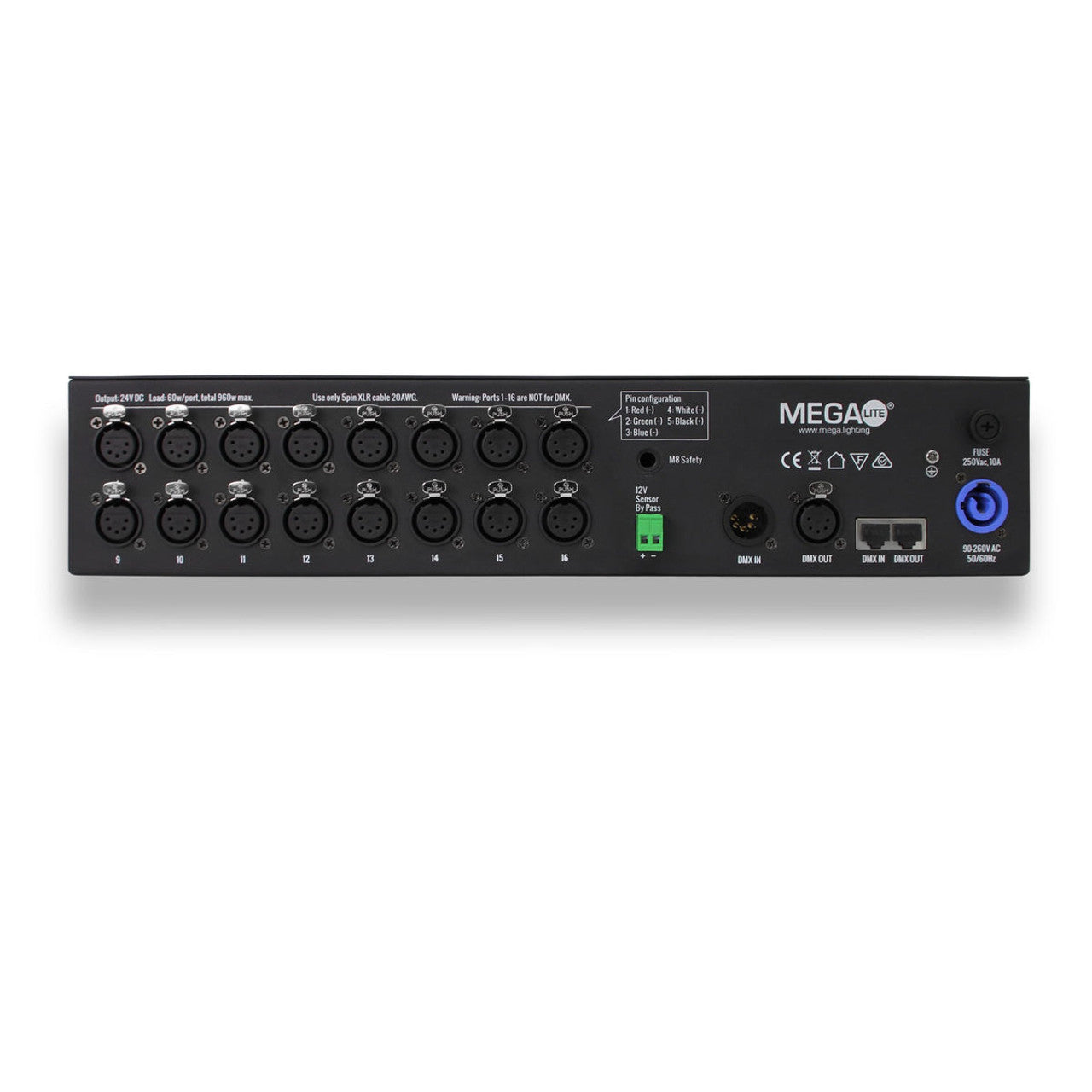

- Output Connections: Sixteen (16) 5-Pin Seetronics XLR Connector
- Drive Type: Constant Voltage
- Working Ambient Temperature: 24°F - 148°F

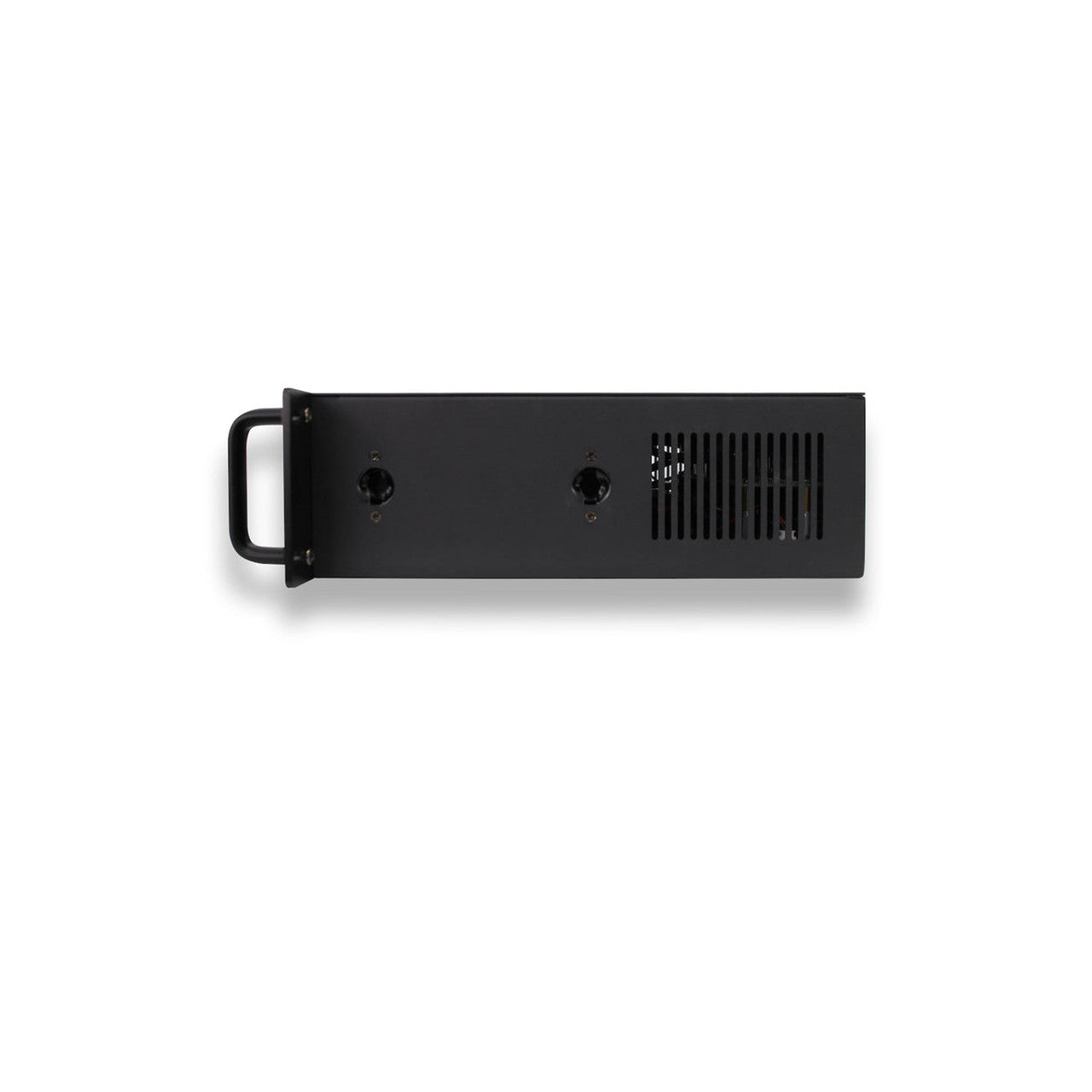

- Cooling: Fan Cooling
Control and Programming:
- Protocol: DMX 512
- Channel Modes: 1CH Dimmer (All Four Outputs), 2CH Cool White, Warm White 3CH Red, Green, Blue 4CH Red, Green, Blue, White 5CH R,G,B,W, Strobe, Macro 64CH 16 x Red, Green, Blue, White 112CH 16 x R,G,B,W, Strobe, Macro
- 12V Bypass: Will engage ALL ‘Dimmer’ channels to Full upon receiving a 12V signal
- RDM: Yes, Addressing, Channel Mode Control
- Output Configurations: Outputs can be individually assigned
- On Board Control: Manual Control 0-255 (only RGBW)
Size & Weight:
- Fixture Size & Weight: 19” x 10.5” x 3.5” & 12lbs
- Packaged Size & Weight: 21.3” x 13” x 5.5” & 16.5lbs
