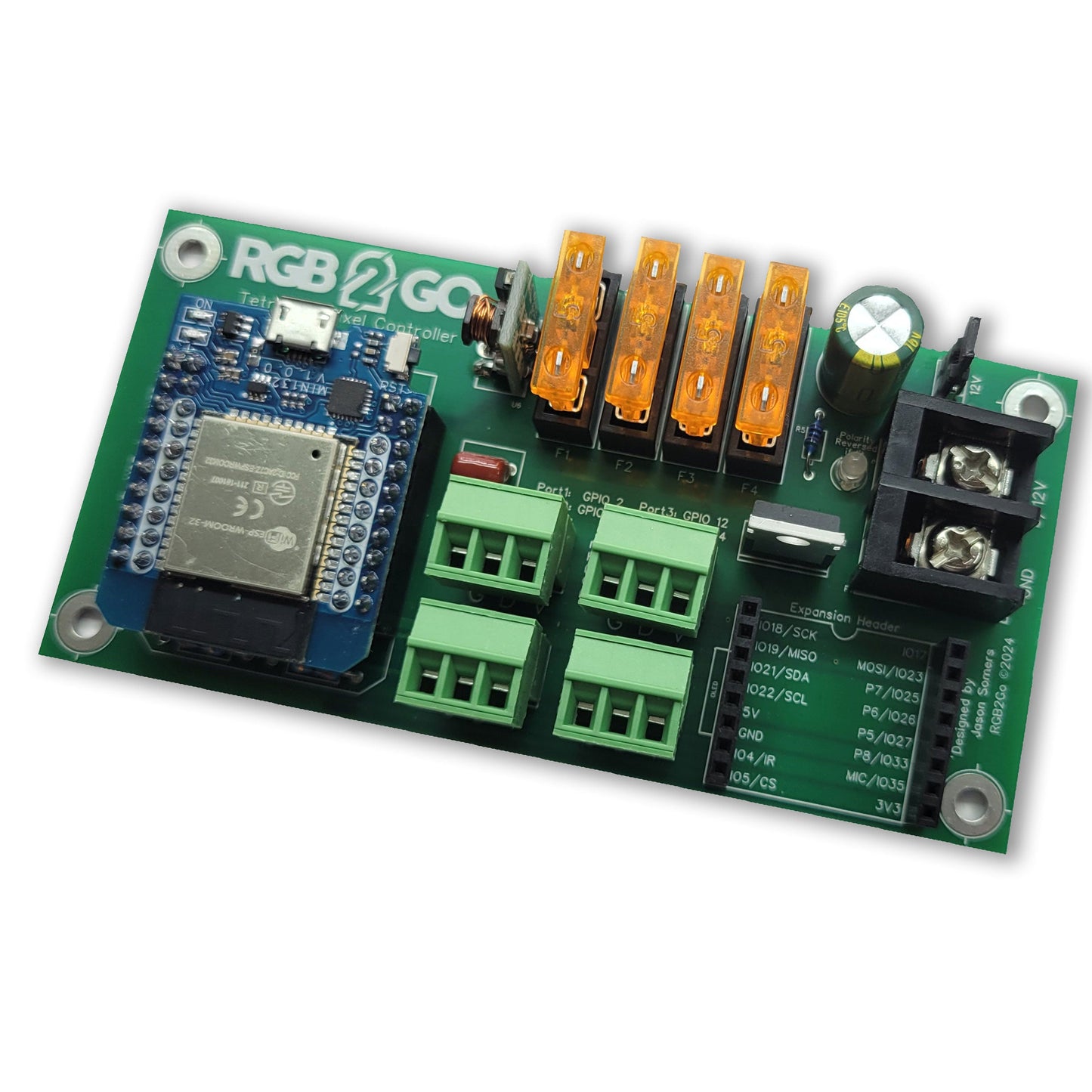

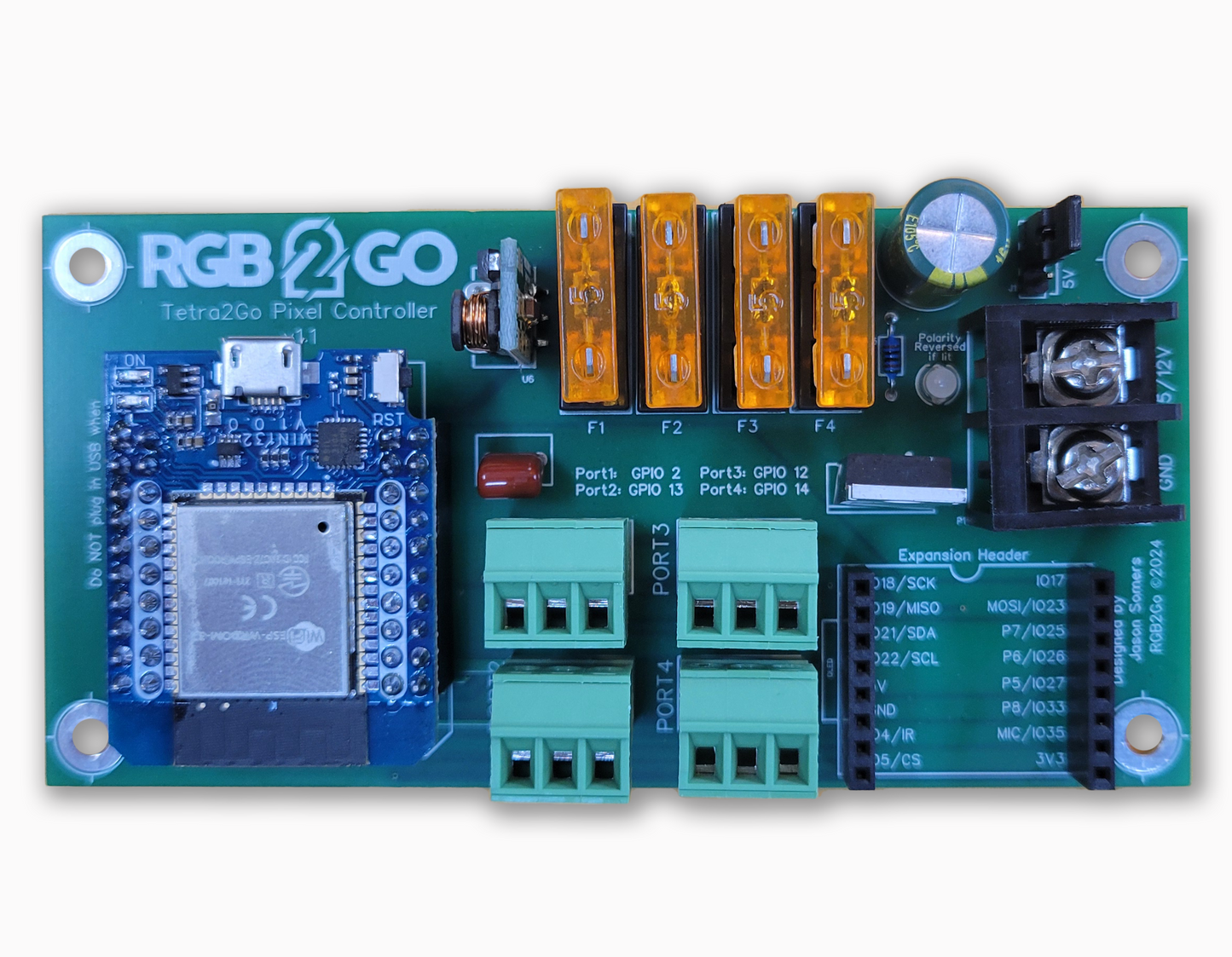

Tetra2Go 4-Port Wi-Fi Pixel Controller
Regular price
$59.00
Regular price
Sale price
$59.00
Unit price
per
Shipping calculated at checkout.
Vendor: RGB 2 Go
This item is in stock and ready to ship. Typical processing time is one business day.
Description
Description
- 4-Port Pixel Controller (upgradable to 8-Port w/ the Differential Module)
- Revision 1.1
- Wi-Fi support
- ESP32 Based

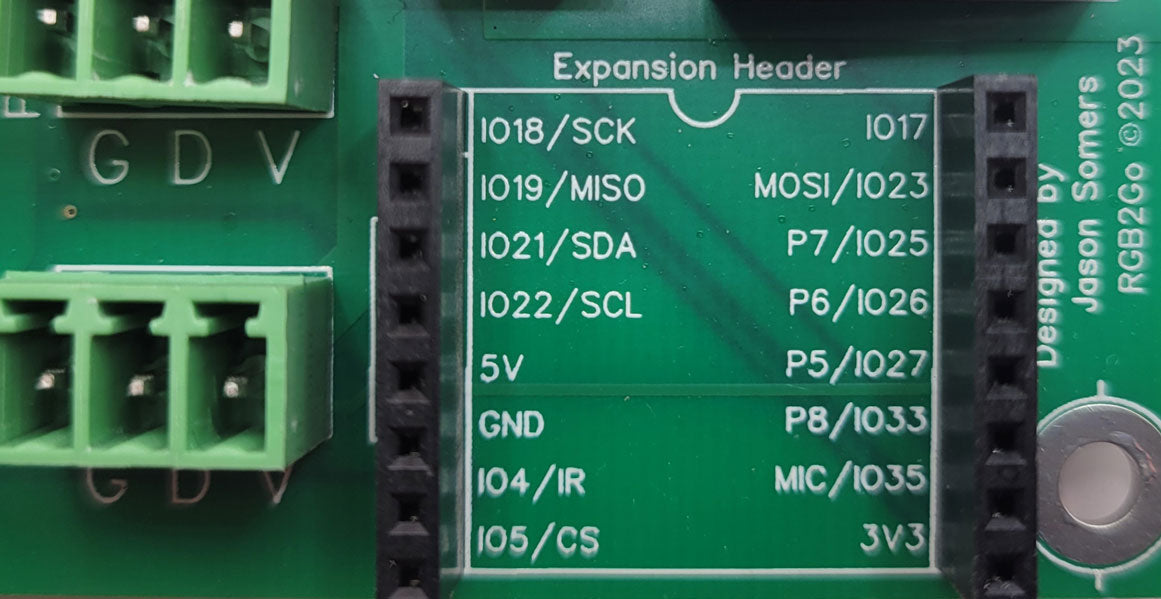

- Expansion header (Ethernet, Differential, and Audio-Reactive Modules available, sold separately)
- WLED 0.14.0 pre-installed
- XLights Compatible
- 5V Data Signal, 33 ohms
- Modular and repairable

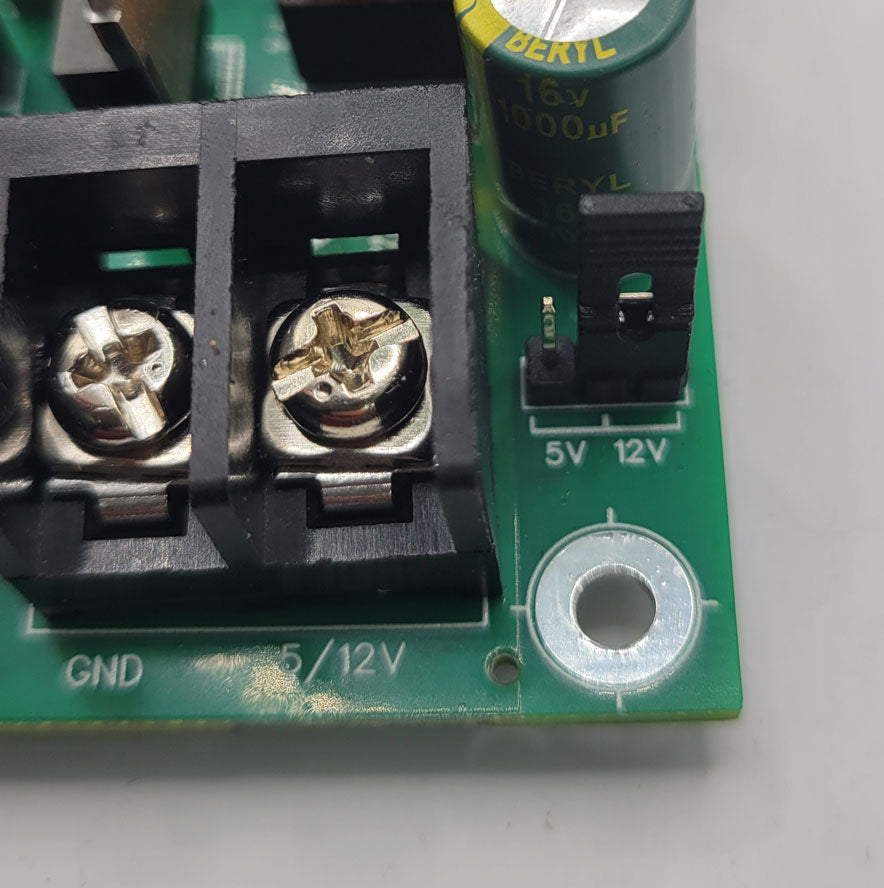

- Supports 12v & 5v pixels and strip
- Runs WLED software, pre-installed
- Supports max of 600 pixels per channel for 40fps (2400 total)
- 5A MAX per output. (20A Total)
(Over 200 LEDs per output should only exceeded only with proper voltage injection) -
Reverse Polarity Protection*
* Make sure to note that the protection circuit only safeguards the controller and not any attached LEDs. Keep in mind that if polarity is reversed, any connected LEDs may still be damaged. After connecting the DC power cable, ALWAYS try to power on the controller without any pixels first to ensure proper polarity.

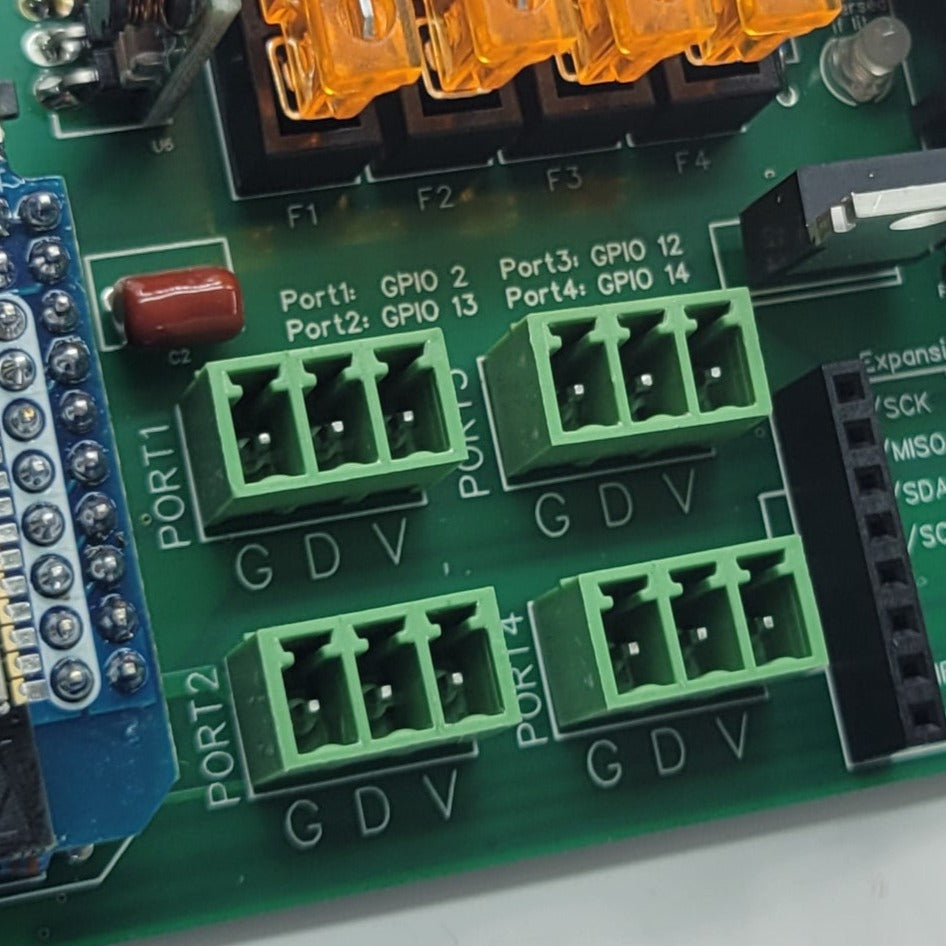

Outputs
Port1: GPIO2
Port2: GPIO13
Port3: GPIO12
Port4: GPIO14
Tech Specs
